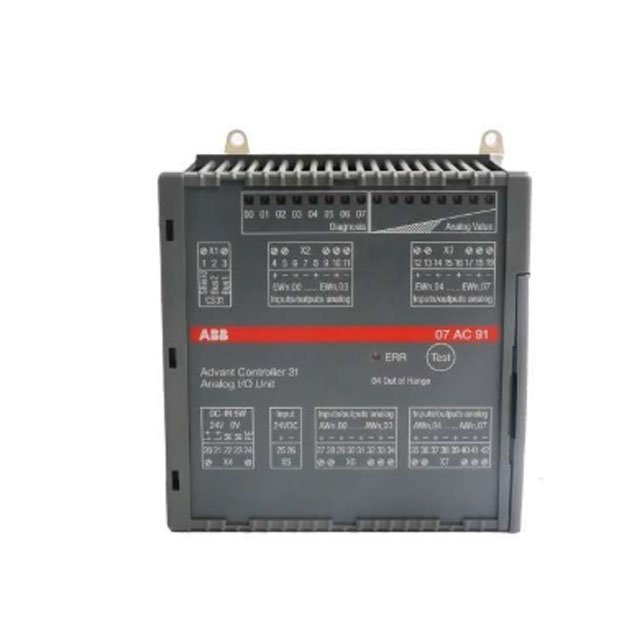

Overview of the ABB 07 AC 91 Module

The ABB 07 AC 91 serves as a versatile remote analog input/output module within the CS31 system bus network. This robust component provides industrial automation systems with 16 configurable channels, allowing for seamless integration of various analog signals. Whether your application requires high-precision 12-bit resolution or high-density 8-bit monitoring, the 07 AC 91 adapts to meet specific operational demands.

ABB designed this module to handle both voltage and current signals, making it an essential bridge between field sensors, actuators, and the central PLC. The unit operates on a standard 24 VDC supply and maintains electrical isolation for the CS31 system bus interface, ensuring signal integrity and protecting the network from external electrical noise.

Flexible Operating Modes

The 07 AC 91 offers two distinct operating modes, which users configure via internal DIL switches. This flexibility allows one hardware unit to serve multiple roles in a control architecture.

1. High-Precision “12-bit” Mode

In this mode, the module provides 16 dedicated channels split evenly:

• 8 Input Channels: Individually configurable for ±10 V or 0…20 mA with 12-bit resolution.
• 8 Output Channels: Individually configurable for ±10 V or 0…20 mA with 12-bit resolution.
  This mode is ideal for applications where accuracy is paramount, such as pressure monitoring or fine motor control.

2. High-Density “8-bit” Mode

For systems requiring more connection points with standard precision, the 8-bit mode offers:

• 16 Channels: Configurable in pairs as either inputs or outputs.
• Signal Ranges: Supports 0…10 V or 0…20 mA.
• Efficiency: This mode packs two analog values into a single word on the CS31 bus, optimizing data transmission.

Technical Specifications and Performance

The 07 AC 91 excels in demanding industrial environments. Key technical data includes:

• Rated Supply Voltage: 24 VDC (0.2 A max current consumption).
• Power Dissipation: 5 W maximum.
• Conversion Cycle: 8 ms for a full sweep of 8 inputs and 8 outputs.
• Input Resistance: > 100 kΩ for voltage; approx. 330 Ω for current.
• Output Load: Max +20 mA (source) or -10 mA (sink) for voltage outputs; 0…500 Ω burden for current outputs.
• Accuracy: Typical conversion error of 0.5% (max 1%).
• Isolation: The CS31 bus and the binary enabling input feature full electrical isolation from the rest of the module.

Advanced Diagnostics and Safety Features

ABB prioritizes system uptime by integrating comprehensive diagnostic tools directly onto the front panel of the 07 AC 91.

• LED Indicators: 17 LEDs provide real-time status updates. Eight green LEDs show channel selection and diagnosis, while another eight display the analog value status. A dedicated red LED signals error messages immediately.
• Test Button: A physical test button allows maintenance teams to cycle through diagnostic information manually.
• Self-Protecting Current Inputs: If the input current exceeds safe limits, the module automatically switches off the current input shunt. It then attempts to reactivate every second, protecting the internal circuitry from damage while ensuring the system recovers as soon as the fault clears.
• Binary Enabling Input: For added safety, the analog outputs require a binary “1” signal (24V) to activate. Without this signal, voltage outputs remain at 0V and current outputs at 0mA, preventing accidental machine movement during startup or maintenance.

Installation and Mechanical Design

The module features a compact and durable design suitable for cabinet mounting.

• Dimensions: 120 mm (W) x 140 mm (H) x 85 mm (D).
• Weight: 450 g.
• Mounting: Users can snap the unit onto a standard 15 mm DIN rail or secure it directly to a backplane using four M4 screws.
• Wiring: Removable screw-type terminal blocks simplify the wiring process and allow for quick module replacement without disconnecting individual wires. The system supports cable lengths up to 100 meters using two-core shielded cables.

Why Choose the ABB 07 AC 91?

Engineers choose the 07 AC 91 for its reliability and the “dual-mode” versatility that reduces spare parts inventory. By supporting both voltage and current signals in a single module, it simplifies the design of CS31-based automation systems. Furthermore, the inclusion of the ANAI4_20 interconnection element in the PLC software library makes scaling and measuring 4…20 mA signals straightforward for any programmer.
