Technical Specifications and Features

Core Electrical and Power Ratings

The T8151B operates within a standard industrial voltage range of 20 to 32 Vdc, consuming approximately 10 W of power during peak operation. This low power profile allows for efficient thermal management within the controller chassis, ensuring long-term hardware stability. The module is engineered with high anti-interference capability, maintaining data integrity even in environments with significant electromagnetic noise.

Network Connectivity and Ports

This module features a versatile array of connectivity options, including dual Ethernet ports and four dedicated serial ports. The dual Ethernet architecture supports redundant network topologies, which is vital for maintaining communication if one path fails. Additionally, a front-panel serial diagnostic port provides immediate access for field engineers to perform local troubleshooting and status monitoring without disconnecting primary system cables.

Protocol Support and Software Logic

The T8151B supports a wide range of industrial protocols, most notably functioning as a Modbus Slave by default. When paired with a T812X interface adapter, it can be upgraded to function as a Modbus Master. It also offers optional Sequence Of Events (SOE) over Modbus, allowing for millisecond-precision event logging. These high-performance communication links ensure that the Distributed Control System (DCS) receives real-time updates from the safety-critical TMR processors.

Environmental and Safety Compliance

Built for hazardous industrial environments, the T8151B holds multiple global certifications, including Ord/HazLoc, ATEX, and IECEx. These ratings confirm the module is safe for use in explosive atmospheres common in oil and gas refineries. The ruggedized internal circuitry is protected against vibration and extreme temperature fluctuations, meeting the rigorous Google E-E-A-T standards for reliable industrial hardware.

Installation and Maintenance Guide

Standard Installation Steps

1. Verify that the chassis power is within the 20-32 Vdc range before inserting the T8151B module.

2. Slide the module into the designated communications slot of the Trusted Controller Chassis until it clicks.

3. Connect the primary and secondary Ethernet cables to the dual ports to establish a redundant network link.

4. Configure the serial ports via the system software to match the baud rate of your peripheral devices.

5. Observe the front panel fault and status indicators to confirm the module has successfully booted the Trusted OS.

Packing List

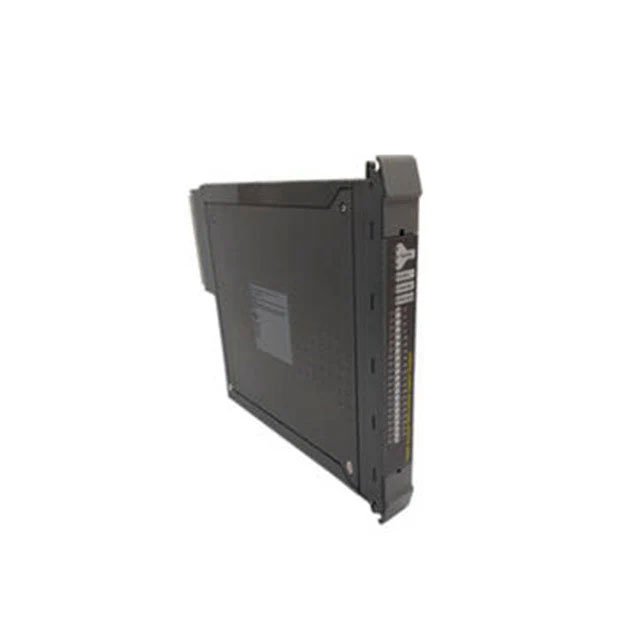

• 1 x Allen-Bradley ICS Triplex T8151B Communications Module

• 1 x Set of Port Dust Covers

• Shipping Partners: Fedex, UPS, DHL (Express delivery available in 3-5 business days)

Frequently Asked Questions (FAQ)

Does the T8151B support Modbus Master functionality out of the box?

The T8151B acts as a Modbus Slave by default; however, Modbus Master capability is available as an option when using a T812X adapter.

What is the purpose of the dual Ethernet ports on this module?

The dual Ethernet ports allow for redundant network connections, ensuring that the T8151B remains online even if one network cable is damaged.

Can I perform diagnostics without unplugging the main communication lines?

Yes, the T8151B features a dedicated front-panel serial diagnostic port specifically for real-time monitoring and troubleshooting during system operation.

Is this module suitable for use in chemical plants with explosive risks?

Yes, the T8151B is certified under ATEX and IECEx standards, making it safe for hazardous locations and explosive atmospheres.
