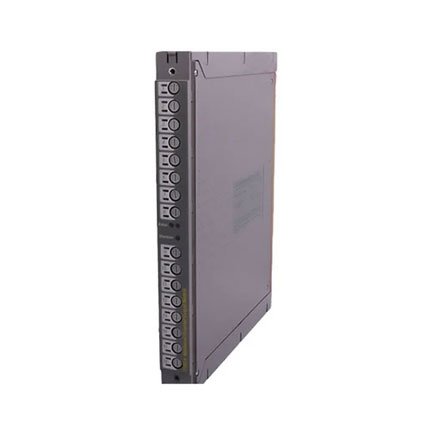

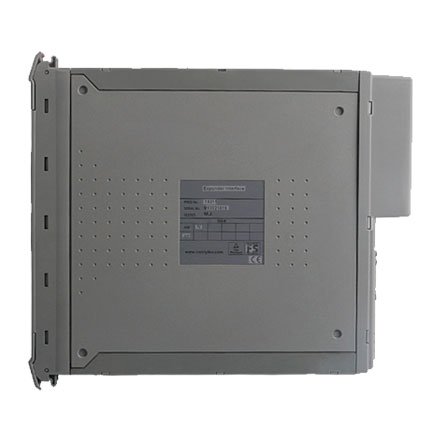

The ICS Triplex T8311 serves as a key expander interface in the Trusted TMR safety control system.

This module connects the main controller chassis and the CS300 expansion chassis for smooth data transmission.

It supports high-speed communication to maintain real-time performance in critical industrial applications.

The unit carries multiple hazardous location certifications for use in demanding industrial environments.

It works with the T8300 chassis to form a complete expansion segment of the control system.

The T8311 ensures reliable signal transfer and reduces the risk of unexpected communication interruptions.

It follows strict industrial standards to support long-term stable operation in process industries.

The T8311 operates within a voltage range of 20 to 32V dc for flexible power configuration.

It has a heat dissipation rating of 40W and a maximum load capacity of 40W during normal use.

The module uses a 50MHz clock to support fast and stable internal processing operations.

Its expander bus data rate reaches 250Mbps for high-speed bidirectional data transmission.

This interface module is specially designed to be used with the T8300 expander chassis.

It connects to the system through the expander chassis backplane as the main I/O interface.

The operating temperature range is -5°C to 60°C, suitable for most industrial working environments.

Non-operating storage temperature ranges from -25°C to 70°C for safe transport and storage.

It supports an operating humidity level of 5% to 95% RH without condensation-related issues.

Physical dimensions are 30.3 cm × 3.1 cm × 26.6 cm, fitting standard industrial rack installations.

The module holds certifications including Ord/HazLoc, ATEX and IECEx for hazardous area usage.

Install the T8311 module into the correct slot of the T8300 expander chassis carefully.

Always power off the entire chassis before inserting or removing the T8311 interface module.

Align the module with the backplane connector to avoid bending pins or damaging internal parts.

Install the T8100 controller chassis in a closed rack with doors to meet EMC compliance standards.

Keep rack doors closed during operation to ensure stable performance of all connected modules.

Use approved TC-322-02 cable assemblies for communication between system components.

Standard cable length reaches up to 15 meters, while the system supports cables up to 50 meters long.

Equip the Trusted TMR system with a T8312 adaptor and the CS300 rack with a TC-324-02 PCB.

Ground all CS300 equipment properly according to the physical installation design guidelines.

Check all cable connections and LED indicators to confirm normal module startup status.

1 × ICS Triplex T8311 Expander Interface Module

1 × Set of Mounting Screws and Hardware

1 × TC-322-02 Cable Assembly

1 × Physical Installation Manual

1 × System Compatibility Guide

Shipping methods include Fedex, UPS and DHL for global and efficient delivery service.

A1: The T8311 module is designed exclusively for use with the T8300 expander chassis.

A2: The T8311 supports an expander bus data rate of up to 250Mbps for fast communication.

A3: It holds Ord/HazLoc, ATEX and IECEx certifications for hazardous location applications.

A4: The T8311 operates reliably between -5°C and 60°C in industrial environments.

A5: It connects the Trusted TMR main chassis and the legacy CS300 I/O chassis system.

The T8311 is an essential part of the Trusted TMR system for safety and control applications.

It works with T8100 chassis, T8111 processor and other modules to build a complete control system.

This module supports migration from legacy CS300 I/O systems to modern Trusted TMR platforms.

Proof testing verifies communication integrity between main and expansion chassis regularly.

Testing procedures help maintain bit error rate within safe limits as per IEC61511 standards.

Proper testing reduces risks of dangerous residual errors or spurious trips in the control system.

The module supports live system testing with proper precautions to avoid unintended actions.

Technicians must follow test steps to check output status and ensure channel functionality.

Regular proof testing extends service life and maintains consistent performance of the module.

It is widely used in oil and gas, power generation and chemical processing safety systems.
