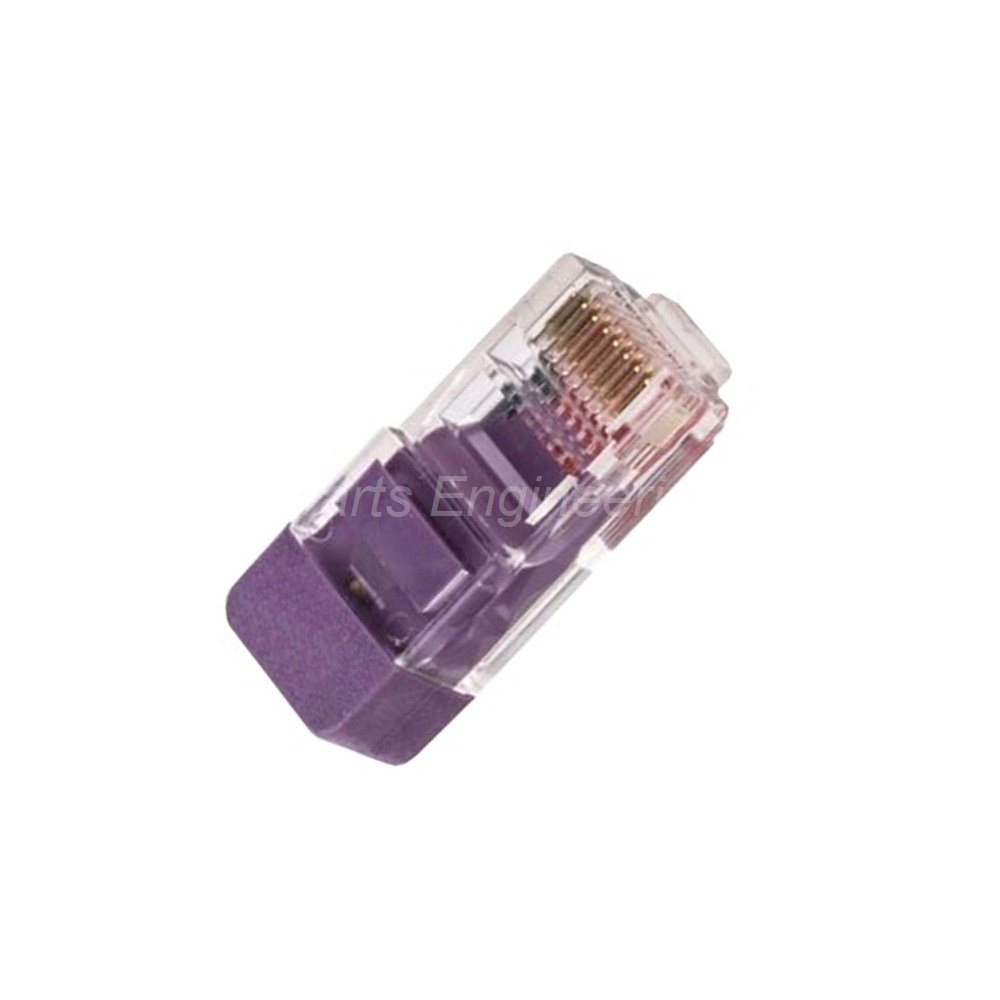

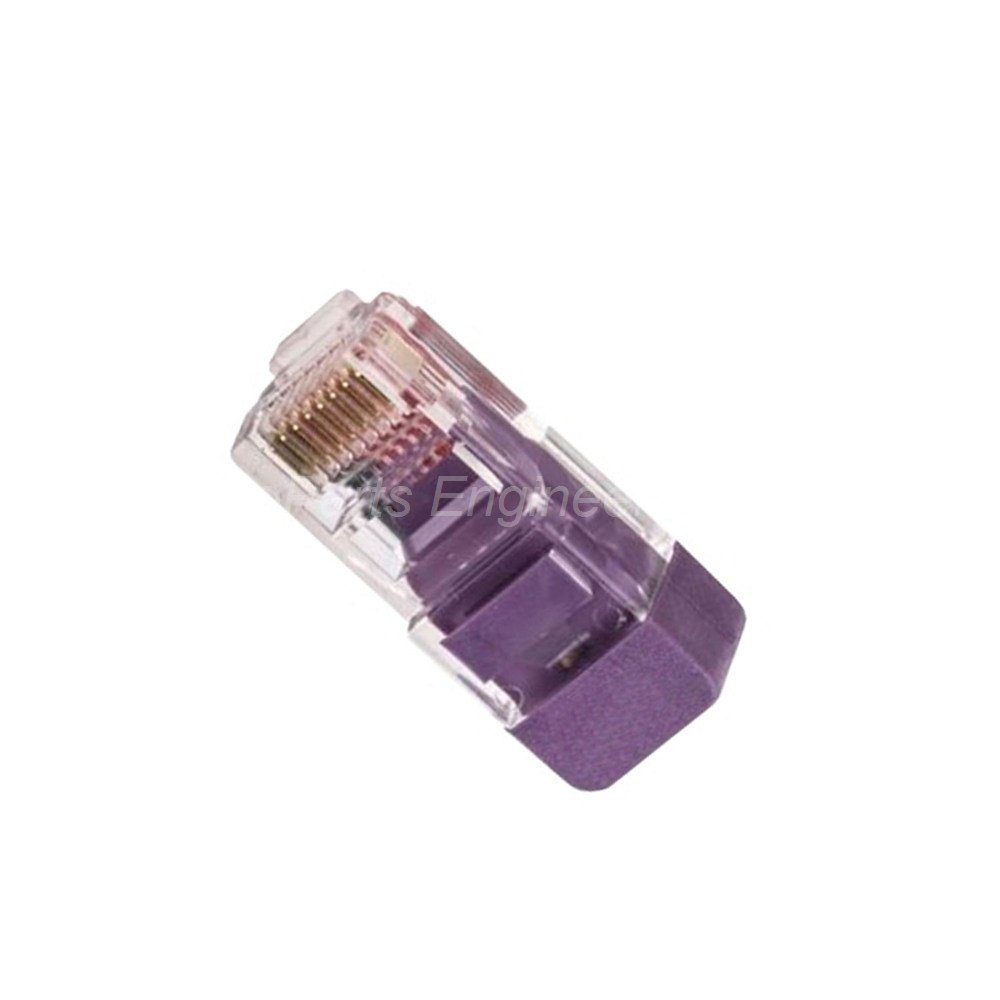

Schneider 170XTS02100 ModBus Plus Terminator for Premium Momentum Quantum
Introduction:
Schneider Electric 170XTS02100 is a dedicated ModBus Plus line terminator. It belongs to the Modicon Momentum series. This device terminates communication lines to ensure signal integrity. A properly terminated network prevents data reflection and communication errors. The 170XTS02100 works with conveyor belts, HVAC systems, and robotic arms.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Schneider Electric 170XTS02100 ModBus Plus Terminator Overview
Technical Specifications of 170XTS02100
Product Type: Functions as a ModBus Plus line terminator.
Mounting Options: Installs on a DIN rail or directly on a panel.
Power Supply: Requires 24V DC for operation.
Connection Type: Uses RJ45 connectors for ModBus Plus communication.
Enclosure Protection: Rated IP20 for dust and solid object resistance.
Operating Temperature: Works reliably from -10°C to 55°C.
Storage Temperature: Withstands -25°C to 70°C during storage.
Humidity Range: Operates in 5% to 95% non-condensing humidity.
Shock Resistance: Handles up to 50g peak shock.
Vibration Resistance: Withstands 5g RMS vibration.
Dimensions: Measures 100 mm x 100 mm x 40 mm.
Compatibility: Works with Modicon Premium, Momentum, and Quantum platforms.
Installation and Compatibility Guide
Mount the 170XTS02100 on a standard 35 mm DIN rail. You can also screw it directly onto a panel. Connect the device to your ModBus Plus network using RJ45 cables. Place the terminator at both ends of your ModBus Plus trunk cable. This placement prevents signal reflections that cause data errors. The device draws its 24V DC power from the network or an external supply. Use this terminator with Modicon Premium, Momentum, or Quantum controllers. The 170XTS02100 ensures stable communication for up to 32 devices on one network.
Package Contents
One Schneider Electric 170XTS02100 ModBus Plus line terminator.
No mounting hardware or cables are included.
Frequently Asked Questions (FAQ)
Q: Why do I need the 170XTS02100 for my ModBus Plus network?
A: You need terminators at both cable ends to stop signal reflections. Without them, your network may have intermittent communication failures.
Q: Can I use the 170XTS02100 with other Schneider PLC series?
A: Yes, it works with Modicon Premium, Momentum, and Quantum platforms. It does not work with M340 or M580 series.
Q: How many 170XTS02100 terminators does one network need?
A: You need exactly two terminators per network segment. Place one at each physical end of the trunk cable.
Q: What happens if I do not install the terminator?
A: Your ModBus Plus network may experience data corruption, slow performance, or complete communication loss.
Q: Is the 170XTS02100 compatible with standard Ethernet cables?
A: No, it uses RJ45 connectors but for ModBus Plus protocol. Do not connect it to standard Ethernet networks.
