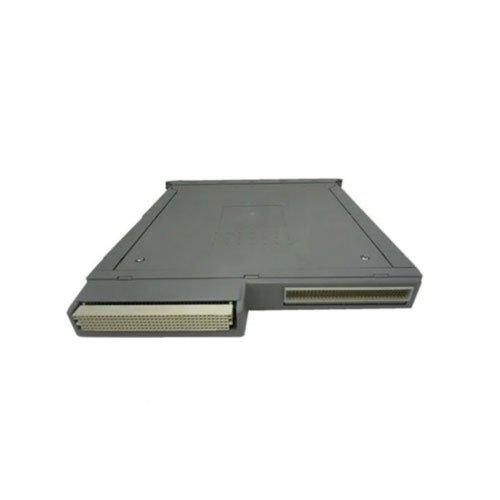

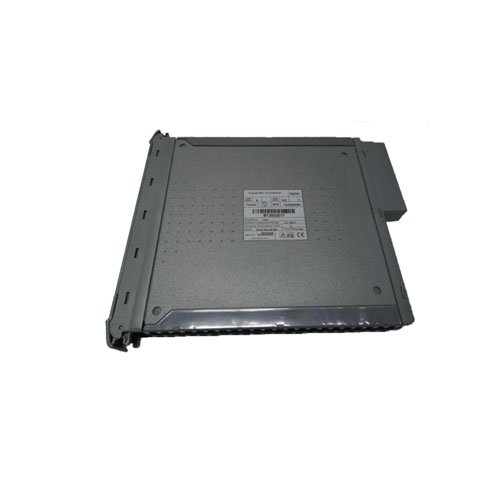

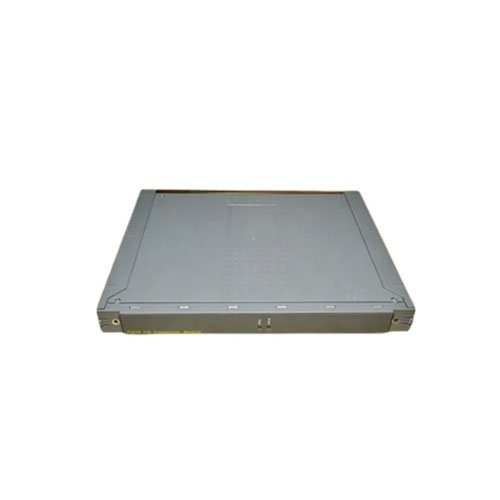

ICS Triplex T8310 Expander Processor Product Description
Introduction:
The ICS Triplex T8310 is an Expander Processor with 20-32Vdc supply (45W), 250Mbps data transfer, Ord/HazLoc/ATEX/IECEx certifications, HIFT TMR architecture, and dual redundant 24Vdc power, designed for reliable expander-controller interface.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Manufacturer: Allen-Bradley
Series: Trusted TMR Series
Part Number: T8310
Type: Expander Processor
Condition: In Stock
Origin: U.S.A
Shipping Port: Xiamen
Warranty: one year
Notice: For real-time prices and inventory, please click the button below to contact us.
Description
Inquiry
The ICS Triplex T8310 is a high-performance Expander Processor manufactured by ICS Triplex, engineered to serve as a critical interface between expander and controller chassis in industrial control systems. It adopts a fault-tolerant HIFT TMR (Triple Modular Redundant) architecture, ensuring high reliability and fault tolerance for critical industrial applications such as oil & gas, petrochemical, and power generation. The T8310 resides in the two leftmost processor slots of the expander chassis and operates with a supply rating of 20-32 Vdc and 45W power consumption, delivering stable performance in harsh industrial environments. It supports comprehensive diagnostics, standby module configuration, and high-speed data transfer, making it an essential component for seamless system communication and control.
Technical Specifications
Power Supply Specifications
The ICS Triplex T8310 is powered by dual redundant +24V DC from the expander chassis backplane, ensuring uninterrupted operation even if one power source fails. Its supply rating ranges from 20 Vdc to 32 Vdc, with a power consumption of 45 W, providing sufficient power to support its interface and communication functions. This dual redundant power design enhances system reliability, preventing downtime caused by power supply failures in critical industrial settings.
Core Function and Architecture
The T8310 Expander Processor’s core function is to provide a reliable interface between the expander chassis and the controller chassis. It utilizes a fault-tolerant HIFT TMR (Triple Modular Redundant) architecture, which means it features three independent processing channels that work simultaneously to ensure fault tolerance. This architecture allows the T8310 to continue operating even if one channel fails, meeting the high safety and reliability requirements of critical industrial control systems.
The processor resides exclusively in the two leftmost processor slots of the expander chassis, ensuring proper integration with the expander system and optimal signal transmission. Its design is tailored to facilitate seamless communication between the expander and controller, enabling efficient data exchange and system coordination.
Communication and Data Transfer
The T8310 supports high-speed data transfer with a rate of 250Mbps, ensuring fast and efficient communication between the expander and controller chassis. It connects to expander interface modules via a TC-301 hot link cable and a T8312 expander interface adapter, forming a stable and reliable communication link. The TC-301 communications cable is specifically designed to connect controller and expander assemblies, ensuring secure and interference-free data transmission.
The processor features dedicated TxRx LEDs to indicate communication activity, providing real-time visibility into data transmission status. This allows operators to quickly identify communication issues and take corrective action, minimizing downtime.
Diagnostics and Fault Identification
The ICS Triplex T8310 is equipped with comprehensive diagnostics capabilities that enable rapid fault identification and troubleshooting. These diagnostics monitor all key components of the processor, including power supply, communication channels, and processing modules, providing detailed fault information to operators. This feature reduces the time required to diagnose and resolve issues, ensuring minimal system downtime and maintaining operational efficiency.
Standby Support and Repair Strategies
The T8310 supports both automatic and manual repair strategies with a standby module configuration. This means a standby T8310 module can be configured to take over operation automatically if the active module fails, ensuring continuous system operation. Operators can also manually initiate repair or module replacement, providing flexibility in maintenance and reducing the impact of component failures on system performance.
LED Indicators
The T8310 is equipped with multiple LED indicators to provide real-time status information, making it easy for operators to monitor the processor’s performance. Three LEDs indicate slice health: green for healthy operation and red for a fault. An Active/Standby LED is green when the module is in active mode and steady green when in standby mode.
Three TxRx LEDs indicate communication activity: green for receive, red for transmit, amber for both receive and transmit, and off for no activity or communication failure. These indicators provide clear visibility into the processor’s status, enabling quick monitoring and troubleshooting.
Certifications
The ICS TriplexT8310 holds multiple international certifications to ensure compliance with global safety and quality standards. These certifications include Ord, HazLoc, ATEX, and IECEx, making it suitable for use in hazardous areas and confirming its adherence to strict industrial safety requirements. This ensures the T8310 can be safely used in high-risk industrial environments where safety and reliability are paramount.
Physical and Other Specifications
The T8310 has a robust design tailored for industrial use, with a gross weight of 1.33kg (2.93lbs), making it easy to handle and install in the expander chassis. Its dimensions are optimized to fit the two leftmost processor slots of the expander chassis, ensuring a secure and proper fit. The processor is designed for easy integration with existing expander and controller systems, supporting seamless compatibility with ICS Triplex’s industrial control product lineup.
Installation Guide
Before installing the ICS Triplex T8310 Expander Processor, complete all necessary preparation steps to ensure safe and proper installation. First, ensure the expander chassis is powered off and disconnected from all power sources to prevent electrical shock or component damage. Check the expander chassis to confirm the two leftmost processor slots are available and free of dust or debris.
Prepare the required tools, including a screwdriver, anti-static wristband, and cable cutter, to facilitate a smooth installation process. Put on the anti-static wristband to protect the T8310 from electrostatic discharge, which can damage sensitive electronic components. Carefully remove the T8310 from its anti-static packaging and align it with the two leftmost processor slots of the expander chassis.
Gently insert the T8310 into the slots until it is firmly seated, ensuring the connector at the bottom of the processor fully engages with the expander chassis backplane. Secure the processor to the chassis using the provided mounting screws, ensuring the connection is tight to avoid vibration-related issues. Connect the TC-301 hot link cable and T8312 expander interface adapter to the designated ports on the T8310 and expander interface modules, ensuring the connections are secure.
After installation, double-check all connections to ensure they are correct and secure. Power on the expander chassis and monitor the T8310’s LED indicators to confirm healthy operation. The slice health LEDs should be green, the Active/Standby LED should indicate the correct mode, and the TxRx LEDs should show appropriate communication activity. Run the diagnostic function to verify the processor is working properly and communicating with the controller chassis.
Packing List
The packing list for the ICS Triplex T8310 Expander Processor includes the following items:
- 1 × ICS TriplexT8310 Expander Processor
- 1 × Installation Manual (English version)
- 1 × TC-301 Communications Cable
- 1 × T8312 Expander Interface Adapter
- Mounting Screws (4 pieces)
- Anti-static Packaging Bag
- Product Datasheet
Shipping is available via FedEx, UPS, or DHL, ensuring fast and reliable delivery to your location.
Frequently Asked Questions (FAQs)
1. Where is the ICS Triplex T8310 Expander Processor installed?
The T8310 resides in the two leftmost processor slots of the expander chassis, which is its designated installation position for optimal integration and communication.
2. What is the data transfer rate of the T8310 Expander Processor?
The T8310 operates at a high data transfer rate of 250Mbps, ensuring fast and efficient communication between the expander and controller chassis.
3. How is the T8310 powered, and what makes its power supply reliable?
The T8310 is powered by dual redundant +24V DC from the expander chassis backplane. This dual redundant design ensures uninterrupted operation even if one power source fails, enhancing reliability.
4. What do the LED indicators on the T8310 signify?
Three LEDs indicate slice health (green = healthy, red = fault); an Active/Standby LED shows mode (green = active, steady green = standby); three TxRx LEDs indicate communication (green = receive, red = transmit, amber = both, off = no activity/failure).
5. What repair strategies does the T8310 support, and how do they work?
The T8310 supports both automatic and manual repair strategies with standby module configuration. A standby module can take over automatically if the active one fails, and operators can also manually initiate repairs or replacements.
