Comprehensive Machinery Protection with the 2300/20 Kit

The Bently Nevada 2300/20_KIT-001-00 provides a versatile and cost-effective entry into continuous condition monitoring. This kit serves essential machinery such as pumps, fans, and small compressors that require reliable vibration protection without the complexity of larger rack-based systems. By combining high-performance sensors with a sophisticated monitor, this package ensures operators receive immediate alerts regarding mechanical health.

This specific configuration (001) includes the primary 2300/20 monitor, two high-quality accelerometers, necessary cabling, and a protective housing kit. It represents a “ready-to-deploy” solution for industrial facilities aiming to reduce unplanned downtime and extend asset life.

What’s Included in the KIT-001-00?

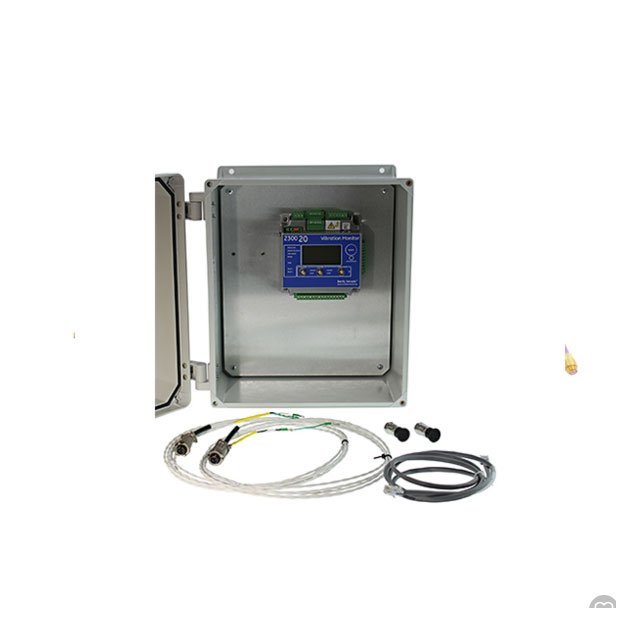

Bently Nevada simplifies procurement by bundling the core components needed for a dual-channel monitoring setup:

• 1x 2300/20 Monitor: The central processing unit for signal analysis and alarm triggering.
• 2x AM3100T2-Z2 Accelerometer Sensors: Robust sensors designed to capture precise vibration data.
• 2x 17 ft. (5.2 m) Cables (9571): High-integrity signal cables for sensor-to-monitor connection.
• 1x 6 ft. (1.8 m) Shielded Ethernet Cable: Facilitates high-speed communication with local networks.
• 1x Housing Kit (105M6193): Depending on your selection, this provides either a fiberglass enclosure for standard areas or a stainless steel version for hazardous environments.

Advanced Technical Capabilities

The 2300/20 monitor stands out due to its high-resolution data acquisition and flexible input options. It utilizes independent 24-bit ADCs on all input channels to maintain signal integrity and accuracy.

Input Versatility

The system supports multiple transducer types, including ICP accelerometers, Velomitors, and Proximitor sensors.

• Frequency Range: Configurable bandpass filters from 0.2 Hz to 20 kHz.
• Scale Factor: Adjustable from 5 to 1000 mV/g (for acceleration) or mV/in/s (for velocity).
• Speed Input: Supports Keyphasor transducers for speed measurements up to 120,000 RPM, allowing for phase-related vibration analysis.

Output and Interface Options

The 2300/20 monitor provides several ways to interface with external control systems and diagnostic tools:

• Buffered Outputs: Three BNC connectors (2 Vibration, 1 Speed) allow technicians to connect portable analyzers for deep-dive diagnostics without interrupting the monitor’s operation.
• Relay Outputs: Two SPDT dry-contact relays provide physical alarm and danger signals to local control panels or PLC systems.
• 4-20mA Outputs: Two proportional analog outputs integrate easily into existing SCADA or DCS frameworks.
• Ethernet Communication: Supports 10Base-T/100Base-TX for seamless integration with Bently Nevada’s System 1 software.

Data Management and Event Capturing

One of the most powerful features of the 2300/20 is its ability to store trend and event data. In the event of a machine trip or alarm, the monitor captures pre-event and post-event data. This “black box” functionality allows engineers to reconstruct the seconds leading up to a failure.

• Trend Intervals: Captures data at intervals as short as 100 milliseconds during events.
• Internal Storage: The monitor can store at least five alarm data captures even during network disruptions, ensuring critical data remains safe until the connection to System 1 restores.

Mechanical and Environmental Durability

Bently Nevada builds this kit for the rigors of the plant floor. The monitor itself operates in temperatures ranging from -30°C to +65°C. The compact physical footprint (127 mm x 127 mm) allows for DIN rail or panel mounting, making it ideal for space-constrained enclosures. The kit’s housing provides an extra layer of defense against dust, moisture, and chemical exposure.

Why Choose the 2300/20 Condition Monitoring Kit?

This kit bridges the gap between manual walk-around programs and expensive, high-channel-count protection systems. It delivers the same “Bently Nevada Gold Standard” reliability in a package sized for balance-of-plant equipment. By choosing the 2300/20_KIT-001-00, you invest in a scalable, high-precision system that protects your most vital mechanical assets 24/7.
