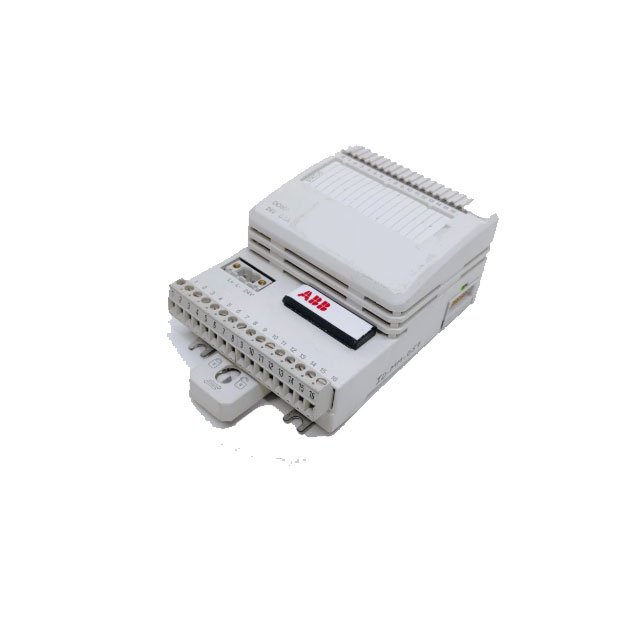

Introduction to the ABB DO801 S800L Module

The ABB DO801 (Article Number: 3BSE020510R1) stands as a cornerstone of the S800L I/O family, providing high-density digital output capabilities for modern industrial automation. This 16-channel module handles 24 V DC signals with a current-sourcing architecture, making it ideal for driving solenoids, relays, and actuators.

Engineers choose the S800L series for its modularity and compact design. The DO801 specifically offers a space-saving solution without compromising on the ruggedness required for harsh industrial environments. Each channel integrates advanced protection and diagnostic features, ensuring your control system maintains peak performance.

Key Technical Specifications

The DO801 module delivers precise control through the following parameters:

• Number of Channels: 16 (Current Sourcing)
• Rated Voltage: 24 V DC (Operational range: 12 to 32 V DC)
• Output Current: 0.5 A maximum continuous per channel
• Isolation: Groupwise isolated from ground
• Power Dissipation: Typically 2.1 W
• Modulebus Consumption: 80 mA (+5 V)
• Dimensions: 86.1 mm (W) x 110 mm (H) x 58.5 mm (D)
• Weight: 0.24 kg (0.53 lbs)

Advanced Protection and Safety Features

The ABB DO801 excels in protecting both the module and the connected field equipment. Each of the 16 channels features a high-side driver that includes:

1. Short-Circuit Protection: The module guards against faults to ground and 30 V surges, preventing hardware damage during wiring errors or equipment failure.
2. Thermal Management: Built-in over-temperature protection shuts down channels if they exceed safe thermal limits.
3. Inductive Load Suppression: Integrated components suppress voltage spikes from inductive loads, which extends the lifespan of the module’s internal circuitry.
4. OSP (Output Set as Predetermined): This critical safety function allows the module to set outputs to a specific, safe state if communication with the controller fails. This prevents unpredictable machinery behavior during network disruptions.

Diagnostic Indicators and Maintenance

ABB prioritizes ease of maintenance through a clear visual diagnostic system. The front panel features a series of high-visibility LEDs:

• S (Status) LED: Indicates the overall health of the module, including error and warning states.
• Channel LEDs (1-16): Provide immediate feedback on the state of each individual output.
• Optical Isolation: An optical barrier separates the internal logic from the process side, protecting the Modulebus from field-side electrical interference.

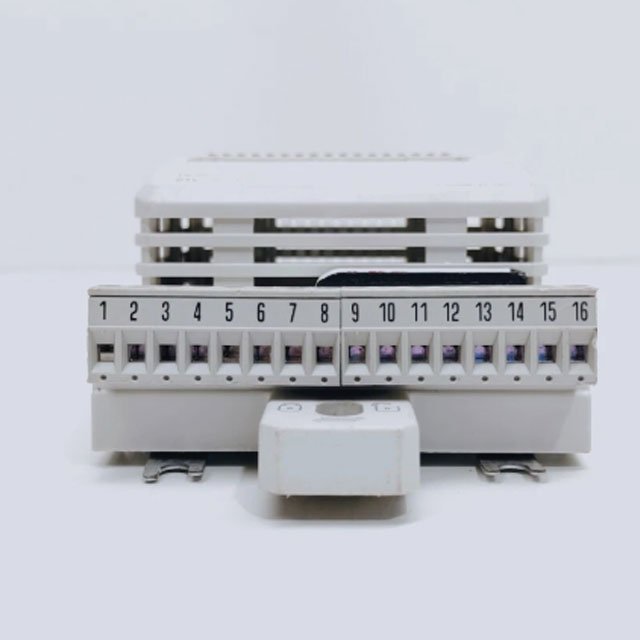

The module utilizes detachable connectors, allowing technicians to replace units quickly without disturbing the field wiring. It supports solid and stranded wires ranging from 30 to 12 AWG, providing flexibility for various installation standards.

Certified for Harsh and Marine Environments

The DO801 is not just for standard factory floors; it carries extensive certifications for specialized industries.

• Marine Excellence: With approvals from ABS, BV, DNV, and LR, this module is a trusted choice for offshore platforms and maritime vessels.
• Hazardous Locations: The unit complies with ATEX Zone 2 and C1 Div 2 (cULus) requirements, permitting installation in areas where explosive gases may be present.
• Corrosion Resistance: It meets ISA-S71.04 G3 standards, ensuring long-term reliability in environments with high concentrations of corrosive gases.
• Temperature Range: The module operates effectively from 0 to +55 °C, making it suitable for diverse global climates.

Why Choose the ABB DO801?

The ABB DO801 3BSE020510R1 provides a perfect balance of density, safety, and durability. Its current-limiting capabilities and OSP functionality make it a superior choice for critical infrastructure. By integrating this module into your S800L I/O system, you benefit from ABB’s decades of expertise in power and automation technologies. Whether you are upgrading an existing DCS or building a new control cabinet, the DO801 ensures your digital outputs remain stable and protected.
