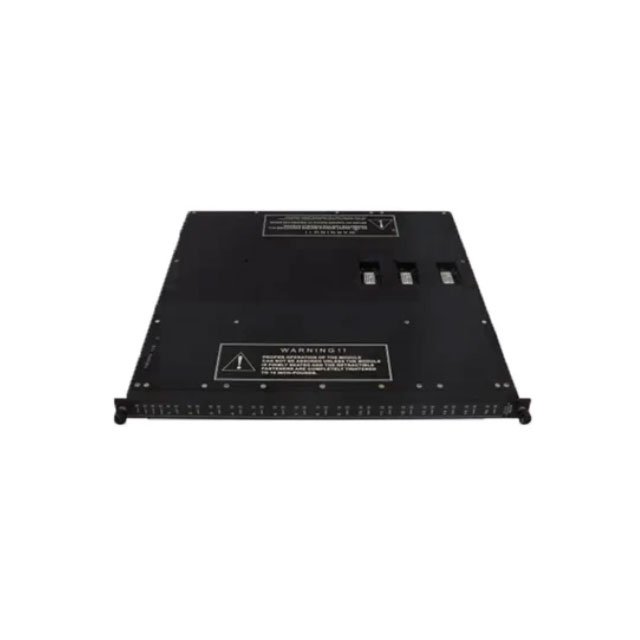

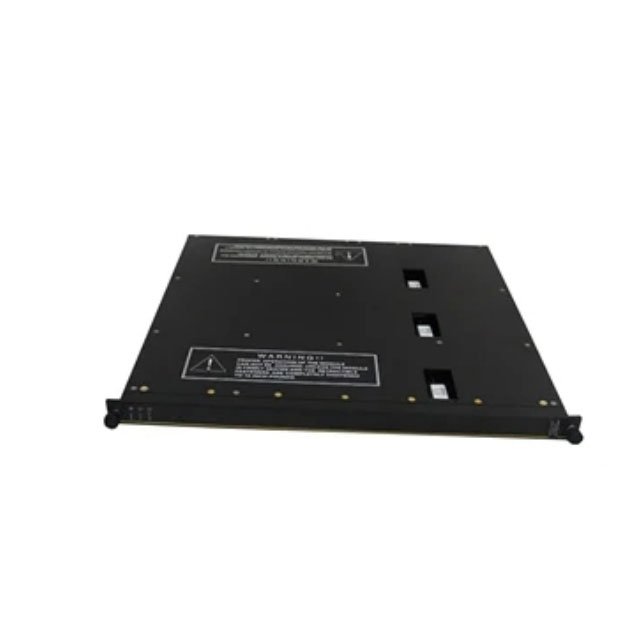

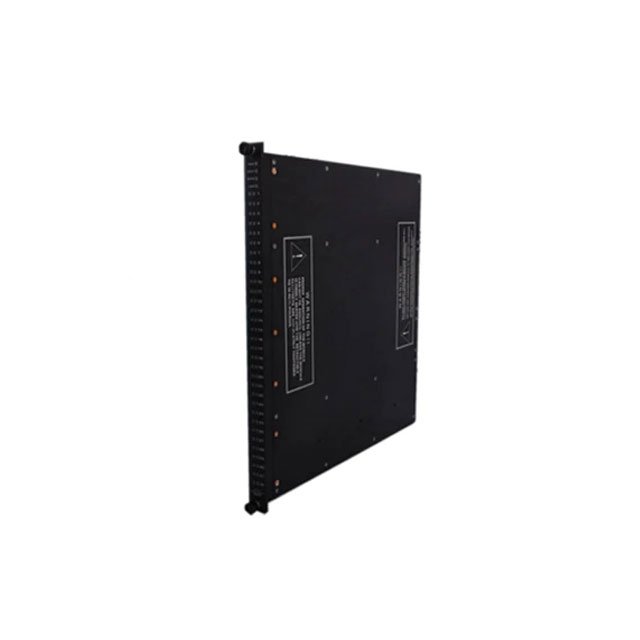

Optimizing Safety and Cost with the Triconex 3664 Module

The Triconex 3664 Dual Digital Output (DDO) module serves as a critical component within the Triconex safety instrumented system (SIS) architecture. It delivers a strategic balance between high-level safety and economic efficiency for modern industrial plants. Specifically engineered for 24 VDC environments, the 3664 module provides 32 commoned output signals. This module excels in “de-energize-to-trip” control programs, where maintaining the integrity of the safety loop remains the highest priority.

By choosing the 3664, engineers can implement robust safety-critical control without the higher costs associated with fully quadruplicated TMR (Triple Modular Redundant) modules. This makes it a preferred choice for secondary safety layers or systems where high availability is important, but budget constraints require a more optimized hardware selection.

Advanced 2-out-of-3 Voting Logic and Redundancy

The internal architecture of the Triconex 3664 sets it apart from standard industrial digital outputs. The module receives output signals from the main processors through a dedicated parallel or series path. Once it receives these signals, the module applies a rigorous 2-out-of-3 (2oo3) voting process individually to each switch. This hardware-based voting ensures that the final output signal sent to the field termination accurately reflects the majority decision of the control logic.

While Triconex TMR modules provide multiple redundancy for all signal paths, the dual circuitry in the 3664 provides exactly enough redundancy to guarantee safe operation. This architecture ensures that even if one internal component fails, the module can still execute its safety function correctly, preventing unnecessary process shutdowns or dangerous failures.

Technical Specifications and Electrical Performance

The 3664 module handles demanding electrical loads with high precision. Its design accommodates the rigorous requirements of heavy industrial machinery and process control.

Intelligent Diagnostics and Fault Detection

Maintenance teams rely on the 3664 for its proactive diagnostic capabilities. The module features an integrated voltage-loopback circuit that continuously monitors the health of the system. This circuit verifies the operation of each output switch independently, regardless of whether a field load is currently connected. This feature allows the system to identify “latent faults”—hidden failures that might otherwise remain undetected until a safety demand occurs.

If the detected field voltage fails to match the commanded state of the output point, the module immediately activates the LOAD/FUSE alarm indicator. Furthermore, the module performs ongoing self-diagnostics on every internal channel. Any diagnostic failure triggers the “Fault” indicator on the front panel, which subsequently activates the chassis alarm signal. While the 3664 operates properly in the presence of most single faults, it provides clear alerts for “stuck-OFF” conditions, allowing technicians to intervene before a second fault compromises the system.

Seamless Installation and Lifecycle Management

The Triconex 3664 simplifies maintenance through several user-centric features designed for high-uptime environments. The module supports hot-spare capability, which allows technicians to replace a faulty module online without interrupting the process. This “plug-and-play” maintenance ensures that the safety system remains active at all times.

To prevent human error during installation, each module includes mechanical keying. This physical safeguard prevents the insertion of the 3664 into a slot configured for a different module type. The 3664 requires a separate External Termination Panel (ETP) with a cable interface to the Tricon backplane. Because these digital outputs source current directly to field devices, users must wire field power to each output point on the field termination panel.

Primary Application Scenarios in Industrial Safety

The 3664 module thrives in industries such as Oil & Gas, Chemical Processing, and Power Generation. It serves as a reliable driver for critical field devices, including:

• Emergency Shutdown (ESD) Systems: Controlling solenoid valves that isolate fuel or chemical lines during an emergency.
• Fire and Gas Systems: Activating visual and audible alarms across a facility when sensors detect a hazard.
• Interlock Logic: Managing motor starters and relays to ensure machinery operates only under safe conditions.
• De-energize-to-trip Loops: Providing a fail-safe path for systems that must return to a neutral state upon loss of power or signal.

By integrating the Triconex 3664 into your control cabinet, you ensure a high level of safety integrity while maintaining a cost-effective hardware footprint. Its combination of 2oo3 voting, comprehensive diagnostics, and hot-swap capability makes it a cornerstone of modern safety engineering.
