Product Overview

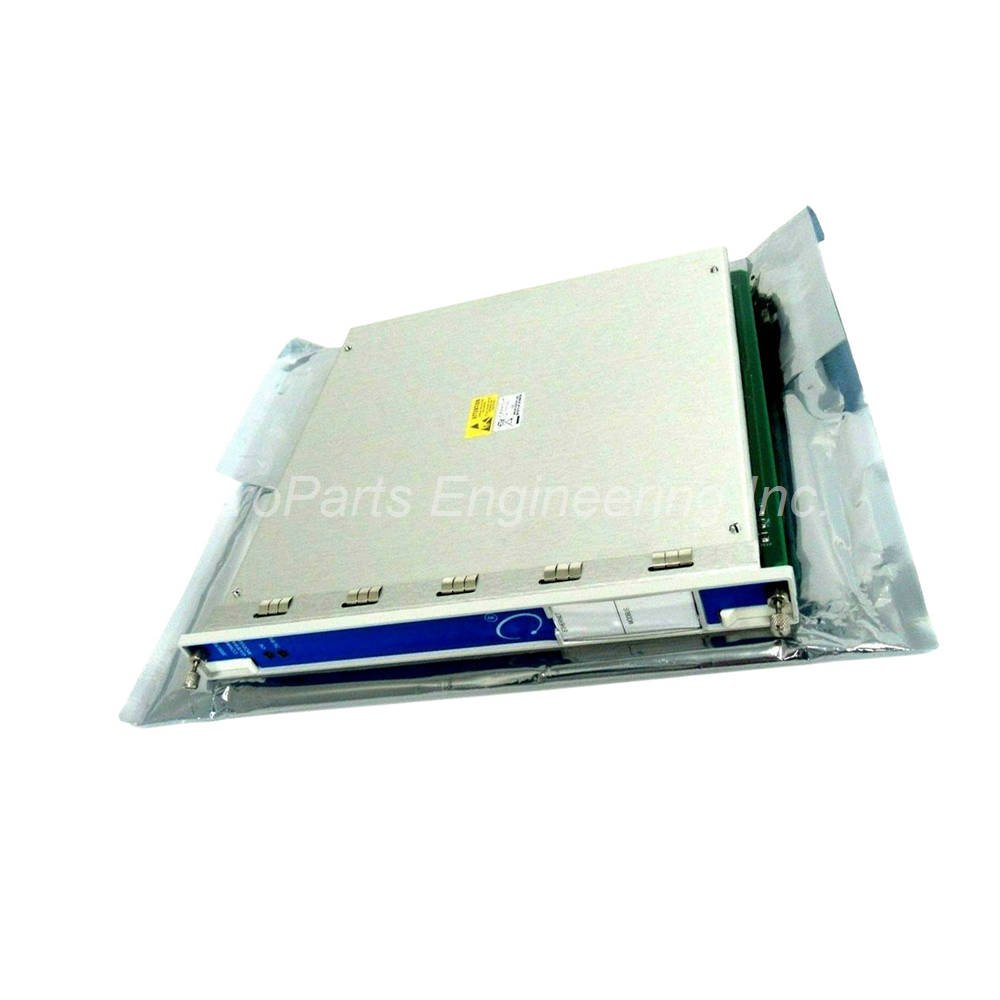

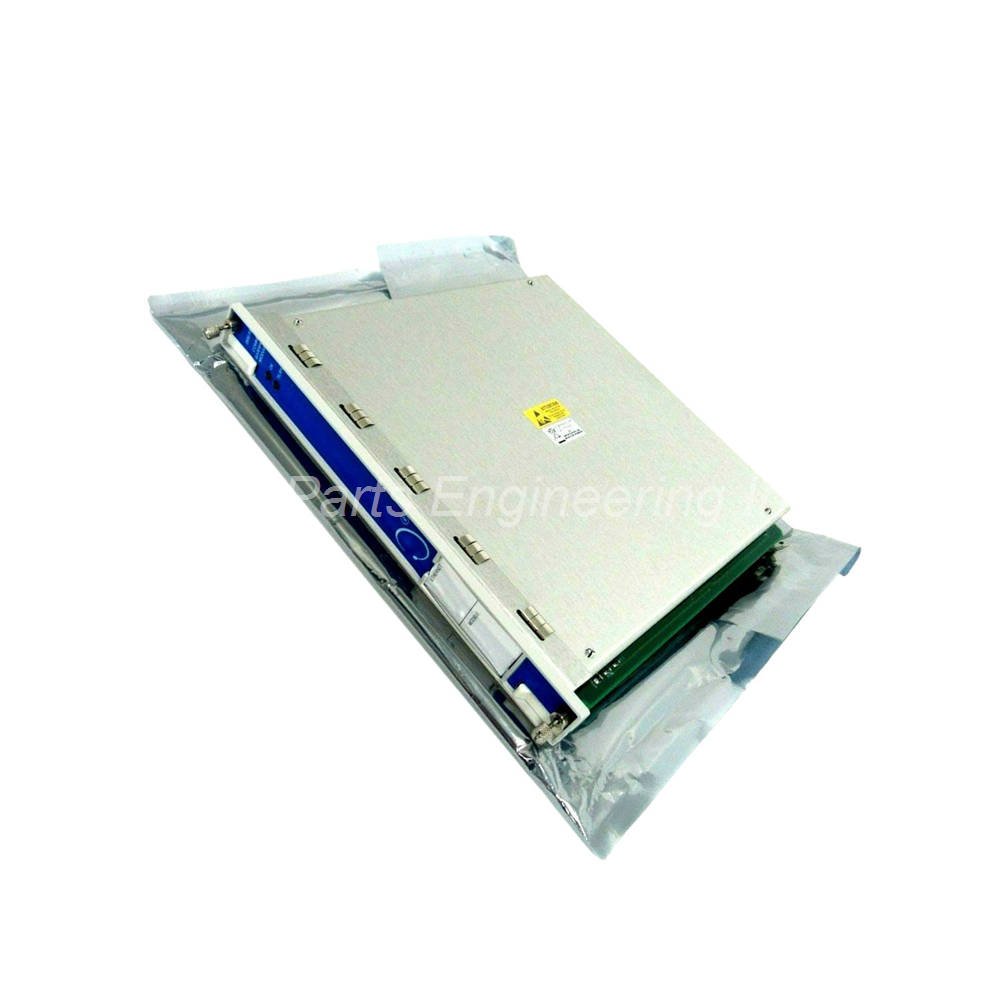

The Bently Nevada 3500/92-04-01-00 136188-02 is an Ethernet/RS485 Modbus I/O module. This module works as part of the 3500/92 Communication Gateway system. It fits into one full-height rear slot of the 3500 rack. The 3500/92-04-01-00 enables data exchange between the 3500 rack and external systems. You can use it with Modbus RTU or Modbus TCP protocols. This module is made in the U.S.A.

Technical Specifications

The 3500/92-04-01-00 136188-02 measures 241 mm x 24.4 mm x 99.1 mm. Its weight is only 0.44 kg. Power consumption depends on your I/O configuration. With Modbus RS232/RS422, it uses 5.0 watts typical. With Modbus RS485, it uses 5.6 watts typical.

The 3500/92-04-01-00 collects data through a high speed internal network. This data includes current measured values with time stamps. It also gathers module statuses and current alarm statuses. The exact data types depend on each module type. Channel configuration also affects returned data. The update time does not exceed 1 second for all rack modules.

Communication Protocols

The 3500/92-04-01-00 136188-02 supports several industrial protocols:

• BNC Host Protocol: For use with 3500 Configuration Software and 3500 Data Acquisition Software over Ethernet TCP/IP

• Modbus: Based on AEG Modicon PI-MBUS-300 Reference Manual, using RTU transmission mode

• Ethernet: 10 Mbps link conforming to IEEE802.3

• Protocol Stack: Ethernet TCP/IP frame and Modbus/TCP

• Connection: RJ-45 connector for 10BASE-T Ethernet cabling

Front Panel Indicators

The 3500/92-04-01-00 has two LED indicators:

• OK LED: Shows when the 3500/92-04-01-00 136188-02 is operating properly

• TX/RX LED: Indicates communication with other modules in the 3500 rack

Environmental Limits

The 3500/92-04-01-00 136188-02 operates in demanding conditions:

• Operating Temperature: -30°C to +65°C (-22°F to +149°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Humidity: 95%, non-condensing

Installation Guidelines

Power down the 3500 rack before installing the 3500/92-04-01-00 136188-02. Insert the module into a full-height rear slot. Secure it firmly to the rack backplane. Connect your Ethernet cable to the RJ-45 port. For RS485 networks, wire to the terminal block. Configure the Modbus address using the 3500 software. Set the baud rate and parity for your network. Test communication with your host system. Verify data retrieval from all rack modules.

Packaging List

• One 3500/92-04-01-00 136188-02 I/O module

• One terminal block connector

• One quick start reference card

• Anti-static protective bag

Compliance and Certifications

The 3500/92-04-01-00 136188-02 meets multiple industry standards:

• FCC: Complies with part 15 of FCC Rules

• EMC: Follows EN 61000-6-2 (Immunity) and EN 61000-6-4 (Emissions)

• Electrical Safety: Meets EN 61010-1 under LV Directive 2014/35/EU

• RoHS: Complies with Directive 2011/65/EU

• Maritime: Certified by DNV GL and ABS for ships, offshore units, and high speed craft

Frequently Asked Questions (FAQ)

1. Does the 3500/92-04-01-00 136188-02 work alone?
No, this I/O module works with the 3500/92 main board. It is not a standalone gateway.

2. What is the difference between 136180-01 and 136188-02?
The 3500/92-04-01-00 136188-02 is the I/O module only. The 136180-01 is the complete gateway with main board.

3. Can I use RS232 with this module?
Yes, the 3500/92-04-01-00 supports RS232, RS422, and RS485. Select the correct I/O type for your needs.

4. How fast is the Modbus communication?
The Ethernet link runs at 10 Mbps. The data update from rack modules does not exceed 1 second.

5. Is this module approved for marine use?
Yes, the 3500/92-04-01-00 136188-02 has DNV GL and ABS maritime certifications. It is suitable for ships and offshore units.
