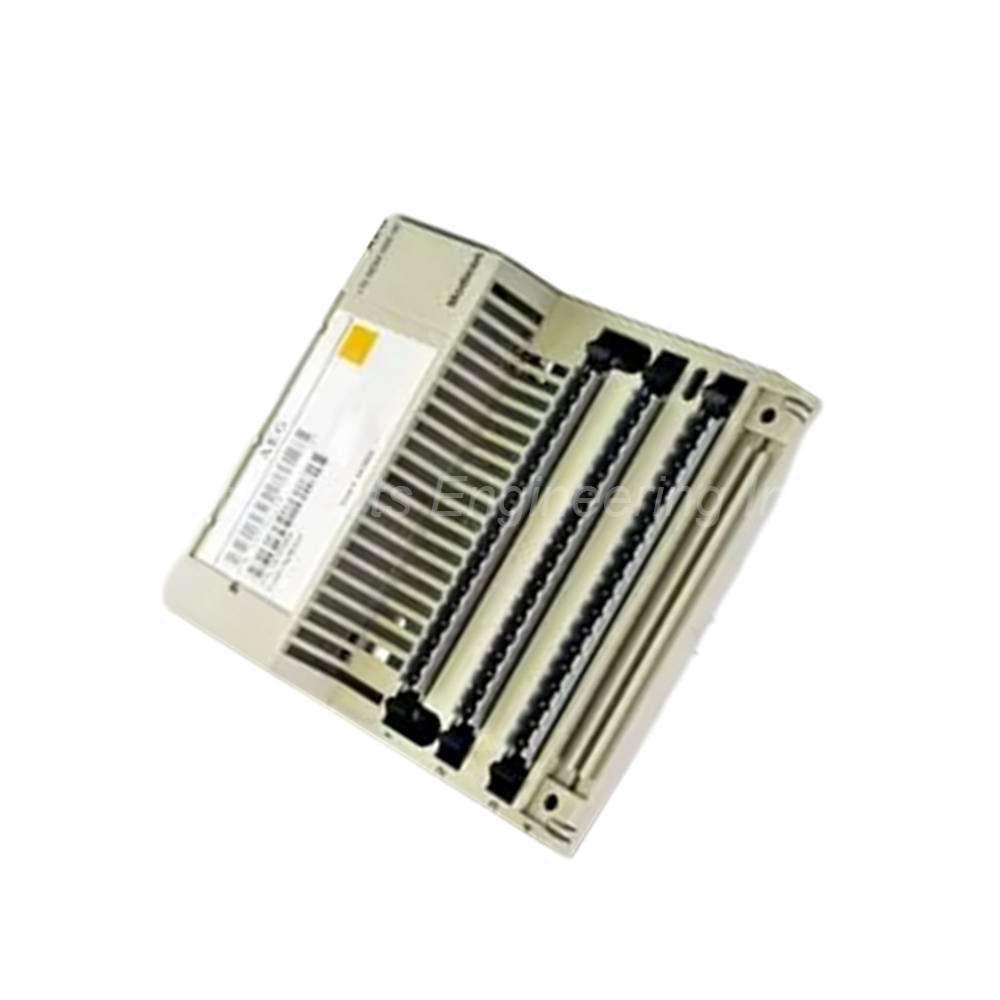

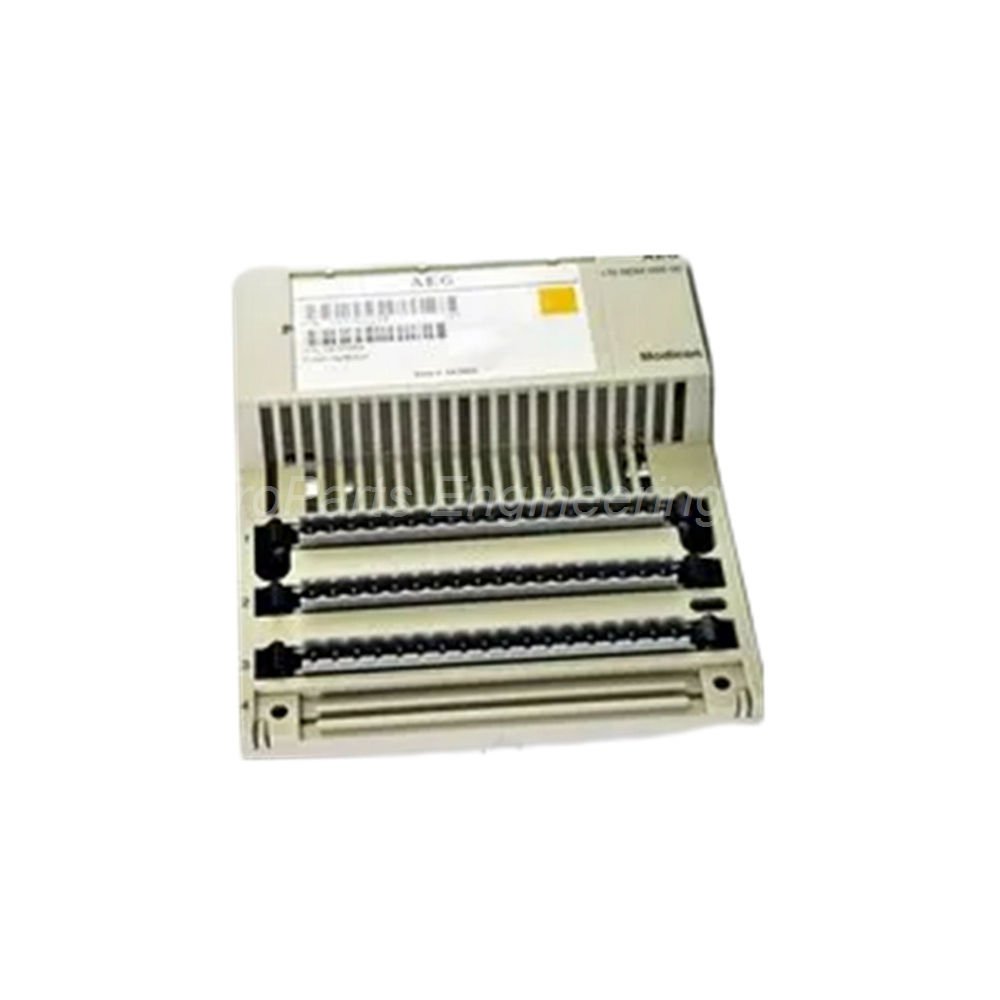

170BDM09000 Schneider Modicon Momentum 4 Input 2 Output I/O Module
Introduction:
The Schneider Electric 170BDM09000 is a compact discrete I/O module from the Modicon Momentum series. This unit provides 4 input channels and 2 digital output channels. It offers a simple solution for basic control applications. The 170BDM09000 supports prewiring to save installation time. Use this module for small-scale automation tasks.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Technical Specifications of 170BDM09000
Module Type: Discrete I/O Module with 4 inputs and 2 outputs.
Digital Outputs: The module includes 2 digital output channels.
Prewiring Support: Yes, this module supports prewiring for faster setup.
Operating Temperature: Works reliably from 0 to 40 degrees Celsius.
Maximum Operating Humidity: 80% RH, non-condensing.
Storage Temperature: Handles 0 to 50 degrees Celsius when not in use.
Maximum Storage Humidity: 80% RH, non-condensing for safe storage.
Operating Environment: Requires a clean indoor space with no corrosive chemicals.
Maximum Operating Altitude: Use this module up to 1000 meters above sea level.
Maximum Storage Altitude: Store at altitudes up to 1000 meters.
Installation and Environment Guide
Mount the 170BDM09000 on a compatible Modicon Momentum base. The module works best in clean indoor environments. Keep the operating temperature between 0 and 40 °C. Do not expose the module to corrosive chemicals or dust. Maintain humidity below 80% RH without any condensation. The 170BDM09000 can operate at altitudes up to 1000 meters. For storage, keep temperatures between 0 and 50 °C. Ensure the storage area also stays below 80% RH. Use the prewiring feature to connect field devices quickly. This feature reduces wiring errors and saves labor time.
Package Contents
One Schneider Electric 170BDM09000 discrete I/O module.
Product documentation and basic wiring guide.
No additional cables or connectors are included.
Frequently Asked Questions (FAQ)
Q: What types of field devices connect to the 170BDM09000 inputs?
A: You can connect dry contact switches, push buttons, and basic DC sensors. The module reads standard discrete signals.
Q: Can I use the 170BDM09000 outdoors or in a washdown area?
A: No, this module is for clean indoor environments only. It cannot handle moisture, dust, or corrosive chemicals.
Q: Why does the altitude limit matter for this module?
A: Higher altitudes reduce cooling efficiency and air insulation. The 170BDM09000 is certified only up to 1000 meters.
Q: What happens if I exceed the 80% humidity limit?
A: Condensation may form inside the module. This moisture can cause short circuits or corrosion over time.
Q: Does the prewiring support work with any terminal base?
A: Yes, the 170BDM09000 works with standard Modicon Momentum prewired bases. Check your base model for compatibility.
