Product Overview

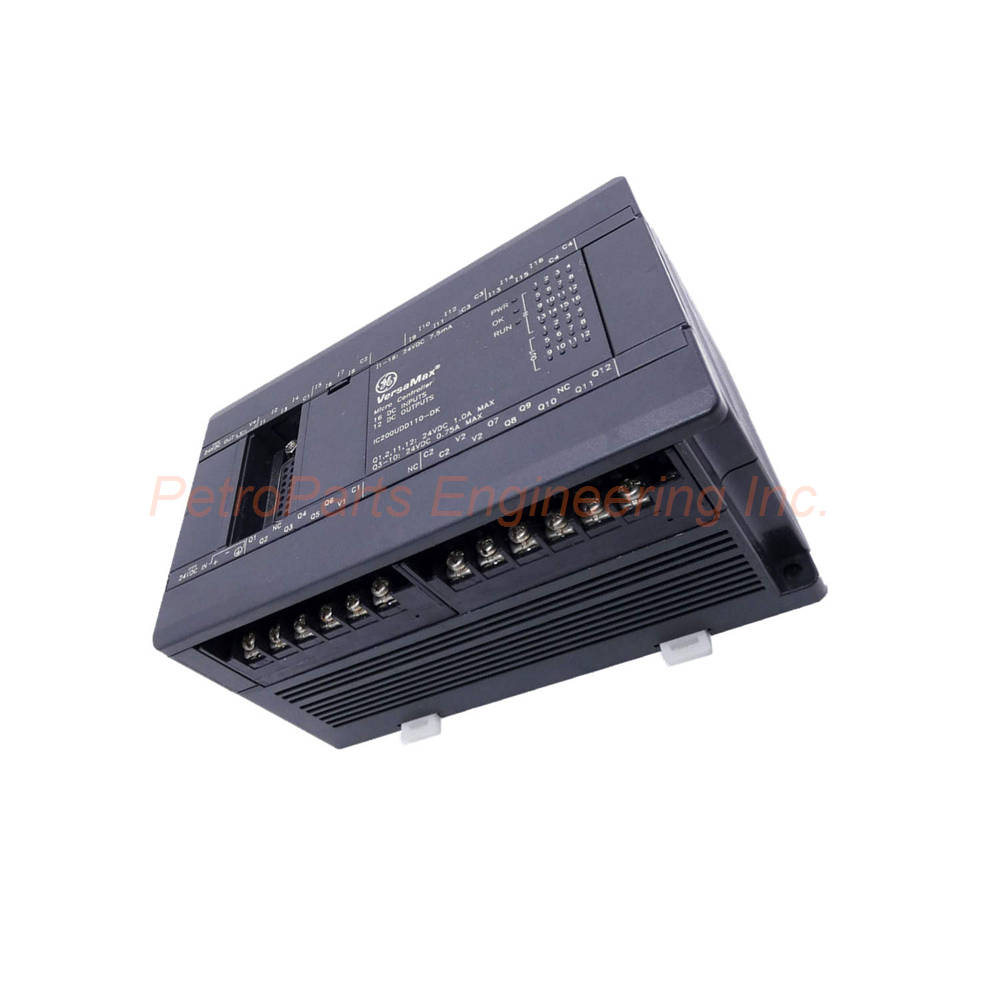

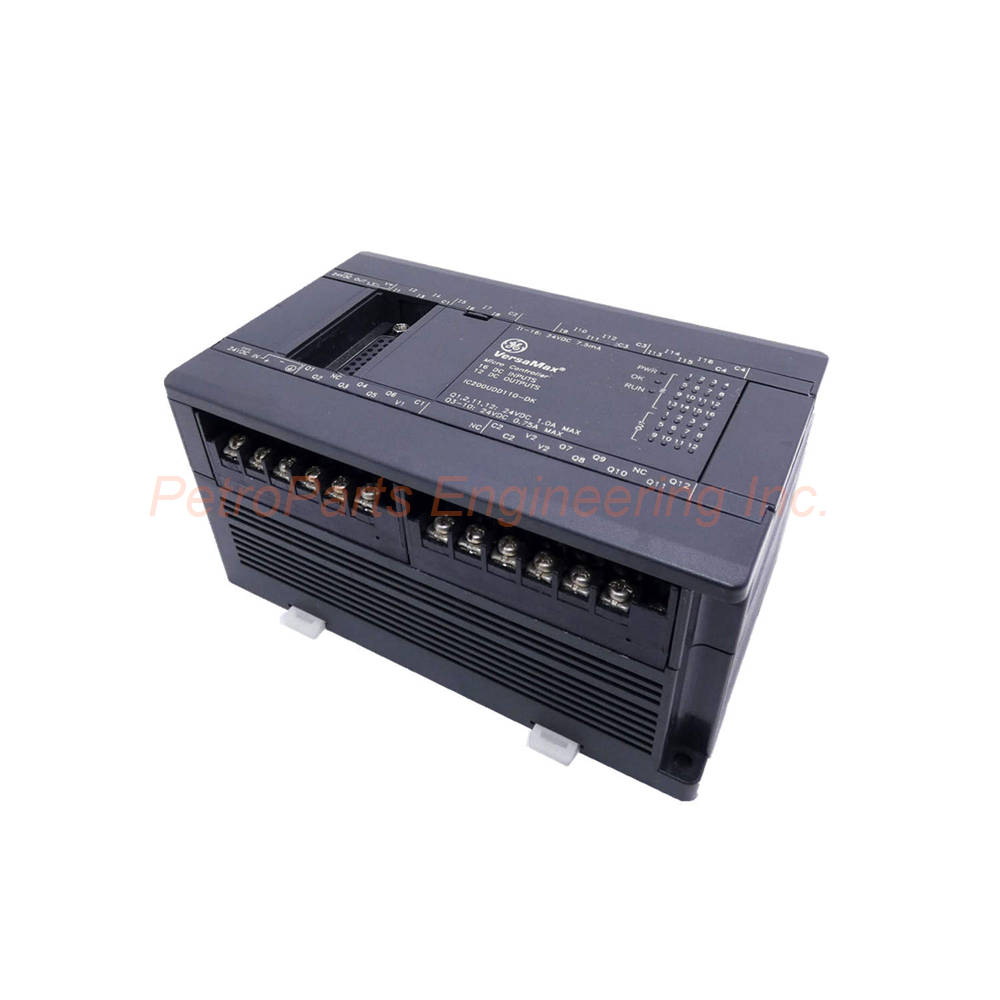

The GE Fanuc Emerson IC200UDD110 is a Micro 28 PLC from the Versamax series. This compact controller incorporates 28 total I/O points for versatile control applications. It supports 16 inputs and 12 outputs with a consistent voltage rating of 24 Volts DC.

The unit operates on a standard 24V DC power supply and draws only 5 Watts of input power. Consequently, it promotes energy efficiency in small to medium control systems.

General Specifications

The IC200UDD110 offers balanced I/O capacity for standalone control tasks.

• Manufacturer: GE Fanuc Emerson.

• Product Type: Micro 28 PLC.

• Product Line: Versamax.

• Part Number: IC200UDD110.

• Total I/O Points: 28.

• Inputs: 16.

• Outputs: 12.

• Weight: 0.91 kg (2.00 lbs).

Voltage and Power Specifications

The IC200UDD110 operates on standard industrial voltages.

• Input Voltage: 24 Volts DC.

• Output Voltage: 24 Volts DC.

• Power Supply Voltage: 24 Volts DC.

• Input Power: 5 Watts.

• Input Device Voltage: 24V DC.

Thus, both the controller and its field devices share the same 24V DC supply, simplifying system power distribution.

Analog Potentiometers

The IC200UDD110 includes two analog potentiometers for adjustable parameters.

• Analog Pots: 2 pots.

These potentiometers expand the controller's versatility for applications requiring adjustable setpoints or manual trimming within control processes. For example, speed references or timing adjustments can be made without a programming device.

Memory Limitations

The IC200UDD110 does not support portable memory modules. Therefore, certain data storage options may be limited compared to other Versamax models.

Key Features

The IC200UDD110 offers several advantages for small control applications.

Compact All-in-One Design:
Integrates the CPU, power supply, and I/O in a single unit. Consequently, it saves panel space compared to modular PLCs.

Balanced I/O Mix:
Provides 16 inputs and 12 outputs (28 total I/O). Hence, it suits applications with more inputs than outputs.

Standard 24V DC Operation:
Uses 24V DC for inputs, outputs, and power supply. Therefore, it is compatible with common industrial sensors and actuators.

Low Power Consumption:
Draws only 5 Watts of input power. Thus, it is energy-efficient and generates minimal heat.

Built-In Analog Potentiometers:
Includes two analog potentiometers for adjustable parameters. For this reason, it supports applications requiring operator trimming or setpoint adjustment.

Versamax Series Integration:
Belongs to the GE Fanuc Emerson Versamax family. Consequently, it shares programming software and accessories with other Versamax products.

Typical Applications

The IC200UDD110 suits various small to medium control applications.

• Machine control in packaging equipment.

• Conveyor system logic control.

• Small process automation tasks.

• Standalone control for OEM machinery.

• Building automation and HVAC control.

Installation Guidelines

Install the IC200UDD110 on a DIN rail or panel using standard mounting hardware. First, ensure the 24V DC power supply can provide at least 5 Watts. Then, connect the 24V DC power to the appropriate terminals.

Connect 24V DC input devices (sensors, switches) to the 16 input terminals. Connect 24V DC output devices (relays, solenoids, indicators) to the 12 output terminals. The two analog potentiometers can be wired as required for adjustable parameters.

The controller does not support portable memory modules. Therefore, use the programming software to store and retrieve programs.

What is in the Box

Please inspect all items upon delivery.

• GE Fanuc Emerson IC200UDD110 Micro 28 PLC.

• Installation instruction manual.

• Anti-static protective bag.

Frequently Asked Questions (FAQ)

1. How many I/O points does the IC200UDD110 have?

The IC200UDD110 has 28 total I/O points. Specifically, it provides 16 inputs and 12 outputs.

2. What voltage do the inputs and outputs use?

Both the inputs and outputs on the IC200UDD110 operate at 24 Volts DC. The power supply voltage is also 24V DC.

3. Does this PLC support portable memory modules?

No. The IC200UDD110 does not support portable memory modules. Consequently, program storage is handled through the programming software.

4. How much power does this unit consume?

The IC200UDD110 consumes 5 Watts of input power. This promotes energy efficiency in small control systems.

5. What is the purpose of the two analog potentiometers?

The two analog potentiometers allow adjustable parameters within control processes. Therefore, they are useful for applications requiring operator trimming or setpoint adjustment.
