Product Overview

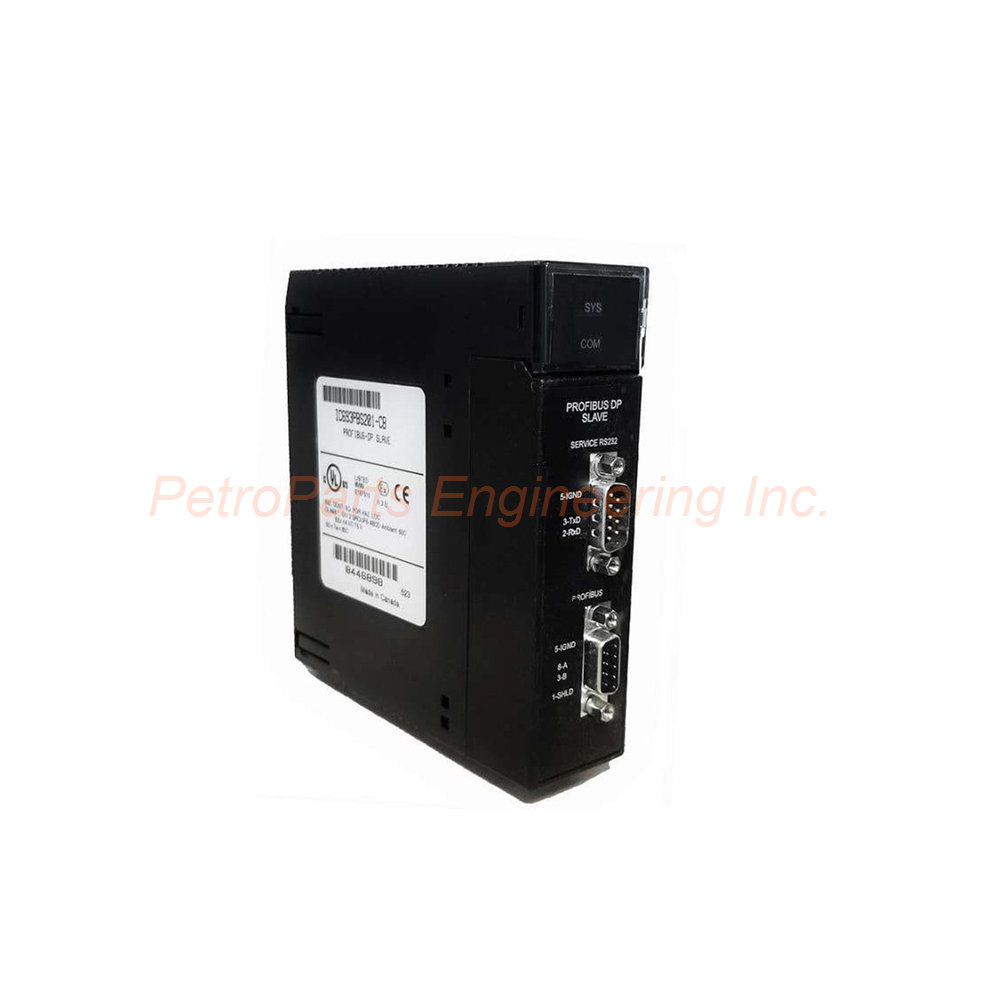

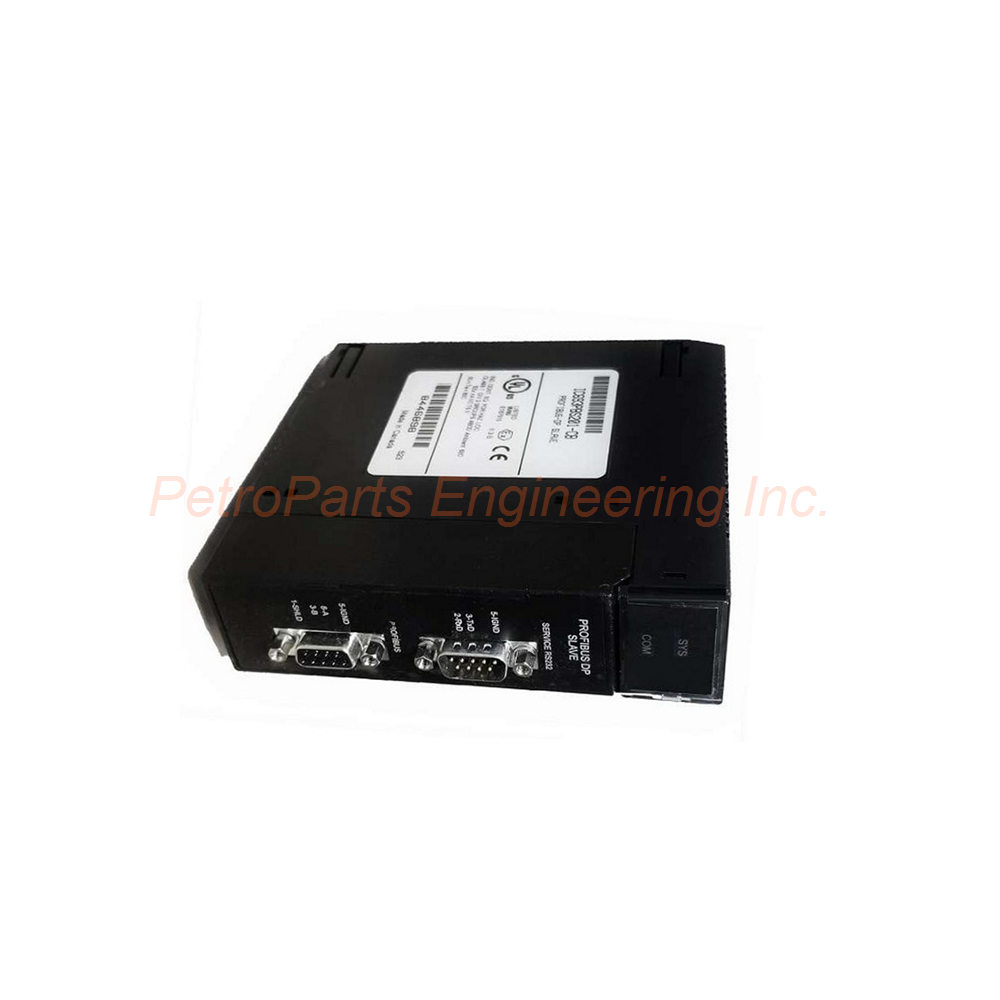

The IC693PBS201 belongs to the Series 90-30 Series. Its product type is a Profibus DP Slave Interface Module. The product classification is I/O Modules. The current price for this item is ¥3,200 RMB. The product gross weight is 0.35 kg.

This IC693PBS201 enables distributed I/O architecture for Series 90-30 PLCs. GE Fanuc originally manufactured this module under its brand. Emerson Automation now continues support for the Series 90-30 platform. The module acts as a remote adapter for hosted I/O modules. It sends and receives data to a designated Profibus master. This Profibus Slave Module expands the processing power of your entire system.

Technical Specifications

Communication Protocol and Ports

The communication protocol is ProfiBus DP. The module includes two 9-pin female D-shell connectors. Port one functions as an RS232 service port. This port allows module firmware modification and updates. Port two functions as the Profibus slave interface. The service port sits behind a cover on the module. You can download firmware updates using this RS232 serial connection.

Data Capacity

The IC693PBS201 supports 244 bytes of input data. It also supports 244 bytes of output data. This provides substantial data exchange capability. The module includes a Slave Status Word for diagnostic information. The status word helps troubleshoot network communication issues quickly.

Transmission Rates

The module supports nine standard Profibus baud rates. These rates include 9.6K, 19.2K, 93.75K, 187.5K, and 500K baud. Higher rates include 1.5M, 3M, 6M, and 12M baud. You can select the appropriate rate for your network. The module automatically adapts to the master's configured speed.

Power Requirements

The backplane current draw is 450 mA at 5 VDC. This power comes directly from the Series 90-30 baseplate. The module occupies a single slot on the baseplate. You cannot install this module in Slot 1 of the CPU baseplate. Slot 1 is reserved for the power supply unit.

Environmental Specifications

The operating temperature range is 0 to 60 degrees Celsius. This range ensures reliable performance in industrial conditions. The manufacturer recommends mounting inside a protective enclosure. This enclosure controls exposure to extreme temperatures, humidity, and dust. Proper installation guarantees correct operational conditions.

Cable and Distance Specifications

Maximum communication distance reaches 1200 meters with Profibus copper cable. With fiber media converters, distance extends up to 6 km. Compatible cable types include Belden 3079A Profibus cable. Other compatible cables are Siemens 6XV1 Profibus Cable series. Bosch Comment Flexible, Trailing, and Massive Profibus cables also work. For segments exceeding supported distances, install Profibus repeaters to boost signals.

Software Requirements

You need Proficy Machine Edition Logic Developer Version 2.6 or later. The CPU must run version 8.00 or later firmware. This software allows customization of control algorithms. You can configure programs stored in the slave PLC through this software.

Module Limitations

The IC693PBS201 does not support Sync and Freeze modes. This module is designed for slave-only operation. It transmits or receives data only on request from the master PLC. This design suits most distributed I/O applications perfectly.

Lifecycle Status

The product lifecycle status is Discontinued/Obsolete. GE Fanuc no longer manufactures this module. Emerson Automation provides legacy support. Availability depends on existing stock from authorized distributors.

Installation Guide

Follow these steps to install your IC693PBS201 correctly.

1. Power Down the PLC: Disconnect power from the Series 90-30 baseplate. This prevents electrical damage during installation.

2. Select a Slot: Choose any baseplate slot except Slot 1 of the CPU baseplate. Slot 1 is reserved for the power supply only.

3. Insert the Module: Align the IC693PBS201 with the slot guides. Push firmly until the module seats into the backplane connector.

4. Secure the Module: Tighten the retaining screws at the top and bottom. This secures the Profibus Slave Module in place.

5. Connect Profibus Cable: Attach your Profibus cable to Port 2 (the Profibus interface). Use a standard 9-pin D-shell connector.

6. Connect Service Port: If updating firmware, connect an RS232 cable to Port 1. This port is under the module cover.

7. Apply Power: Restore power to the Series 90-30 baseplate. The IC693PBS201 will draw 450 mA at 5 VDC automatically.

8. Configure the Module: Use Proficy Machine Edition Logic Developer Version 2.6 or later. Set the slave address and baud rate.

Package List

• 1 x IC693PBS201 Profibus DP Slave Interface Module

• 1 x Service port cover (pre-installed)

• 2 x Retaining screws (pre-installed)

• 1 x Quick reference guide

Frequently Asked Questions (FAQ)

1. Can I install the IC693PBS201 in Slot 1 of the CPU baseplate?
No, you cannot install this module in Slot 1. Slot 1 is reserved exclusively for the power supply module.

2. What software do I need to configure the IC693PBS201?
You need Proficy Machine Edition Logic Developer Version 2.6 or later. The CPU must run firmware version 8.00 or later.

3. Does the IC693PBS201 support Sync and Freeze modes?
No, this Profibus slave module does not support Sync or Freeze modes. It is designed for slave-only operation on request from the master.

4. What is the maximum distance for Profibus communication with this module?
With standard Profibus copper cable, the maximum distance is 1200 meters. With fiber media converters, distance reaches up to 6 km.

5. Is the IC693PBS201 still in production?
No, this product is discontinued and obsolete. GE Fanuc no longer manufactures this module. Emerson Automation provides legacy support. Availability depends on existing distributor stock.
