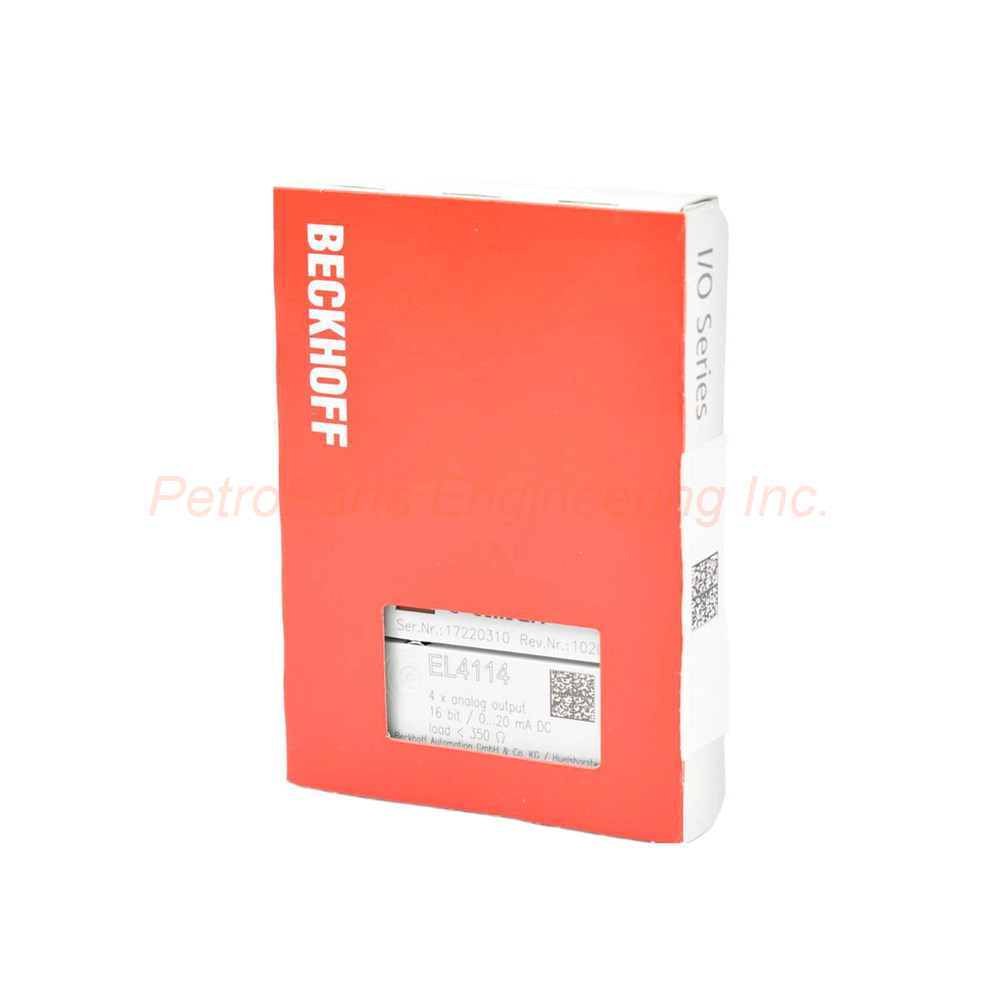

EtherCAT EL4114 – 4-Channel Analog Output Terminal (0…20 mA, 16 Bit)

The EtherCAT EL4114 is a 4-channel analog output terminal. Specifically, this terminal generates analog output signals in the range between 0 and 20 mA. It features 16-bit resolution for precise control. Furthermore, the output stages are powered by the 24 V supply via power contacts. Consequently, this terminal suits precision current loop control applications requiring high resolution and fast conversion.

Ordering Configuration and Product Identification

• Product Type: Analog Output Terminal.

• Number of Outputs: 4 channels.

• Connection Technology: 2-wire, single-ended.

• Signal Range: 0…20 mA.

• Resolution: 16 bit (including sign).

• Power Supply: 24 V DC via power contacts.

• Electrical Isolation: 500 V (E-bus to signal voltage).

• Special Features: Watchdog parameterizable; user synchronization can be activated.

• Approvals: CE, UL, Ex.

• Protection Class: IP20.

• Weight: Approximately 65 grams.

• Related Product: EL4114-0020 version with calibration certificate.

• Therefore, the EtherCAT EL4114 provides high-precision analog output for industrial automation.

Output Specifications and Load Range

• Signal Current Range: 0…20 mA.

• Load Resistance Maximum: 350 Ω.

• Output Protection: Short-circuit proof.

• Output Error: < 0.1% relative to end value.

• Resolution: 16 bit (including sign).

• Conversion Time: Approximately 290 µs.

• Power Contact Current Consumption: 15 mA typical plus load current.

• E-bus Current Consumption: 160 mA typical.

• Bit Width in Process Image: 4 x 16 bit AO output.

• Synchronization: User synchronisation can be activated.

• Thus, the EL4114 delivers accurate current outputs with fast update rates.

Distributed Clocks and Precision

• Distributed Clocks: Yes, supported.

• Distributed Clock Precision: < 1 µs.

• Watchdog: Parameterizable feature.

• Purpose: Synchronous output updates across multiple terminals.

• Benefit: Precise timing for coordinated motion or process control.

• Application: Multi-axis systems requiring simultaneous output changes.

• Terminal Indication: Signal state shown by light emitting diodes (LEDs).

• Consequently, the EtherCAT EL4114 enables highly synchronized output operations.

Power Supply and Isolation

• Power Supply: 24 V DC via power contacts.

• Ground Potential: Common with 24 V DC supply.

• Output Stage Power: Supplied by 24 V supply.

• Electrical Isolation: 500 V between E-bus and signal voltage.

• Isolation Purpose: Protects EtherCAT network from field transients.

• Safety: Prevents ground loops in mixed systems.

• Power Contact Current: 15 mA typical plus load.

• Load Current: Determined by connected field devices.

• Therefore, the EL4114 provides robust isolation for industrial environments.

Environmental and Mechanical Specifications

• Operating Temperature: 0°C to +55°C.

• Storage Temperature: -25°C to +85°C.

• Relative Humidity: 95% maximum, no condensation.

• Vibration Resistance: Conforms to EN 60068-2-6.

• Shock Resistance: Conforms to EN 60068-2-27.

• EMC Immunity: Conforms to EN 61000-6-2.

• EMC Emission: Conforms to EN 61000-6-4.

• Protection Class: IP20.

• Installation Position: Variable.

• Wiring: Pluggable wiring for all ESxxxx terminals.

• Weight: Approximately 65 grams (0.065 kg).

• Moreover, the EtherCAT EL4114 withstands typical industrial conditions reliably.

LED Indicators and Diagnostics

• LED Type: Light emitting diodes (LEDs).

• Function: Indicates signal state per channel.

• Power Indication: Shows supply voltage status.

• EtherCAT Communication: Link and activity indicators.

• Fault Indication: Error states are visually displayed.

• Troubleshooting: Quick visual diagnosis without software.

• Watchdog Status: Indicates when watchdog is active.

• Channel Status: Individual output monitoring.

• Consequently, operators can quickly identify terminal and channel status.

Installation Guide

First, verify that the EtherCAT network power is completely disconnected. Then, mount the EL4114 on a standard DIN rail (35 mm). The terminal uses IP20 protection, so install it inside a control cabinet. After that, connect the 24 V DC power supply to the power contacts. The power contacts will provide daisy-chained power to adjacent terminals. Next, wire your field devices to the 4 output channels using 2-wire single-ended connections. Each channel outputs 0 to 20 mA. Ensure load resistance does not exceed 350 Ω. The output stages are short-circuit proof for added protection. Then, connect the EtherCAT bus coupler to the E-bus interface. The EL4114 communicates via the EtherCAT network. Then, apply power to the system. Configure the terminal using your EtherCAT master software. Set the watchdog parameters as needed for your application. For synchronized applications, activate the distributed clocks feature. Finally, download your configuration and test each output channel. As a result, the EtherCAT EL4114 will provide precise analog output control.

Packaging List

• One EtherCAT EL4114 analog output terminal (4-channel, 0-20 mA)

• One set of pluggable wiring connectors (included)

• One product identification label

• One installation and configuration guide

• One EtherCAT documentation reference card

Common FAQs

Q1: How many output channels does the EtherCAT EL4114 provide?
A: This terminal provides 4 analog output channels. Specifically, each channel outputs 0 to 20 mA with 16-bit resolution. Therefore, it suits multi-loop current control applications.

Q2: What is the maximum load resistance for the EL4114?
A: The maximum load resistance is 350 Ω. The output stage is short-circuit proof. Therefore, it safely drives most industrial current loop devices such as valves and actuators.

Q3: Does the EtherCAT EL4114 support distributed clocks?
A: Yes, distributed clocks are supported with < 1 µs precision. User synchronization can be activated as needed. Consequently, simultaneous output updates across multiple terminals are possible.

Q4: What is the conversion time of the EL4114 analog output terminal?
A: The conversion time is approximately 290 µs. The bit width in the process image is 4 x 16 bits. Thus, it suits high-speed control applications requiring fast output updates.

Q5: What approvals does the EtherCAT EL4114 hold?
A: This terminal holds CE, UL, and Ex approvals. Therefore, it meets European, North American, and hazardous location certification requirements. Always verify specific ratings for your application.
