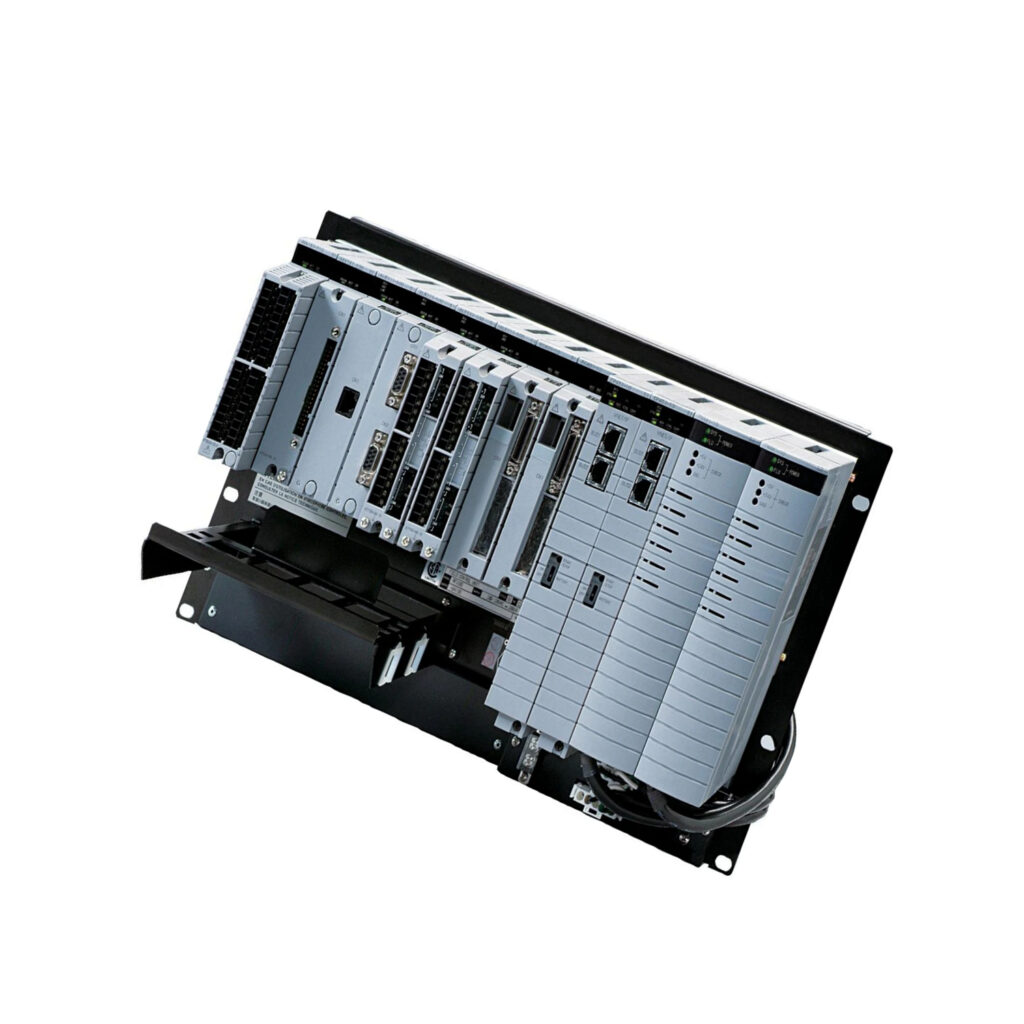

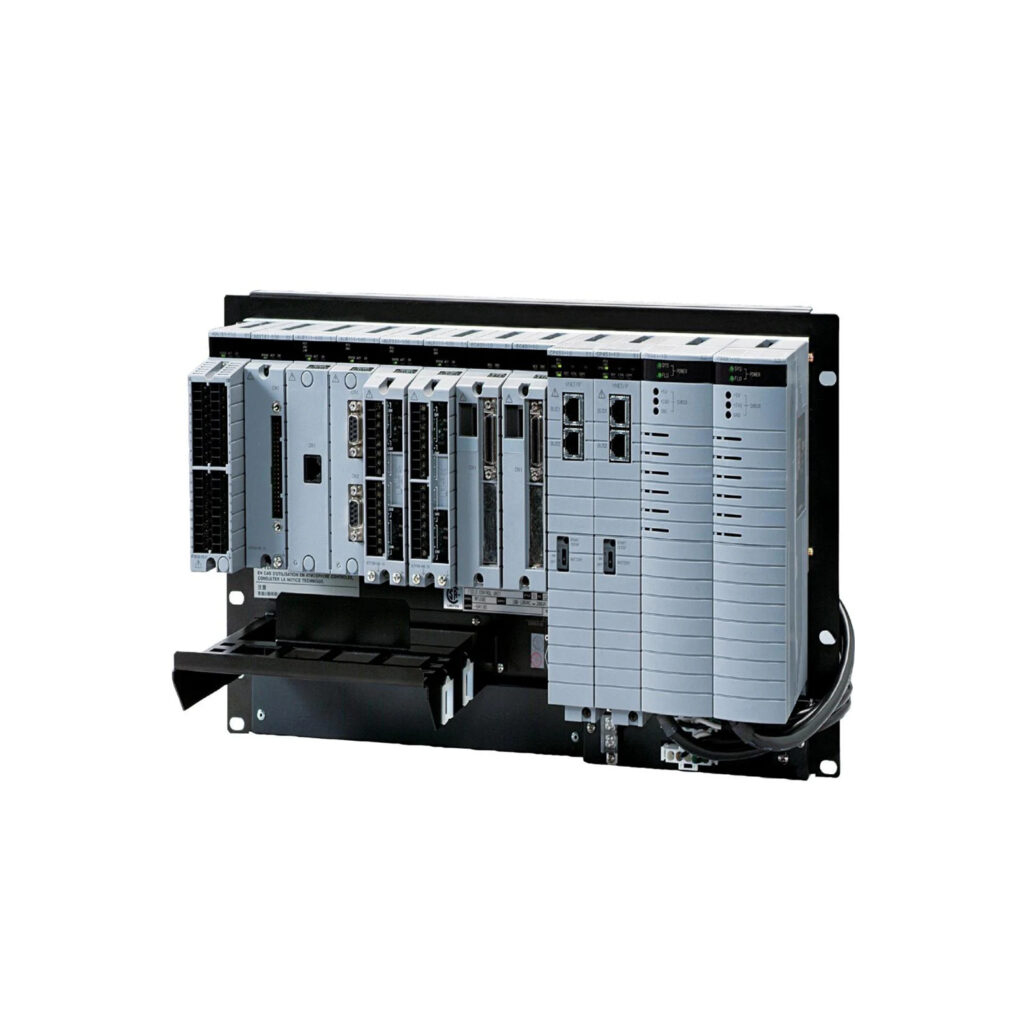

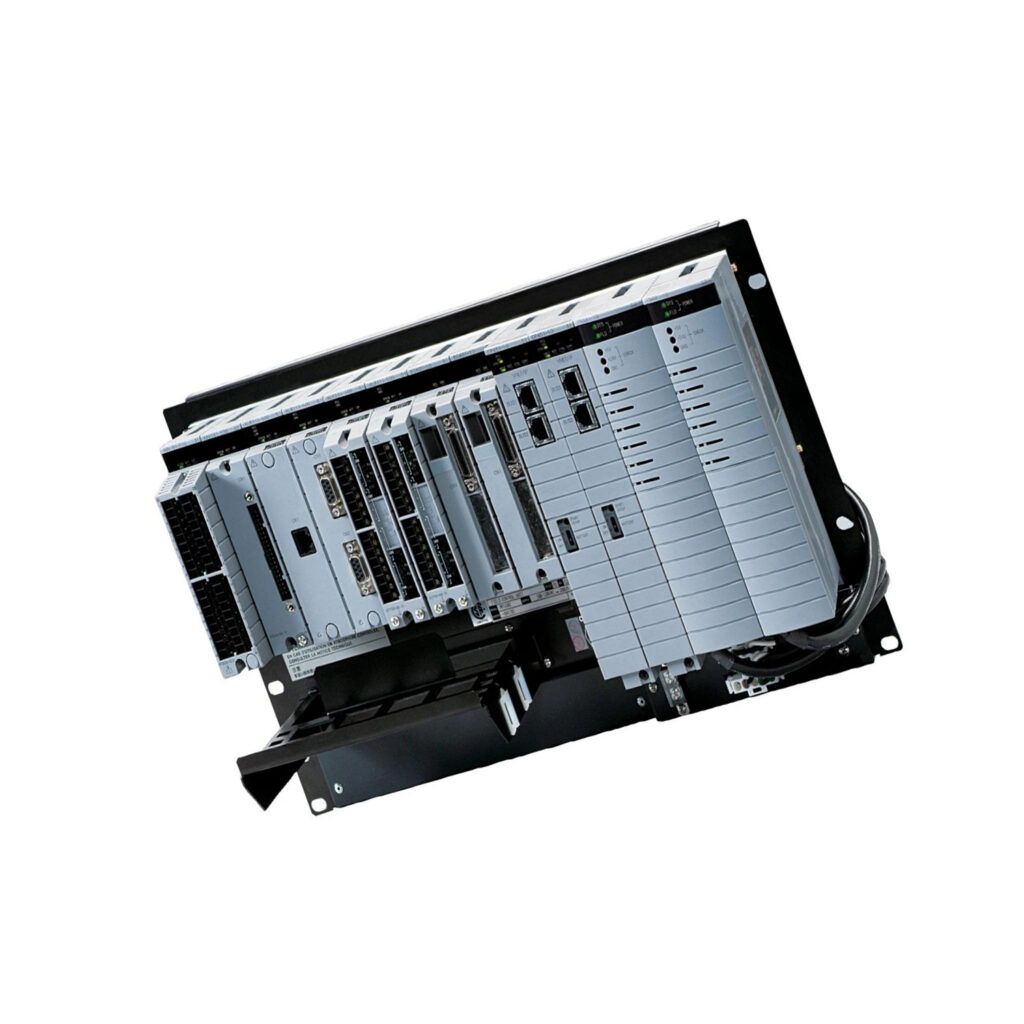

Product Overview

The Yokogawa AGP813-S10 is a high speed protection module. This module is designed for turbomachinery control and monitoring. It provides isolated analog voltage inputs. Digital inputs and outputs are also included. The module runs at two scan cycles: 5 ms for high-speed and 10 ms for basic cycle. This device is ideal for critical rotating machinery protection.

For inquiries, contact us at +86 158 8020 0923 (WhatsApp).

Part Number Breakdown (Tree Structure)

• AGP813 → Model Series
  • Turbomachinery I/O Module
  • High Speed Protection Module
  • Isolated channels
• S → Suffix Code 1 (Type)
  • Standard type
• 1 → Suffix Code 2
  • Always 1 (fixed configuration)
• 0 → Suffix Code 3 (Version)
  • Basic type

Analog Voltage Inputs (1 to 5V)

High-Speed Cycle (4 channels, isolated):

• Input signal: 1 to 5V
• Accuracy: ±4 mV
• Temperature drift: ±4 mV per 10°C
• Input impedance (powered): 1 MΩ
• Input impedance (not powered): 100 kΩ
• Allowable input voltage: 30 VDC maximum
• Filtering: Collective

Basic Cycle (6 channels, isolated):

• Input signal: 1 to 5V
• Accuracy: ±4 mV
• Temperature drift: ±4 mV per 10°C
• Input impedance (powered): 1 MΩ
• Input impedance (not powered): 100 kΩ
• Allowable input voltage: 30 VDC maximum
• Filtering: Collective

Digital Inputs (24V DC Sink)

High-Speed Cycle (4 channels, isolated):

• Rated input voltage: 24 V DC (sink type)
• Input ON voltage: 18 to 26.4 V DC
• Input OFF voltage: 5 V DC or less
• Input current: 4.1 mA ±20%
• Maximum allowable input voltage: 30 V DC

Basic Cycle (8 channels, isolated):

• Rated input voltage: 24 V DC (sink type)
• Input ON voltage: 18 to 26.4 V DC
• Input OFF voltage: 5 V DC or less
• Input current: 4.1 mA ±20%
• Maximum allowable input voltage: 30 V DC

Digital Outputs (Current Sinking)

High-Speed Cycle (4 channels, isolated):

• Output type: Current sinking
• Maximum load: 100 mA per channel at 30 V DC
• Maximum ON voltage drop: 0.3 V DC
• Maximum OFF leakage current: 0.1 mA
• ON/OFF delay: 1 ms typical

Basic Cycle (8 channels, isolated):

• Output type: Current sinking
• Maximum load: 100 mA per channel at 30 V DC
• Maximum ON voltage drop: 0.3 V DC
• Maximum OFF leakage current: 0.1 mA
• ON/OFF delay: 1 ms typical

Scan Cycle and Timing

• High-Speed Cycle: 5 milliseconds
• Basic Cycle: 10 milliseconds

Isolation and Withstanding Voltage

• Between system and field: 500 V AC for 1 minute
• Between different input/output types: 500 V AC for 1 minute

Channel Summary Table

• Analog Inputs (High-Speed): 4 channels, isolated, 1-5V
• Analog Inputs (Basic): 6 channels, isolated, 1-5V
• Digital Inputs (High-Speed): 4 channels, isolated, 24V DC sink
• Digital Inputs (Basic): 8 channels, isolated, 24V DC sink
• Digital Outputs (High-Speed): 4 channels, isolated, 100 mA
• Digital Outputs (Basic): 8 channels, isolated, 100 mA

Power Consumption

• Maximum Current (5 V DC): 900 mA

Physical Specifications

• Weight: Approx. 0.28 kg
• External Connection: Dedicated cable (AKB337-M005, M007, M010)

Installation Guide

• Turn off all power before installation.
• Mount the module in the designated slot.
• Use dedicated cables AKB337-M005, M007, or M010.
• Connect analog inputs (1-5V) to the 4 high-speed and 6 basic channels.
• Wire digital inputs (24V DC sink) to the remaining channels.
• Connect digital outputs to loads up to 100 mA per channel.
• Do not exceed 30 V DC on any input or output.
• Apply power and verify scan cycle settings (5 ms or 10 ms).
• Test each channel before placing in service.

Maintenance Tips

• Check analog input accuracy every 12 months.
• Verify digital input ON/OFF voltages periodically.
• Test output channels with a dummy load.
• Inspect cables for damage or loose connections.
• Monitor module temperature during high-speed operation.
• Replace module if drift exceeds ±4 mV per 10°C.

Application Scenarios

• Gas turbine overspeed protection systems
• Steam turbine vibration monitoring
• Compressor surge protection control
• Generator protection and synchronization
• High-speed data acquisition for rotating machinery
• Critical machinery emergency shutdown systems

Diagnostic Capabilities

• Monitor analog input values with ±4 mV accuracy.
• Check digital input status at 5 ms scan cycle.
• Test output response time (1 ms typical).
• Verify isolation integrity with 500 V AC test.
• Use system diagnostics for channel health monitoring.

Compatibility Notes

• Designed for Yokogawa turbomachinery control systems.
• Requires dedicated cables AKB337-M005, M007, or M010.
• Works with high-speed protection applications.
• Isolated channels prevent ground loop issues.
• Not for general purpose PLC applications (use standard I/O modules).

Package Contents

• One Yokogawa AGP813-S10 turbomachinery I/O module
• One product label
• Dedicated cable not included (order AKB337 series separately)

Warranty and Shipping

• 12 months factory warranty from shipment date.
• Warranty covers manufacturing defects only.
• Overvoltage or wrong wiring voids the warranty.
• Shipping options: FedEx, UPS, DHL.
• Tracking number provided after shipment.

Frequently Asked Questions (FAQ)

Q1: What is the difference between high-speed and basic cycles?

The Yokogawa AGP813-S10 runs high-speed cycle at 5 ms. Basic cycle runs at 10 ms. High-speed channels are for critical protection functions. Basic channels are for monitoring and less critical signals.

Q2: How many analog inputs does this module have?

This module has 10 analog inputs total. Four channels run at high-speed cycle (5 ms). Six channels run at basic cycle (10 ms). All inputs accept 1 to 5V signals with ±4 mV accuracy.

Q3: What is the maximum output current per channel?

Each output channel handles up to 100 mA at 30 V DC. Output type is current sinking. Maximum ON voltage drop is 0.3 V DC. ON/OFF delay is 1 ms typical.

Q4: What cables work with the AGP813-S10?

Use dedicated Yokogawa cables AKB337-M005, M007, or M010. These cables provide proper shielding and pin configuration. Standard MIL cables may not work correctly.

Q5: Is this module suitable for gas turbine protection?

Yes, this module is designed for turbomachinery protection. High-speed cycle at 5 ms supports overspeed and vibration protection. Isolated channels provide safety and reliability for critical turbines.
