Product Overview

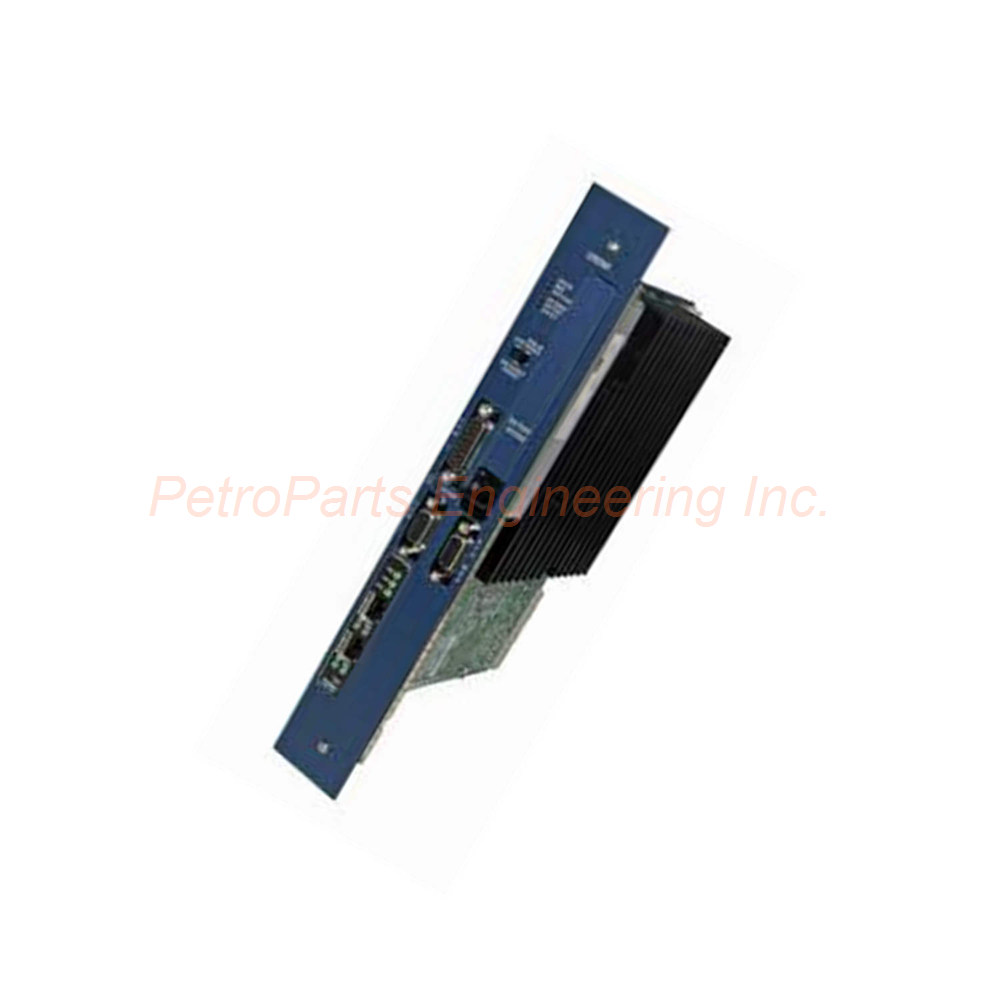

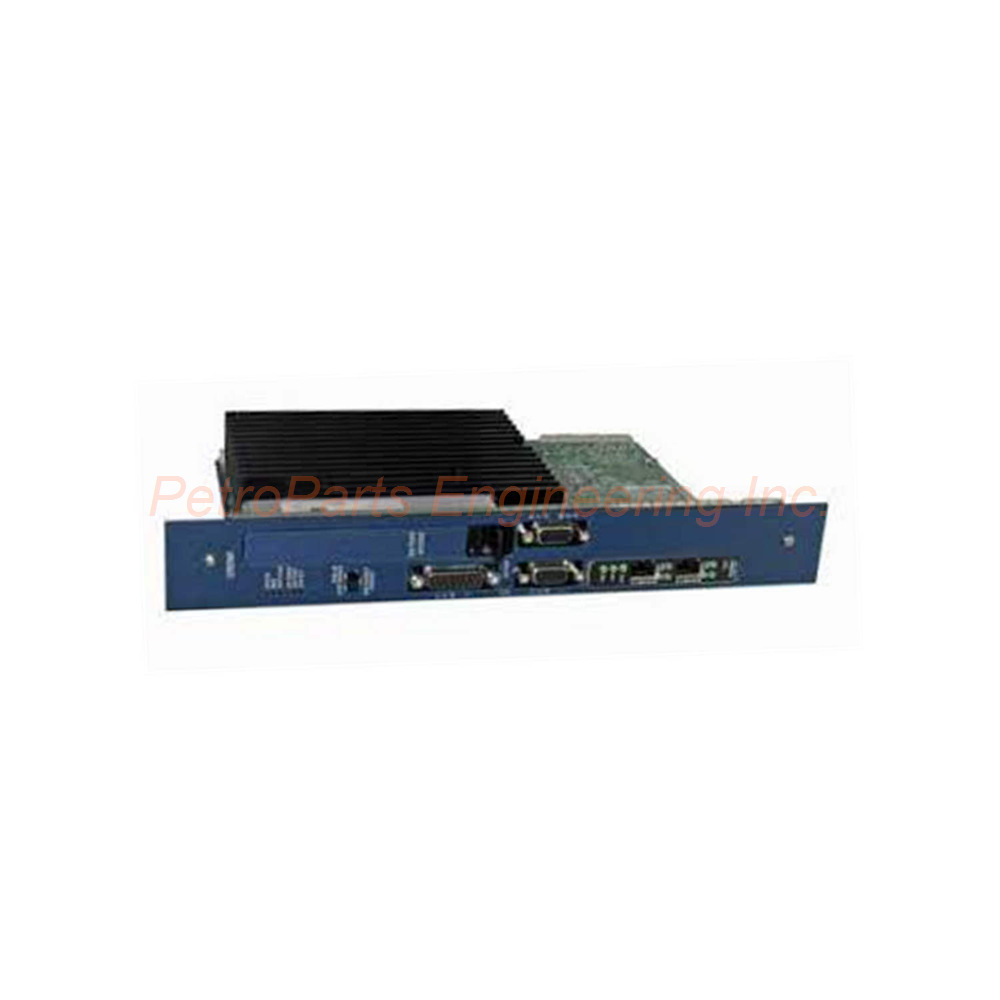

The GE Fanuc IC698CRE040 is a high-performance PACSystem RX7i processor module. This CPU features 64MB of RAM and 64MB of non-volatile user memory. Its typical scan rate reaches 0.024ms per 1000 Boolean contacts or coils. The GE Fanuc IC698CRE040 includes two serial ports, one station manager port, and two Ethernet interfaces. Users trust this processor for demanding machine control and material handling applications.

Technical Specifications

The IC698CRE040 delivers powerful processing with extensive memory and connectivity. Below are the complete technical details.

General Specifications

• Brand: GE Fanuc / Emerson Automation for industrial control reliability.

• Series: RX7i PACsystem programmable automation controller platform.

• Part Number: IC698CRE040 for precise identification.

• Description: Rx7i CPU central processing unit.

• Processor: Pentium M microprocessor architecture.

• Processor Speed: 1.8 GHz for fast program execution.

• Memory: 64 MB RAM and 64 MB non-volatile user memory.

• Redundancy Support: High-availability or redundancy configuration ready.

Performance Specifications

• Scan Rate: 0.024 ms per 1000 Boolean contacts/coils.

• Typical Scan Rate: Extremely fast for time-critical applications.

• Floating Point Data: Supported for complex calculations.

• Program Execution: Fast operation for industrial control loops.

Communication Ports

• Serial Ports: Two (2) Serial interfaces.

• Station Manager Port: One (1) dedicated port.

• Ethernet Interfaces: Two (2) RJ45 ports.

• Serial Protocols: Modbus RTU Slave, SNP, and Serial I/O.

• RS-232 Support: Yes for legacy device connections.

• RS-485 Support: Yes for multi-drop networks.

• VME 64 Standard: For communicating with I/O modules.

Ethernet Specifications

• Ethernet Transmission Rate: 10 Mb/sec and 100 Mb/sec.

• Duplex Mode: Half/full duplex with auto-sensing capability.

• Ethernet Global Data (EGD): Supported for data exchange.

• TCP/IP Services: Using SRTP protocol.

• SRTP Channels: Supported for communication.

• Modbus/TCP Server: Yes for open connectivity.

• Modbus/TCP Client: Yes for master operations.

• Programming Services: Full configuration over Ethernet.

• Time Synchronization: SNTP timeserver support (Release 5.00 or later).

• Web Server Connections: Up to 16 web server connections.

• FTP Connections: Up to 16 combined with web server.

• EGD Configuration Pages: 255 pages available.

Power Requirements

• +5 VDC: 6.8 Amps nominal.

• +12 VDC: 0.003 Amps nominal.

• -12 VDC: 0.003 Amps nominal.

• Voltage: 5 Volts DC primary supply.

• Current: 6.8 Amperes draw.

Clock Specifications

• Time of Day Clock Accuracy: Maximum drift of ±2 seconds per day.

• Elapsed Time Clock Accuracy: ±0.01% maximum.

• Battery Backup: Built-in clock backed up with battery.

• Battery Detection: Low battery situation detection with operator alert.

Programming and Configuration

• Programming Languages: Ladder Diagram, C, Structured Text, Function Block Diagram.

• Maximum Blocks: 512 Blocks per CPU.

• Maximum Block Size: 128 KB per block.

• Configuration Software: Proficy Machine Edition.

• Alternate Software: Logic Developer programming software.

• Firmware Upgrades: Via RS-232 and RS-485 ports.

• HMI Connectivity: Ethernet ports or serial ports for programmer units.

Web-Based Data Monitoring

• Web Server Connections: Up to 16 combined web server and FTP connections.

• Data Monitoring: Web-based monitoring capabilities.

• Remote Access: FTP for file transfer and programming.

Environmental and Installation

• Enclosure Type: Open enclosure.

• Installation Requirements: Dry environment free from airborne contaminants.

• Condition Monitoring: Detects low battery and alerts operator for different events.

Installation Guide

Follow these steps to install the GE Fanuc IC698CRE040 correctly.

1. Power Down the Rack: Turn off all power to the RX7i PACsystem rack.

2. Locate CPU Slot: Find the designated CPU slot in the rack (typically slot 1).

3. Insert the Module: Slide the IC698CRE040 into the slot carefully.

4. Secure the Module: Lock the CPU using the retaining levers.

5. Connect Power: Ensure the backplane provides +5 VDC at 6.8 Amps.

6. Connect Ethernet Cables: Attach RJ45 cables to both Ethernet ports.

7. Connect Serial Devices: Wire RS-232 or RS-485 devices to serial ports.

8. Connect Station Manager: Attach programming device to station manager port.

9. Apply Power: Turn on the system power to the rack.

10. Configure IP Addresses: Set Ethernet addresses for both ports.

11. Load Configuration: Use Proficy Machine Edition or Logic Developer.

12. Download Program: Transfer the application program to the CPU.

13. Set Time Clock: Configure the Time of Day clock with battery backup.

14. Test Scan Rate: Verify typical scan rate of 0.024ms per 1000 Boolean contacts.

15. Verify Redundancy: For high-availability setups, test switch-over.

Installation Notes

• The CPU requires +5 VDC at 6.8 Amps from the backplane.

• Ethernet ports support auto-sensing 10/100 Mbps half/full duplex.

• The module supports up to 16 web server and FTP connections combined.

• Firmware upgrades are possible via RS-232 and RS-485 ports.

• The open enclosure requires installation in a clean, dry cabinet.

Packaging List

This unit ships as a new and original product.

• GE Fanuc IC698CRE040 RX7i PACsystem Processor Module

• Battery for clock backup (pre-installed)

• Product data sheet with specifications

• Factory sealed anti-static packaging box

Frequently Asked Questions (FAQ)

1. What is the processor speed and memory of the IC698CRE040?
The GE Fanuc IC698CRE040 has a 1.8 GHz Pentium M processor. It includes 64MB of RAM and 64MB of non-volatile user memory.

2. How many Ethernet and serial ports does this CPU have?
The IC698CRE040 provides two Ethernet (RJ45) ports and two serial ports. It also includes one dedicated station manager port.

3. What is the typical scan rate of this processor module?
The GE Fanuc IC698CRE040 achieves a typical scan rate of 0.024 ms per 1000 Boolean contacts/coils. This ensures fast logic execution.

4. What programming software is compatible with the IC698CRE040?
The IC698CRE040 configures using Proficy Machine Edition or Logic Developer programming software. Languages include Ladder Diagram, C, Structured Text, and Function Block Diagram.

5. Does this CPU support redundancy configuration?
Yes, the GE Fanuc IC698CRE040 supports high-availability and redundancy configuration. It features standard switch-over response for critical applications.
