IC755CSS12CDA Operator Interface 800x600 Capacitive Touch
Introduction:
This GE Fanuc IC755CSS12CDA is a 12.1-inch Quickpanel+ operator interface. Features 800x600 resolution, capacitive touch, and IP65 rating.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

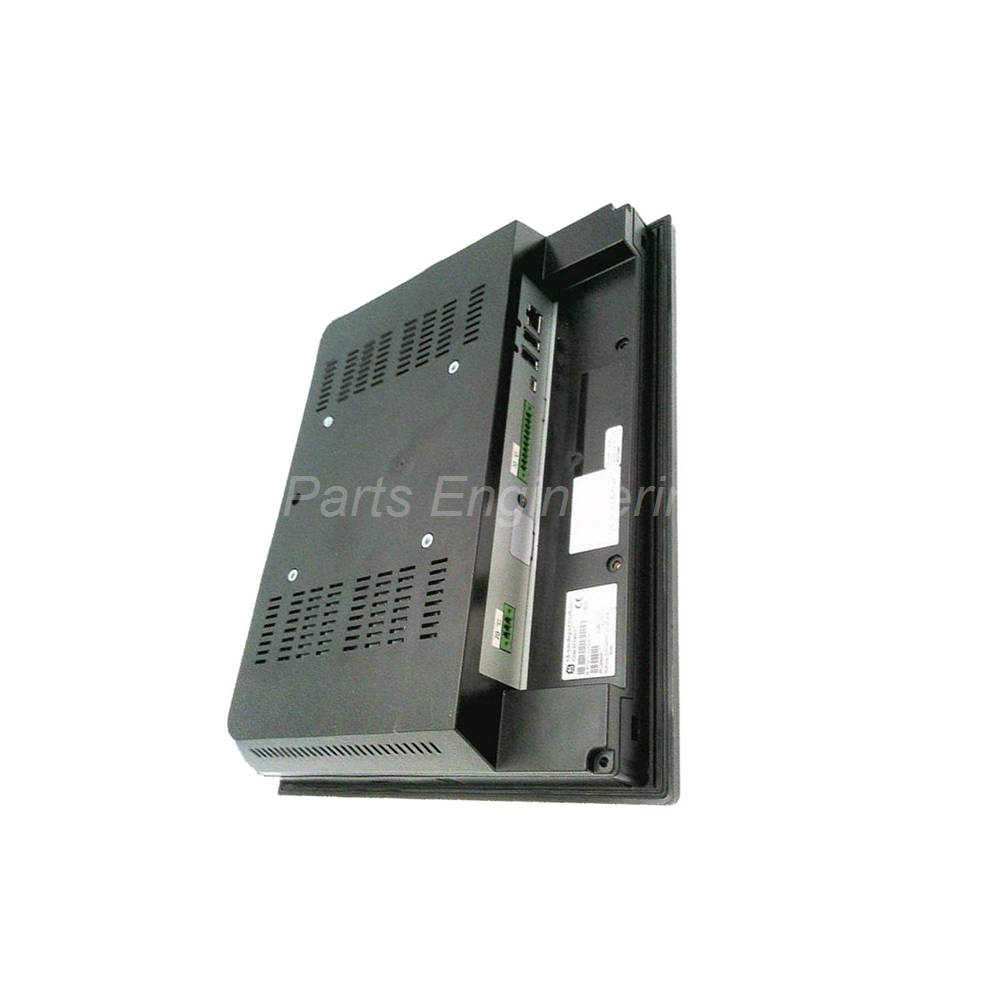

The GE Fanuc IC755CSS12CDA is a Quickpanel+ operator interface for industrial automation. This terminal features a 12.1-inch standard TFT LCD display. Brightness reaches 450 candela per square meter for excellent visibility. Resolution measures 800 x 600 pixels (WVGA) with 65,536 colors. The touch screen uses projective capacitive technology supporting two-point touch. A Freescale i.MX535 processor runs at 1 gigahertz (ARM Cortex A8). RAM reaches 1 GB of DDR3 SDRAM for smooth operation. ROM provides 512 MB of SLC NAND storage. Additionally, SRAM offers 512 kilobytes with battery backup. The IC755CSS12CDA includes two Ethernet ports (10/100BaseT with RJ-45 connectors). Serial connectivity includes one RS-232 UART port and one RS-232/485 port. Three USB ports accommodate host and programming connections. An SD/SDHC card slot provides removable storage expansion. Input voltage rating spans 12/24 Volts DC with 30 Watts power consumption.
Technical Specifications
General Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Product Line | Quickpanel+ |
| Part Number | IC755CSS12CDA |
| Weight | 2.27 kg (5.00 lbs) |
| Dimensions (approx.) | 314 x 248 x 65 mm (12.3 x 9.7 x 2.5 inches) |
| Enclosure Rating | UL Type 4X or IP65 (depending on mounting option) |
Display Specifications
| Parameter | Value |
|---|---|
| Display Size and Type | 12.1-inch standard TFT LCD |
| Resolution | 800 x 600 pixels WVGA |
| Color Depth | 65,536 colors |
| Brightness | 450 cd/m² |
| Touch Screen Type | Projective capacitive, two-point |
Processor & Memory Specifications
| Parameter | Value |
|---|---|
| Processor | Freescale i.MX535 (1 GHz ARM Cortex A8) |
| RAM | DDR3 SDRAM 1 GB |
| ROM | SLC NAND 512 MB |
| SRAM | 512 kilobytes (with battery backup) |
Communication Ports
| Port Type | Quantity |
|---|---|
| Ethernet | 2 x 10/100BaseT (RJ-45) |
| Serial (RS-232 UART) | 1 port |
| Serial (RS-232/485) | 1 port |
| USB 2.0 (Type-A Host) | 2 ports |
| USB 2.0 (Mini Type-B) | 1 port |
| SD/SDHC Card Slot | 1 slot |
Power Specifications
| Parameter | Value |
|---|---|
| Input Voltage Rating | 12/24 Volts DC |
| Power Consumption | 30 Watts |
| Current Rating | 2.5 A at 12 VDC / 1.25 A at 24 VDC |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Enclosure Rating | UL Type 4X or IP65 (depending on mounting option) |
Display & Touch Screen
The IC755CSS12CDA features a 12.1-inch TFT LCD with 450 cd/m² brightness. Resolution reaches 800 x 600 pixels (WVGA) for clear graphics. Color depth of 65,536 colors provides rich visualization of process data. The projective capacitive touch screen supports two-point touch operation. This technology responds to light finger touches without pressure. Consequently, operators interact with screens quickly and naturally. For industrial environments, the touch screen remains responsive even with gloves.
Processor & Memory Architecture
A Freescale i.MX535 processor powers the GE Fanuc IC755CSS12CDA. This ARM Cortex A8 core runs at 1 gigahertz for fast screen updates. RAM provides 1 GB of DDR3 SDRAM for application execution. ROM offers 512 MB of SLC NAND for persistent storage. SRAM adds 512 kilobytes with battery backup for critical data retention. Therefore, the terminal handles complex HMI applications with multiple screens and data logging. Battery-backed SRAM retains alarm history and recipes during power loss.
Communication Ports
Dual Ethernet ports support 10/100BaseT connections with standard RJ-45 connectors. These ports allow connection to two separate networks simultaneously. For example, one port connects to the control network while the other connects to a plant-wide network. Serial ports include one RS-232 UART and one RS-232/485 port. Three USB ports accommodate host devices (Type-A) and programming (Mini Type-B). The SD/SDHC card slot provides removable storage for data logging and application backup. Consequently, the IC755CSS12CDA integrates into diverse automation architectures.
Power Requirements
Input voltage rating spans 12/24 Volts DC for flexible power sourcing. Power consumption reaches 30 Watts under normal operation. Current rating measures 2.5 Amperes at 12 VDC. At 24 VDC, current drops to 1.25 Amperes. For reliable operation, use a suitably rated DC power supply. The GE Fanuc IC755CSS12CDA accepts either voltage without configuration changes.
Enclosure Rating & Environmental Durability
The terminal offers UL Type 4X or IP65 protection depending on mounting option. UL Type 4X provides corrosion resistance for harsh industrial environments. IP65 rating protects against dust ingress and low-pressure water jets. Operating temperature spans 0 to 55 degrees Celsius (32 to 131°F). All components within the IC755CSS12CDA are built for industrial operating conditions. Therefore, this HMI suits washdown areas, outdoor enclosures, and factory floor installations.
Mounting Options
The IC755CSS12CDA supports two mounting methods for installation flexibility. Panel mounting uses the included mounting equipment for flush installation. VESA mounting base allows arm or stand attachment for ergonomic positioning. Approximate dimensions measure 314 x 248 x 65 millimeters (12.3 x 9.7 x 2.5 inches). Weight reaches 3 kilograms (6.6 pounds) including mounting hardware. For various installation requirements, the GE Fanuc IC755CSS12CDA adapts to your application.
Included Accessories
All necessary accessories ship with the IC755CSS12CDA terminal. Connectors for power and communication ports are included. Mounting equipment for panel installation comes standard with the unit. For quick setup, all required hardware arrives in the package. Therefore, no additional accessory purchases are needed for basic installation.
Installation Guidelines
Follow these steps for proper installation of the IC755CSS12CDA.
Cut a panel opening according to the dimension drawing for flush mounting.
Insert the HMI from the front through the panel cutout.
Secure the unit using the provided mounting clamps or VESA base.
Connect 12/24 VDC power to the designated terminals. Observe correct polarity.
Wire Ethernet cables to the two RJ-45 ports for network connectivity.
Connect serial devices to the RS-232 or RS-232/485 ports as needed.
Insert an SD card into the slot for data logging or application storage.
Power up the unit and verify the display illuminates correctly.
Note: The IC755CSS12CDA requires 30 Watts of power from a 12 or 24 VDC supply. The enclosure rating depends on proper mounting and gasket compression. For UL Type 4X or IP65 protection, ensure all unused ports are capped.
Packaging List
One GE Fanuc IC755CSS12CDA Quickpanel+ Operator Interface
One set of panel mounting clamps
One power connector terminal block
One product quick start guide
Common FAQs
1. What is the display resolution of the IC755CSS12CDA?
Resolution measures 800 x 600 pixels (WVGA) on a 12.1-inch TFT LCD. The display supports 65,536 colors with 450 cd/m² brightness. Touch screen uses projective capacitive technology for two-point touch. For clear visualization of process data, the GE Fanuc IC755CSS12CDA provides excellent image quality.
2. What communication ports does the IC755CSS12CDA have?
This HMI includes two Ethernet ports (10/100BaseT with RJ-45). Serial ports include one RS-232 UART and one RS-232/485 port. USB ports include two Type-A host ports and one Mini Type-B programming port. An SD/SDHC card slot provides removable storage. Therefore, the IC755CSS12CDA connects to a wide range of industrial devices.
3. What is the power consumption of the IC755CSS12CDA?
Power consumption reaches 30 Watts from a 12/24 VDC supply. Current rating measures 2.5 Amperes at 12 VDC. At 24 VDC, current drops to 1.25 Amperes. For reliable operation, use a suitably rated DC power supply with the GE Fanuc IC755CSS12CDA.
4. What is the enclosure rating of the IC755CSS12CDA?
The terminal offers UL Type 4X or IP65 protection depending on mounting option. UL Type 4X provides corrosion resistance for harsh industrial environments. IP65 rating protects against dust and low-pressure water jets. Consequently, the IC755CSS12CDA suits washdown areas, outdoor enclosures, and factory floor installations.
5. How much memory does the IC755CSS12CDA have?
RAM provides 1 GB of DDR3 SDRAM for application execution. ROM offers 512 MB of SLC NAND for persistent storage. SRAM adds 512 kilobytes with battery backup for critical data. For complex HMI applications, the GE Fanuc IC755CSS12CDA handles multiple screens and data logging effortlessly.
Why Choose This Operator Interface?
The GE Fanuc IC755CSS12CDA delivers reliable HMI performance for industrial automation systems. A 12.1-inch TFT LCD with 450 cd/m² brightness ensures clear visibility. Projective capacitive touch supports two-point interaction for intuitive operation. Dual Ethernet ports enable connection to separate networks simultaneously. UL Type 4X and IP65 ratings withstand harsh industrial environments. For Quickpanel+ HMI applications requiring a 12.1-inch display, choose the IC755CSS12CDA.
