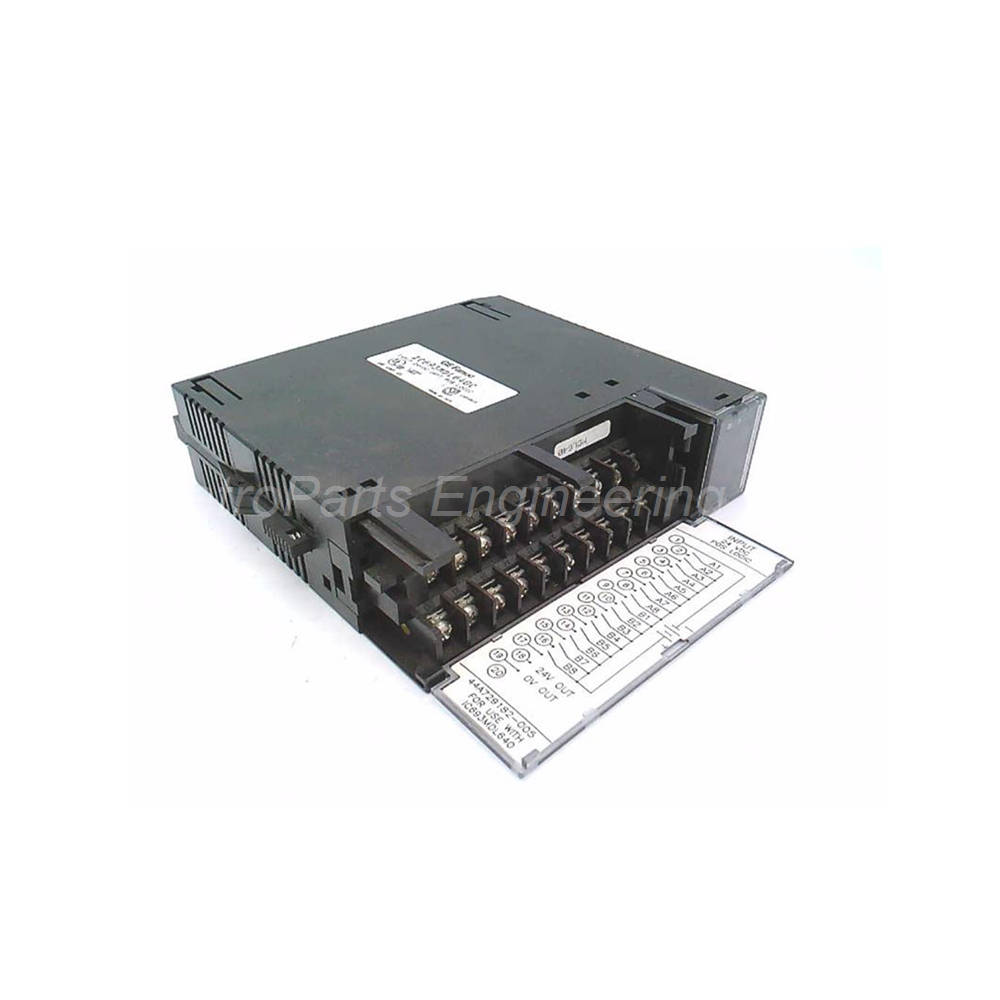

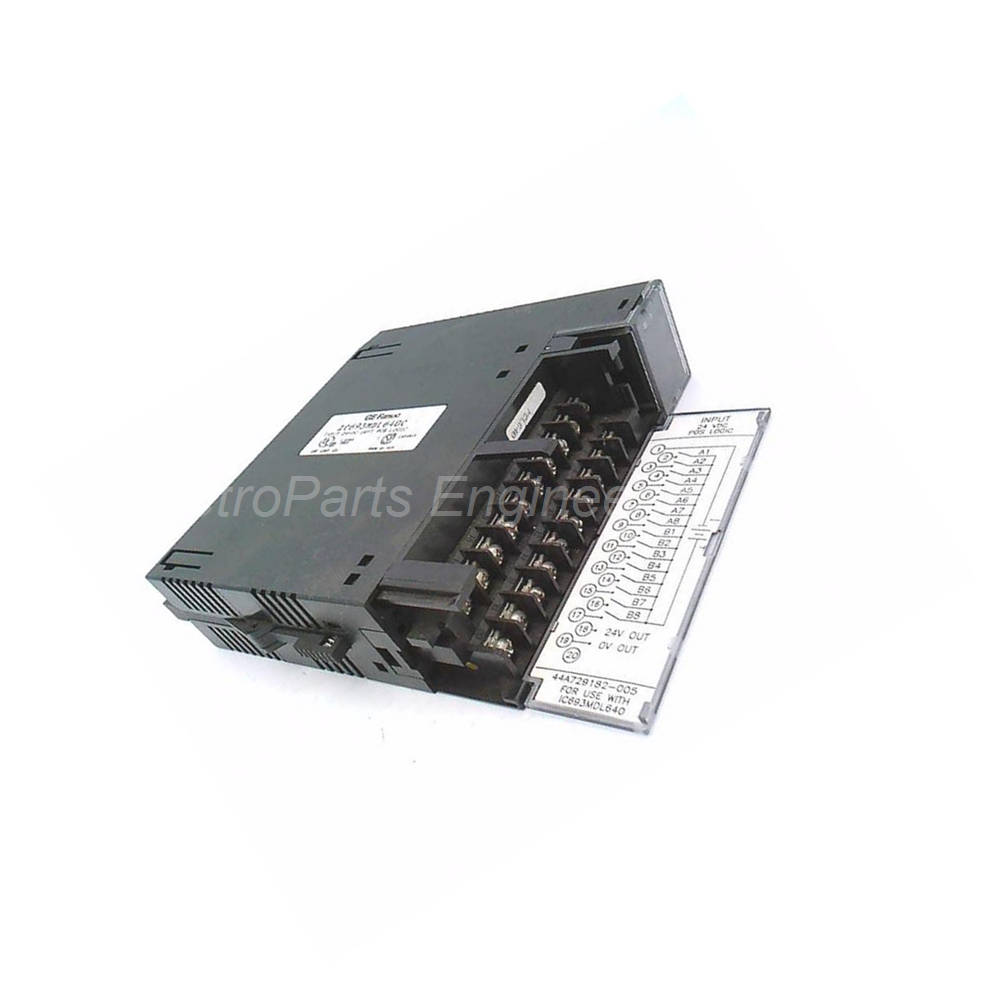

Product Overview for the IC693MDL634 Input Module

The IC693MDL634 is a positive/negative logic input module from GE Fanuc. Firstly, this module is manufactured as part of the Series 90-30 PLC product line. In addition, the IC693MDL634 has a voltage rating of 24 Volts DC for standard industrial compatibility. Specifically, this module features one group of 8 input points with a single common power input terminal. Consequently, the IC693MDL634 monitors pushbuttons, limit switches, and other on/off devices. Moreover, the configuration allows for both negative and positive logic characteristics. Therefore, this input module provides flexibility for various field device wiring schemes.

Key Features and Benefits

8 Input Points in One Group
The IC693MDL634 offers eight input channels in a single group. Firstly, all eight inputs share one common power input terminal. In addition, this compact grouping simplifies wiring for small I/O applications. Specifically, the single group design is ideal for localized machine control panels. Consequently, the IC693MDL634 provides efficient space utilization in Series 90-30 systems. Therefore, you can monitor eight field devices using minimal backplane slots.

Positive and Negative Logic Flexibility
The IC693MDL634 supports both positive and negative logic wiring. Firstly, positive logic means the input turns on when voltage is applied to the channel. In addition, negative logic means the input turns on when the channel is connected to common. Specifically, this flexibility accommodates various field device output types. Consequently, the IC693MDL634 adapts to your existing plant wiring standards without modification. Therefore, you can replace older modules without rewiring field devices.

Wide Input Voltage Range
The IC693MDL634 accepts a broad range of DC input voltages. Firstly, the input voltage range is 0 to 30 V DC for maximum compatibility. In addition, the rated voltage is 24 V DC for standard industrial systems. Specifically, the on-state voltage range is 11.5 to 30 V DC. The off-state voltage range is 0 to 5 V DC. Consequently, the IC693MDL634 works reliably with various power supply tolerances. Therefore, input signals remain correctly detected even with voltage fluctuations.

Low Input Current Requirement
The IC693MDL634 requires minimal current from field devices. Firstly, the typical input current at rated voltage is only 7 mA. In addition, the minimum on-state current is 3.2 mA for reliable detection. Specifically, the maximum off-state current is 1.1 mA to prevent false triggering. Consequently, the IC693MDL634 works with sensitive field devices and long cable runs. Therefore, you can connect many devices without overloading the field device outputs.

Optical Isolation for Noise Immunity
The IC693MDL634 provides 1500 Volts of isolation. Firstly, the isolation separates the field side from the logic side of the module. In addition, this optical isolation prevents ground loops and electrical noise from affecting the backplane. Specifically, the optocouplers protect the CPU from field wiring faults. Consequently, the IC693MDL634 ensures reliable operation in electrically noisy industrial environments. Therefore, system uptime improves due to reduced noise-related errors.

Input Circuit Operation

When current passes through an input point on the IC693MDL634, the input status table results in a logic level of 1. Firstly, each input channel is optically isolated from the backplane. In addition, the module detects whether the field device is providing voltage (positive logic) or removing voltage (negative logic). Specifically, an isolated output power of +24 Volts DC can serve as a source for limited DC inputs. Consequently, you may not need an external field power supply for small systems. Therefore, the IC693MDL634 reduces overall system cost for simple applications.

LED Status Indicators

The IC693MDL634 includes LED indicators for each input channel. Firstly, LEDs show the ON and OFF status for all 8 input points. In addition, these indicators provide immediate visual feedback without test equipment. Specifically, the LEDs are located on the front panel for easy viewing. Consequently, technicians can quickly identify active field devices during troubleshooting. Therefore, the IC693MDL634 reduces maintenance time and improves diagnostic efficiency.

Technical Specifications of the IC693MDL634

General Specifications

• Brand: GE Intelligent Platforms / GE Fanuc.

• Series: Series 90-30.

• Part Number: IC693MDL634.

• Product Line: Series 90-30.

• Product Type: Input Module (Positive/Negative Logic).

Channel Specifications

• Number of Inputs: 8.

• Number of Groups: 1 (single group).

• Common Terminal: Single common power input terminal.

Voltage Specifications

• Rated Voltage: 24 V DC.

• Input Voltage Range: 0 to 30 V DC.

• On-State Voltage: 11.5 to 30 V DC.

• Off-State Voltage: 0 to 5 V DC.

Current Specifications

• Typical Input Current at Rated Voltage: 7 mA.

• Minimum On-State Current: 3.2 mA.

• Maximum Off-State Current: 1.1 mA.

Isolation Specifications

• Isolation Voltage: 1500 V between field side and logic side.

Status Indication

• LED Indicators: Yes, for each of the 8 input points.

• Indicator Function: Shows ON and OFF status.

• Hinged Door: Includes insert separating inside and outside surfaces.

• Low Voltage Identification: Blue-colored left edge signals low voltage.

Field Device Compatibility

The IC693MDL634 works with numerous field devices. Firstly, typical devices include pushbuttons for operator control stations. In addition, limit switches detect position and travel limits. Specifically, the module works with proximity sensors, level switches, and selector switches. Other compatible devices include relay contacts and auxiliary contacts from motor starters. Consequently, the IC693MDL634 serves as a versatile digital input solution for most on/off field devices. Therefore, one module type covers many application requirements.

Installation Guide for the IC693MDL634

Follow these steps for a proper installation of the IC693MDL634.

Step 1: Baseplate Selection
Firstly, select any available I/O slot in your Series 90-30 baseplate. The IC693MDL634 occupies a single slot. It fits in CPU baseplates, I/O expansion baseplates, or remote I/O baseplates.

Step 2: Module Installation
After that, insert the IC693MDL634 into the chosen slot. Align the module with the card guides on the baseplate. Then, push firmly until the module seats completely in the backplane connector. Secure the module using the retaining clips at the top and bottom.

Step 3: Field Device Wiring
Then, connect your field devices to the IC693MDL634 input terminals. The single common terminal serves all 8 input points. For positive logic, apply 24V DC to the input when the device is active. For negative logic, connect the input to common when the device is active.

Step 4: Power Supply Connection
Furthermore, connect a 24V DC power supply to the IC693MDL634. An isolated output power of +24V DC can supply limited DC inputs. Alternatively, use an external field power supply for larger systems.

Step 5: Power Up and Testing
Finally, apply power to the Series 90-30 system. Observe the LED indicators on the IC693MDL634 for each input channel. Activate each field device and verify the corresponding LED illuminates. Measure the input voltage to confirm on-state levels above 11.5 V DC.

Packaging List for the IC693MDL634

• IC693MDL634 Positive/Negative Logic Input Module (1 unit)

• Product documentation and installation guide (1 copy)

Frequently Asked Questions (FAQs) About the IC693MDL634

Q1: How many input channels does the IC693MDL634 provide?

The IC693MDL634 provides 8 input channels in a single group. All eight inputs share one common power input terminal. Therefore, one module monitors up to 8 field devices such as pushbuttons or limit switches.

Q2: What is the input voltage range for the IC693MDL634?

The IC693MDL634 accepts an input voltage range of 0 to 30 V DC. The rated voltage is 24 V DC for standard industrial systems. The on-state voltage range is 11.5 to 30 V DC. Therefore, the module works reliably with standard 24V DC control systems.

Q3: What is the difference between positive and negative logic on the IC693MDL634?

Positive logic means the input turns on when voltage is applied to the channel. Negative logic means the input turns on when the channel is connected to common. The IC693MDL634 supports both configurations. Therefore, you can match the module to your existing field device wiring conventions.

Q4: What is the typical input current of the IC693MDL634?

The IC693MDL634 has a typical input current of 7 mA at the rated voltage of 24 V DC. The minimum on-state current is 3.2 mA. Therefore, this module works with sensitive field devices and long cable runs.

Q5: What does the blue-colored left edge on the IC693MDL634 indicate?

The blue-colored left edge on the IC693MDL634 hinged door signals that the module has low voltage. This visual identifier helps technicians quickly recognize the module type and voltage rating. Therefore, installation and maintenance errors are reduced.
