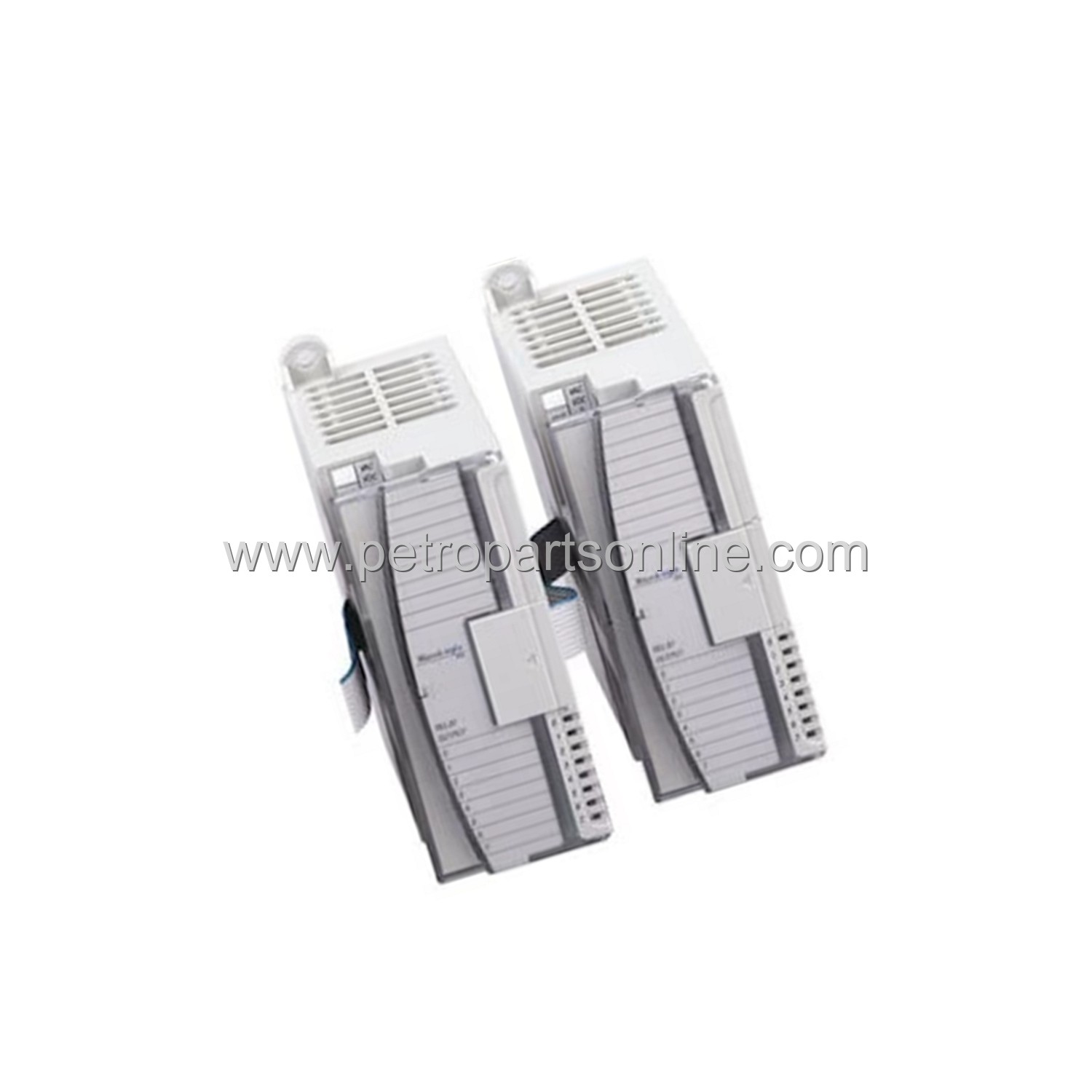

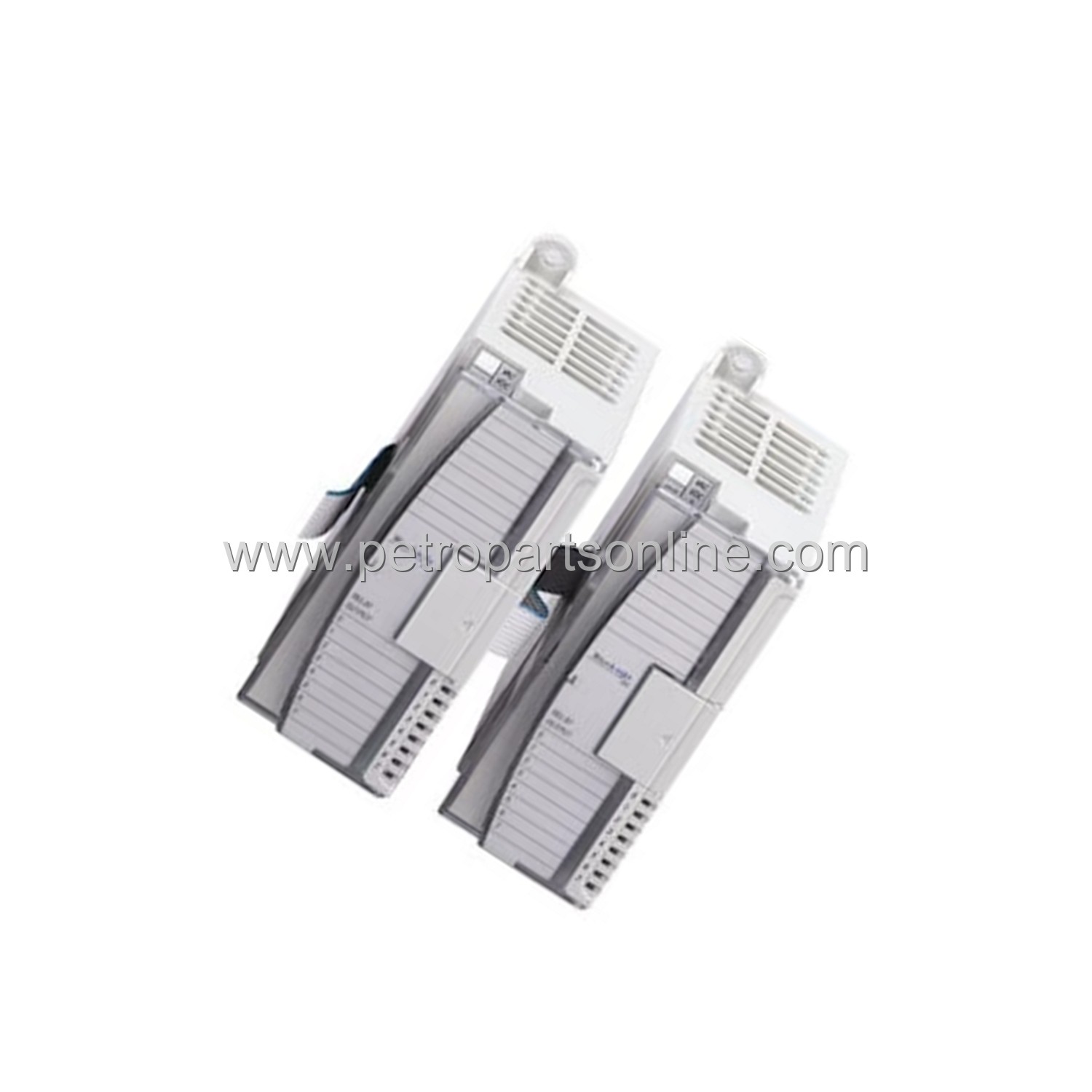

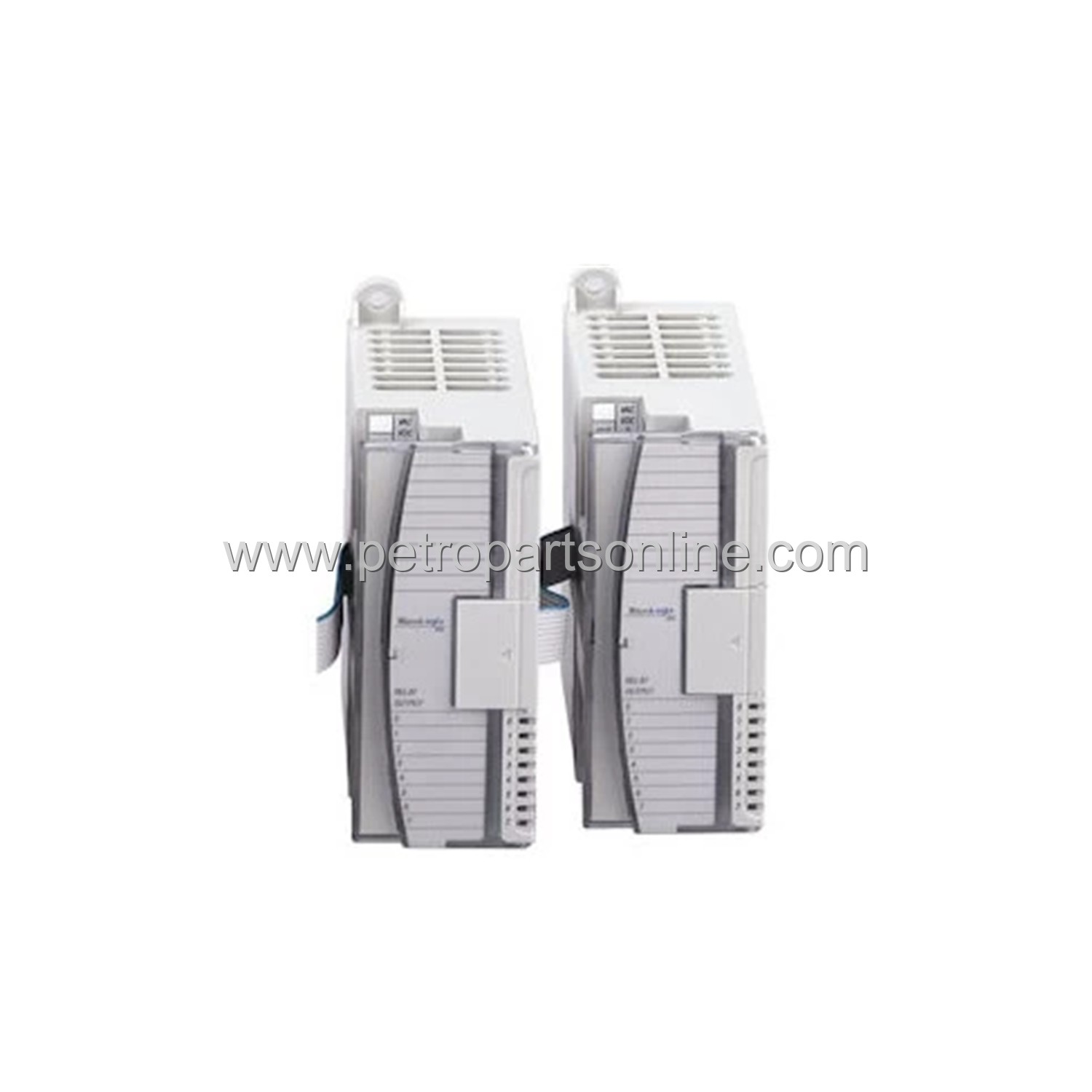

Product Overview

The 1762-IT4 is a thermocouple input module. It is part of the MicroLogix 1200 and 1500 system. This module provides four differential inputs. It accepts various thermocouple types. The module converts temperature signals to digital data. It supports type J, K, T, E, R, S, and B thermocouples. The module includes cold junction compensation. It offers high accuracy for industrial temperature sensing. The module communicates via the backplane. It does not require external power supply. The module is designed for harsh industrial environments. It features LED status indicators for each channel. The module has a compact form factor. It saves space in the control panel. The module is a reliable solution for temperature monitoring.

Application Scenarios

The 1762-IT4 is used in temperature monitoring applications. It is common in process control systems. It is ideal for industrial ovens and furnaces. The module monitors temperature in plastic molding machines. It is used in food processing equipment. The module works in HVAC systems for temperature feedback. It is suitable for chemical reaction monitoring. The module is used in packaging machinery. It monitors temperature in heat sealers. The module is found in environmental chambers. It is used in laboratory test equipment. The module monitors bearing temperature in motors. It is used in extruder temperature control. The module provides accurate data for PID loops.

Technical Specifications

The module has four differential thermocouple inputs. It supports thermocouple types J, K, T, E, R, S, and B. Input resolution is 0.1°C or 1°C. Accuracy is ±0.5% of full scale. Cold junction compensation is automatic. Update time is 150 ms for all channels. Common mode rejection is 120 dB at 60 Hz. Input impedance is greater than 10 MΩ. Maximum continuous input is ±30 V. Isolation is 500V between channels and backplane. Operating temperature range is 0 to 55°C. Storage temperature range is -40 to 85°C. Relative humidity is 5 to 95% non-condensing. Power consumption is 5V DC at 80 mA from backplane. Module weight is approximately 0.2 kg. The module is UL, CSA, and CE certified. It meets Class I, Division 2 hazardous location standards.

Installation & Maintenance Guide

Mount the module onto a MicroLogix 1200 or 1500 base. Use the locking tab to secure the module. Connect thermocouples to the removable terminal block. Use the correct thermocouple extension wire. Ensure proper polarity for each thermocouple. Tighten terminal screws to 0.5 Nm torque. Configure the thermocouple type using the programming software. Set the input resolution as needed. Check LED indicators for power and channel status. A green LED indicates normal operation. A red LED indicates a fault condition. Clean the module with a dry cloth. Do not use solvents. Inspect connections for corrosion annually. Replace the module if it fails diagnostics. Store the module in an antistatic bag. Do not expose the module to excessive vibration. Follow all local electrical codes during installation.

Frequently Asked Questions (FAQ)

What is the primary function of 1762-IT4?

The module converts thermocouple temperature signals into digital data for a MicroLogix controller.

What thermocouple types are supported by 1762-IT4?

The module supports types J, K, T, E, R, S, and B thermocouples.

How many input channels does 1762-IT4 have?

The module has four differential thermocouple input channels.

What is the power requirement for 1762-IT4?

The module draws 80 mA from the 5V backplane supply of the MicroLogix base.

Is 1762-IT4 compatible with MicroLogix 1000?

No, the module is designed for MicroLogix 1200 and 1500 systems only.
