1762-L24AWA | Allen-Bradley PLC Controller In Stock
Introduction:
Allen-Bradley MicroLogix 1100 PLC with 24 I/O, Ethernet, and relay outputs. Compact design for small automation tasks.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

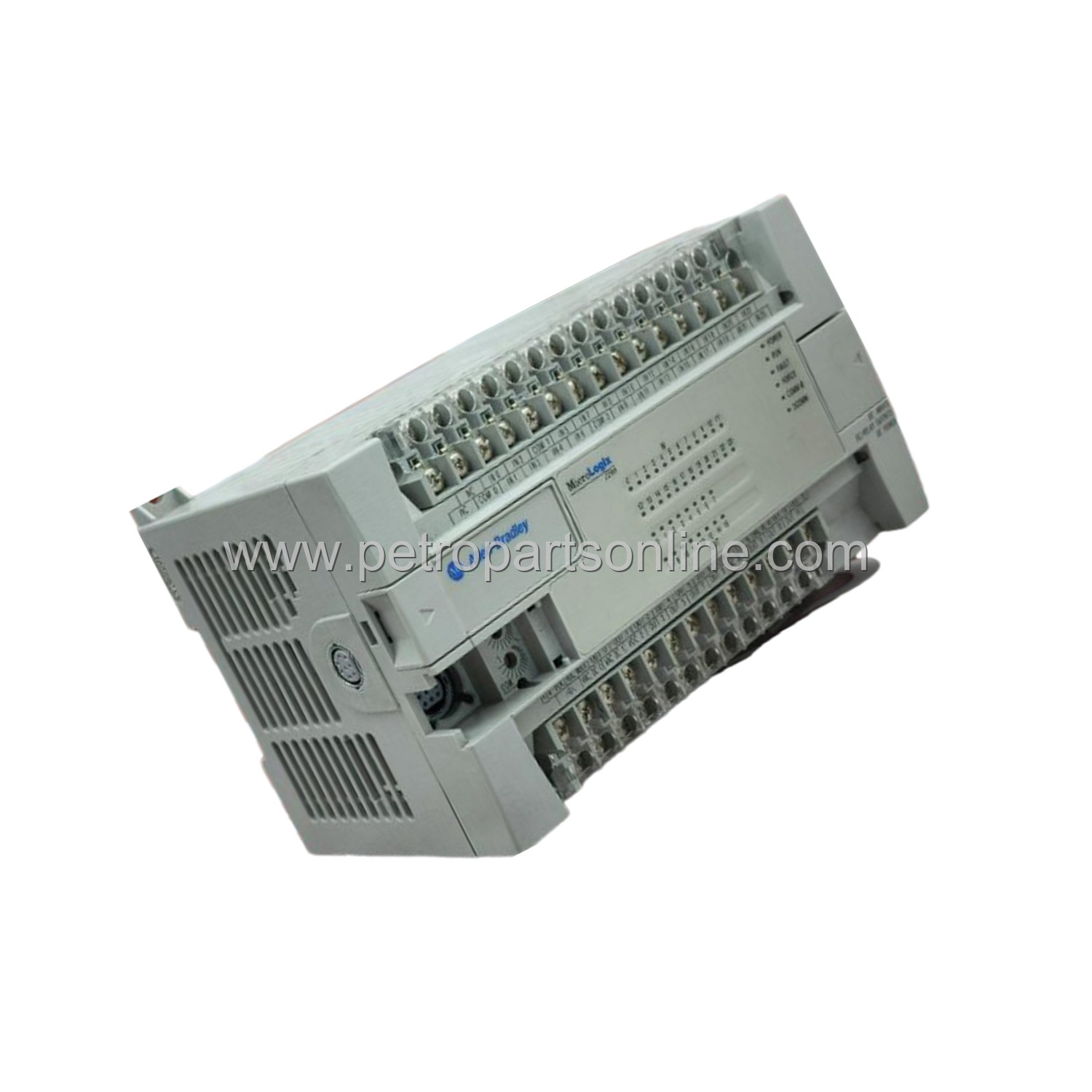

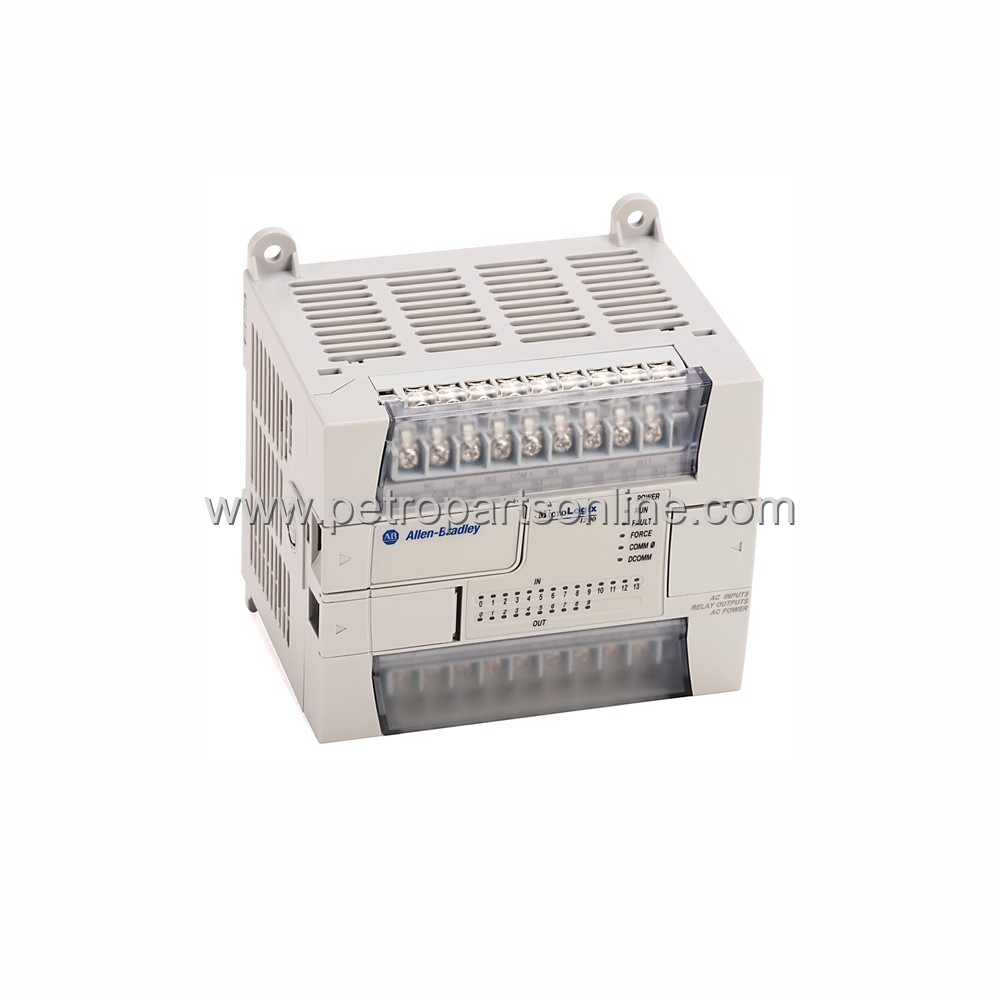

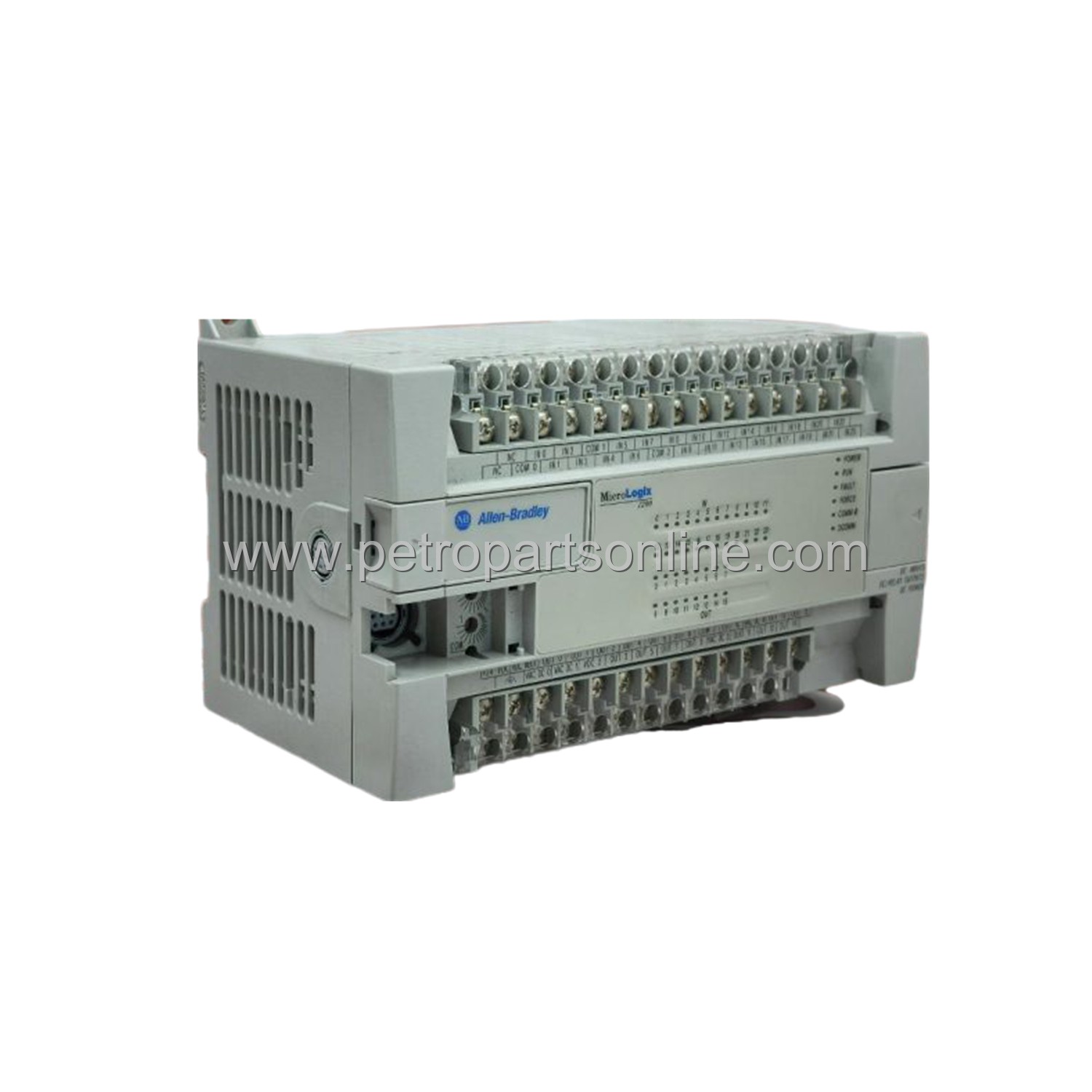

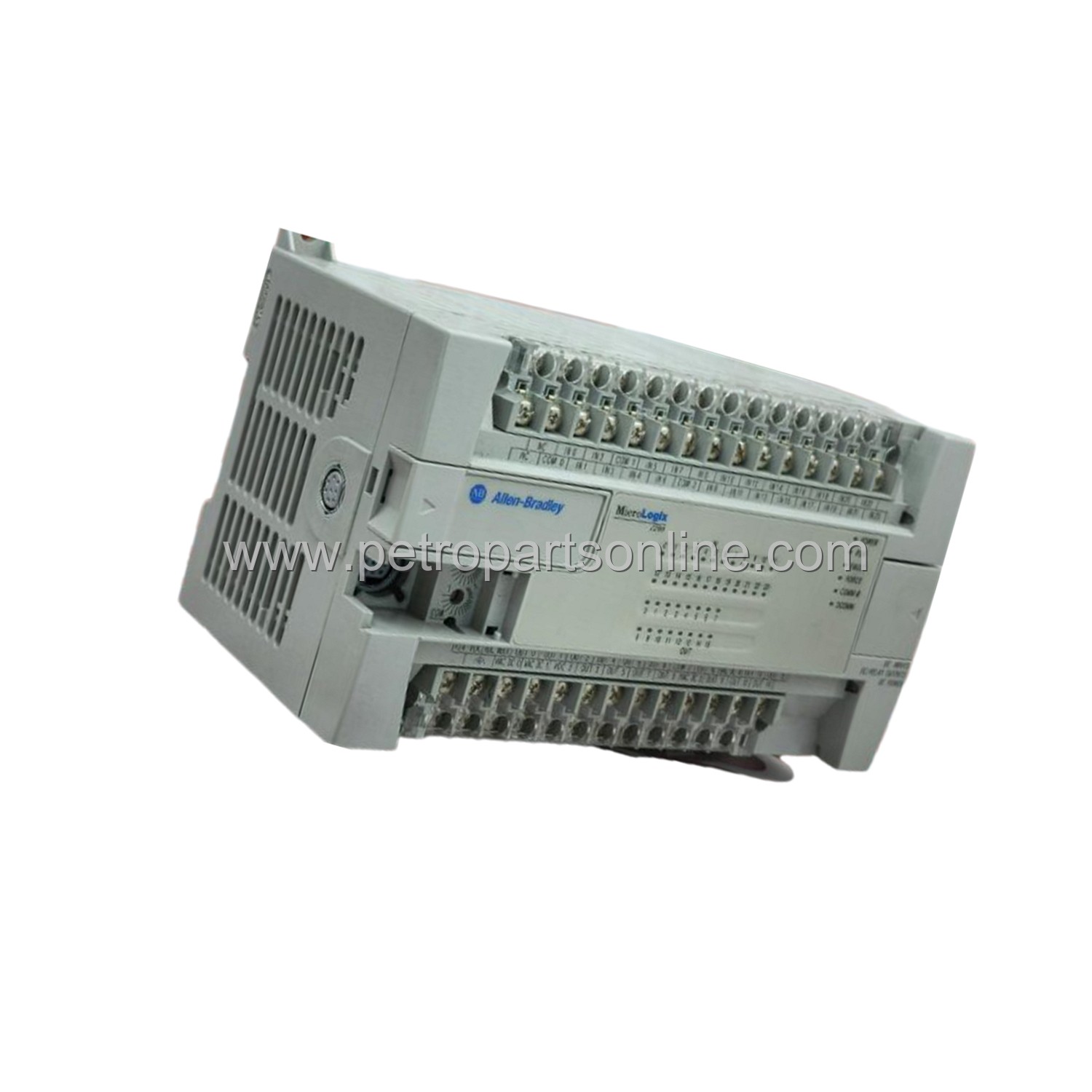

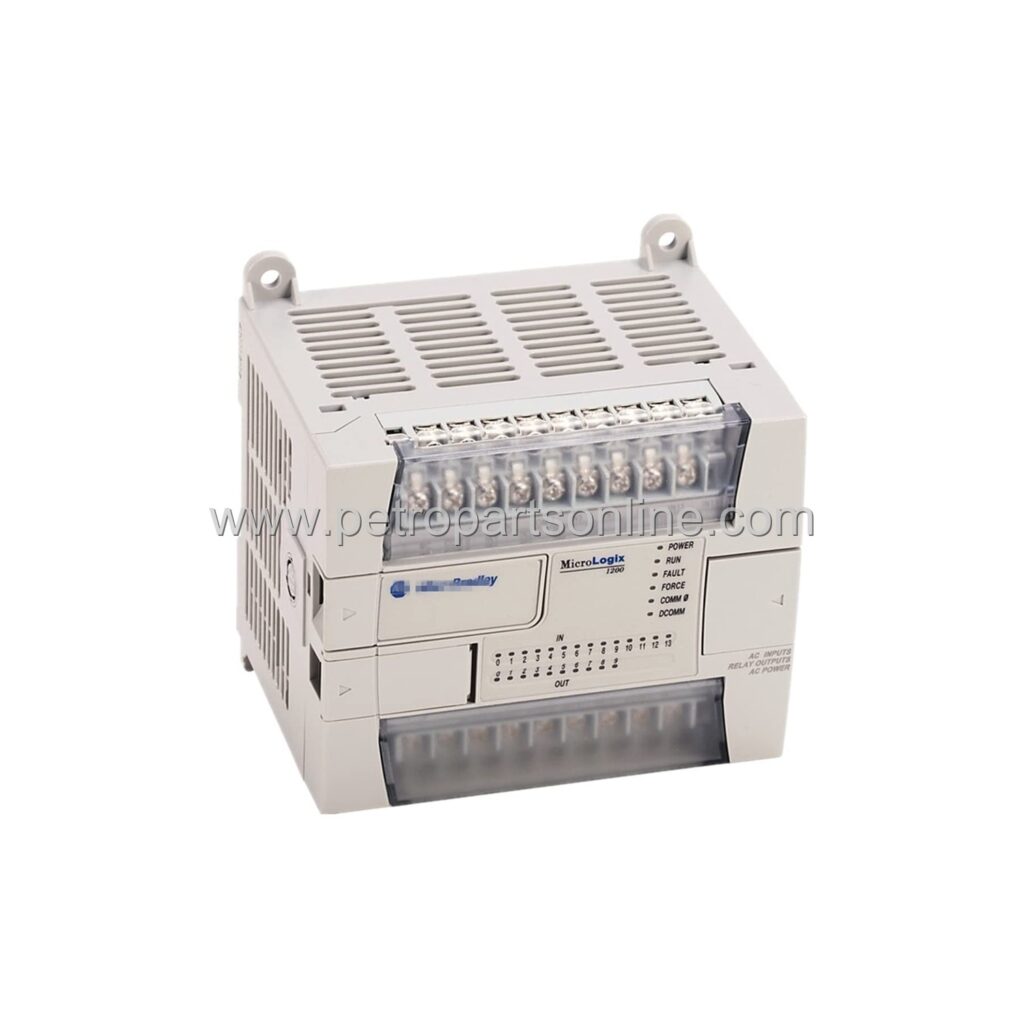

The Allen-Bradley 1762-L24AWA is a MicroLogix 1100 programmable logic controller. It provides 24 I/O points for industrial automation tasks. This unit combines a processor, power supply, and I/O in one compact package.
This controller supports 120/240V AC input power. It includes embedded Ethernet and serial communication ports. The unit is designed for small to medium control applications.
The 1762-L24AWA offers reliable performance in harsh factory environments. It operates within a temperature range of 0 to 55 degrees Celsius. The controller uses standard MicroLogix programming software.
Application Scenarios
This PLC is ideal for machine control in manufacturing lines. It manages conveyor systems and material handling equipment. The controller also handles packaging machinery and assembly stations.
Water and wastewater treatment plants use this unit for process control. It monitors pumps, valves, and tank levels. The built-in Ethernet simplifies remote monitoring and data logging.
Building automation systems benefit from its compact size. It controls HVAC units, lighting, and access systems. The 1762-L24AWA supports simple HMI integration for operator interfaces.
Technical Specifications
- Input voltage: 120/240V AC
- Digital inputs: 14 (24V DC sink/source)
- Digital outputs: 10 (relay, 2A)
- Program memory: 4K words
- Data memory: 4K words
- Communication ports: 1 Ethernet, 1 RS-232/485
- Operating temperature: 0 to 55 degrees Celsius
- Mounting: Panel or DIN rail
- Weight: 0.5 kg
Installation & Maintenance Guide
Mount the controller on a clean, dry panel or DIN rail. Ensure proper clearance for heat dissipation. Connect AC power to the designated terminals using appropriate wire gauge.
Wire input devices to the input terminals. Connect output loads to the relay output terminals. Use shielded cable for communication wiring to reduce noise.
Regularly inspect the unit for dust and debris. Clean with a dry cloth or low-pressure air. Do not use solvents or abrasive cleaners. Check all wiring connections periodically.
Update firmware through the Ethernet port as needed. Always backup the program before making changes. Follow all local electrical codes during installation.
Frequently Asked Questions (FAQ)
What is the primary function of 1762-L24AWA?
The 1762-L24AWA is a programmable logic controller. It executes user-defined logic to control industrial machinery and processes.
What type of power supply does this controller require?
This unit requires 120/240V AC input power. It has an integrated power supply that converts AC to DC for internal use.
Can the 1762-L24AWA communicate with other devices?
Yes, it has one Ethernet port and one RS-232/485 port. It supports protocols like EtherNet/IP and DF1 for device communication.
What is the maximum number of I/O points supported?
The controller has 24 built-in I/O points. It can be expanded with additional MicroLogix expansion I/O modules.
Is this controller suitable for outdoor installation?
The controller is rated for indoor use only. It should be installed in a clean, dry environment within the specified temperature range.
