Introduction:
The LXV404.99.00502 HACH SC200 universal controller offers one digital sensor input and two 4-20 mA outputs for precise industrial monitoring.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.

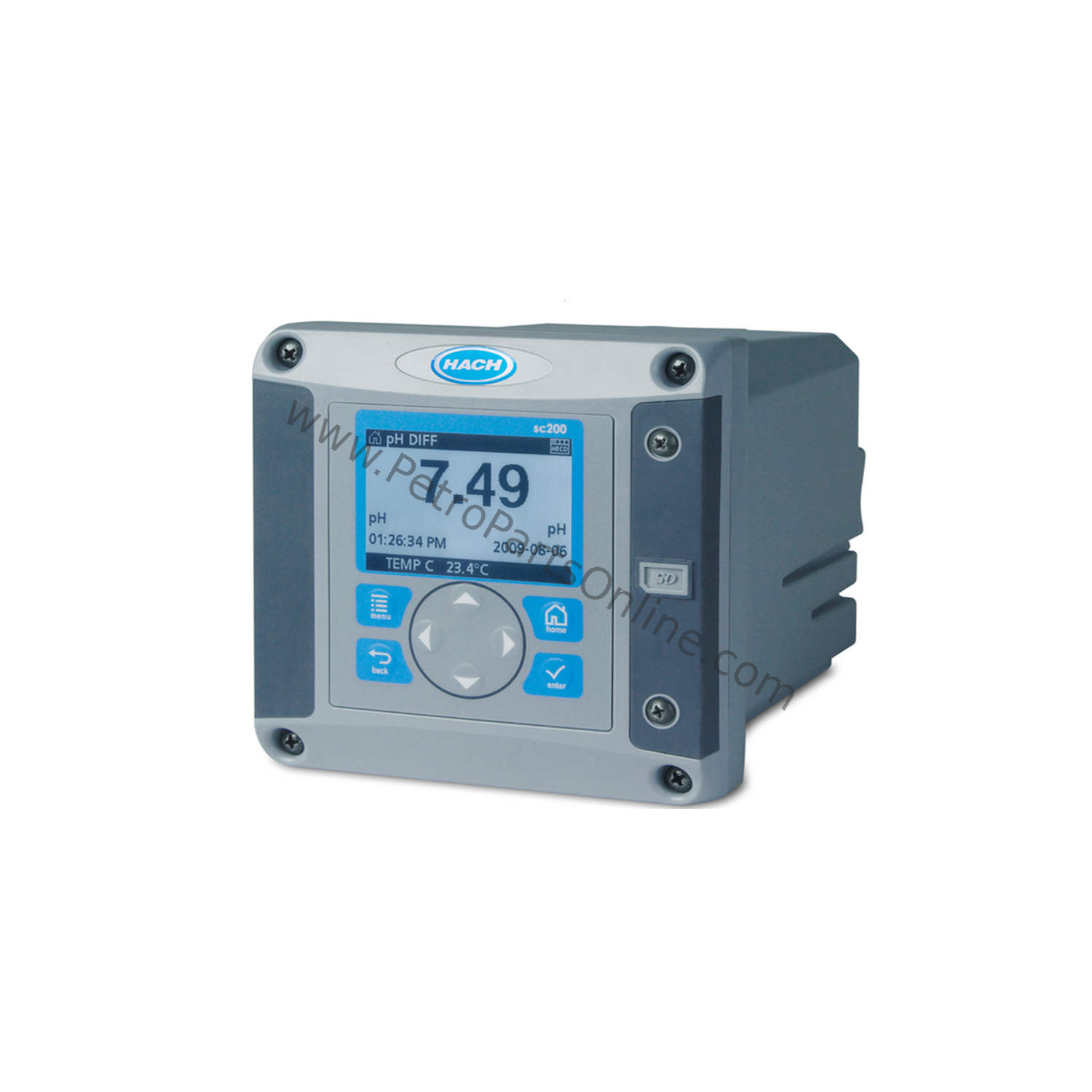

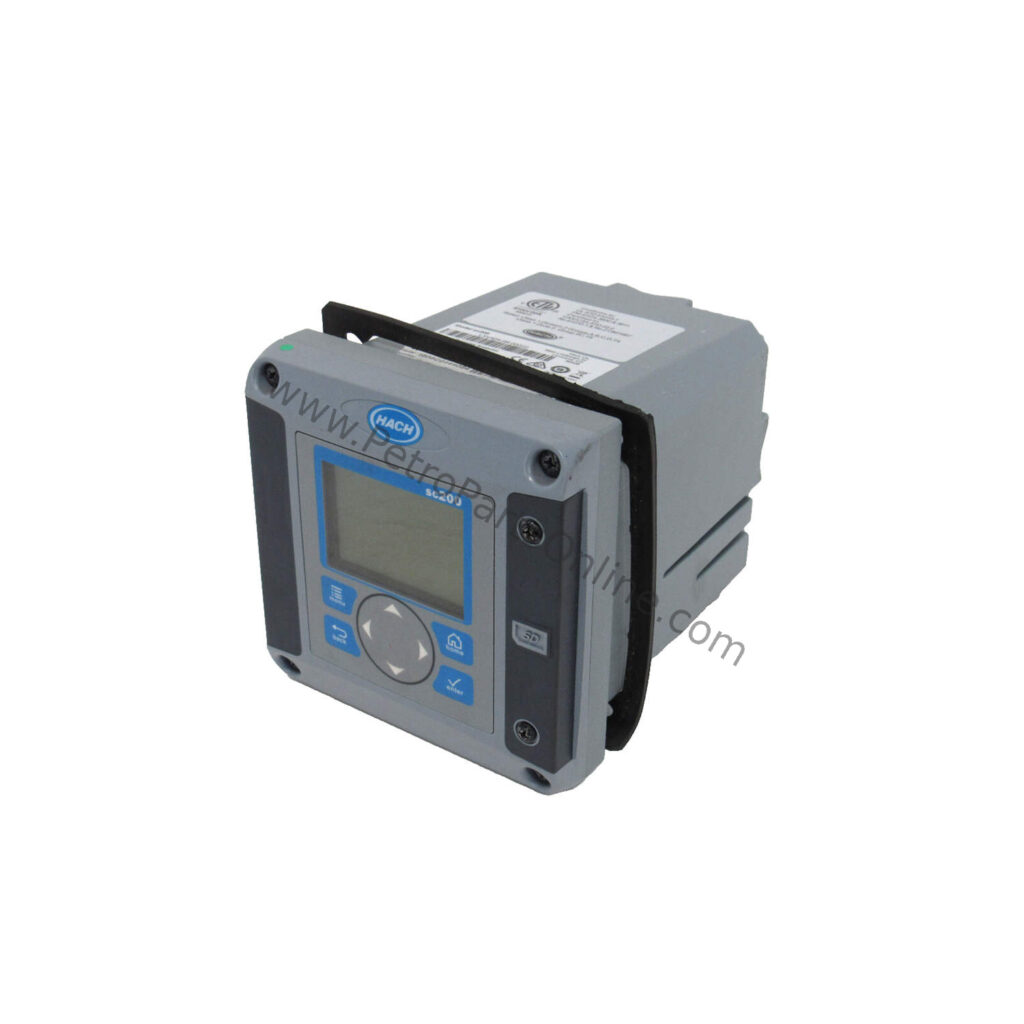

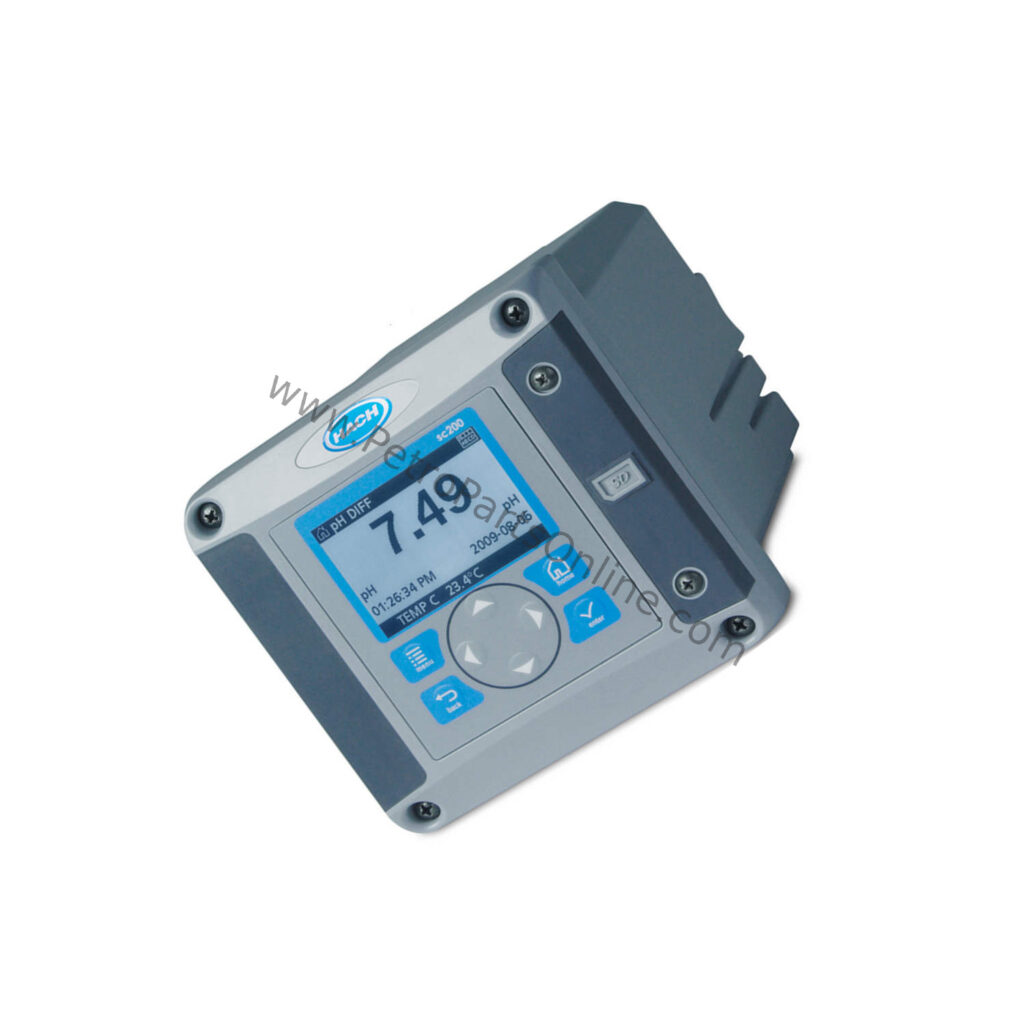

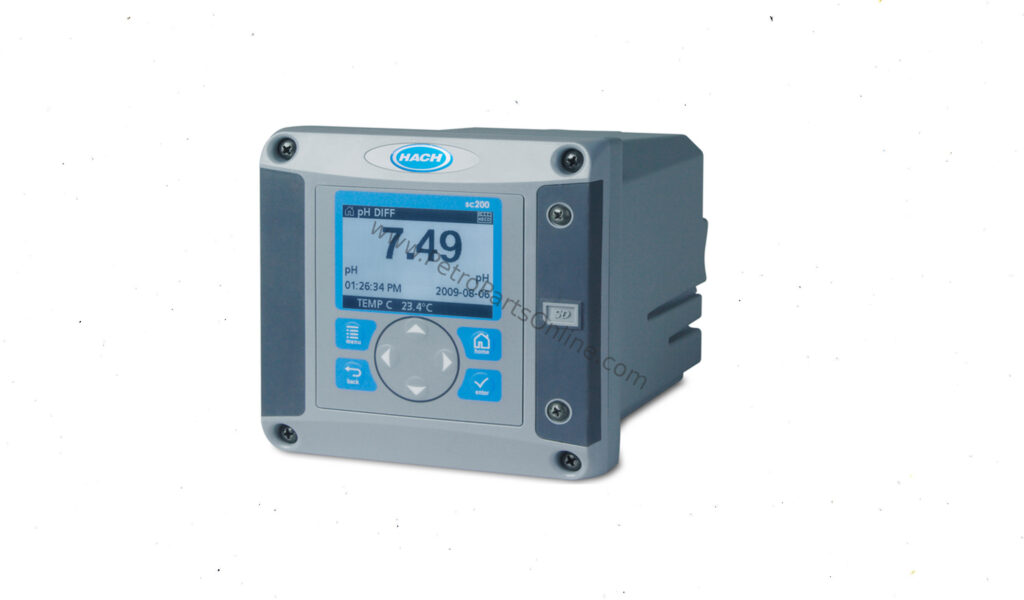

What Is the LXV404.99.00502 Universal Controller?
When your process demands reliable measurement and control, the LXV404.99.00502 from HACH delivers. This SC200 universal controller operates on 100-240 V AC and includes one digital sensor input plus two 4-20 mA outputs. It is built for demanding environments with a NEMA 4X/IP66 enclosure rating.
Engineers choose the LXV404.99.00502 for its robust design and flexible mounting options. It supports wall, pole, and panel mounting. The graphic dot matrix LCD with LED backlighting displays data clearly in any lighting condition.
Core Specs of the LXV404.99.00502
- Power supply: 100-240 V AC, 24 V DC, 50/60 Hz
- Power consumption: 50 VA with 7 W probe load; 100 VA with 28 W probe load
- Relay output: 240 V AC, 5 A
- One digital sensor input
- Two 4-20 mA outputs (expandable to five with optional module)
- Analog output accuracy: ±0.1% of FS (20 mA) at 25 °C; ±0.5% of FS over -20 °C to 60 °C
- Operating temperature: -20 to 60 °C, 0 to 95% RH non-condensing
- Enclosure: NEMA 4X/IP66
- Weight: 3.75 lbs (1.70 kg)
- Dimensions: 5.7 x 5.7 x 7.1 in (144 x 144 x 181 mm)
One standout feature is the analog output functional mode, which supports linear, logarithmic, bi-linear, and PID operation. This flexibility allows the LXV404.99.00502 to adapt to various control strategies without extra hardware.
Applications for the HACH SC200 Controller
In water treatment facilities, the LXV404.99.00502 monitors and controls critical parameters like pH, chlorine, or turbidity. Its two 4-20 mA outputs can transmit measurement data to a PLC or SCADA system. The digital sensor input connects directly to HACH digital sensors for fast, accurate readings.
For industrial wastewater applications, the controller’s wide operating temperature range (-20 to 60 °C) ensures reliable performance in harsh conditions. The NEMA 4X/IP66 enclosure protects against dust and water jets, making it suitable for outdoor or washdown areas.
In chemical processing, the LXV404.99.00502 can be configured for PID control to maintain setpoints precisely. The relay output can trigger alarms or actuate valves, providing a complete control solution.
Installation & Setup
Mount the LXV404.99.00502 on a wall, pole, or panel using the included hardware. Ensure the conduit openings (1/2 in NPT) are properly sealed to maintain the IP66 rating. Connect power to the 100-240 V AC or 24 V DC terminals as per the wiring diagram.
For the digital sensor input, use a compatible HACH digital sensor and follow the sensor’s manual for wiring. The two 4-20 mA outputs are isolated current outputs with a maximum load of 550 Ω. Configure the analog output functional mode (linear, logarithmic, bi-linear, or PID) through the controller’s menu.
Set the security levels to protect configuration settings. Two password-protected levels are available to prevent unauthorized changes.
Maintenance & Reliability
Routine inspection of the LXV404.99.00502 ensures long-term reliability. Check the enclosure seals and conduit connections periodically to maintain the NEMA 4X/IP66 rating. Clean the display with a soft, dry cloth as needed.
The controller’s solid-state design minimizes wear, and the isolated analog outputs protect against ground loops. With proper care, the SC200 series delivers years of accurate measurement and control.
Compatibility & Integration
The LXV404.99.00502 works with HACH digital sensors and standard 4-20 mA transmitters. The two analog outputs can connect to any device accepting isolated current signals, such as PLCs, DCS systems, or chart recorders. For additional outputs, an optional expansion module increases the count to five.
The relay output (240 V AC, 5 A) can drive alarms, solenoid valves, or motor starters. The controller also supports dual-channel operation, allowing two measurements to be displayed and controlled simultaneously.
FAQs about the LXV404.99.00502
Q: What power supply does the LXV404.99.00502 require?
A: It accepts 100-240 V AC or 24 V DC at 50/60 Hz.
Q: How many analog outputs does the LXV404.99.00502 have?
A: It comes with two 4-20 mA outputs, expandable to five with an optional module.
Q: Can the LXV404.99.00502 be used outdoors?
A: Yes, its NEMA 4X/IP66 enclosure makes it suitable for outdoor and washdown environments.
Q: What is the operating temperature range?
A: The controller operates from -20 to 60 °C with 0 to 95% RH non-condensing.
Q: Does the LXV404.99.00502 support PID control?
A: Yes, the analog output functional mode includes PID operation.
Product Support & Availability
The LXV404.99.00502 is in stock and ready to ship from PetroPartsOnline. Contact our team for pricing, lead times, or technical support. We are your trusted supplier for HACH automation components.
