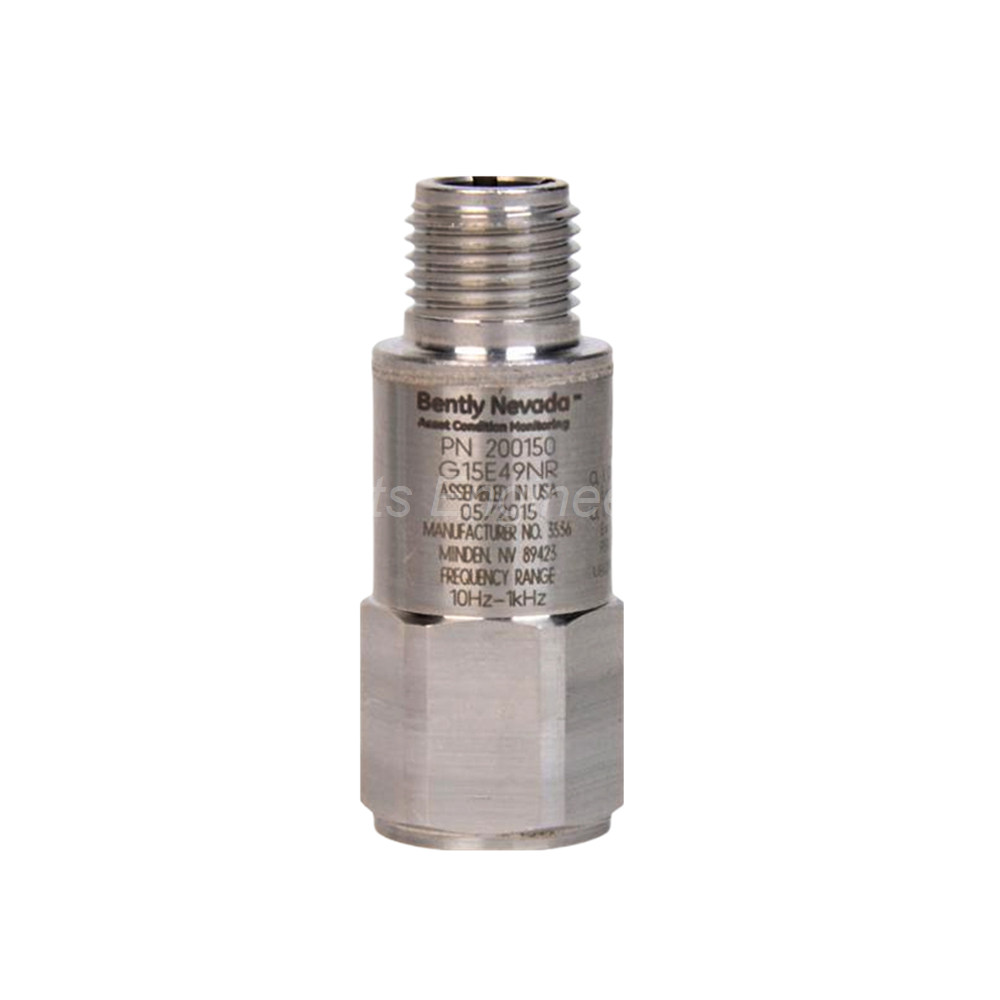

Bently Nevada 200150-06-05 General Purpose Accelerometer

The Bently Nevada 200150-06-05 is a general purpose accelerometer. This device is used with Trendmaster 2000 or Trendmaster Pro systems. You can use it for machinery vibration monitoring. It is made in the U.S.A. The accelerometer features a shear sensing geometry with a ceramic sensing element.

Technical Specifications of the 200150-06-05

The Bently Nevada 200150-06-05 has a sensitivity of 10.2 mV/(m/s²) or 100 mV/g at 80 Hz. The measurement range is ±245 m/s² (±25 g). The frequency range is 10 to 1000 Hz (600 to 60,000 cpm). The mounted resonant frequency exceeds 20 kHz for high frequency response.

Electrical Specifications

The excitation voltage range is 4.7 to 5.5V DC. The quiescent current is less than 800 µA. The output bias voltage is +2.5 ± 0.23V DC. The Bently Nevada 200150-06-05 has amplitude linearity of ±2% from 1 to 10g peak. The transverse sensitivity is ≤7% for accurate measurements.

Settling Time

The settling time to within 5% of bias is ≤300 ms. The Bently Nevada 200150-06-05 stabilizes quickly after power-up. This allows fast system startup and measurement readiness. The settling time ensures reliable data acquisition.

Mounting Specifications

The mounting stud option is 3/8-24 to 1/4 NPT with a 3/4 inch hex stud. The Bently Nevada 200150-06-05 has a 3/8-24 female mounting thread. The recommended mounting torque is 2.7 to 6.8 N•m (2 to 5 ft•lbf). Proper torque ensures accurate vibration measurement.

Environmental Specifications

The axial shock limit is 49,050 m/s² peak (5,000 g peak). The operating temperature range is -40°C to +105°C. The Bently Nevada 200150-06-05 is hermetically sealed at 5x10⁻⁸ atm•cc/s maximum. Relative humidity tolerance is 100% condensing but non-submerged.

Physical Specifications

The size is 17.5 mm hex by 45.7 mm height. The Bently Nevada 200150-06-05 weighs 58 g (2.0 oz) typical. The housing and connector material is 316L stainless steel. This provides excellent corrosion resistance in harsh environments.

Certifications

The approvals option includes multiple approvals. The Bently Nevada 200150-06-05 has CSA, ATEX, and IECEx certifications. This allows installation in hazardous locations worldwide.

Installation Guidelines for the 200150-06-05

Mount the Bently Nevada 200150-06-05 using 2.7 to 6.8 N•m torque. Use the 3/8-24 to 1/4 NPT mounting stud for installation. Apply excitation voltage between 4.7 and 5.5V DC. Keep the operating temperature between -40°C and +105°C. Allow 300 ms settling time for stable output. Follow ATEX/CSA/IECEx guidelines for hazardous area installation.

Package Contents

• One (1) Bently Nevada 200150-06-05 general purpose accelerometer

• 3/8-24 to 1/4 NPT mounting stud with 3/4 inch hex

• Installation and calibration manual

Common FAQs for the 200150-06-05

1. What is the sensitivity of the 200150-06-05 accelerometer?
The Bently Nevada 200150-06-05 has 100 mV/g sensitivity (10.2 mV/(m/s²)). This is measured at 80 Hz with ±12% tolerance.

2. What certifications does this accelerometer hold?
The Bently Nevada 200150-06-05 has CSA, ATEX, and IECEx approvals. This enables use in hazardous locations.

3. What is the operating temperature range?
The Bently Nevada 200150-06-05 operates from -40°C to +105°C. The hermetically sealed housing protects internal components.

4. What mounting thread does this accelerometer use?
The Bently Nevada 200150-06-05 has a 3/8-24 female mounting thread. The included stud adapts to 1/4 NPT.

5. What is the measurement range of this device?
The Bently Nevada 200150-06-05 measures ±245 m/s² (±25 g). The frequency response is 10 to 1000 Hz.

Why Choose the Bently Nevada 200150-06-05?

This general purpose accelerometer delivers reliable vibration monitoring for machinery protection. The 100 mV/g sensitivity provides excellent signal resolution. Multiple hazardous area approvals enable global installation. The 316L stainless steel housing resists corrosion. Order the Bently Nevada 200150-06-05 today for your Trendmaster monitoring needs.
