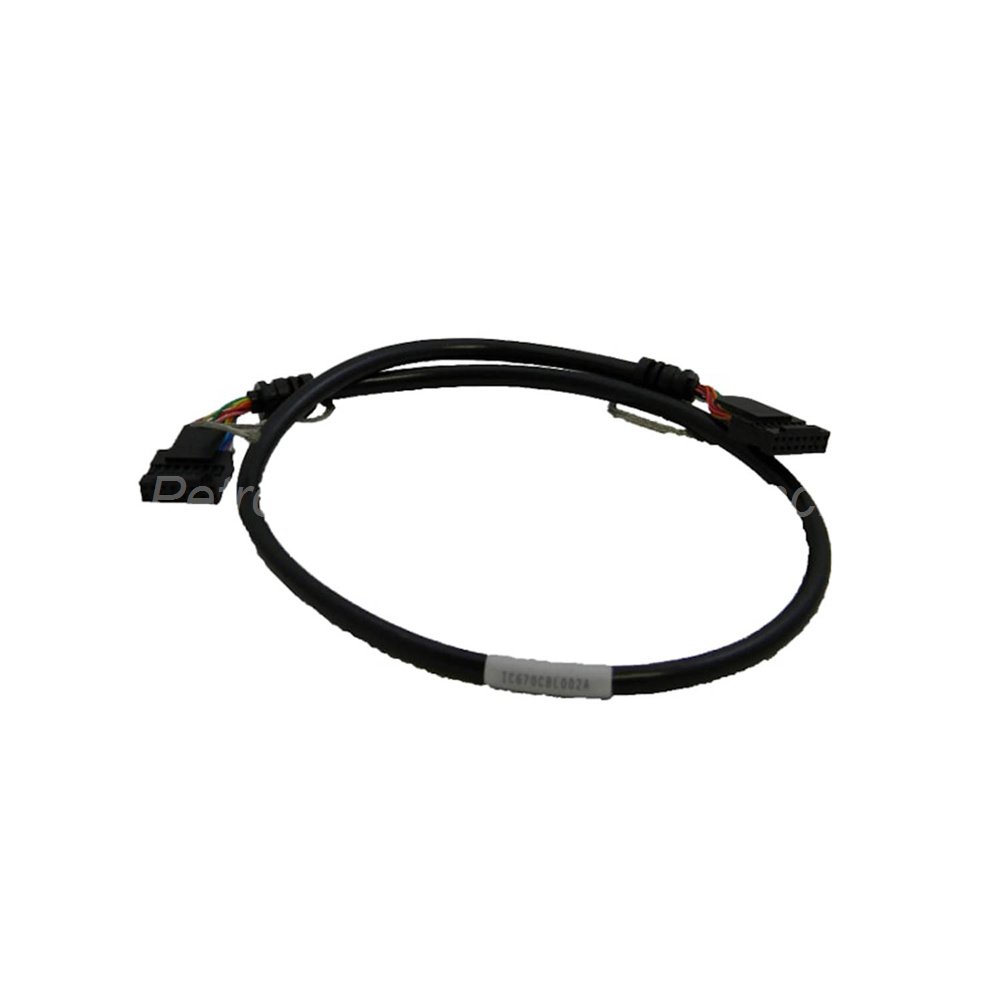

GE Fanuc IC670CBL002 21-Inch I/O Expansion Cable for Field Control Systems

The GE Fanuc IC670CBL002 is a base connection cable for Field Control systems. It belongs to the IC670 series from GE Fanuc. This cable measures 21 inches (54.61 cm) in length. The IC670CBL002 connects two terminal blocks together. It also connects a terminal block to its Bus Interface Unit (BIU). This longer cable solves distance problems on large panelboards.

Technical Specifications of the IC670CBL002 Expansion Cable

This GE Fanuc IC670CBL002 cable provides reliable data transmission between Field Control components. Its keyed connectors prevent incorrect installation.

Physical Specifications:

• Length: 21 inches (54.61 centimeters).

• Cable Type: I/O expansion / base connection cable.

• Connector Type: Keyed connectors (polarized).

• Protection: Misconnection protected via keyed design.

• ESD Protection: Braided drain wire for grounding.

Electrical and Functional Specifications:

• ESD Drain Wire: Braided conductor connected to ground or chassis.

• Maximum per Station: One (1) cable per Field Control station.

• Compatible Devices: Terminal block to terminal block, or terminal block to BIU.

• Assembly: Factory pre-assembled.

Compatibility:

• Product Line: GE Fanuc Field Control.

• Part Number Family: IC670CBL, IC670CB, IC670CBL002.

• Connects To: Any GE Fanuc Field Control terminal block or BIU with matching ports.

Installation and Connection Guidelines

Proper installation of the GE Fanuc IC670CBL002 ensures reliable system operation. Follow these key points.

• Maximum per Station: Use only one IC670CBL002 per Field Control station. The electrical characteristics differ from shorter cables.

• Grounding Requirements: Connect the braided drain wire to zero voltage at both ends. Use ground or chassis for effective ESD protection.

• Polarity Respect: Follow the connection polarity of each base. This maintains proper data flow.

• Connector Orientation: Plug the cable into the top connector of one base. Plug the other end into the bottom connector of the next base.

• Keyed Connectors: The keyed design makes erroneous connections impossible. Always verify the key alignment before pushing.

• Panel Layout: Use this longer cable when standard cables cannot reach between distant components.

Application Scenarios

The GE Fanuc IC670CBL002 solves specific wiring challenges in Field Control systems.

• Distant Terminal Blocks: Connect two terminal blocks that are far apart on the same panelboard.

• Remote BIU Connection: Connect a terminal block to its BIU when they cannot sit side by side.

• Panel Reconfiguration: Replace shorter cables when you rearrange components on a larger panel.

• Maintenance Access: Provide slack for easier module removal and replacement.

ESD Protection Features

This GE Fanuc IC670CBL002 includes built-in electrostatic discharge protection. The braided drain wire shields the signal conductors. You must connect this drain wire to ground or chassis at both ends. This provides effective immunity against electrical interference and external noise. Proper grounding of the IC670CBL002 maintains data integrity in noisy industrial environments.

Packing List

• One GE Fanuc IC670CBL002 base connection cable (21 inches).

• Factory pre-assembled with keyed connectors installed.

Frequently Asked Questions (FAQ)

1. How long is the IC670CBL002 expansion cable?
The GE Fanuc IC670CBL002 measures 21 inches (54.61 centimeters) from end to end, including connectors.

2. Can I use more than one IC670CBL002 in a single Field Control station?
No, you can only use one IC670CBL002 per Field Control station. The longer cable has different electrical characteristics than standard cables.

3. What devices can I connect with this cable?
The GE Fanuc IC670CBL002 connects a terminal block to another terminal block. It also connects a terminal block to a Bus Interface Unit (BIU).

4. How do I prevent ESD damage when using this cable?
Connect the braided drain wire on the IC670CBL002 to ground or chassis at both ends. This provides effective electrostatic discharge protection.

5. Can I accidentally connect this cable backwards?
No, the GE Fanuc IC670CBL002 uses keyed connectors. This design makes incorrect or reversed connections impossible. Always verify key alignment.
