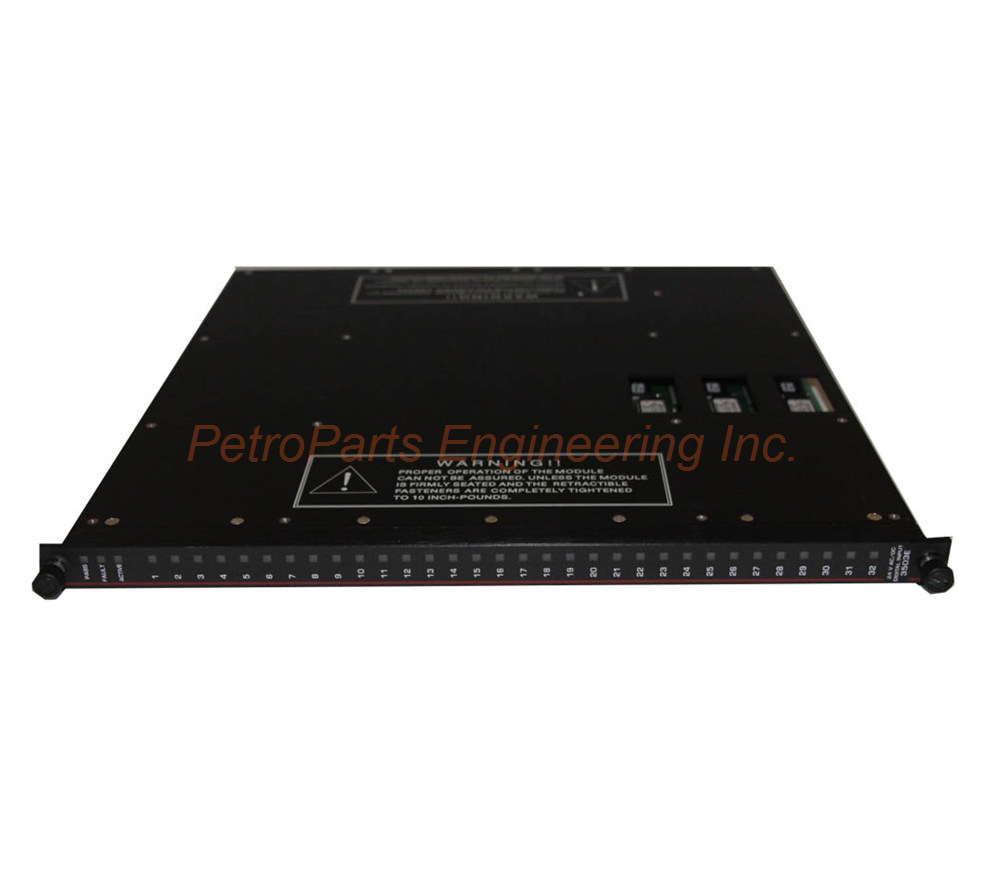

Triconex 3505E TMR Digital Input Module

The Triconex 3505E is a Triple Modular Redundant (TMR) digital input module. This unit provides 32 input points for safety-critical applications. Each group of 8 points shares a common return path. The Triconex 3505E operates with a low threshold of 24 VDC. Engineers use this module in emergency shutdown systems and fire protection networks.

Input Voltage Range and Switching Levels

Regarding voltage requirements, the Triconex 3505E accepts a DC range from 20 to 42.5 VDC. The maximum allowable voltage reaches 42.5 VDC without damaging the unit. For switching levels, the OFF to ON transition requires more than 12 VDC. Conversely, the ON to OFF transition occurs below 4 VDC. This clear separation ensures reliable state detection in noisy environments.

Nominal Turn-On Current and Hysteresis

The nominal turn-on current sits between 3 mA and 5 mA per point. Typical hysteresis measures 2 VDC for stable switching behavior. This hysteresis prevents chattering when input signals fluctuate near threshold levels. Consequently, your system receives clean and consistent digital signals.

Input Delay Timing Specifications

For response timing, the Triconex 3505E delivers predictable delays. The OFF to ON transition takes less than 8 ms to complete. Meanwhile, the ON to OFF transition requires less than 15 ms. These fast response times suit time-critical safety logic execution. Your control loop will see minimal latency from field devices.

Point Isolation and Input Impedance

The module provides 1500 VDC of point-to-point isolation. This high isolation protects against voltage spikes and ground loops. Nominal input impedance measures greater than 1.25 KΩ per channel. High impedance minimizes loading effects on field devices. Therefore, sensitive sensors maintain accurate signal levels.

Power Consumption Per Active Point

Regarding power draw, each ON point consumes 0.5 watts typically. At maximum field voltage, each active point uses 1.5 watts. Multiply these values across 32 points for total load calculations. This predictable consumption helps you size your field power supply correctly.

Diagnostic Indicators for Status Monitoring

The Triconex 3505E includes comprehensive diagnostic LEDs. Each of the 32 points has an individual Input Status indicator. For module health, you will see PASS, FAULT, and ACTIVE status lights. A Stuck Test ON indicator shows when self-testing is active. The module carries a Dark Red color code for easy identification.

Stuck-ON Self-Test Feature

The Triconex 3505E can self-test to detect stuck-ON conditions. This test identifies when circuitry cannot tell if a point reached the OFF state. Most safety systems use a de-energize-to-trip architecture. Therefore, detecting OFF points becomes an important safety feature.

How does the stuck-ON test work? A switch within the input circuitry closes during testing. This action allows a zero input (OFF) to be read by the optical isolation circuitry. While the test runs, the I/O communication processor freezes the last data reading. Your system continues operating with known good data during this brief test period.

Hot-Spare Capability and External Termination

All TMR digital input modules support hot-spare capability. You can install a backup module without powering down the system. Each Triconex 3505E requires a separate external termination panel (ETP). A cable interface connects the ETP to the Tricon backplane. This design keeps field wiring away from the main chassis.

Mechanical Keying for Installation Safety

The module includes mechanical keying features for safe installation. This keying prevents improper insertion into a configured chassis. You cannot install the Triconex 3505E into the wrong slot accidentally. This physical protection reduces configuration errors during maintenance.

Step-by-Step Installation Guide

Follow these steps to install your Triconex 3505E correctly.

Step 1: Verify Chassis Compatibility
Ensure your Tricon chassis has an available I/O slot. Check that the backplane firmware supports TMR digital input modules. Also, confirm the slot configuration matches your engineering drawings.

Step 2: Install the External Termination Panel
Mount the ETP in a suitable location near your field devices. Use the recommended cable to connect the ETP to the Tricon backplane. Tighten all connections to specified torque values.

Step 3: Set the Mechanical Keying
Adjust the keying pins on the module and chassis slot. Match the keying pattern to your engineering documentation. This step prevents future installation errors by maintenance staff.

Step 4: Insert the Module
Slide the Triconex 3505E firmly into the designated chassis slot. Press until the top and bottom latches click into place. Verify the module sits flush with adjacent modules.

Step 5: Connect Field Wiring
Wire your field devices to the ETP terminal blocks. Connect each input signal to the correct point number. Group returns according to the 8-point commoning scheme.

Step 6: Apply Power and Test
Power up the Tricon chassis and observe the diagnostic LEDs. The PASS indicator should light up after initialization. Run a stuck-on self-test to verify proper operation.

Complete Package Contents

Your Triconex 3505E shipment includes the following items:

• Triconex 3505E TMR Digital Input Module (1 unit)

• Module keying pins and installation tool

• Product documentation and configuration guide

• Dust cover for unused chassis slots

Note: Shipping partners include FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

Q1: What is the maximum number of input points on the Triconex 3505E?
The Triconex 3505E provides 32 digital input points total. These points are commoned in groups of 8 for return paths. Each point has its own status indicator LED.

Q2: Does the Triconex 3505E support hot-swapping during operation?
Yes, this module supports hot-spare capability fully. You can replace a failed module without powering down the Tricon chassis. However, ensure the backup module has identical configuration settings.

Q3: How does the stuck-on self-test affect input readings?
During the stuck-on test, the I/O processor freezes the last data reading. This frozen state prevents false trip events during testing. Normal input scanning resumes immediately after the test completes.

Q4: What external components does the Triconex 3505E require?
The Triconex 3505E needs a separate external termination panel (ETP). You also need a cable interface to connect the ETP to the backplane. The ETP provides terminal blocks for field wiring connections.

Q5: Can I use this module with 12 VDC field devices?
No, the Triconex 3505E requires a minimum OFF to ON threshold above 12 VDC. The nominal operating range starts at 20 VDC. For 12 VDC applications, select a different Triconex input module model.
