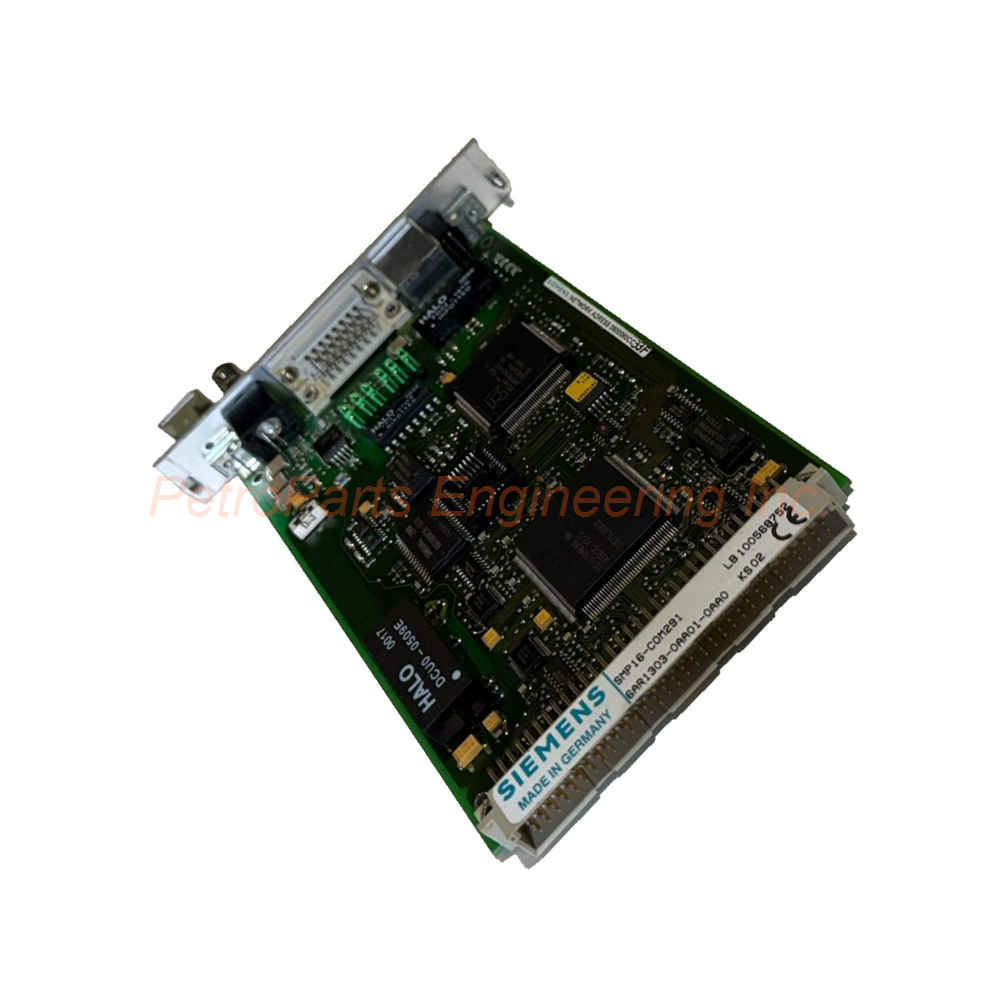

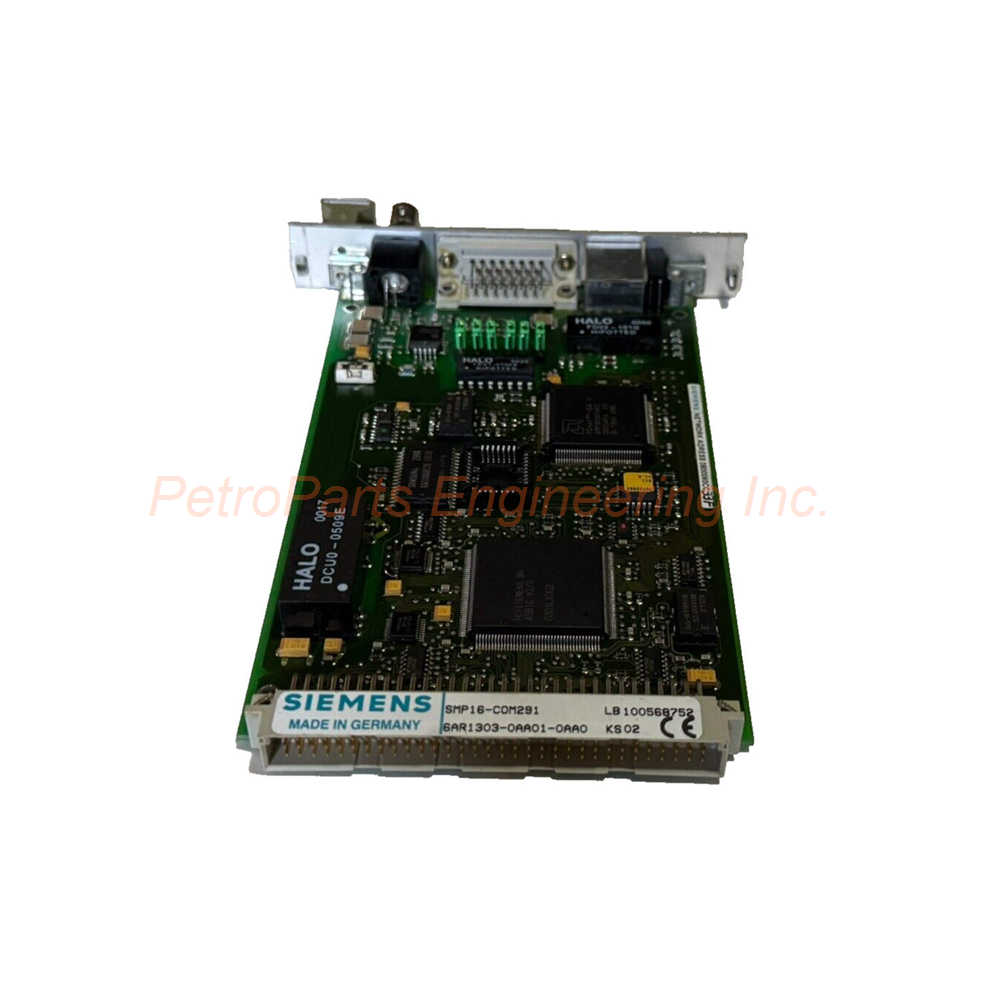

Siemens 6AR1303-0AA01-0AA0 Interface Module 10 Mbit/s
Introduction:
Ethernet interface module with 10 Mbit/s transmission rate. Operating temperature 0 to 60°C. IP20 protection for indoor use.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
Module Design and Network Compatibility
The Siemens 6AR1303-0AA01-0AA0 serves as an interface module within the I/O Modules series. Therefore, this unit integrates seamlessly into Ethernet networks for automation tasks. The transmission rate is 10 Mbit/s, which suits various industrial applications. Consequently, the 6AR1303-0AA01-0AA0 provides reliable data exchange between controllers and field devices. The lightweight design weighs only 0.49 pounds for straightforward installation.
Application and Functionality
The 6AR1303-0AA01-0AA0 is designed for sturdy connectivity in automation systems. Therefore, it facilitates robust communication between network components. The Ethernet compatibility ensures broad integration with existing infrastructure. Consequently, this module serves as an essential component in automation setups. The CE certification guarantees compliance with essential safety and health requirements.
Technical Specifications
General Specifications
Manufacturer: Siemens
Product Line: I/O Modules Series
Part Number: 6AR1303-0AA01-0AA0
UPC: 662643026085
Product Type: Interface Module
Network Type: Ethernet
Transmission Rate: 10 Mbit/s
Application: Automation
Environmental Specifications
The Siemens 6AR1303-0AA01-0AA0 operates reliably across a wide range of conditions.
| Parameter | Specification |
|---|---|
| Maximum Ambient Temperature | 60°C |
| Minimum Ambient Temperature | 0°C |
| Operating Humidity | Up to 80% RH (non-condensing) |
| Storage Humidity | Up to 80% (non-condensing) |
| Maximum Operating Altitude | 1000 meters above sea level without derating |
Protection and Certification
Protection Class: IP20
Solid Foreign Body Protection: Against objects larger than 12.5 mm
Suitable Environment: General indoor use
Certification: CE
Physical Specifications
Weight: 0.22 kg (0.49 lbs)
Installation Guide
Follow these steps to install the Siemens 6AR1303-0AA01-0AA0 correctly.
Power Down System: First, disconnect power from the automation system completely.
Mount Module: Next, secure the 6AR1303-0AA01-0AA0 inside a control cabinet.
Connect Ethernet Cable: Then, attach the Ethernet cable to the network port.
Verify Cable Integrity: After that, check that the connection is secure and undamaged.
Restore Power: Meanwhile, reapply power to the automation system.
Test Communication: Finally, verify that data transmission operates at 10 Mbit/s.
The 6AR1303-0AA01-0AA0 requires a clean indoor environment due to its IP20 rating. Therefore, install the module inside a control cabinet for adequate protection. In addition, ensure ambient temperature stays between 0°C and 60°C. Consequently, proper installation ensures reliable network communication and long module life.
Package List
The package includes the following physical items.
Siemens 6AR1303-0AA01-0AA0 interface module (1 piece)
Product label with part number and specifications
Anti-static protective bag for safe transport
Note: Ethernet cables are not included. Mounting hardware is sold separately. No configuration software is provided with this module.
Frequently Asked Questions (FAQ)
1. What is the transmission rate of the 6AR1303-0AA01-0AA0?
The Siemens 6AR1303-0AA01-0AA0 supports a transmission rate of 10 Mbit/s. Therefore, this speed is suitable for many industrial automation tasks. However, it is not designed for high-bandwidth applications. Consequently, verify your network requirements before selecting this module.
2. What is the operating temperature range of this module?
The Siemens 6AR1303-0AA01-0AA0 operates between 0°C and 60°C (32°F to 140°F). Therefore, the module suits typical indoor industrial environments. For storage, the humidity tolerance is up to 80% non-condensing. Consequently, avoid installing the unit in extreme temperature locations without additional cooling.
3. What is the IP rating of the 6AR1303-0AA01-0AA0?
The Siemens 6AR1303-0AA01-0AA0 has an IP20 protection class. Therefore, the module is safeguarded against solid foreign bodies larger than 12.5 mm. This rating makes it suitable for general indoor environments only. Consequently, install the module inside a control cabinet for protection against dust and accidental contact.
4. What altitude can the 6AR1303-0AA01-0AA0 operate at?
The Siemens 6AR1303-0AA01-0AA0 operates at altitudes up to 1000 meters above sea level without derating. Therefore, no performance degradation occurs within this range. For installations above 1000 meters, consult the product manual for derating guidelines. Consequently, verify your site elevation before ordering.
5. What certifications does the 6AR1303-0AA01-0AA0 hold?
The Siemens 6AR1303-0AA01-0AA0 holds CE certification. Therefore, the module meets essential safety and health requirements for the European market. This certification ensures compliance with relevant EU directives. Consequently, the module is suitable for use in CE-marked automation systems.
6. What is the weight of the 6AR1303-0AA01-0AA0?
The Siemens 6AR1303-0AA01-0AA0 weighs only 0.49 pounds (0.22 kg). Therefore, the lightweight design aids in straightforward installations. The compact size allows mounting in crowded control cabinets. Consequently, handling and shipping costs are minimized.
7. Can the 6AR1303-0AA01-0AA0 operate in humid environments?
The Siemens 6AR1303-0AA01-0AA0 operates at humidity levels up to 80% RH. However, condensation must be avoided at all times. Therefore, install the module in a climate-controlled environment if high humidity is expected. Consequently, ensure proper cabinet ventilation to prevent moisture buildup.
