How Can a Distance Sensor Stay Reliable in Harsh Oil and Gas Environments?

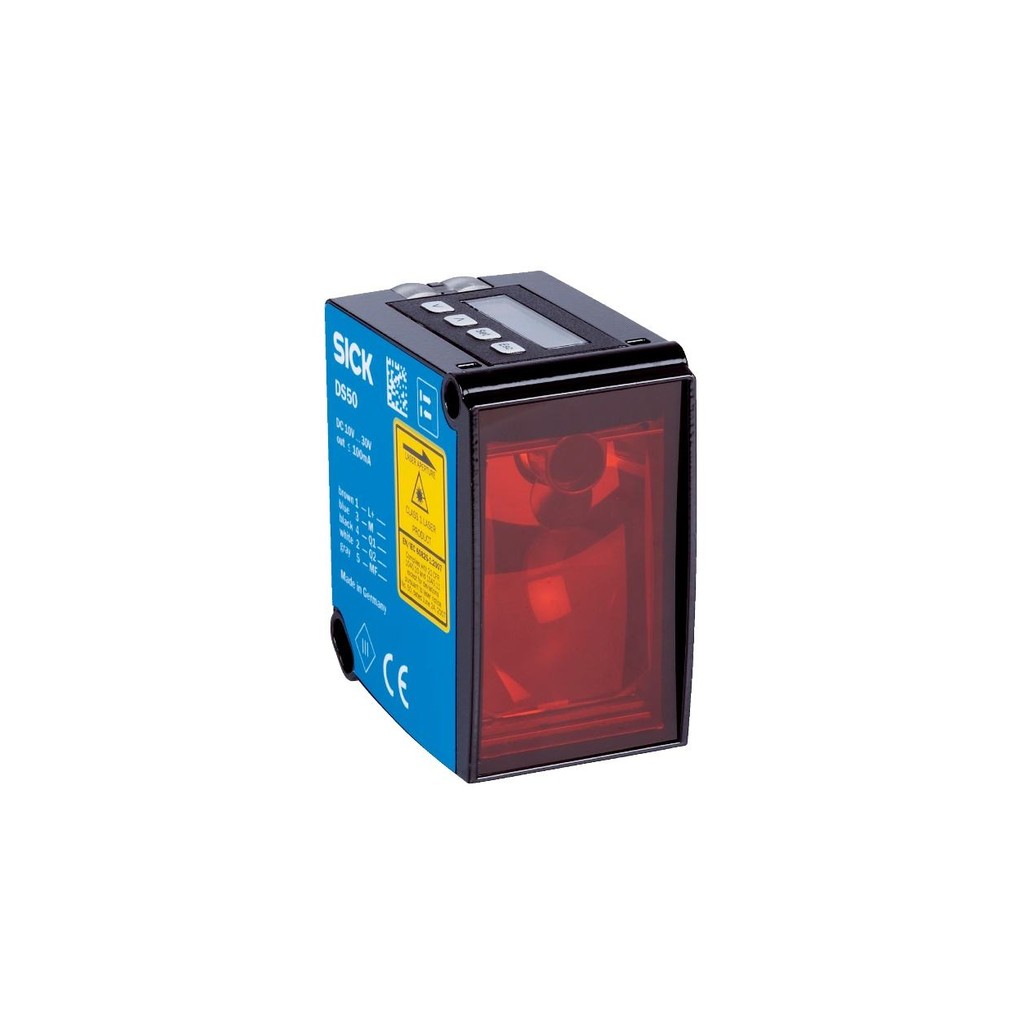

Reliability starts with the right sensing principle and a housing built for demanding environments. The SICK DS50-P1122 (part number 1047405) is a switching distance sensor from the Dx50 DS50 family. It uses HDDM optical time-of-flight measurement to detect natural objects at distances up to 10,000 mm with 90% remission.

This sensor combines a rugged zinc die-cast housing with a visible red laser diode. It delivers dependable switching performance for mission-critical positioning and presence detection tasks.

Key Features and Technical Specifications of the DS50-P1122

• Measurement principle: HDDM optical time-of-flight for high repeatability and ambient light stability.
• Measuring range: 200 mm to 10,000 mm on 90% remission targets; 200 mm to 6,000 mm on 18% targets; 200 mm to 4,000 mm on 6% targets.
• Light source: Visible red laser diode at 658 nm, Class 1 eye-safe per IEC 60825-1:2014.
• Supply voltage: DC 10 V to 30 V with reverse-polarity protection.
• Power consumption: ≤ 2.1 W without external load.
• Outputs: Two PNP digital outputs (Q1 and Q2) rated ≤ 100 mA, short-circuit protected.
• Response time: 10 ms in fast mode or 50 ms in slow mode with averaging.
• Switching frequency: Up to 50 Hz.
• Repeatability: ≥ 2.5 mm.
• Hysteresis: Adjustable from 1 mm to 9,999 mm.
• Operating temperature: -30 °C to +65 °C as standard; up to +80 °C with two cooling plates; up to +140 °C with cooling plates and protection filter (Uv ≤ 24 V).
• Storage temperature: -40 °C to +75 °C.
• Enclosure rating: IP65 per EN 60529.
• Housing material: Zinc die-cast (ZNAL4CU1) with acrylic glass (PMMA) optical window.
• Dimensions: 36.1 mm x 62.7 mm x 57.7 mm.
• Weight: Approx. 200 g.
• Electrical connection: Male connector M12, 5-pin.

The combination of a wide supply voltage range and low power draw simplifies integration into existing control cabinets. Moreover, the zinc die-cast housing resists mechanical stress in demanding environments.

Where Does This unit Deliver the Most Value?

Oil and gas operations often require non-contact distance measurement in areas where dust, moisture, and vibration are present. This unit addresses these conditions with its IP65 enclosure and HDDM technology. For example, it can monitor the position of pipe handling equipment on a drilling floor. It also detects the presence of large valves or flanges during automated inspection. In tank farms, the sensor can verify the position of floating roof seals without physical contact. Additionally, the adjustable hysteresis helps suppress false switching caused by background reflections. Because the laser is Class 1 eye-safe, operators can work near the beam without additional protective equipment.

Installation and Setup Guidelines

Mount the sensor using its zinc die-cast housing, which provides stable mounting points. The M12 5-pin connector carries supply voltage and both PNP outputs. Therefore, wiring is straightforward with standard industrial cables. Ensure the supply voltage stays within the 10 V to 30 V DC range. The reverse-polarity protection prevents damage from accidental miswiring. Use the LC display and menu buttons to set switching thresholds and hysteresis. For high-temperature applications, add the optional cooling plates as specified in the technical data. Always follow local electrical codes and the manufacturer's instructions.

Maintenance and Long-Term Reliability

Periodic inspection of the PMMA optical window keeps measurement performance stable. Clean the window gently with a soft cloth and mild detergent when dust accumulates. Check the M12 connector for tightness and corrosion at each service interval. Because the sensor has no moving parts, wear is minimal. The operating temperature range of -30 °C to +65 °C covers most outdoor installations in moderate climates. For higher temperatures, the cooling plate expansion extends the range to +80 °C or +140 °C. This flexibility supports reliable operation in demanding environments. Please verify current lifecycle status and availability with PetroPartsOnline before ordering.

Frequently Asked Questions

What is the measuring range of the SICK unit?

The SICK unit measures from 200 mm to 10,000 mm on targets with 90% remission. On 18% remission targets, the range is 200 mm to 6,000 mm. On 6% remission targets, it is 200 mm to 4,000 mm.

Can This unit operate in high-temperature areas?

Yes. The standard operating temperature is -30 °C to +65 °C. With two cooling plates, the range extends to +80 °C. With cooling plates and a protection filter, it reaches +140 °C when Uv ≤ 24 V.

What supply voltage does This unit require?

The sensor operates on DC 10 V to 30 V and includes reverse-polarity protection. Power consumption is ≤ 2.1 W without external load.

How do I connect This unit to my control system?

Use the M12 5-pin male connector. The sensor provides two PNP digital outputs (Q1 and Q2) rated ≤ 100 mA, plus a multifunctional input. Wiring into fieldbus networks may require an external gateway or connection module; confirm cables and gateways with PetroPartsOnline.

Is the laser Class 1 eye-safe?

Yes. The visible red laser diode is Class 1 per IEC 60825-1:2014 and EN 60825-1:2014, making it eye-safe under normal operating conditions.

Contact PetroPartsOnline for parts suited to your application's requirements.
