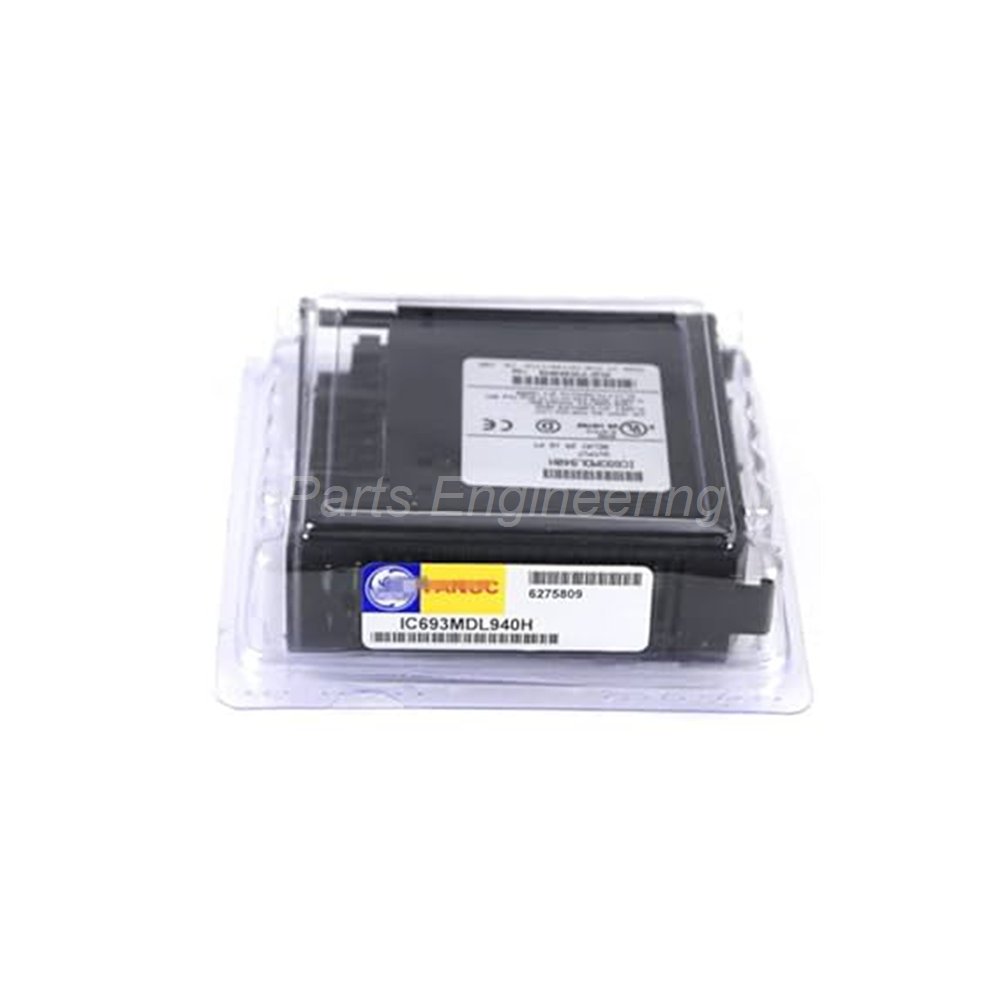

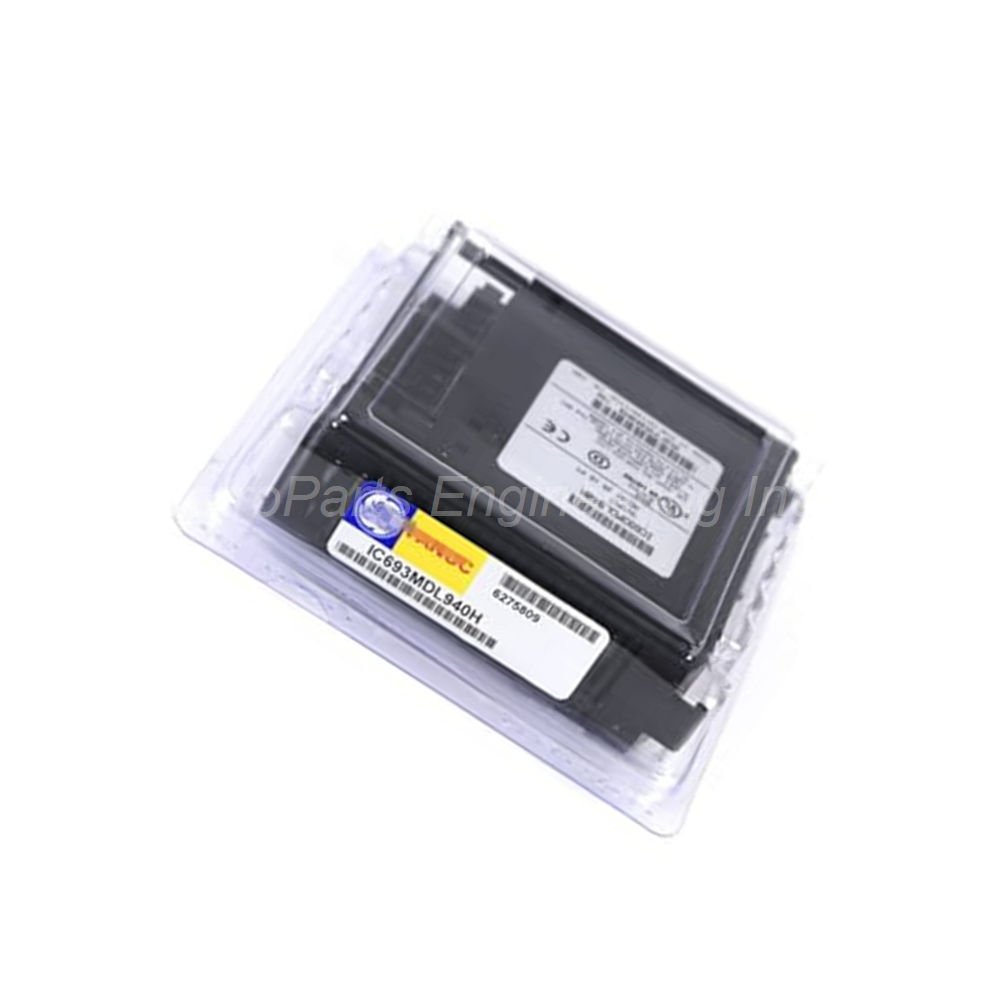

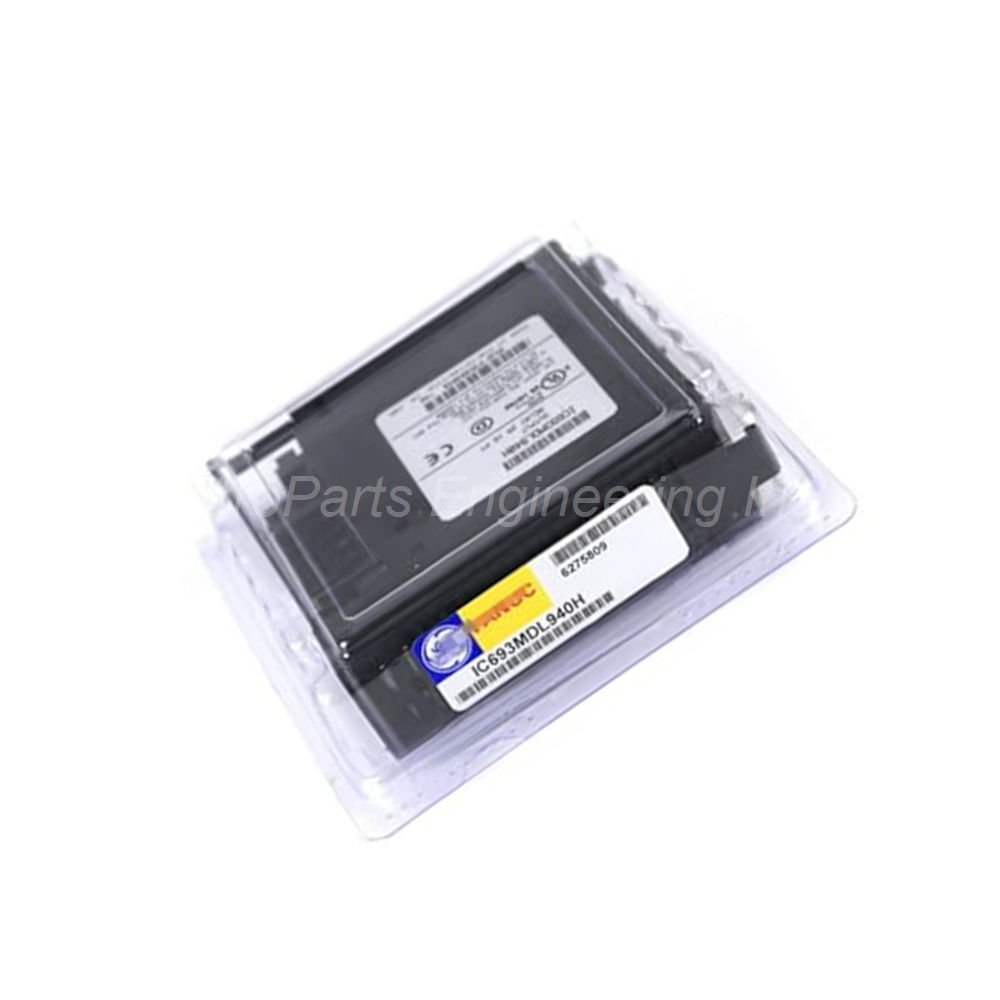

GE Fanuc IC693MDL940 Relay Output Module

The GE Fanuc IC693MDL940 is a versatile relay output module. It belongs to the Series 90-30 product line. This module provides sixteen relay outputs for flexible control. You can use it with AC or DC loads. The outputs are arranged in four groups of four. This organization makes device management simple and logical.

Technical Specifications of the IC693MDL940

The GE Fanuc IC693MDL940 offers sixteen (16) relay outputs. These outputs split into four separate groups. Each group contains four individual outputs. The groups provide isolation between different load types. You can mix AC and DC loads across different groups safely.

Voltage and Current Ratings

This relay module works with both AC and DC voltages. For DC applications, use 5 to 30 Volts DC. The nominal rated DC voltage is 24 Volts DC. For AC applications, use 5 to 250 Volts AC. The nominal rated AC voltage is 120/240 Volts AC. The AC frequency range is 50 or 60 Hz.

Each output on the GE Fanuc IC693MDL940 handles 2 Amps maximum load current. Each common (group) handles 4 Amps maximum total. The minimum load current requirement is 10 mA. This ensures proper contact wetting and reliable operation. The maximum inrush current rating is 5 Amps.

Response Time and Performance

The GE Fanuc IC693MDL940 has a maximum response time of 15 ms. This applies to both turn-on and turn-off operations. The fast response time suits many industrial control applications. Relay outputs provide true electrical isolation between the logic and field circuits.

Installation Guidelines for the IC693MDL940

Mount the GE Fanuc IC693MDL940 in a Series 90-30 rack. Connect loads within the specified voltage ranges. Do not exceed 2 Amps per output point. Do not exceed 4 Amps per common group. Consider the minimum load current of 10 mA for reliable switching. Use proper suppression for inductive loads to extend relay life.

Package Contents

• One (1) GE Fanuc IC693MDL940 relay output module

• Terminal block for field wiring connections

• Product documentation and wiring diagram

Common FAQs for the IC693MDL940

1. Can I mix AC and DC loads on the same IC693MDL940 module?
Yes, the GE Fanuc IC693MDL940 has four isolated groups. You can put AC loads in one group and DC loads in another group. Do not mix AC and DC within the same group.

2. What is the maximum current per output on this module?
Each output on the GE Fanuc IC693MDL940 handles 2 Amps maximum. The total current per common (group of four outputs) must not exceed 4 Amps.

3. What is the minimum load current for reliable operation?
The GE Fanuc IC693MDL940 requires a minimum load current of 10 mA. This ensures proper contact wetting and prevents contact resistance issues.

4. How fast does the IC693MDL940 switch outputs?
The GE Fanuc IC693MDL940 has a maximum response time of 15 milliseconds. This applies to both turning outputs on and turning them off.

5. What voltage ranges work with this relay module?
The GE Fanuc IC693MDL940 works with 5-30V DC or 5-250V AC at 50/60 Hz. The nominal ratings are 24V DC and 120/240V AC.

Why Choose the GE Fanuc IC693MDL940?

This relay output module offers exceptional flexibility for mixed voltage applications. The four isolated groups let you control different load types safely. Sixteen outputs provide good density for most small to medium systems. The 15 ms response time balances speed with relay reliability. Order the GE Fanuc IC693MDL940 today for your Series 90-30 system.
