Introduction:
KM1002 Bus Terminal with 16 digital inputs. Works at 24V DC. Has 3ms input filter. Type 1 specification. Plug-in wiring.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.

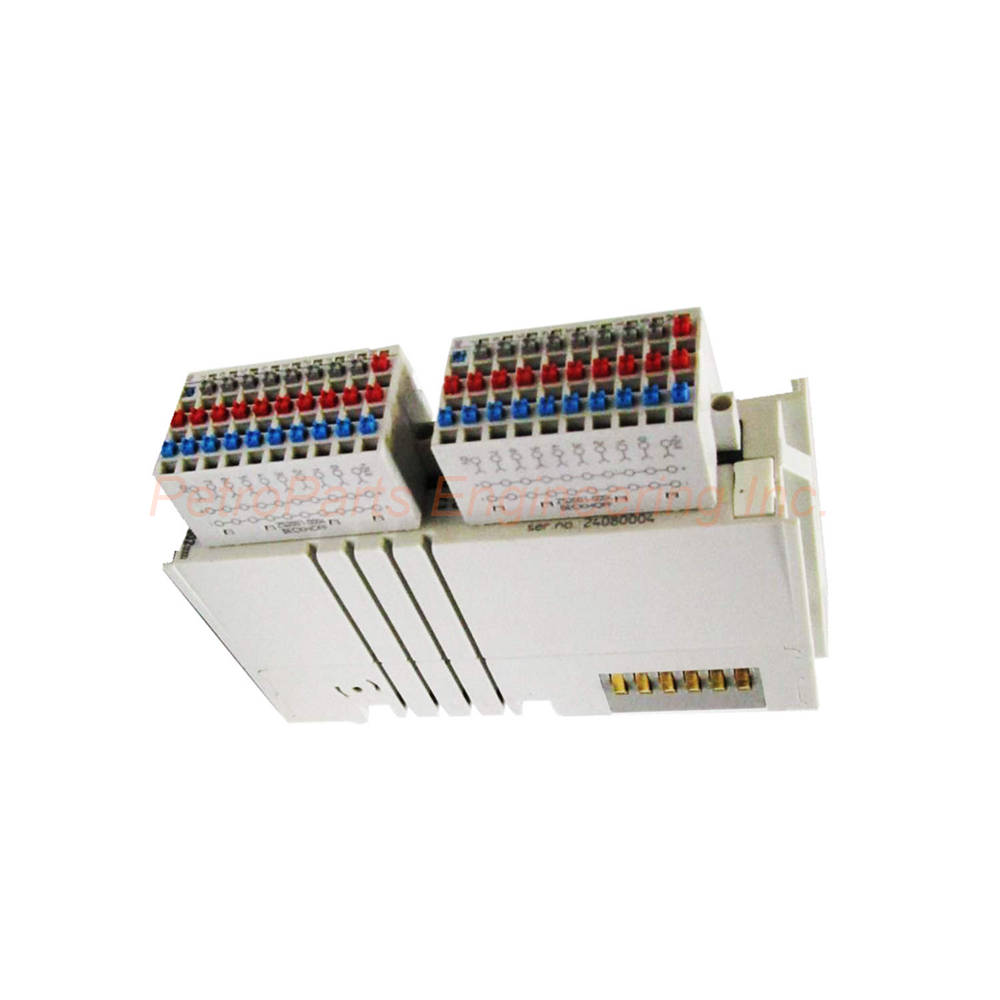

KM1002 Bus Terminal Module Overview
The KM1002 is a Bus Terminal module with 16 digital inputs. It uses 24V DC as the nominal voltage. The KM1002 has 2 groups of 8 inputs per connector. Control signals pass through electrical isolation to the automation unit. This module follows input specification type 1 from EN 61131-2. A 3ms input filter removes bounce from mechanical switches. Therefore, you get clean and stable input signals.
Technical Specifications
| Parameter | Value |
|---|---|
| Connection technology | Plug |
| Number of inputs | 16 (2 x 8) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| "0" signal voltage | -3 to +5 V |
| "1" signal voltage | 15 to 30 V |
| Input filter | typ. 3 ms |
| Input current | typ. 5 mA |
| K-bus current draw | typ. 3 mA |
| Power contacts current | None |
| Electrical isolation | 500 V (K-bus/field) |
| Bit width in process image | 16 inputs |
| Configuration | None needed |
The KM1002 requires no address or configuration settings. It works right after you connect it.
Connector Options
You can choose different connectors for the KM1002:
1-pin connector – simpler wiring, lower cost
3-pin connector – more wiring options, includes status LEDs
Connectors use spring connection technology. This makes wiring fast and secure.
Housing & Dimensions
| Parameter | Value |
|---|---|
| Design | Compact terminal module |
| Mounting | 35 mm DIN rail (EN 60715) |
| Side mounting | Double slot and key |
| Wire size | 0.08 to 1.5 mm² |
| Stripping length | 8 mm |
| Dimensions (W x H x D) | 26.5 mm x 100 mm x 71 mm |
| Weight (1-pin) | approx. 90 g |
| Weight (3-pin) | approx. 110 g |
The KM1002 has a very narrow width of only 26.5 mm. This saves space in your control cabinet.
Environmental Ratings
| Parameter | Value |
|---|---|
| Operating temperature | 0 to 55°C |
| Storage temperature | -25 to 85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Vibration/shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC immunity | EN 61000-6-2 |
| EMC emission | EN 61000-6-4 |
| Approvals | CE |
The KM1002 works reliably in standard industrial environments.
Key Features
16 digital inputs – The KM1002 monitors many field devices in one module.
Type 1 inputs – Follows EN 61131-2 standard for industrial I/O.
3ms input filter – Removes contact bounce from mechanical switches.
Plug-in wiring – Spring connection technology for fast installation.
No configuration needed – The KM1002 works immediately after wiring.
Electrical isolation – 500V isolation protects the K-bus system.
Installation Guide
Turn off power to the Bus Terminal system.
Mount the KM1002 on a 35 mm DIN rail.
Lock the module by pressing down until it clicks.
Connect the plug-in connector to the module.
Wire your field devices using spring terminals.
Strip wires to 8 mm length before inserting.
Apply power and monitor inputs in your PLC.
The KM1002 has no power contacts. It draws all power from the K-bus.
Package Contents
1 x KM1002 Bus Terminal module
1 x Connector (1-pin or 3-pin based on your order)
1 x Quick start guide
No field wiring is included. You must buy wires separately.
Frequently Asked Questions (FAQ)
1. What is the warranty period for the KM1002?
We provide a 12-month warranty from the shipment date. This covers manufacturing defects only. It does not cover damage from overvoltage, wrong wiring, or physical abuse.
2. Which shipping carriers do you use?
We ship the KM1002 via FedEx, UPS, or DHL. You choose the carrier at checkout. Tracking numbers are sent within 24 hours.
3. Can I use the KM1002 with 12V DC sensors?
No. The KM1002 needs 15V minimum for a "1" signal. For 12V sensors, use a different Bus Terminal module with lower input threshold.
4. The input filter is 3ms. Can I change it to a faster value?
No. The KM1002 has a fixed 3ms input filter. For faster response (e.g., 0.1ms), choose a KM1002 variant without filter or use a high-speed input module.
5. My connector has status LEDs but they do not light up. Why?
The KM1002 module itself does not drive the LEDs. You need the specific connector with integrated LEDs and proper wiring. Check your connector part number.
Why Choose the KM1002?
This Bus Terminal gives you 16 inputs in a tiny space. The KM1002 has a 3ms filter that stops contact bounce. You get clean signals from mechanical switches. No configuration is needed – just plug and play. Spring connection technology makes wiring fast. The module mounts on standard 35 mm DIN rail. Choose a 1-pin or 3-pin connector based on your needs. Electrical isolation of 500V protects your system. The KM1002 follows EN 61131-2 type 1 specifications.
Order the KM1002 today for your digital input needs.
