VFD037C53A-21 | Delta C2000 Series Drive Supplier
Introduction:
The VFD037C53A-21 from Delta is a C2000 series drive engineered for precise motor control in industrial applications.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.

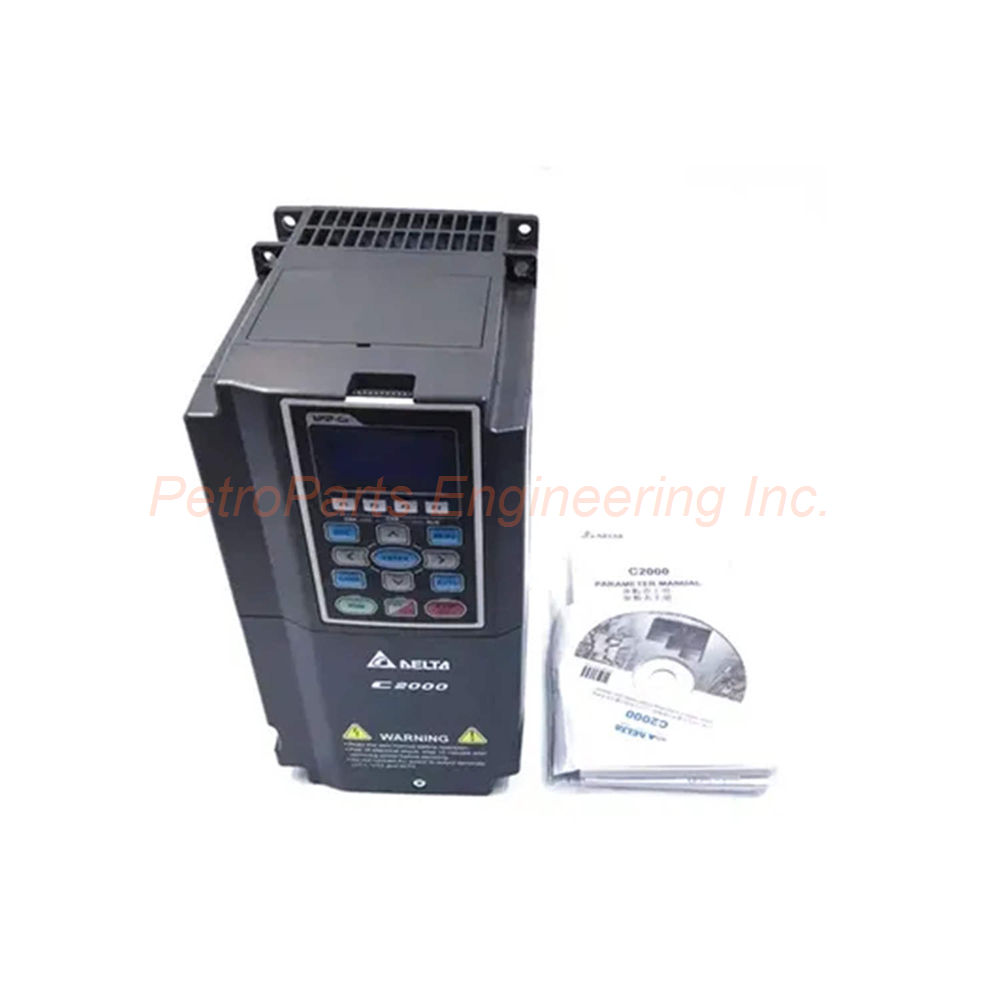

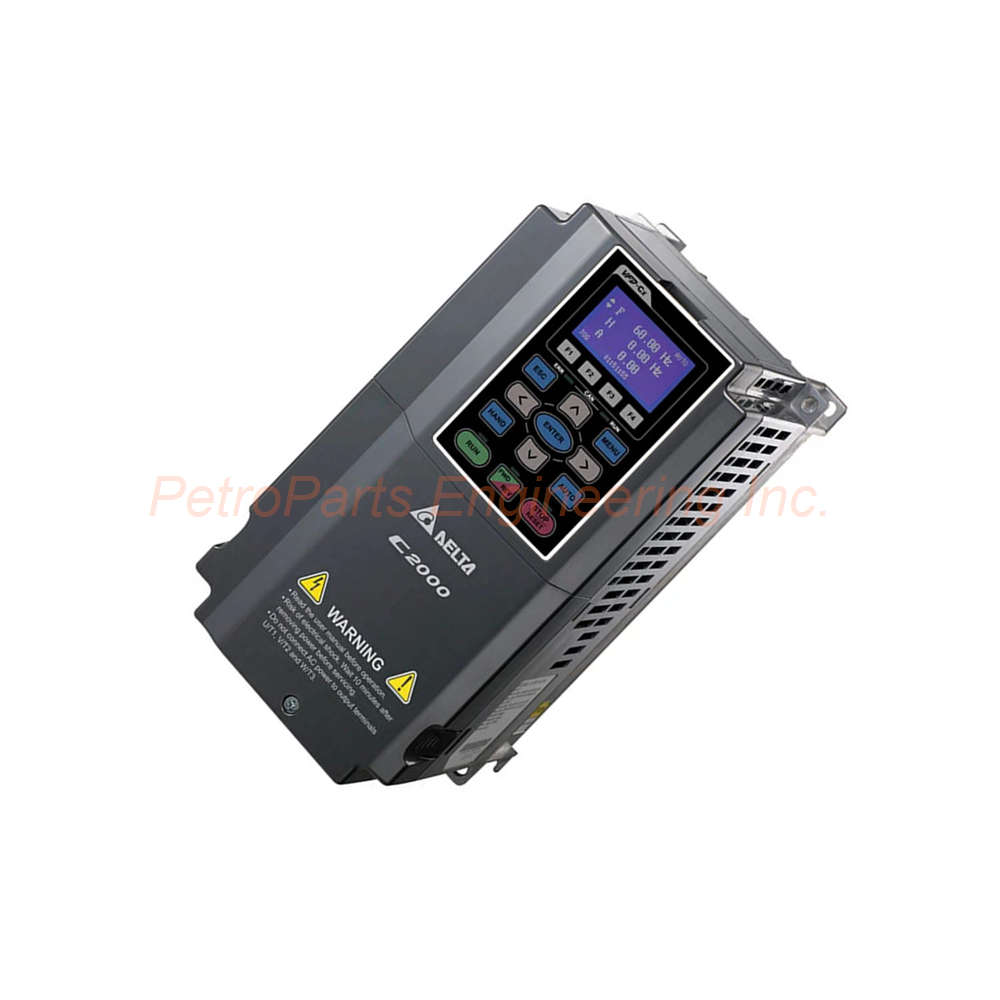

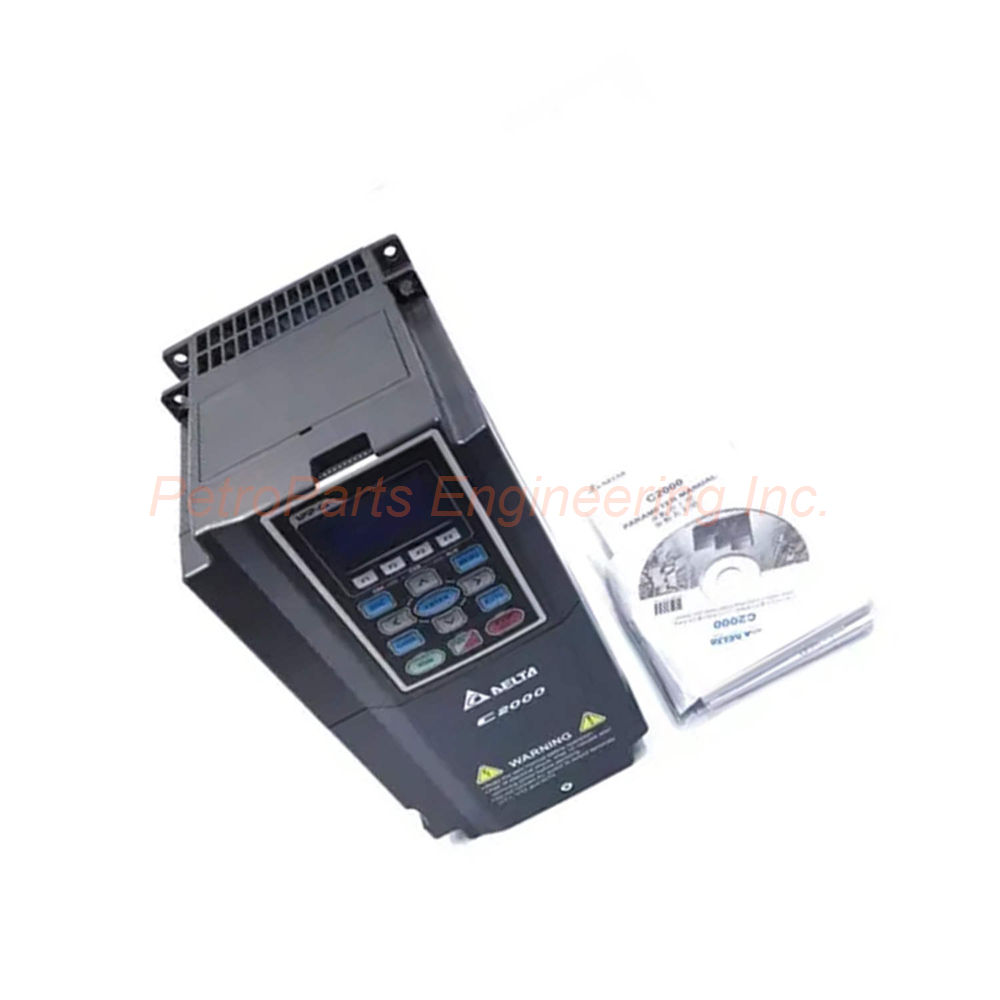

Introduction to the VFD037C53A-21
When your application demands reliable variable frequency drive performance, the VFD037C53A-21 from Delta delivers. This C2000 series drive is designed for three-phase 575 V input and supports a range of duty ratings to match your load requirements. With a compact frame size A and IP20 protection, it fits easily into control panels while offering robust functionality.
Key Features and Technical Specs of the VFD037C53A-21
- Input voltage: 575 V – 3 phase
- Horsepower / kilowatts: 5 HP – 3.7 KW
- Light duty amps: 6.7 A (120% for 1 minute every 5 minutes)
- Normal duty amps: 5.5 A (120% for 1 minute every 5 minutes; 160% for 3 seconds every 30 seconds)
- Heavy duty amps: 4.6 A (150% for 1 minute every 5 minutes; 180% for 3 seconds every 30 seconds)
- Built-in braking chopper: Yes
- IP rating: IP 20
- Weight: 6.6 lbs
- Dimensions: 5.12 in x 9.84 in x 6.69 in
One distinctive spec is the heavy duty amp rating of 4.6 A. This allows the drive to handle demanding loads with a 150% overload capability for one minute, ensuring reliable operation during peak torque events.
Industry Applications for the VFD037C53A-21
This drive suits a wide range of industrial applications. In pumping systems, the three duty ratings let you match the drive to the specific pump load. For conveyor lines, the built-in braking chopper helps manage deceleration energy. The IP20 enclosure makes it ideal for indoor control cabinets where dust and light splashes are minimal.
Installation and Setup Guide
Mount the VFD037C53A-21 in a clean, dry location with adequate ventilation. Ensure the input power matches the 575 V three-phase requirement. Use the provided dimensions (5.12 in x 9.84 in x 6.69 in) to plan panel space. The removable fan simplifies cleaning and replacement during routine maintenance.
Maintenance and Reliability Tips
Regularly inspect the cooling fan and air filters to prevent overheating. Check the braking chopper connections periodically to ensure reliable dynamic braking. The coated circuit boards enhance resistance to humidity and vibration, extending service life in harsh environments.
FAQ about the VFD037C53A-21
Q: What is the input voltage requirement for the VFD037C53A-21?
A: It requires 575 V three-phase input.
Q: What is the horsepower rating of the VFD037C53A-21?
A: It is rated for 5 HP (3.7 KW).
Q: Does the VFD037C53A-21 include a built-in braking chopper?
A: Yes, it comes with a built-in braking chopper.
Q: What is the IP rating of this drive?
A: The IP rating is IP 20.
Q: What are the dimensions of the VFD037C53A-21?
A: It measures 5.12 in x 9.84 in x 6.69 in.
Product Support and Availability
The VFD037C53A-21 is available from PetroPartsOnline. Contact our team for current stock status and ordering details. We can help you select the right drive for your application.
