SICK C4C-SA10530A10000 Safety Light Curtain deTec4 Core
Introduction:

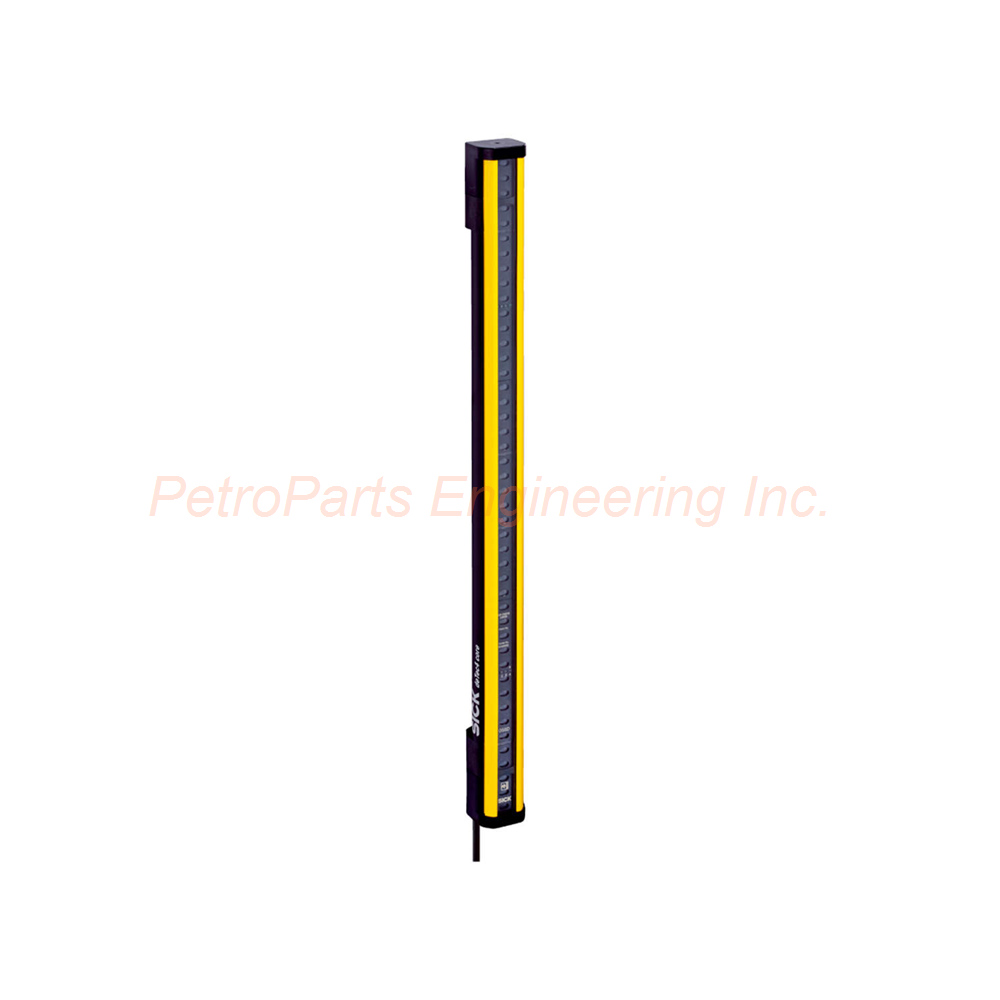

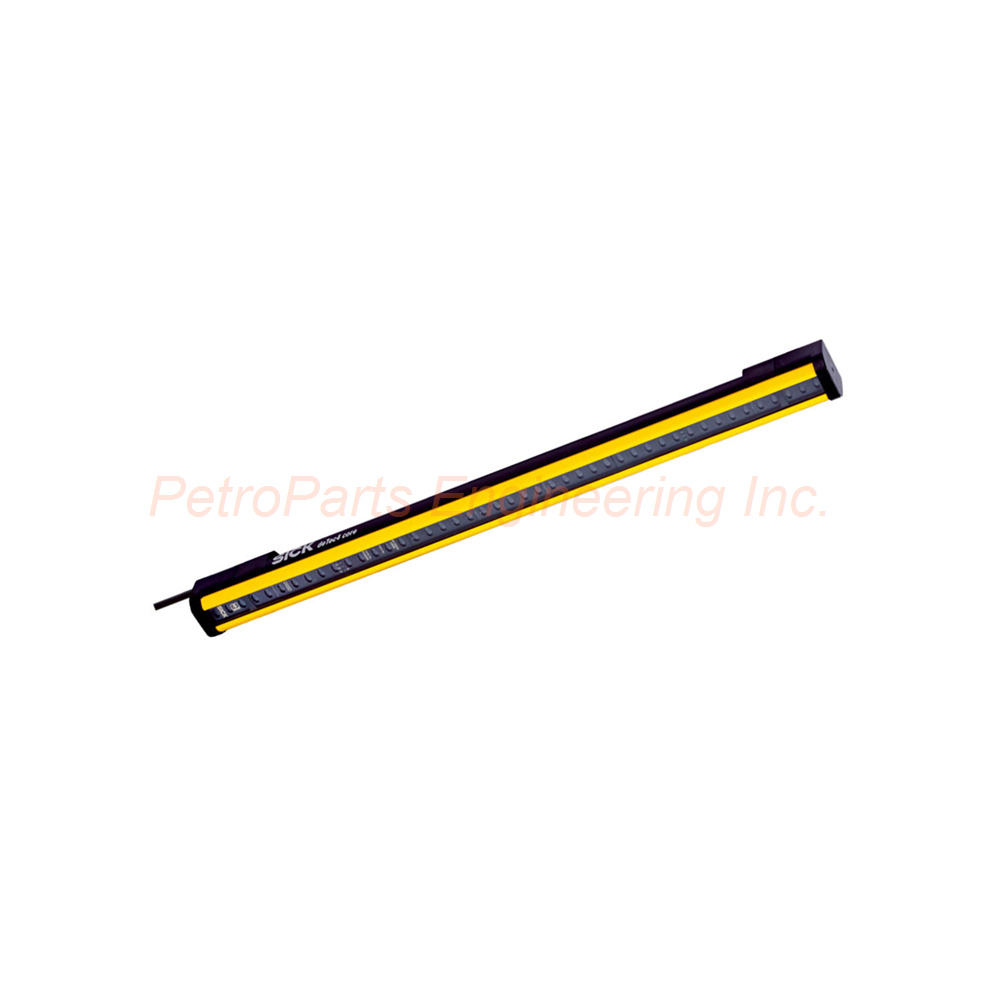

The SICK C4C-SA10530A10000 is a deTec4 Core safety light curtain sender. It offers 1050mm protective height and 30mm resolution.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
SICK C4C-SA10530A10000 Safety Light Curtain Overview
The SICK C4C-SA10530A10000 is a sender unit for the deTec4 Core safety light curtain. This system part requires a compatible receiver (1211500) for complete operation. The SICK C4C-SA10530A10000 provides a protective field height of 1,050 mm. Its resolution is 30 mm for reliable hand and finger protection. The scanning range reaches up to 15 m with automatic calibration. This safety light curtain has no blind zones for complete coverage. The SICK C4C-SA10530A10000 uses optical synchronization between sender and receiver. Its alternate part number is 1211499 for easy reference.
Technical Specifications
General Specifications
Product Model (Sender): C4C-SA10530A10000.
Product Model (Receiver): C4C-EA10530A10000.
Alternate Mfr Part Number: 1211499.
Compatible Receiver: 1211500.
Numeric ID: 4079255.
Series: deTec4 Core.
Application: Normal industrial environment.
System Part: Pair (sender unit).
Resolution: 30 mm.
Scanning Range: 15 m.
Protective Field Height: 1,050 mm (41.34 inches).
Response Time: 11 ms.
No Blind Zones: Yes.
Synchronization: Optical synchronisation.
Safety-Related Parameters
Type: Type 4 (IEC 61496-1).
Safety Integrity Level: SIL3 (IEC 61508), SILCL3 (IEC 62061).
Category: Category 4 (ISO 13849-1).
Performance Level: PL e (ISO 13849-1).
PFHD: 3.7 x 10⁻⁹ (mean probability of dangerous failure per hour).
Mission Time (TM): 20 years (ISO 13849-1).
Safe State in Event of Fault: At least one OSSD is in the OFF state.
Electrical Data
Protection Class: III (IEC 61140).
Supply Voltage (VS): 24 V DC (19.2 V to 28.8 V).
Ripple: ≤10%.
Power Consumption (typical): 2.11 W (DC) for sender.
Output Signal Switching Devices (OSSDs): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored.
ON State Switching Voltage: 24 V DC (VS – 2.25 V DC to VS).
OFF State Switching Voltage: ≤2 V DC.
Current-Carrying Capacity per OSSD: ≤300 mA.
Interfaces and Connectivity
System Connection: Male connector M12, 5-pin.
Display Elements: LEDs for status indication.
Fieldbus Integration (via Flexi Soft safety controller): CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus TCP, PROFIBUS DP, PROFINET.
Mechanical Data
Housing Material: Aluminum extruded profile.
Connector Type: M12, 5-pin.
Bending Radius (Stationary): Greater than 12 x cable diameter.
Bending Radius (Flexible): Greater than 15 x cable diameter.
Weight: 970 g.
Gross Weight: 1.2 kg (with packaging).
Ambient Data
Enclosure Rating: IP65 and IP67 (IEC 60529).
Ambient Operating Temperature: -30°C to +55°C.
Storage Temperature: -30°C to +70°C.
Air Humidity: 15% to 95% (non-condensing).
Vibration Resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6).
Shock Resistance: 10 g, 16 ms (IEC 60068-2-29).
Optical Data
Wave Length: 850 nm.
Housing Material: Aluminum extruded profile.
Items Supplied
Sender unit (C4C-SA10530A10000).
Test rod with diameter corresponding to 30 mm resolution.
Safety instruction sheet.
Mounting instructions.
Operating instructions for download.
deTec4 Core Family Overview
The deTec4 Core safety light curtain features an innovative bracket system. The half-rounded contour enables bracket positioning at any housing location. The FlexFix bracket facilitates alignment at up to ±15 degrees. Integrated LED displays and diagnostic functions save commissioning time. Automatic calibration on the protective field width simplifies setup. The SICK C4C-SA10530A10000 suits harsh ambient conditions with IP65 and IP67 ratings. Protective field heights range from 300 mm to 2,100 mm for various applications.
Installation Guide
Follow these steps to install the SICK C4C-SA10530A10000 correctly:
Mount the sender and receiver facing each other at the same height.
Ensure no obstructions exist within the 1,050 mm protective field.
Connect the M12 5-pin male connector to 24 V DC supply.
Position FlexFix brackets at any location on the housing rear.
Align the units at up to ±15 degrees using FlexFix brackets.
Verify optical synchronization between sender and receiver.
Test the system using the included 30 mm test rod.
Confirm the 1211499 sender communicates properly with receiver 1211500.
Packaging List
SICK C4C-SA10530A10000 sender unit (1 piece)
Test rod (30 mm diameter, 1 piece)
Safety instruction sheet (1 copy)
Mounting instructions (1 copy)
FlexFix bracket kit (1 set)
Frequently Asked Questions (FAQ)
1. What is the protective field height of the SICK C4C-SA10530A10000?
The SICK C4C-SA10530A10000 provides a protective field height of 1,050 mm for machine guarding.
2. Which receiver is compatible with this sender?
This sender requires the compatible receiver model C4C-EA10530A10000 (part number 1211500) for operation.
3. What is the resolution of this safety light curtain?
The 1211499 offers a 30 mm resolution suitable for hand and finger protection.
4. What is the response time of the deTec4 Core system?
The response time is 11 ms for fast machine stopping performance.
5. What enclosure rating does the C4C-SA10530A10000 have?
The SICK C4C-SA10530A10000 has IP65 and IP67 ratings for harsh industrial environments.
