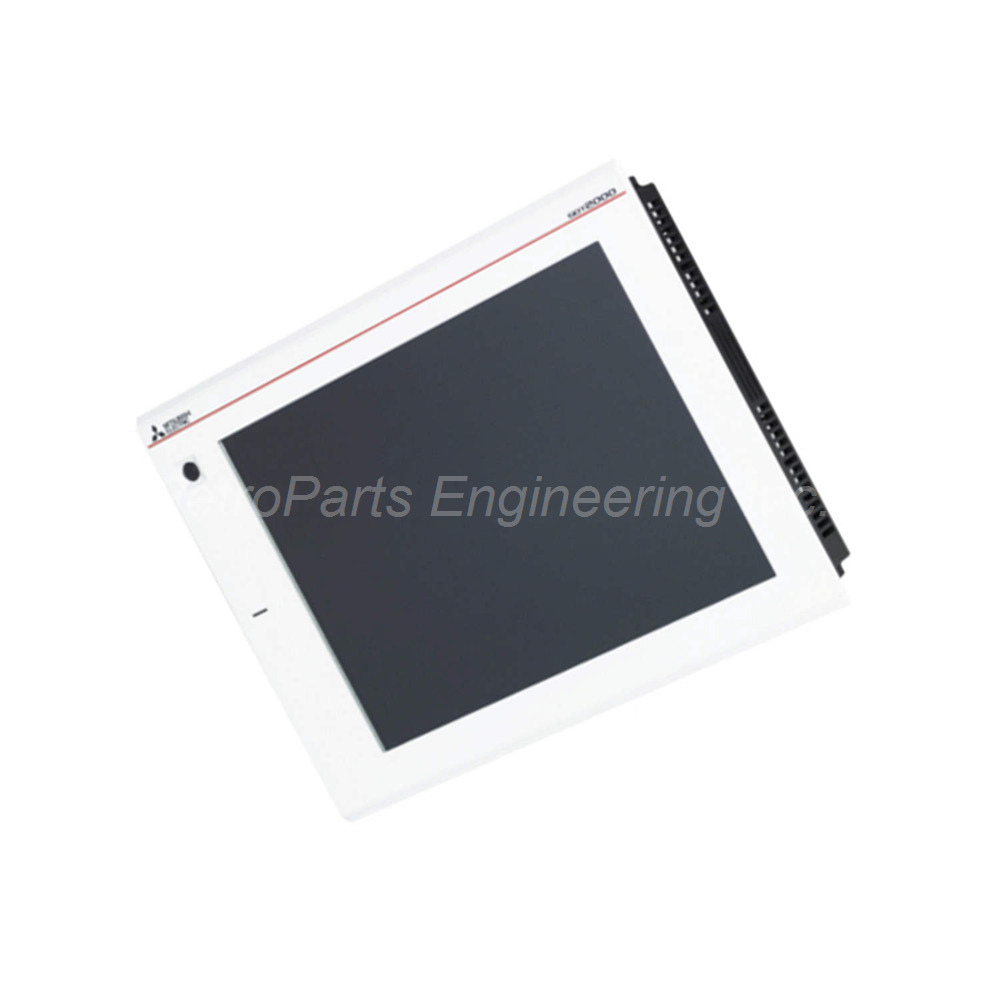

Mitsubishi GT2712-STWD GOT2000 HMI Terminal

The Mitsubishi GT2712-STWD is a graphic operation programmable terminal from the GOT2000 series. This device provides efficient human-machine interaction for industrial systems. You can use it for monitoring and controlling automated processes. The 12.1-inch display delivers clear and vivid visuals. It is designed for reliable performance in demanding environments.

Technical Specifications of the GT2712-STWD

The Mitsubishi GT2712-STWD features a 12.1-inch TFT color LCD display. The screen measures 246 mm in width and 184.5 mm in height. The SVGA resolution is 800 x 600 pixels for detailed graphics. The display supports 65,536 colors for rich visual content.

Touch Panel Specifications

The touch panel uses analog resistive film technology. The Mitsubishi GT2712-STWD has a minimum touch life of 1 million touches. This ensures long-term reliability for frequent operator use. The resistive technology works with gloves for industrial safety.

Power Requirements

The power supply voltage is 24 V DC. The tolerance range is +25% to -20% for flexibility. The Mitsubishi GT2712-STWD consumes 45 Watts maximum at peak operation. This efficient power usage reduces heat generation.

Communication Interfaces

The Mitsubishi GT2712-STWD includes one Ethernet channel at 100BASE-TX speed. RS-232 and RS-422/485 serial ports are provided for legacy devices. Two USB host channels connect external peripherals. One USB device channel allows PC connection.

Storage and Backlight

An SD card slot accepts SDHC cards up to 32 GB capacity. The Mitsubishi GT2712-STWD uses LED backlight technology. Backlight life is 60,000 hours at 25°C with 50% brightness. This provides many years of reliable operation.

Environmental Resistance

Noise immunity is rated at 500 Vp-p for industrial environments. The Mitsubishi GT2712-STWD withstands 350 V AC for 1 minute. The operating temperature range is 0°C to 50°C. This suits various industrial settings.

Installation Guidelines for the GT2712-STWD

Mount the Mitsubishi GT2712-STWD in a suitable panel cutout. Ensure the operating temperature stays between 0°C and 50°C. Connect a stable 24V DC power source within tolerance. Use shielded cables for communication ports. Install the SD card before power-up if needed. Clean the touch panel with soft, dry cloth only.

Package Contents

• One (1) Mitsubishi GT2712-STWD GOT2000 HMI terminal

• Mounting brackets and panel gaskets

• Power connector and quick start guide

Common FAQs for the GT2712-STWD

1. What is the display size and resolution of this HMI?
The Mitsubishi GT2712-STWD has a 12.1-inch TFT LCD display. The resolution is SVGA at 800 x 600 pixels with 65,536 colors.

2. What type of touch panel does this terminal use?
The Mitsubishi GT2712-STWD uses analog resistive film touch technology. The minimum touch life is 1 million touches.

3. What communication interfaces are available?
The Mitsubishi GT2712-STWD includes Ethernet (100BASE-TX), RS-232, and RS-422/485. It also has 2 USB host and 1 USB device port.

4. What is the backlight life of this display?
The Mitsubishi GT2712-STWD LED backlight lasts 60,000 hours. This rating is at 25°C with 50% brightness.

5. What is the power requirement for this terminal?
The Mitsubishi GT2712-STWD requires 24V DC power. Tolerance is +25% to -20% with maximum consumption of 45W.

Why Choose the Mitsubishi GT2712-STWD?

This GOT2000 HMI terminal delivers reliable operator interface for industrial automation. The 12.1-inch SVGA display provides clear visualization. Analog resistive touch works with gloves for safety. Multiple communication ports ensure system integration flexibility. Order the Mitsubishi GT2712-STWD today for your HMI needs.
