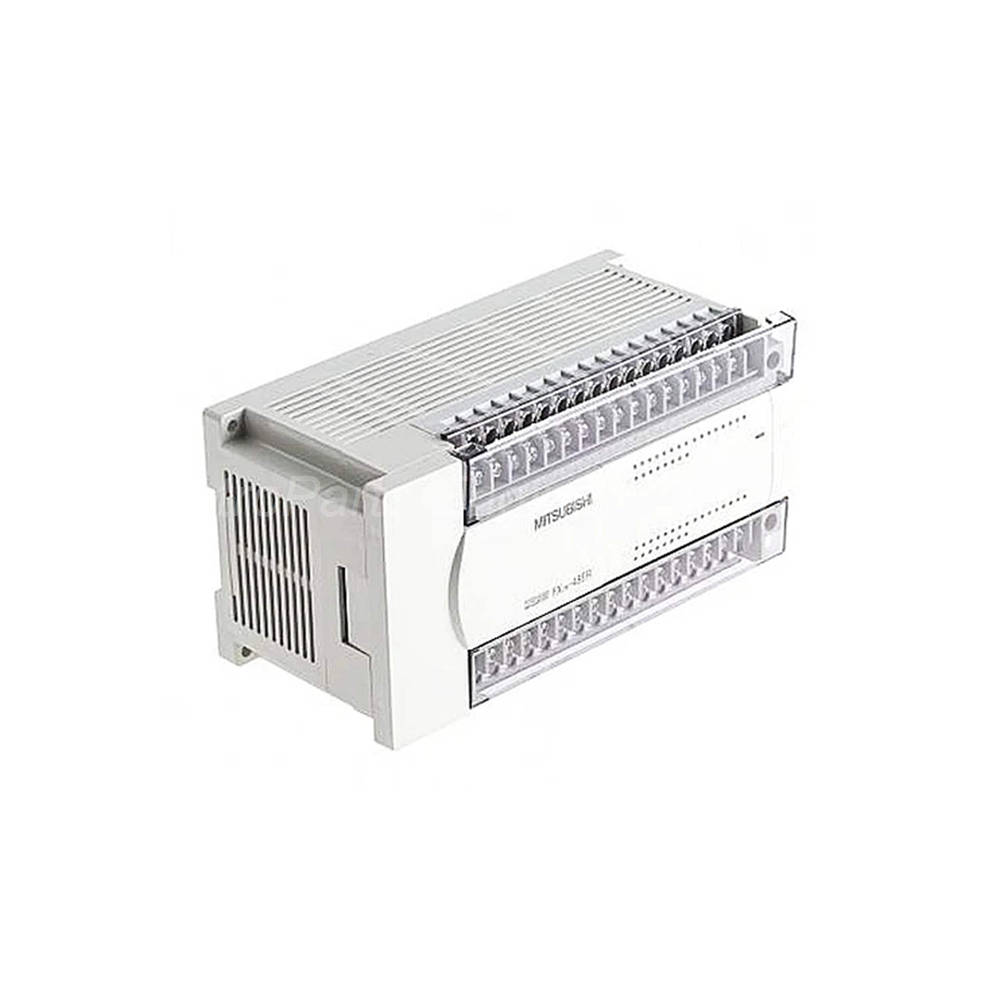

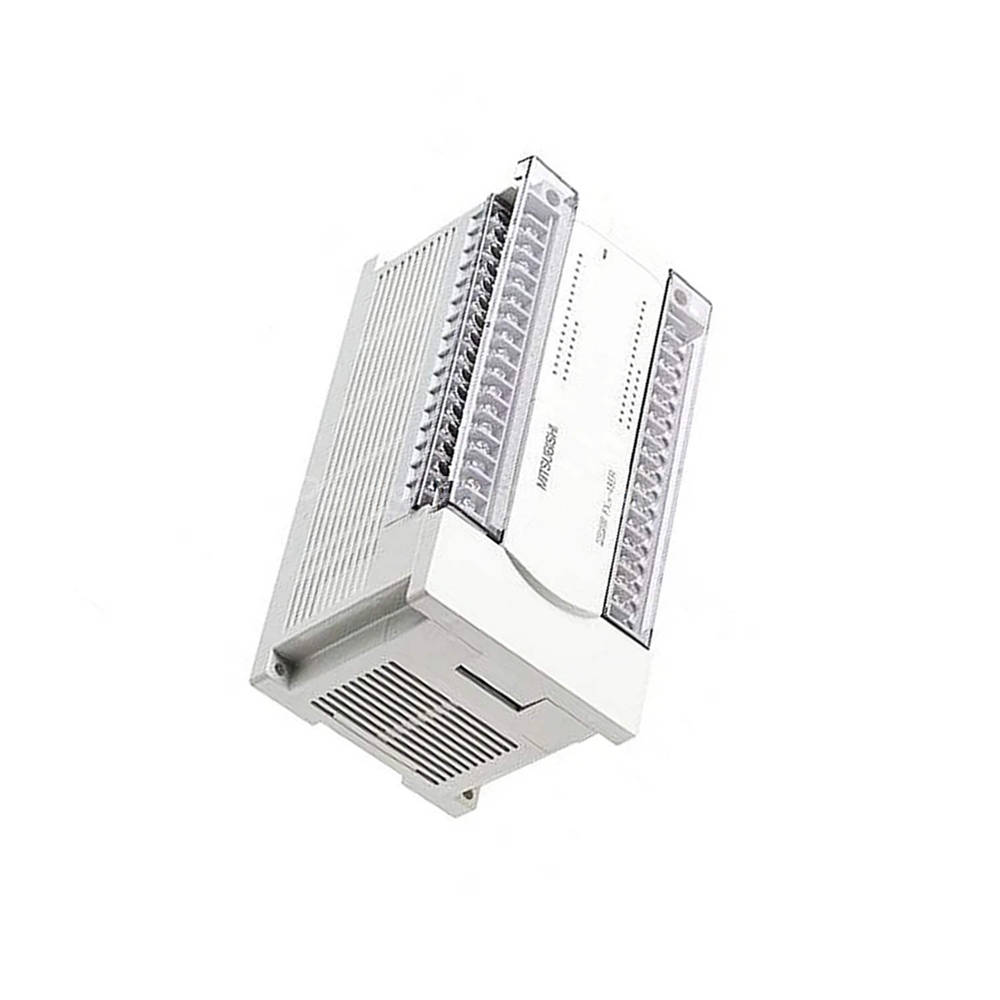

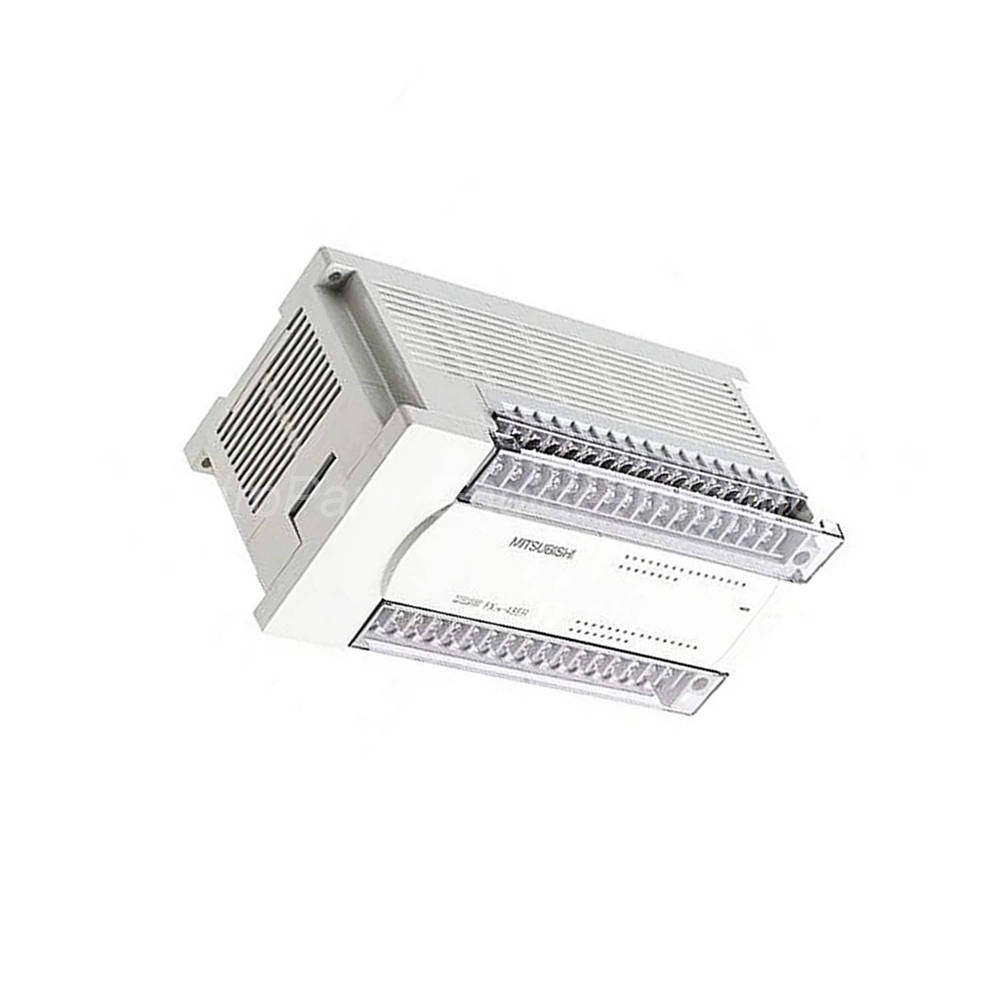

Mitsubishi Electric FX2N-48MT-001 Programmable Logic Controller

Product Overview

The FX2N-48MT-001 is a powerful MPU main unit from Mitsubishi Electric. This PLC belongs to the trusted FX2N Series of programmable controllers. It provides 48 total I/O channels for industrial automation tasks. The unit features 24 digital inputs and 24 transistor outputs. Engineers choose this model for high-speed switching and reliability. Its compact design saves valuable panel space. The FX2N-48MT-001 works perfectly for machine control, packaging lines, and assembly systems.

Technical Specifications

Power Supply Range: 85-264 VAC, 50/60 Hz.
Power Consumption: 50 VA maximum.
Input Points: 24 DC sink/source inputs.
Output Points: 24 transistor outputs (sink type).
Output Response Time: Less than 0.2 ms.
Programming Language: Ladder diagram and instruction list.
Operating Temperature: 0°C to +55°C.
Storage Temperature: -20°C to +70°C.
Ambient Humidity: 35% to 85% RH (non-condensing).
Vibration Resistance: 5g for 10-55 Hz.
Shock Resistance: 15g for 11 ms.
Noise Immunity: 1000Vp-p with 1 μs pulse width.
Isolation Method: Photocoupler between I/O and internal logic.

The FX2N-48MT-001 handles high-frequency output applications well. Its transistor outputs support fast ON/OFF cycles. This makes it ideal for positioning and stepper motor control. The unit also resists electrical noise effectively.

Installation Guide

Follow these steps to install the FX2N-48MT-001 properly.

1. Mounting: Install the unit on a DIN rail or use M4 screws.

2. Spacing: Keep at least 50 mm space above and below.

3. Wiring: Use 0.75 to 1.5 mm² copper wires for terminals.

4. Grounding: Connect a dedicated ground with 100Ω or less.

5. Power Connection: Connect the L and N terminals to AC supply.

6. Input Wiring: Connect sensors to the input terminals X000 to X027.

7. Output Wiring: Connect loads to output terminals Y000 to Y027.

Do not run input wires in the same conduit as high-power cables. This prevents noise interference. Always turn off power before wiring the FX2N-48MT-001.

Key Features & Benefits

• High-Speed Processing: Executes basic instructions in 0.08 μs.

• Built-in Memory: Stores up to 8k steps in EEPROM.

• Expandable: Supports up to 256 I/O points with extension units.

• Diagnostic Functions: Includes watchdog timer and self-diagnostics.

• Compact Size: Measures only 130 mm x 90 mm x 87 mm.

The FX2N-48MT-001 provides excellent linearity and resolution for digital control. Its frequency response supports fast pulse catching. The unit also offers strong environmental tolerance against dust and humidity.

Package Contents

• One FX2N-48MT-001 main unit

• One user manual (hardware guide)

• One set of terminal labels

• One DIN rail mounting clip kit

Frequently Asked Questions (FAQ)

1. Can the FX2N-48MT-001 replace an older FX2N-32MT unit?
Yes, the FX2N-48MT-001 offers more I/O points. It is backward compatible in programming. You may need to adjust the wiring layout.

2. What is the output current rating for each transistor point?
Each output point on the FX2N-48MT-001 handles 0.5 A. The total common terminal handles 0.8 A maximum.

3. Does this PLC support real-time clock functions?
No, the base FX2N-48MT-001 lacks a built-in clock. You need an optional FX2N-8AV-BD adapter for clock functions.

4. How do I connect a programming PC to this unit?
Use an FX-232AWC or FX-USB-AW cable. Connect to the built-in RS-422 programming port. Then use GX Developer or GX Works2 software.

5. What happens during a power failure to the FX2N-48MT-001?
The unit saves the current program and data to EEPROM. It automatically resumes operation when power returns. No data loss occurs.
