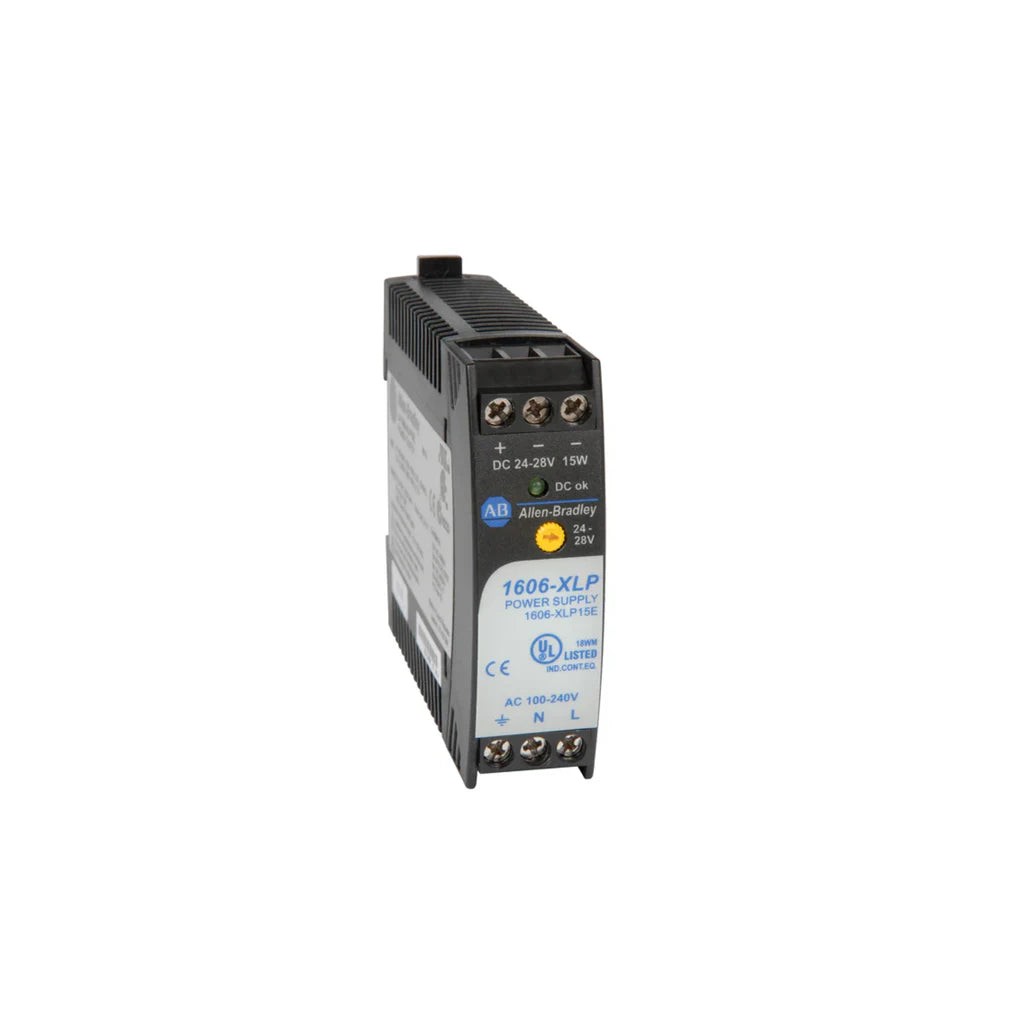

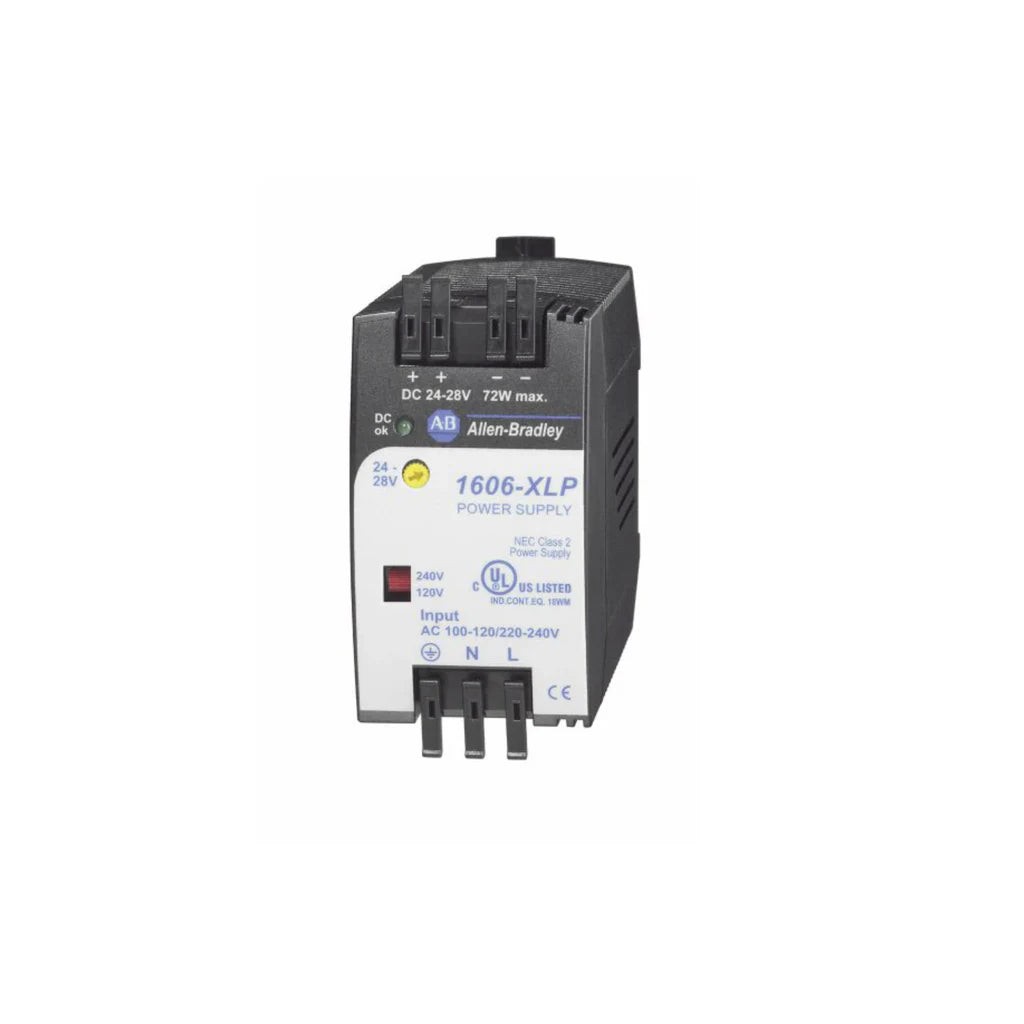

What the Allen-Bradley 1606-XLP15E Power Supply Delivers

The Allen-Bradley 1606-XLP15E is a compact DIN rail power supply from the Bulletin 1606-XL series. It provides a stabilized 24 V DC single output at 15 W from a 1-phase input, making it a dependable choice for control panels in oil and gas operations.

Engineers specifying This unit get a rugged unit rated for -10...+70 °C operation and IP20 protection. Its wide input range accepts AC 100...240 V nominal or DC 110...300 V, so it suits diverse supply arrangements.

Key Features and Technical Specifications

• Output voltage: DC 24 V nominal, adjustable 24...28 V DC for fine tuning.
• Rated power: 15 W with 0.63 A nominal output current (range 0.63...0.54 A).
• Input voltage: AC 100...240 V nominal; DC 110...300 V.
• Efficiency: 85.1% typical, reducing heat inside enclosures.
• Ripple and noise: 50 mV maximum (mVpp) for stable downstream electronics.
• Operating temperature: -10...+70 °C for field-proven performance.
• Protection rating: IP20, suitable for DIN rail or enclosure mounting.
• Dimensions: 75 × 45 × 91 mm (H×W×D); weight 130 g.
• Approvals: UL 60950-1, cUL, and CE marked per Bulletin 1606 series standard.

The adjustable output is a distinctive advantage. It lets technicians compensate for small voltage drops across long cable runs, keeping mission-critical loads within tolerance.

Why This unit Suits Oil and Gas Control Panels

Oil and gas sites demand power supplies that tolerate temperature swings and electrical noise. This unit operates across -10...+70 °C, so it handles both cold wellheads and hot process areas. Its 50 mV maximum ripple and noise helps protect sensitive analog loops and communication cards.

Moreover, the wide input range of AC 100...240 V nominal and DC 110...300 V simplifies deployment across regions with different grid standards. The compact 75 × 45 × 91 mm housing saves DIN rail space in crowded marshalling cabinets.

In addition, the 85.1% typical efficiency limits waste heat, which extends the life of nearby components. For a failure mode analysis, the main stress points are input transients and sustained over-temperature. Selecting the correct input voltage and ensuring adequate panel ventilation are therefore essential.

Installation and Setup Guidance

Mount This unit on a standard DIN rail and connect input and output wiring to the screw terminals. Verify that the input supply matches the AC 100...240 V nominal or DC 110...300 V range before energizing. Set the adjustable output to the required value between 24...28 V DC using the front adjustment.

Keep the IP20 enclosure free of metal debris and ensure sufficient clearance for convection cooling. Because the unit has no communication interface, no network configuration is needed. For integration with PLC racks, simply wire the output to the load; no external gateway is required.

Maintenance and Reliability Practices

Periodically inspect screw terminals for tightness and check for dust buildup that could impede heat dissipation. Operating the unit within the -10...+70 °C range and below the 15 W rated power supports long service life. If the output voltage drifts, verify the adjustment setting and input voltage stability.

Common issues include loose wiring and overloads beyond the 0.63 A nominal current. Always size loads to the 0.63...0.54 A range and use the 50 mV maximum ripple specification to assess output quality. Following these practices helps maintain reliability you can depend on in demanding environments.

Frequently Asked Questions

What input voltage does This unit accept?

The Allen-Bradley unit accepts AC 100...240 V nominal or DC 110...300 V. This wide range supports diverse supply systems in oil and gas facilities.

Can This unit output be adjusted above 24 V DC?

Yes. The output is adjustable from 24...28 V DC, allowing compensation for line losses in field wiring.

Is This unit suitable for high-temperature locations?

It operates from -10...+70 °C. Ensure the enclosure temperature stays within this range for dependable performance.

What is the ripple and noise specification of this power supply?

Ripple and noise is 50 mV maximum (mVpp), which helps protect sensitive control electronics.

How does This unit handle PLC power supply module replacement?

For PLC power supply module replacement, This unit offers a compact 15 W solution with screw terminals and DIN rail mount. Confirm your load current is within the 0.63...0.54 A range.

Contact PetroPartsOnline for parts suited to your application's requirements.
