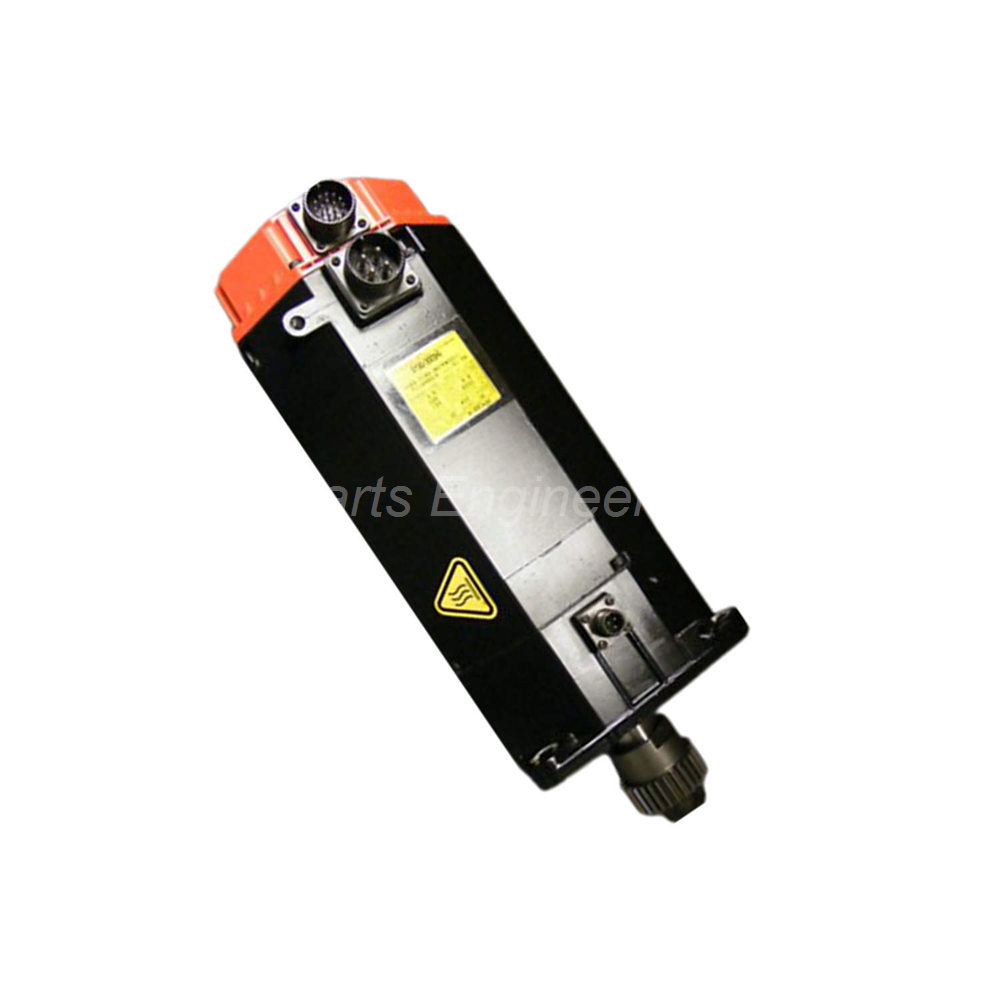

FANUC A06B-0186-B675 AC Servo Motor

The FANUC A06B-0186-B675 is a high-performance AC servo motor for industrial applications. It belongs to the A06B product series from FANUC. This unit provides reliable performance in demanding environments. You can use it for tasks requiring significant force and quick movement. The motor handles both acceleration and rapid motion effectively.

Technical Specifications of the A06B-0186-B675

The FANUC A06B-0186-B675 delivers a rated power output of 3.8 kW. The rated torque is 30 Nm for significant force requirements. The rated speed is 2000 RPM for quick operation. This combination suits many industrial motion control tasks.

Electrical Specifications

The FANUC A06B-0186-B675 operates on a 3-phase electrical system. The voltage rating is 228 V. The frequency is 133 Hz. The current rating is 9.8 A for efficient energy consumption. The insulation class is F for higher temperature tolerance.

Encoder and Feedback

The FANUC A06B-0186-B675 is fitted with an A64 type encoder. This delivers accurate position feedback. It also provides precise speed feedback. The encoder is essential for automated machinery applications.

Shaft and Brake Features

The shaft type is tapered for various coupling options. This enhances versatility in different setups. The FANUC A06B-0186-B675 includes an integrated braking system. The brake provides additional safety during operation. It also offers better control during stopping.

Protection and Cooling

The protection class is IP67 for harsh conditions. The FANUC A06B-0186-B675 is safeguarded against dust ingress. It can withstand temporary immersion in water. The cooling type is air-cooled for optimal temperature management.

Mounting and Physical Specifications

The mounting type is flange mounting (IM B5). This allows straightforward installation and alignment. The FANUC A06B-0186-B675 weighs 77.00 lbs or 34.93 kg. This weight reflects a robust construction for industrial service.

Installation Guidelines for the A06B-0186-B675

Mount the FANUC A06B-0186-B675 using the IM B5 flange method. Ensure proper alignment for the tapered shaft. Connect to a 3-phase 228V power source. Use appropriate cable gauges for 9.8A current. Connect the A64 encoder to your drive for feedback. Verify brake operation before full load testing.

Package Contents

• One (1) FANUC A06B-0186-B675 AC servo motor

• Mounting flange hardware

• Encoder connection guide

Common FAQs for the A06B-0186-B675

1. What is the rated power and torque of this motor?
The FANUC A06B-0186-B675 has a rated power of 3.8 kW. The rated torque is 30 Nm at 2000 RPM.

2. Does this motor include a brake?
Yes, the FANUC A06B-0186-B675 includes an integrated braking system. This provides additional safety and control.

3. What is the protection class of this motor?
The FANUC A06B-0186-B675 has an IP67 protection rating. It is dust-tight and withstands temporary immersion.

4. What type of encoder is fitted on this motor?
The FANUC A06B-0186-B675 uses an A64 type encoder. This provides accurate position and speed feedback.

5. What is the mounting type for this motor?
The FANUC A06B-0186-B675 uses flange mounting (IM B5). This allows straightforward installation and alignment.

Why Choose the FANUC A06B-0186-B675?

This AC servo motor delivers 3.8 kW and 30 Nm for demanding applications. The integrated brake provides safety and control during operation. IP67 protection allows use in harsh environments. The A64 encoder ensures precise feedback for automation. Order the FANUC A06B-0186-B675 today for your high-torque servo motor needs.
