Product Overview

The Mitsubishi GT2508-VTBA is a high-reliability HMI operator panel. It belongs to the advanced GOT2000 Series product line. This unit enables seamless interaction between operators and industrial systems. The Mitsubishi GT2508-VTBA features an 8.4-inch TFT color display. It delivers clear and detailed visual information for monitoring tasks. Users trust this panel for diverse control and visualization applications worldwide.

Technical Specifications

The GT2508-VTBA offers comprehensive HMI capabilities. Below are the complete technical details.

Display Specifications

• Display Type: TFT color LCD for vibrant visuals.

• Screen Size: 8.4 inches diagonally for optimal viewing.

• Resolution: 640 x 480 pixels for sharp image clarity.

• Color Depth: Displays 65536 colors for rich graphics.

• Visual Quality: Channels forth clear and nuanced visual information.

• User Engagement: Sharp images improve operator interaction.

Power Specifications

• Power Supply Range: 100V to 240V AC wide voltage compatibility.

• Current Type: AC current operation for industrial power sources.

• Power Compatibility: Casts a wide net across various power sources.

• Operating Voltage Range: Allows configuration with diverse industrial power.

• Power Flexibility: Works with 100-240 VAC input without switching.

Memory and Storage

• Internal Memory Capacity: 80 MB for project and data storage.

• Memory Expansion: SD memory card slot for additional capacity.

• Data Preservation: Stores system files and user projects reliably.

• Data Retrieval: Users may conveniently save and retrieve data.

• Storage Flexibility: Expansion via SD card interface.

Connectivity Interfaces

• USB Ports: Three USB ports for peripheral connections.

• Ethernet Port: One Ethernet port for network connectivity.

• SD Card Slot: Single SD interface for memory expansion.

• USB Function: Facilitates data transfer between devices.

• Ethernet Function: Enables network integration and device communication.

• Peripheral Support: Connect external devices through USB ports.

Environmental Protection

• Protection Class: IP67F for superior ingress protection.

• Water Resistance: Guarantees the HMI is waterproof.

• Dust Resistance: Ensures the unit is dust-tight.

• Harsh Environment Suitability: Made for demanding industrial situations.

• Industrial Durability: Built to endure challenging conditions.

• Protection Rating: High IP67F class resists water and dust effectively.

Physical Specifications

• Manufacturer: Mitsubishi Electric Corporation.

• Product Line: GOT2000 Series advanced HMI family.

• Weight: 3.25 lbs (1.47 kg) for robust build quality.

• Series: GOT2000 SERIES professional grade.

• Type Classification: Human Machine Interface operator panel.

Additional Features

• User-Friendly Design: Made for industrial control and monitoring.

• Real-Time Data Display: Ideal for presenting various real-time data.

• Image Versatility: Suitable for displaying multiple image types.

• System Integration: Reliable interface for GOT2000 Series applications.

• Overall Protection: Combines high-quality display with flexible connectivity.

Installation Guide

Follow these steps to install the Mitsubishi GT2508-VTBA correctly.

1. Prepare Panel Cutout: Cut a hole matching the GOT2000 Series dimensions.

2. Insert the HMI: Place the operator panel through the panel opening from the front.

3. Secure Mounting: Attach the provided brackets from the rear side firmly.

4. Connect AC Power: Wire 100-240 VAC to the power input terminals.

5. Verify Power Source: Ensure the supply matches AC current type.

6. Connect Communication Cables: Attach Ethernet or USB cables as needed.

7. Insert SD Card (Optional): Add an SD card for expanded memory capacity.

8. Power On the Unit: Apply AC power and wait for system boot.

9. Download Project: Transfer your HMI project via Ethernet or USB.

Installation Notes

• Ensure the panel cutout edges are smooth and burr-free.

• Do not overtighten the mounting brackets.

• Keep the terminal away from direct sunlight or heat sources.

• Leave adequate space behind the unit for cables and airflow.

• The IP67F rating applies only when properly panel-mounted.

Packaging List

This unit ships as a new and original product.

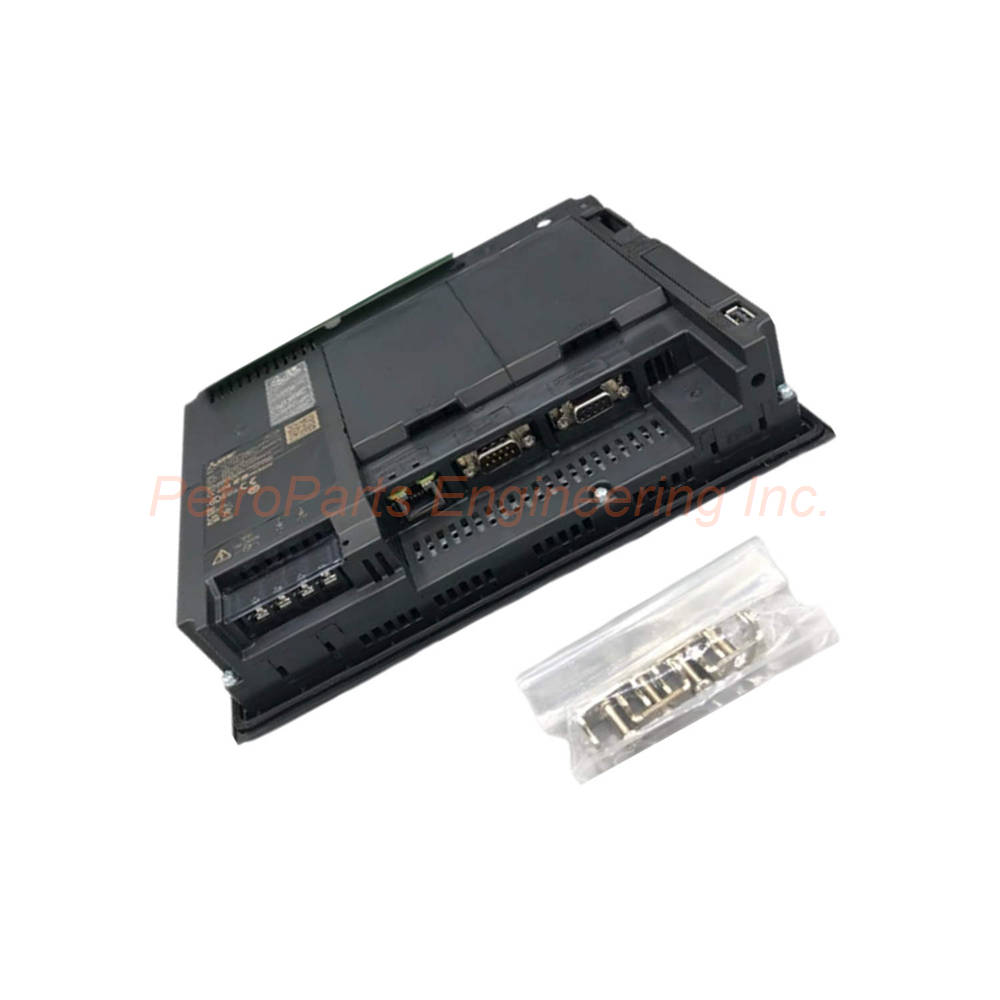

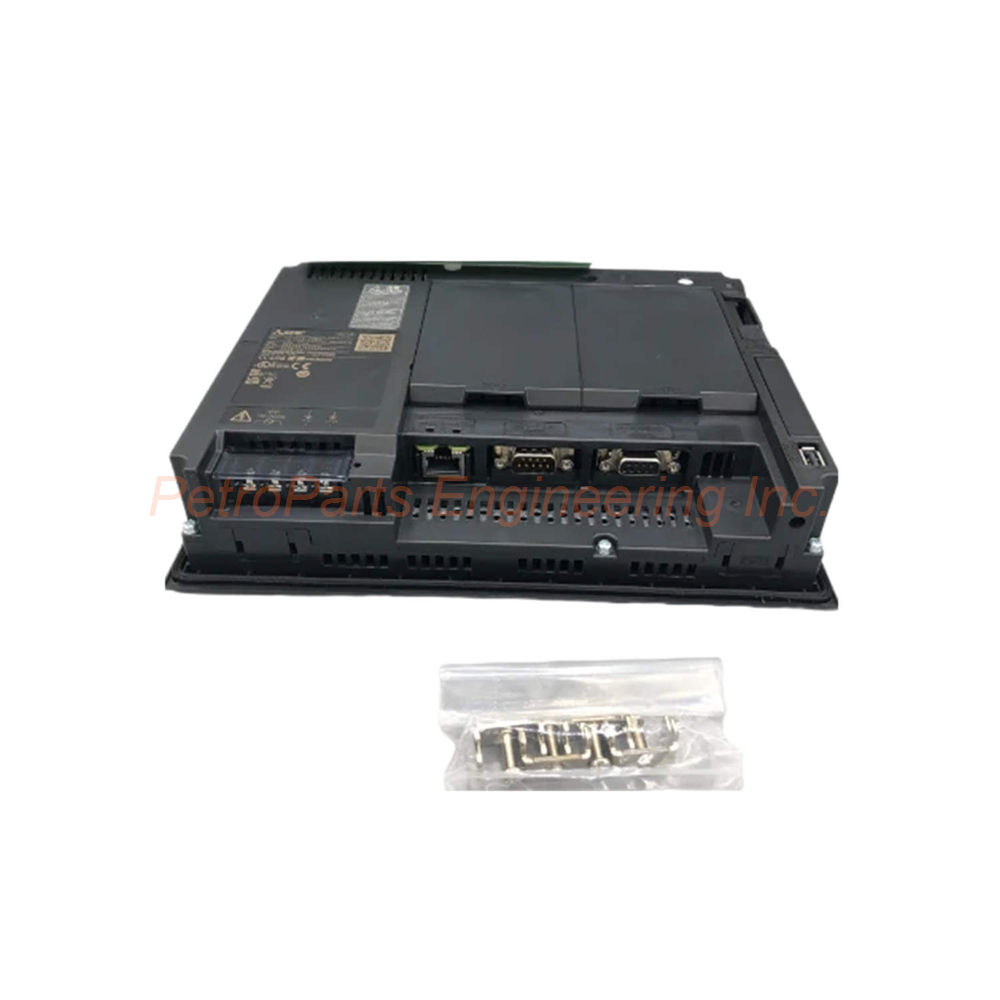

• Mitsubishi GT2508-VTBA HMI Operator Panel

• Mounting brackets for panel installation (set of 4)

• Power connector terminal block

• Product instruction manual (English)

• Factory sealed anti-static packaging

Frequently Asked Questions (FAQ)

1. What is the difference between GT2508-VTBA and GT2508-VTBA?
The Mitsubishi GT2508-VTBA is correctly identified by its full part number. This model features AC 100-240V power and an 8.4-inch TFT display.

2. Does this HMI support DC power input?
No, the GT2508-VTBA requires AC 100-240V power input only. For DC power versions, please check other GOT2000 Series models.

3. Is the IP67F protection rating for the entire unit?
The IP67F rating applies to the front panel when properly mounted. The rear side requires installation inside an enclosure for full protection.

4. How much memory is available for my HMI project?
The Mitsubishi GT2508-VTBA provides 80 MB of internal memory. You can expand storage using an SD card in the memory card slot.

5. Can I connect this HMI to a Mitsubishi PLC via Ethernet?
Yes, the GT2508-VTBA includes one Ethernet port. It connects directly to Mitsubishi PLCs and other network devices for data exchange.
