Mitsubishi GT2308-VTBD GOT2000 HMI 8.4 Inch TFT Color Touchscreen
Introduction:

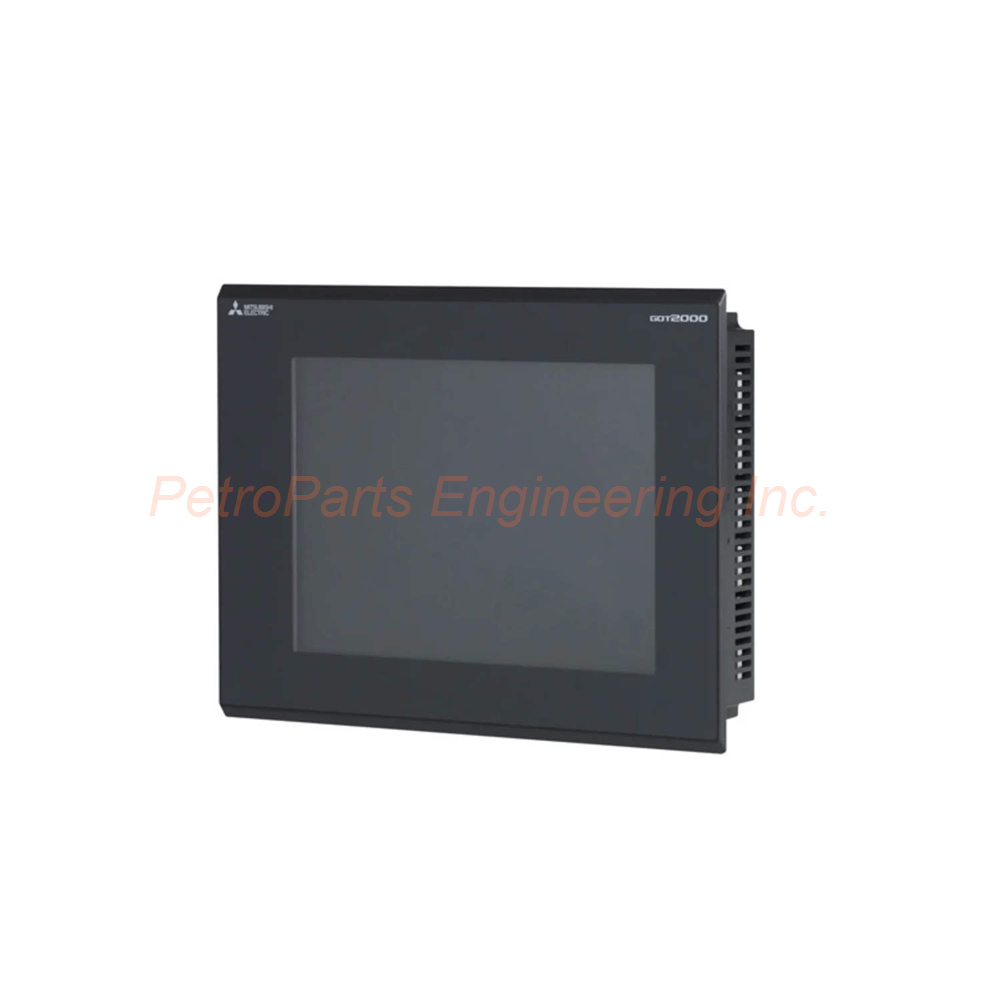

The GT2308-VTBD is a graphic operation terminal from the GOT2000 series. This HMI features an 8.4 inch TFT color display. It offers 640x480 VGA resolution and a durable IP67F front panel.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The GT2308-VTBD belongs to the GOT2000 Series. Its product type is a Graphic Operation Terminal (HMI Terminal). The product classification is HMI & Operator Interface. The current price for this item is ¥7,200 RMB. The product gross weight is 1.50 kg.
This GT2308-VTBD serves as a human-machine interface for industrial automation. Mitsubishi designed this graphic operation terminal for process monitoring and control. Operators can manage industrial applications using the touchscreen interface. The terminal produces vivid visuals with its high-quality TFT color LCD. This Graphic Operation Terminal improves process management with its sturdy construction.
Technical Specifications
Display Features
The display is a TFT color LCD supporting 65536 colors. The screen size measures 8.4 inches diagonally. The resolution reaches 640 x 480 dots (VGA). The display dimensions are 170.9 x 128.2 mm (6.73 x 5.05 inches). This spacious viewing area allows operators to see detailed graphics clearly. The visuals remain sharp and accurate for all industrial applications.
Backlight Specifications
The backlight uses LED technology. This backlight is not replaceable by the user. The rated backlight life is approximately 50,000 hours. This ensures long-term durability for continuous operation. The LED backlight provides consistent brightness throughout its lifetime.
Power Requirements
The supply voltage is 24V DC. Power consumption is rated at 8 watts. This low power draw makes the GT2308-VTBD energy efficient. The terminal operates reliably within standard industrial power systems. Always use a regulated 24V DC power supply for best results.
Memory Specifications
The memory for storage (ROM) is 9 MB. The memory for operation (RAM) is also 9 MB. This memory capacity stores applications, screens, and system data. The GT2308-VTBD also supports SD cards for additional storage. You can expand memory easily for larger projects or data logging.
Environmental Ratings
The front panel carries an IP67F protection rating. This shields the terminal from dust and temporary immersion in water. The inside control panel section has an IP2X rating. This protects against solid objects larger than 12.5 mm. The GT2308-VTBD operates within an ambient temperature range of 0 to 55 degrees Celsius.
Physical Characteristics
The panel color is black. The total weight of this module is 1.50 kg (3.31 lbs). The construction uses durable materials for industrial environments. The black frame provides a professional appearance for control panels.
Standards and Certifications
The GT2308-VTBD meets multiple international standards. These include CE, UL, cUL, EAC, and KC. These certifications ensure compliance with global safety requirements. The terminal is suitable for installation in various regions worldwide.
Installation Guide
Follow these steps to install your GT2308-VTBD correctly.
Prepare Panel Cutout: Create a panel opening according to the dimensions in the manual. Ensure the panel material is strong enough to support 1.50 kg.
Insert Terminal: Place the GT2308-VTBD into the panel cutout from the front. The black frame should sit flush against the panel surface.
Secure Mounting Brackets: Attach the supplied mounting brackets from the rear side. Tighten the screws evenly to avoid stressing the housing.
Connect Power: Wire 24V DC to the power terminals. Observe correct polarity to prevent damage. The terminal draws only 8 watts during operation.
Connect Communication Cables: Attach cables to the appropriate communication ports. Use shielded cables for noisy industrial environments.
Power Up: Apply 24V DC power to the GT2308-VTBD. Wait for the system to boot up completely.
Download Project: Transfer your HMI project from the engineering software to the terminal. Use an SD card or direct cable connection.
Package List
1 x GT2308-VTBD Graphic Operation Terminal (GOT2000)
1 x Set of mounting brackets with screws
1 x Power connector plug
1 x Quick start guide
Frequently Asked Questions (FAQ)
1. Can I replace the LED backlight on the GT2308-VTBD?
No, the LED backlight is not replaceable. The backlight life is approximately 50,000 hours of continuous operation.
2. What is the difference between ROM and RAM on this HMI?
The 9 MB ROM stores your application and system files permanently. The 9 MB RAM handles runtime operations and temporary data. Both are essential for the GT2308-VTBD to function correctly.
3. Does the GT2308-VTBD support SD cards?
Yes, this graphic operation terminal supports SD cards. You can use SD cards for project transfer, data logging, and memory expansion.
4. What does IP67F mean for the front panel?
IP67F means complete dust protection. The panel also withstands temporary immersion in water up to 1 meter for 30 minutes. This makes the GT2308-VTBD suitable for washdown environments.
5. Can I use this HMI outdoors in direct sunlight?
The operating temperature range is 0 to 55°C. Direct sunlight may exceed this range. The GT2308-VTBD is designed for indoor industrial control panels. Use a sunshade if outdoor installation is necessary.
