Product Overview

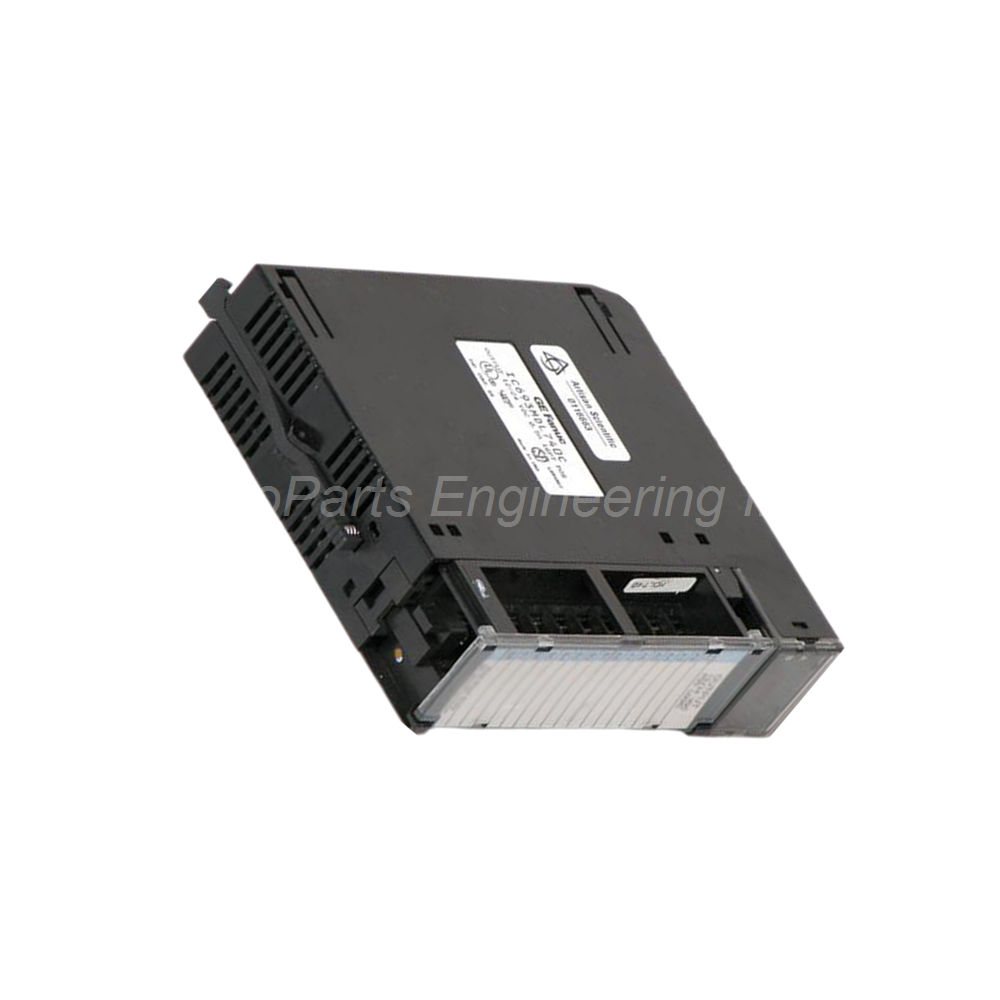

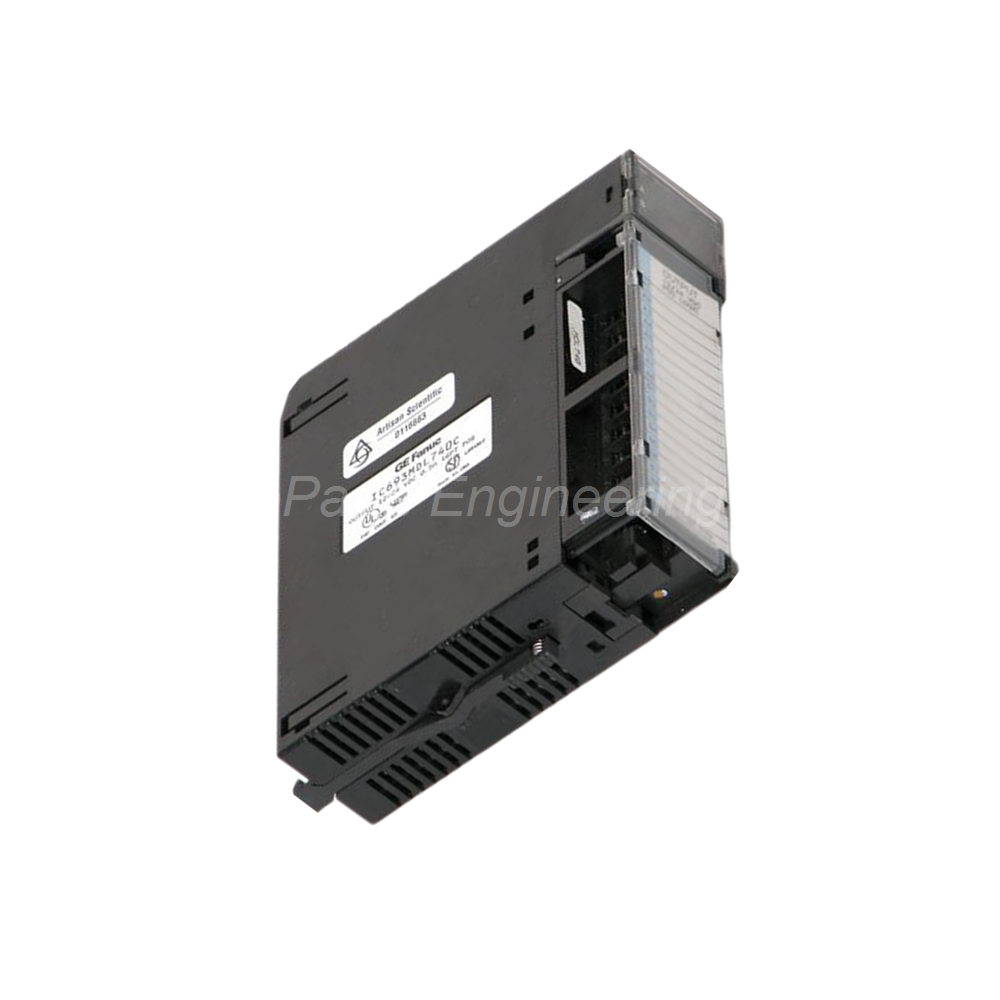

The GE Fanuc IC693MDL740 is a positive logic output module for Series 90-30 PLCs. This module features sixteen sourcing output channels for field device control. Sourcing means the module supplies current to loads from the positive power bus. The operating voltage range spans 12 to 24 volts DC with +20% and -15% tolerance. Outputs divide into two groups of eight channels each. Each channel delivers 0.5 Amperes continuously. Total current per common reaches 2 Amperes maximum. The IC693MDL740 draws 110 mA from the 5V DC backplane when all outputs energize. Front panel LED indicators show the actuated state of each channel. This module does not include internal fusing. For additional protection, external fuses may be installed. The product lifecycle status is discontinued or obsolete.

Technical Specifications

General Specifications

Output Specifications

Power & Environmental Specifications

Sixteen Sourcing Outputs

The IC693MDL740 provides sixteen discrete sourcing output channels. Sourcing means the module acts as a current source to loads from the positive power bus. The output device connects between the negative power bus and the module output. This configuration suits devices that require a switched positive supply. Typical loads include contactors, relays, pilot lamps, buzzers, horns, and other 24 VDC powered devices. Consequently, the GE Fanuc IC693MDL740 simplifies wiring for positive-switching applications.

Two Groups of Eight Channels

The sixteen outputs divide into two groups of eight channels each. Each group has its own common power output terminal. Different voltage sources can power each group independently if needed. For example, group one could run at 12 VDC while group two runs at 24 VDC. Total current per common reaches 2 Amperes maximum. Therefore, the IC693MDL740 provides flexibility for mixed voltage applications.

Output Voltage & Current Ratings

Rated voltage spans 12 to 24 volts DC with +20% and -15% tolerance. This wide range accommodates standard industrial power supplies. Each channel delivers 0.5 Amperes continuously for typical loads. Maximum inrush current reaches 4.78 Amperes for 10 ms to handle inductive loads. Output voltage drop stays below 1 Volt maximum under load. Off-state leakage current stays below 1 mA to prevent false triggering. For robust field control, the GE Fanuc IC693MDL740 handles demanding loads reliably.

Fast Response Time

ON response time reaches 2 ms maximum for fast output activation. OFF response time also reaches 2 ms maximum for quick de-energization. This fast response suits applications requiring precise timing control. For example, high-speed sorting or indexing machines benefit from this speed. The IC693MDL740 delivers consistent, repeatable switching performance for time-critical operations.

LED Indicators

Front panel LED indicators sit on top of the module for easy viewing. Individual LEDs represent the actuated state of each output channel. When an output turns on, its corresponding LED illuminates. Additional LEDs show the operational state of the module itself. For maintenance and troubleshooting, these LEDs prove invaluable. The GE Fanuc IC693MDL740 reduces diagnostic time with clear visual feedback.

No Internal Fusing

This module does not come with internal fusing for output protection. External fuses may be installed to further protect the module and field devices. For each output channel or common, add appropriate fuses based on load current. This approach allows customized protection levels for different applications. Therefore, the IC693MDL740 offers flexibility in protection design.

Backplane Current Draw

Current draw from the backplane reaches 110 mA when all outputs energize. The module draws this current from the 5V DC bus on the backplane. This moderate consumption suits most Series 90-30 power supply configurations. Multiple IC693MDL740 modules can populate a single rack without overloading the power supply. For large systems, calculate total backplane load before finalizing your configuration.

Environmental Specifications

Operating temperature ranges from 0 to 60 degrees Celsius for reliable performance. Storage temperature spans -40 to 85 degrees Celsius for safe preservation. Relative humidity tolerance reaches 5 to 95% without condensation. These environmental ratings suit typical industrial control rooms. The GE Fanuc IC693MDL740 operates reliably in standard factory environments.

Installation Guidelines

Follow these steps for proper installation of the IC693MDL740.

1. Power down the Series 90-30 PLC completely before handling any modules.

2. Select an empty I/O slot on the 5-slot or 10-slot baseplate.

3. Align the module with the guide rails inside the selected slot.

4. Slide the IC693MDL740 firmly into place until the backplane connectors engage.

5. Secure the module using the retaining screws at top and bottom.

6. Connect field wiring to the output terminals. Connect loads between output and negative bus.

7. Connect positive power bus to the common terminals for each group.

8. Install external fuses if additional protection is desired for each group.

9. Power up the system and verify each LED responds correctly to output commands.

Note: The IC693MDL740 has reached discontinued/obsolete status. For new projects, consider current Emerson replacements. For existing system spares, verify compatibility with your specific PLC firmware revision. This module does not include internal fusing.

Packaging List

• One GE Fanuc IC693MDL740 Positive Logic Output Module

• One product quick start guide

• One terminal connector set

• One anti-static protective bag

Common FAQs

1. What is the output voltage range of the IC693MDL740?

Output voltage ranges from 12 to 24 volts DC with +20% and -15% tolerance. This wide range accommodates standard industrial power supplies. Each channel delivers 0.5 Amperes continuously for typical loads. For robust field control, the GE Fanuc IC693MDL740 handles demanding loads reliably within this voltage range.

2. How many output groups does the IC693MDL740 have?

This module features two groups of eight output channels each. Each group has its own common power output terminal. Different voltage sources can power each group independently if needed. Total current per common reaches 2 Amperes maximum. Therefore, the IC693MDL740 provides flexibility for mixed voltage applications.

3. What is the response time of the IC693MDL740?

ON response time reaches 2 ms maximum for fast output activation. OFF response time also reaches 2 ms maximum for quick de-energization. This fast response suits high-speed sorting and indexing machines. The GE Fanuc IC693MDL740 delivers consistent, repeatable switching performance for time-critical applications.

4. Does the IC693MDL740 include internal fusing?

No, this module does not come with internal fusing for output protection. External fuses may be installed to further protect the module and field devices. For each output channel or common, add appropriate fuses based on load current. Therefore, the IC693MDL740 offers flexibility in protection design for different applications.

5. Is the IC693MDL740 still available from GE Fanuc?

This module has reached discontinued/obsolete status. GE Fanuc no longer manufactures new units. However, existing stock remains available through distributors and aftermarket suppliers. For new Series 90-30 installations, consider current Emerson replacement options. The GE Fanuc IC693MDL740 serves existing system spares and maintenance needs.

Why Choose This Output Module?

The GE Fanuc IC693MDL740 delivers reliable discrete output control for Series 90-30 PLCs. Sixteen sourcing output channels drive solenoids, contactors, relays, and indicators. Two isolated groups of eight outputs provide wiring flexibility. Fast 2 ms response time suits high-speed applications. LED indicators per channel simplify troubleshooting. No internal fusing allows customized protection levels. For 12/24 VDC output applications in Series 90-30 systems, choose the IC693MDL740.
