Product Overview

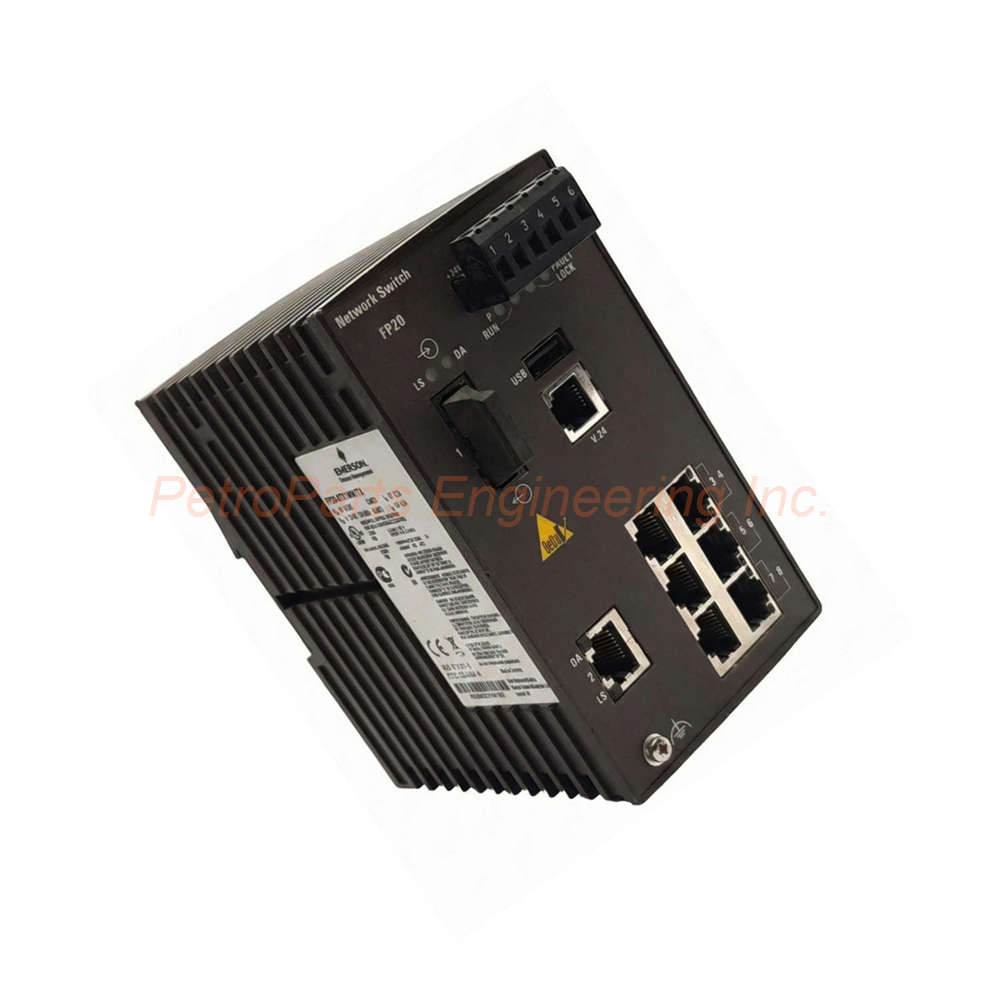

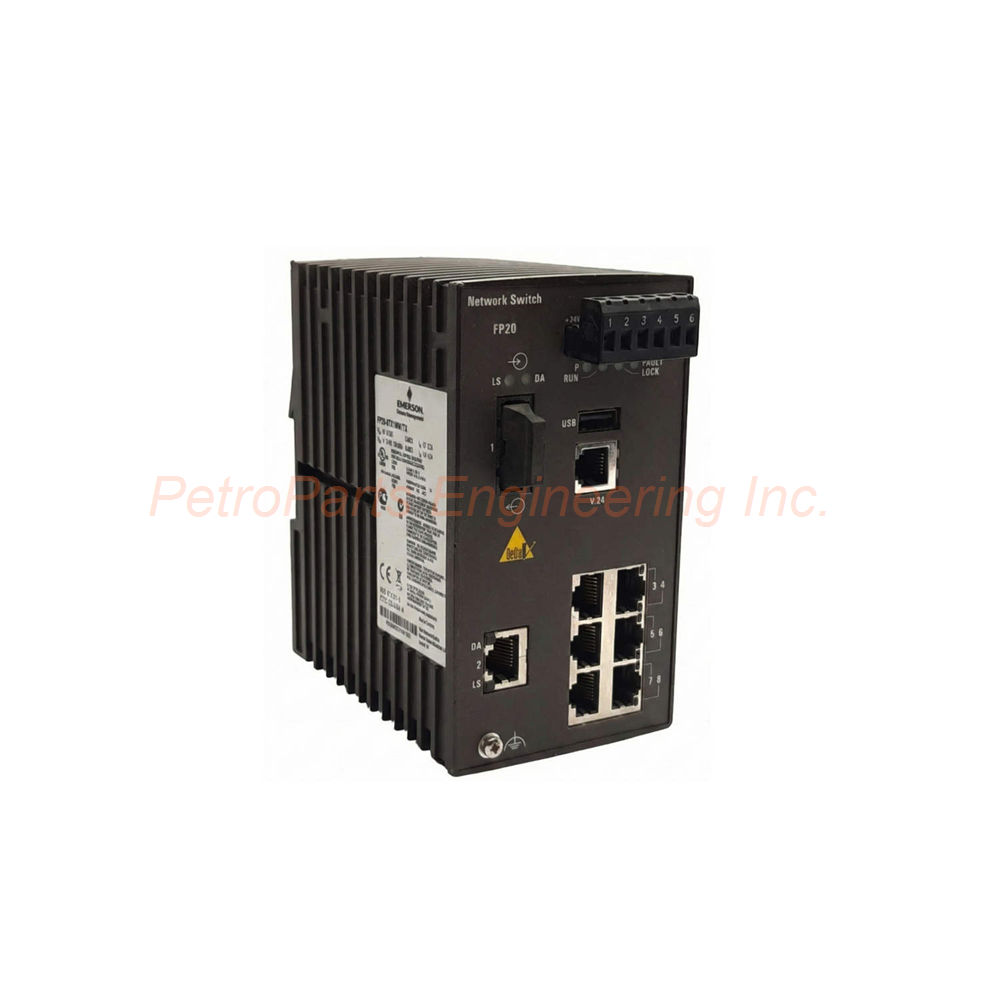

The Emerson VE6041 is a DeltaV Smart Switch for industrial control networks.
This DIN rail mountable switch offers 8 ports at 10/100 MB speeds.
Both fiber and wire uplink options are available on this model.
Standard and extended temperature versions exist for different environments.
Conformal coated models provide additional protection against moisture and contaminants.
The VE6041 is completely managed by DeltaV systems without extra software.
Network alerts and diagnostics report automatically to DeltaV workstations.
Therefore, operators gain full visibility into network health.

Technical Specifications

Port Configuration

The Emerson VE6041 provides 8 ports for device connectivity.
Each port operates at 10/100 MB speeds with auto-negotiation.
Local ports connect to single devices like controllers or workstations.
Uplink ports connect to other switches for network expansion.
Notably, all ports function identically regardless of designation.
A port labeled as uplink can serve as a local port instead.
Consequently, the VE6041 offers flexible deployment options.

Power Requirements

Operating voltage accepts 24 V DC with a range of 18 to 30 V .
This wide range accommodates typical industrial power supplies.
Power consumption is efficient for fan-less operation.

Mechanical Construction

Dimensions measure 74 mm (W) x 131 mm (H) x 111 mm (D) .
In imperial units, this equals 2.9 x 5.16 x 4.37 inches.
Mounting type is standard DIN rail for panel installation.
Weight equals 410 g (14.48 oz) across all models.
Protection class is IP20 for indoor control cabinets.
The VE6041 ships with one FP20 switch and a terminal block.

DeltaV Integration

The Emerson VE6041 integrates seamlessly with DeltaV control systems.
When connected to VE6041, VE6042, or DeltaV controllers, communications auto-negotiate to 100 MB.
Compatibility extends to CIOC and WIOC I/O cards as well.
Plug-and-play installation requires no manual network configuration.
Auto security lockdown protects the switch from unauthorized changes.
Therefore, the VE6041 reduces engineering time significantly.

Network Architecture

The switch installs on the network between DeltaV workstations and the Emerson Smart Firewall.
This placement suits DeltaV 2.5 network architectures perfectly.
Network alerts from the VE6041 appear directly on DeltaV workstations.
Diagnostics help identify faulty cables or port issues quickly.
Consequently, troubleshooting becomes faster and more efficient.

Industrial Design Features

The Emerson VE6041 is an industrial rated fan-less switch.
No moving parts means higher reliability and longer service life.
The absence of fans eliminates noise and dust ingestion risks.
DIN rail mounting simplifies installation in crowded cabinets.
IP20 protection suits typical control room and panel environments.
Extended temperature versions handle harsher thermal conditions.
Conformal coated models resist humidity and chemical exposure.

Installation Guidelines

First, mount the Emerson VE6041 on standard 35 mm DIN rail.
Snap the switch firmly onto the rail until it clicks.
Connect 24 V DC power (18-30 V range) to the terminal block.
Wire network cables to the 8 ports as needed.
Use fiber ports for long-distance uplinks between cabinets.
Use copper ports for short connections to controllers and workstations.
Power up the switch and allow auto-negotiation to complete.
Verify communication with DeltaV workstations through diagnostics.
No manual IP configuration is required for basic operation.
The VE6041 automatically secures itself after installation.

Network Planning Tips

Local ports work best for single device connections.
Uplink ports connect to other switches in larger networks.
All ports on the VE6041 support identical functions.
For redundant paths, plan your cabling carefully.
Keep fiber optic cables away from high-power electrical wires.
Use shielded Ethernet cables in electrically noisy environments.
Document which devices connect to each port for future troubleshooting.

Package Contents

• 1 x Emerson VE6041 DeltaV Smart Switch (8 ports)

• 1 x Terminal block for power connection

• 1 x DIN rail mounting clip (pre-installed)

• 1 x Quick start installation guide

• 1 x Grounding wire with lug

Frequently Asked Questions (FAQ)

1. Is the VE6041 suitable for outdoor installation?

The standard Emerson VE6041 has IP20 protection for indoor use. Extended temperature or conformal coated versions suit harsher environments.

2. Can I use this switch with non-DeltaV systems?

The VE6041 is designed for DeltaV integration and management. While it may function as a standard switch, DeltaV features require Emerson controllers.

3. What does auto security lockdown do on the VE6041?

Auto security lockdown prevents unauthorized configuration changes. The Emerson VE6041 automatically secures ports after installation completes.

4. How do I know if I need the extended temperature version?

Check your cabinet ambient temperature range. The standard VE6041 suits 0-60°C; extended versions handle wider ranges.

5. Can I mix fiber and copper ports on the same VE6041?

Yes, the Emerson VE6041 supports both fiber and wire uplinks. Use fiber for long distances and copper for short connections.
