Product Overview of the Bently Nevada 24701-28-10-00-140-04-01

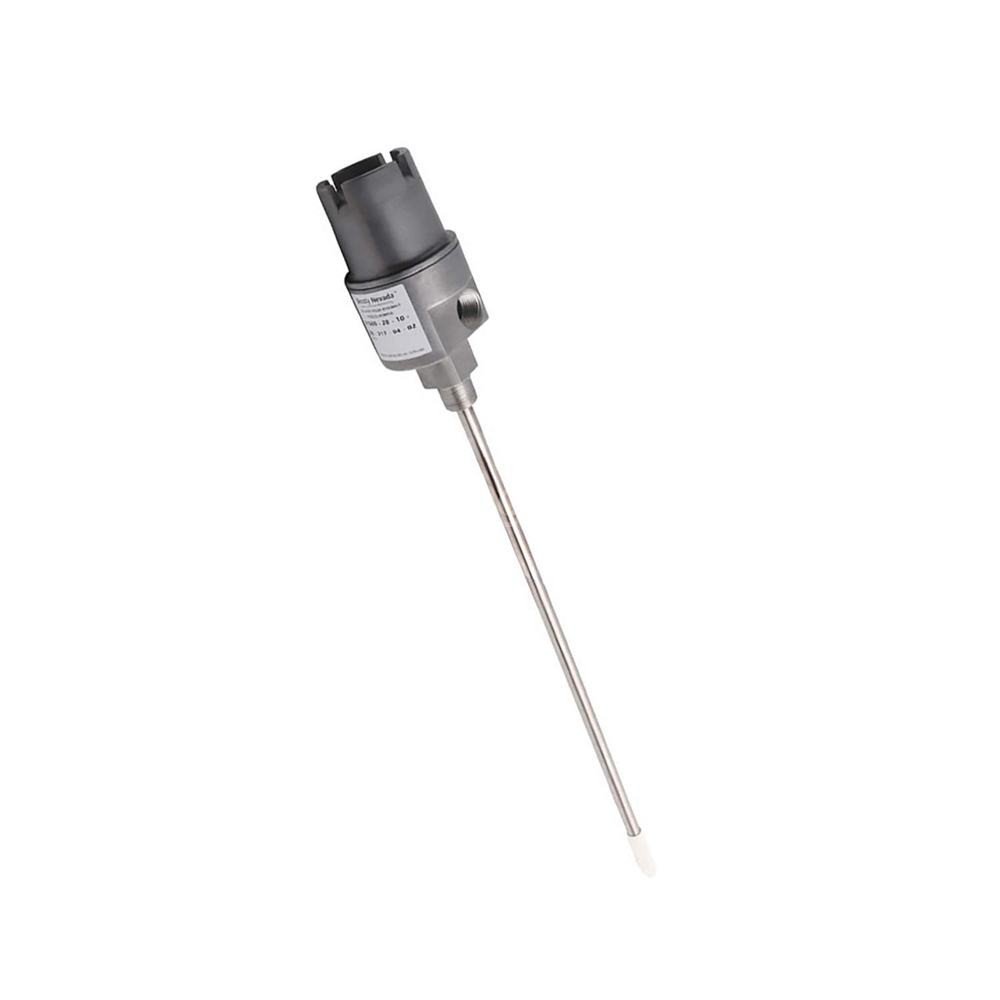

The Bently Nevada 24701-28-10-00-140-04-01 is a complete proximity probe housing assembly. This assembly holds a 3300 XL 8mm reverse mount proximity probe. The probe option 28 includes specific approvals for industrial use. The cable length option 10 provides 39 inches or 1.0 meter of cable.

The standoff adapter option is 00, meaning no standoff adapter included. Probe penetration option 140 gives you 14 inches of insertion depth. The fittings option 04 includes one 3/4-14 NPT plug only. Mounting thread option 01 provides an as cast surface without threads.

The housing body is made from 303 stainless steel material. A 304 stainless steel sleeve protects the internal components. The assembly weighs 1.8 kg or 4.1 pounds without fittings. This rugged construction suits harsh industrial monitoring applications.

Technical Specifications of the 24701-28-10-00-140-04-01

• Manufacturer: Bently Nevada

• Product Number: 24701-28-10-00-140-04-01

• Model: 24701 Proximity Probe Housing Assembly

• Probe Type: 3300 XL 8mm reverse mount

• Probe Cable Length: 1.0 meter (39 inches)

• Probe Penetration: 14 inches

• Fittings Option: One 3/4-14 NPT plug

• Mounting Thread Option: As cast without threads

• Body Material: 303 stainless steel

• Sleeve Material: 304 stainless steel

• Weight: 1.8 kg typical without fittings

• Maximum (C)+(D) with visible probe: 17.0 inches (43.18 mm)

• Maximum (C)+(D) dimension: 29.2 inches (74.2 mm)

The Bently Nevada 24701-28-10-00-140-04-01 accepts a 3300 XL 8mm proximity probe. The reverse mount design secures the probe from inside the housing. The maximum assembled length reaches 29.2 inches for deep installations.

Assembly Components and Structure

The 24701-28-10-00-140-04-01 consists of several key parts working together. A dome cover screws into the main body of the housing securely. Threaded ports allow conduit connections for electrical wiring. A probe sleeve of optional length holds the probe in position.

O-rings provide environmental sealing between mating surfaces. A reverse mount proximity probe sits inside the sleeve assembly. Thread seal material prevents leakage through the connection points. Optional conduit fittings can be added if needed for your installation.

The housing protects the probe from mechanical damage and contamination. The 303 stainless steel body resists corrosion in most industrial environments. The 304 stainless steel sleeve adds extra durability at the probe tip. This assembly simplifies installation by combining all necessary components.

Installation Guide for the 24701-28-10-00-140-04-01

Follow these steps to install the Bently Nevada 24701-28-10-00-140-04-01 correctly.

1. Drill and tap the mounting hole to match the housing threads.

2. Clean all mounting surfaces thoroughly before installation.

3. Insert the housing assembly into the prepared mounting hole.

4. Tighten the housing to the recommended torque value.

5. Connect the conduit to the threaded port on the housing.

6. Pull the probe cable through the conduit carefully.

7. Connect the probe cable to the proximitor or monitoring system.

8. Adjust the probe penetration to the 14 inch specified depth.

9. Secure the dome cover onto the housing body tightly.

10. Verify the air gap setting using a proximity probe test fixture.

Do not exceed the maximum (C)+(D) dimension of 29.2 inches. The visible probe marking helps confirm correct insertion depth. Use thread sealant on all NPT connections to prevent leakage. Protect the probe tip from damage during cable pulling operations.

Package Contents for Bently Nevada 24701-28-10-00-140-04-01

• 1 x Bently Nevada 24701 housing body with dome cover

• 1 x 3300 XL 8mm reverse mount proximity probe (installed)

• 1 x Probe sleeve of optional length (pre-assembled)

• 1 x Set of O-rings for environmental sealing

• 1 x Thread seal material for NPT connections

• 1 x 3/4-14 NPT plug (fittings option 04)

• 1 x Installation instruction sheet

Frequently Asked Questions (FAQ)

1. What is the maximum probe penetration for this housing assembly?
The Bently Nevada 24701-28-10-00-140-04-01 provides 14 inches of probe penetration. The maximum (C)+(D) dimension reaches 29.2 inches total length. This allows installation through thick machine casings or bearing housings.

2. Does this housing work with other Bently Nevada probe types?
This housing is specifically designed for the 3300 XL 8mm reverse mount probe. Other probe sizes may not fit the internal sleeve correctly. Always use the recommended probe type for this housing assembly.

3. What is the purpose of the stainless steel construction?
The 303 and 304 stainless steel materials resist corrosion in harsh environments. This construction prevents rust and degradation over many years. The material choice also provides mechanical strength for heavy industrial use.

4. Can I add conduit fittings to this housing assembly?
Yes, the housing has threaded ports for standard conduit connections. The optional conduit fittings can be purchased separately. Option 04 includes only one 3/4-14 NPT plug without extra fittings.

5. What is the weight of this assembly for shipping purposes?
The Bently Nevada 24701-28-10-00-140-04-01 weighs 1.8 kg typical without fittings. With packaging materials, the shipping weight is approximately 2.1 kg. Plan your shipping costs based on this typical weight range.
