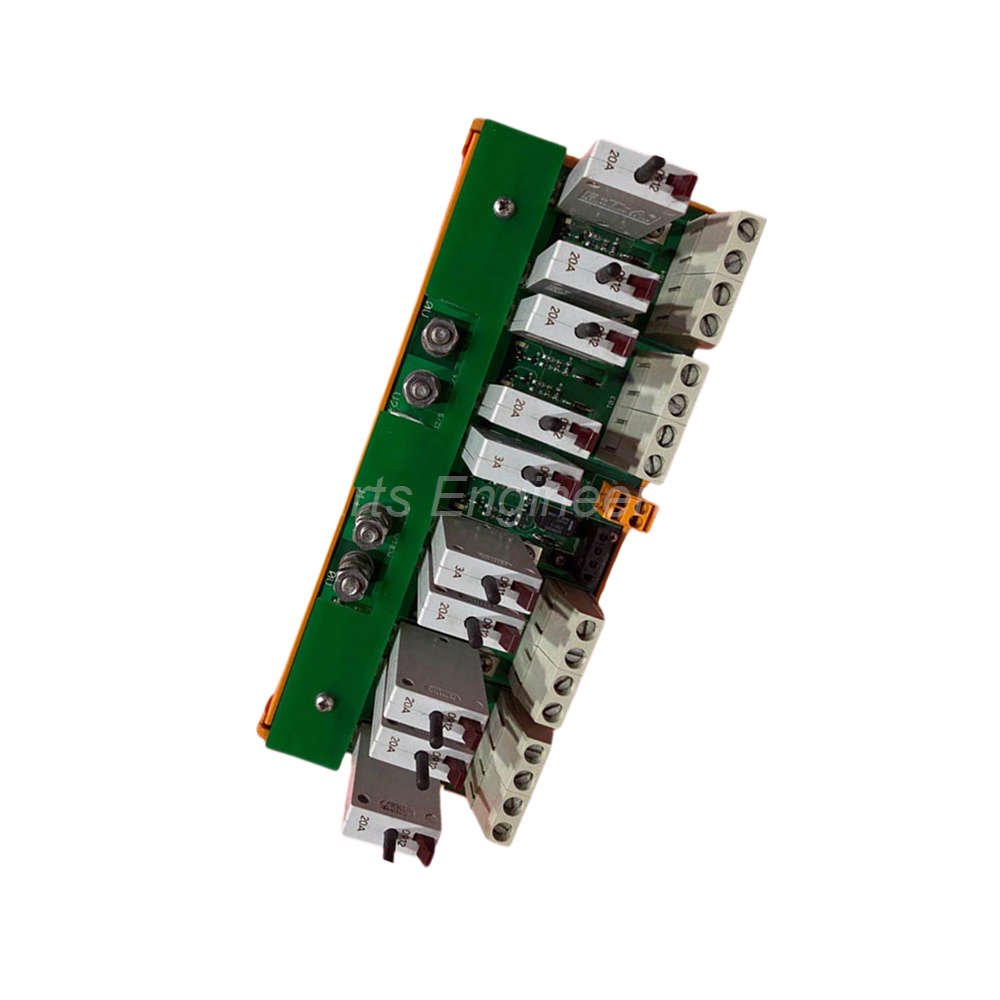

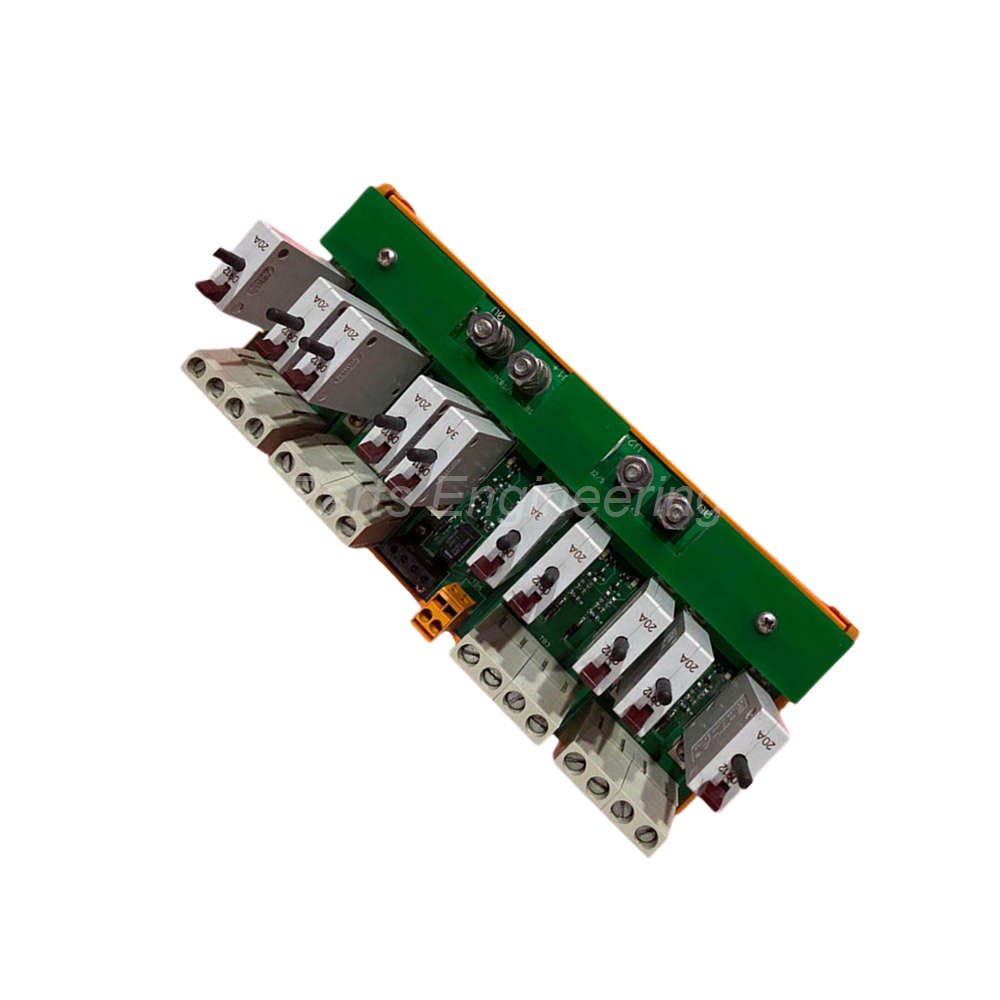

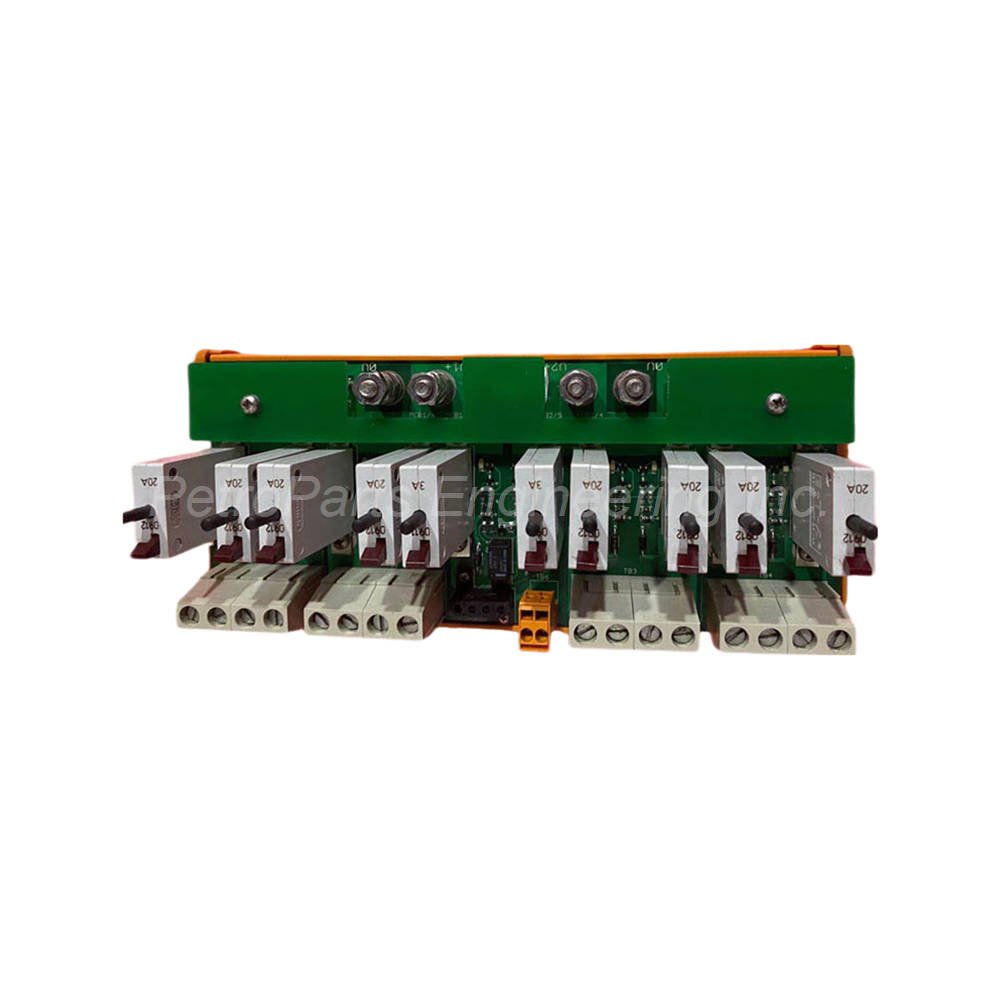

T8292 ICS Triplex Trusted Power Distribution Unit 24Vdc 60A MCB
Introduction:
The ICS Triplex T8292 is a power distribution unit for the Trusted TMR System. This unit includes a miniature circuit breaker (MCB) for 24Vdc circuits. It supplies reliable power to critical control components. The T8292 handles input voltages from 18 to 28 Vdc. Its maximum current rating reaches 60 amps. Use this unit for high-availability safety systems.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Technical Specifications of T8292
Manufacturer: ICS Triplex (now part of Schneider Electric).
Model Number: T8292 for ordering and identification.
Catalog Family: Trusted TMR System for safety-critical applications.
Description: Power Distribution Unit with integrated MCB for 24Vdc.
Supply Voltage Range: Accepts 18 to 28 Vdc input power.
Input/Output Rating: Delivers up to 60 Amps maximum.
Certification: OrdLoc (Ordinary Location) for non-hazardous areas.
Origin: Manufactured in the United States (US).
Installation and Application Guide
Mount the T8292 inside a Trusted TMR system cabinet. Connect the 24Vdc power source to the input terminals. The integrated MCB protects against overcurrent conditions. Distribute the 60A capacity across multiple downstream loads. Keep the input voltage between 18 and 28 Vdc for stable operation. The ICS Triplex T8292 works with Trusted controllers and I/O modules. Use this unit only in ordinary (non-hazardous) locations. Follow local electrical codes for proper installation.
Package Contents
One ICS Triplex T8292 power distribution unit with MCB.
Mounting hardware for cabinet installation.
Product documentation and basic wiring diagram.
Frequently Asked Questions (FAQ)
Q: What is the difference between T8292 and standard power supplies?
A: The T8292 is specifically designed for Trusted TMR safety systems. It includes coordinated protection for critical loads.
Q: Can I use the T8292 for 12Vdc applications?
A: No, this unit requires an input range of 18 to 28 Vdc. It will not operate correctly below 18 volts.
Q: What does the MCB provide that a fuse does not?
A: The MCB resets after a trip condition. You do not need to replace any parts after an overcurrent event.
Q: Is the T8292 suitable for SIL 3 safety applications?
A: Yes, the ICS Triplex T8292 belongs to the Trusted TMR System. This system meets SIL 3 requirements for safety functions.
Q: How do I know if the unit has tripped?
A: Check the MCB lever position. A tripped breaker will show a middle position between on and off.
