Product Overview

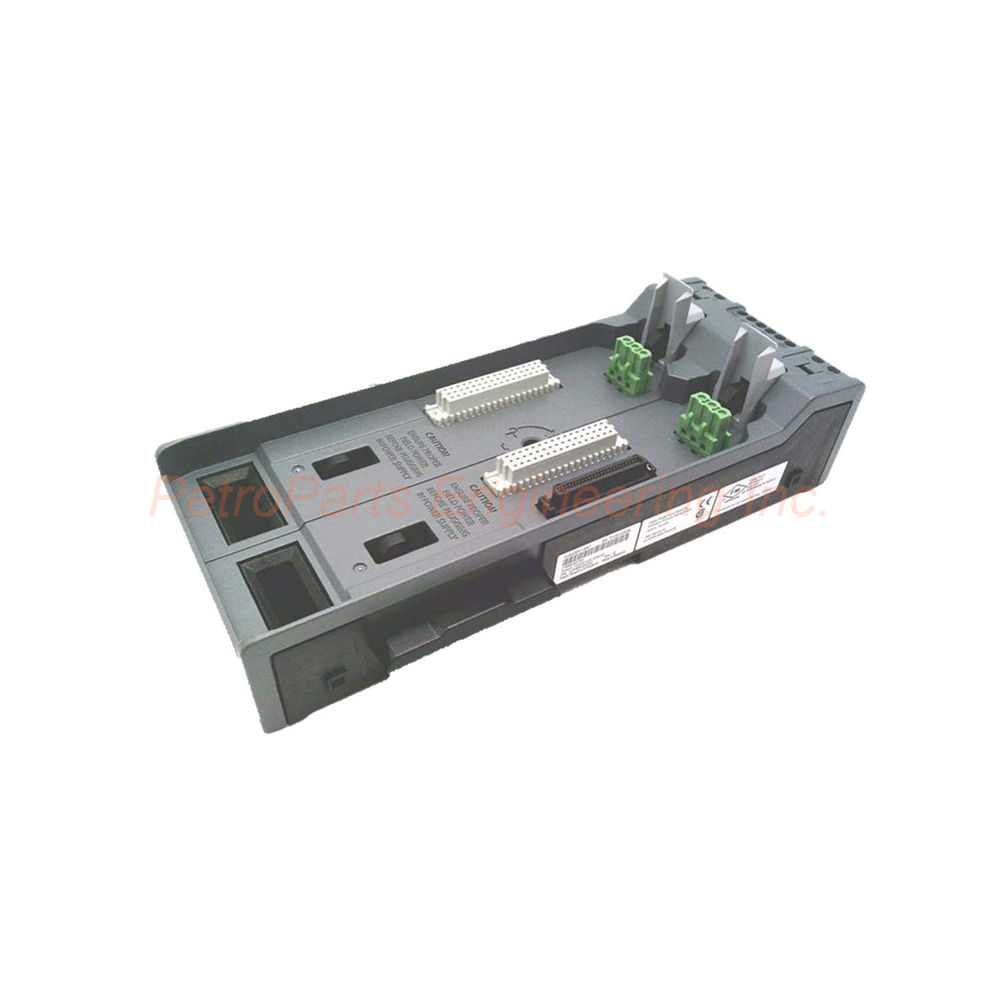

The Emerson DeltaV SE3051C0 belongs to the DeltaV S-Series carrier family. This carrier provides flexible installation for power supplies and controllers. The Emerson DeltaV SE3051C0 mounts easily on a T-type DIN rail. You can expand your system online without shutdown. The carrier has integrated power distribution to reduce wiring complexity. The Emerson DeltaV SE3051C0 supports snap-in assembly for all components.

Technical Specifications

The Emerson DeltaV SE3051C0 delivers reliable power and controller mounting for DeltaV systems. All parameters follow the official datasheet.

Power Specifications

• 24V DC power input: 8 amps

• Carrier configuration: 2 power supplies OR 1 power supply with 1 controller

• Backplane current (I/O carriers): 15 amps

• Power Terminal Plug rating: 12 amps

• Power Buss Plug rating (fused): 5 amps

• Primary/Secondary 24V DC bussed power distribution: 12 amps per bus (max 3 A per card)

Carrier Capacity

• I/O carrier capacity: 8 I/O modules per carrier

• Maximum I/O carriers: Up to 8 carriers for 64 simplex cards or 32 redundant cards

• The Emerson DeltaV SE3051C0 supports system expansion as needed.

Design Features

• Modular design: Allows flexible installation

• Mounting: T-type DIN rail

• Assembly: Snap-in without special tools

• Expansion: Online expansion capability

• Bus extenders: Dual cabling for robustness

• Integrated shield ground bar: Isolates field noise from system power

• Integrated redundant 24V DC bussed field power distribution: Reduces installation wiring

Power Distribution Options

• Power Buss Plugs: Fused, isolated power to each I/O interface

• Power Terminal Plugs: Dedicated power to each card (24V DC or 120/230V AC)

• Mixing capability: Power Buss Plugs and Power Terminal Plugs can be mixed on one I/O Carrier

Environmental Specifications

• Operating temperature: -40°C to 70°C (-40°F to 158°F)

• Storage temperature: -40°C to 85°C (-40°F to 185°F)

• Relative humidity: 5 to 95%, non-condensing

• Airborne contaminants: ISA-S71.04-1985 Class G3 with conformal coating

• Protection rating: IP 20

• Shock: 10 g ½-sine wave for 11 ms

• Vibration: 1 mm peak-to-peak from 5 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz

System Compatibility

• Supported hardware: S-series controllers, power supplies, and I/O cards

• Not supported: M-series I/O cards on S-series controllers

• DeltaV SIS compatibility: SIS logic solvers can be installed under S-series controller using SIS carriers

• Adapter: S-series adapter enables M-series horizontal carriers to connect to S-series controllers

• Power requirement: 24V DC bulk power only (12V DC bulk not supported)

Certifications

• CE: EMC - EN 61326-1

• FM: FM 3600, FM 3611

• CSA: CSA-C22.2 No. 213, CSA-C22.2 No. 1010-1

• ATEX: EN 60079-0, EN 60079-7

• IEC-Ex: IEC 60079-0, IEC 60079-7

• Marine: IACS E10, ABS Certificate of Design Assessment, DNV Marine Certificate

Hazardous Area Approvals

• FM (USA): Class I, Division 2, Groups A, B, C, D, T4

• cFM (Canada): Class I, Division 2, Groups A, B, C, D, T4

• ATEX: II 3G Ex ec IIC T4 Gc

• IEC-Ex: II 3G Ex ec IIC T4 Gc

Installation Guide

Follow these steps to install the Emerson DeltaV SE3051C0 correctly.

1. Mount a T-type DIN rail in your instrument cabinet.

2. Snap the SE3051C0 carrier onto the DIN rail without tools.

3. Slide additional carriers to connect to the carrier on the left.

4. Snap power supplies and controllers into the Emerson DeltaV SE3051C0.

5. Connect 24V DC power (8 amps maximum) to the carrier.

6. Add Power Buss Plugs or Power Terminal Plugs as needed for I/O cards.

7. Use extender cables to move to a new rail for larger systems.

Packing List

This package for the Emerson DeltaV SE3051C0 includes the following items.

• Emerson DeltaV SE3051C0 2-Wide Power/Controller Carrier (one unit)

• Integrated shield ground bar assembly

• Mounting hardware kit

• Product documentation and installation guide

Frequently Asked Questions (FAQ)

1. What is the power input rating for the SE3051C0?
The Emerson DeltaV SE3051C0 has a 24V DC power input rated at 8 amps. The carrier accepts two power supplies or one power supply with one controller.

2. Can I expand my system online with the SE3051C0?
Yes, the Emerson DeltaV SE3051C0 allows online expansion. Additional 8-wide carriers may be added as desired without system shutdown.

3. Does the SE3051C0 support redundant power distribution?
Yes, the Emerson DeltaV SE3051C0 provides integrated redundant 24V DC bussed field power distribution. This reduces installation wiring and provides fused, isolated power to each I/O interface.

4. What is the operating temperature range for the Emerson DeltaV SE3051C0?
The Emerson DeltaV SE3051C0 operates from -40°C to 70°C (-40°F to 158°F). Storage temperature ranges from -40°C to 85°C (-40°F to 185°F).

5. Does the SE3051C0 support M-series I/O cards?
No, the Emerson DeltaV SE3051C0 is designed for S-series controllers, power supplies, and I/O cards. M-series I/O cards are not supported on S-series carriers.
