Product Overview of the Emerson SE4050E1C0 I/O Carrier

The Emerson SE4050E1C0 is part of the redesigned S-series I/O subsystem. This 8-wide I/O interface carrier focuses on fast assembly and simplified power connections. The system uses only 24V DC bulk power supplies for all operations. All power connects directly to the system carriers without additional wiring.

The bus connectors have been upgraded for better performance. They now support additional 12V DC power to the I/O cards. As a result, extra power carriers can be inserted anywhere along the bus. This flexibility allows for customized system configurations based on your needs.

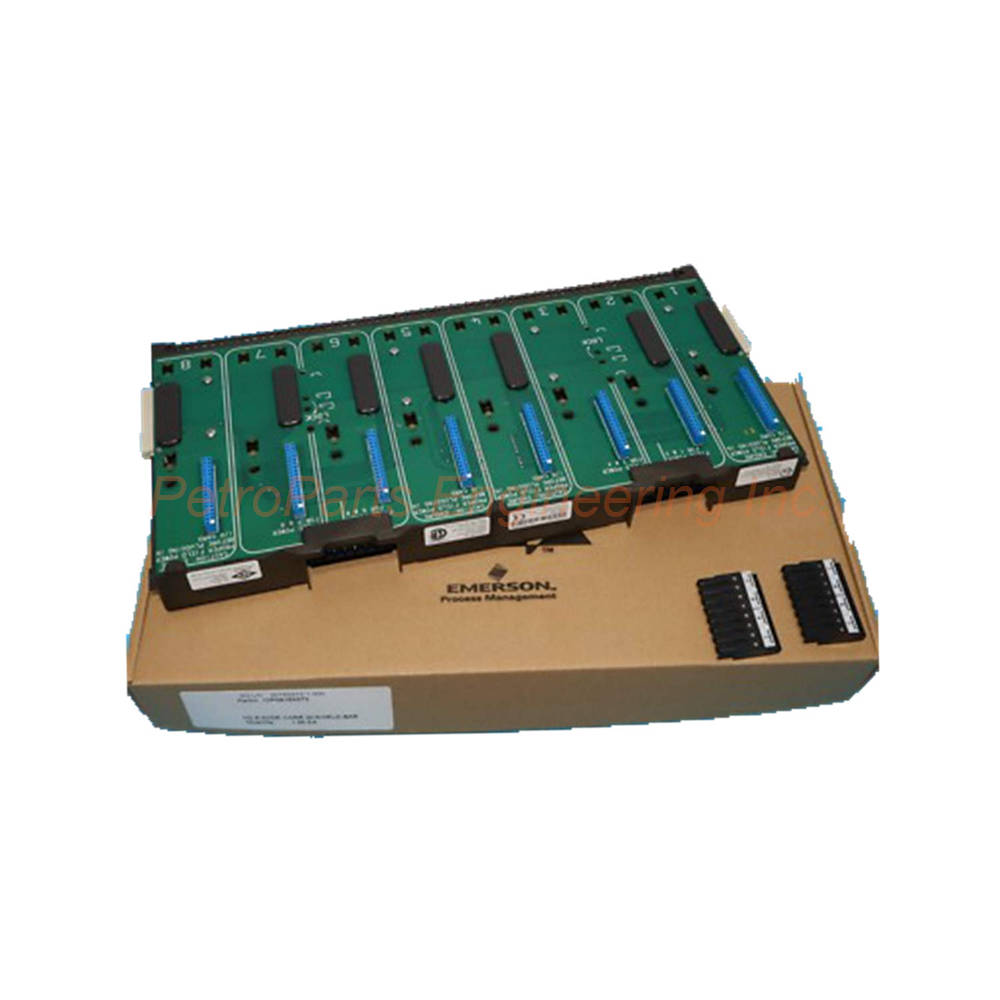

The Emerson SE4050E1C0 includes 8 power buss plugs for easy installation. A carrier shield bar provides protection for the connected modules. A single carrier extender cable of 1.1 meters (43 inches) is also included. Consequently, this carrier offers a complete solution for your I/O mounting needs.

Technical Specifications of the SE4050E1C0

• Manufacturer: Emerson

• Product Number: SE4050E1C0

• Product Type: 8-Wide I/O Interface Carrier

• Included Items: 8 power buss plugs, carrier shield bar, 1.1m extender cable

• Backplane Current: 15 Amps

• Power Terminal Plug Rating: 12 Amps

• Power Buss Plug Rating (fused): 5 Amps

• Power Distribution: Primary and secondary 24V DC bussed

• Bus Current Capacity: 12 Amps per bus (max 3A per card)

• I/O Carrier Capacity: 8 I/O modules

• Operating Temperature: -40 to 70°C

• Storage Temperature: -40 to 85°C

• Relative Humidity: 5 to 95%, non-condensing

• Protection Rating: IP20

• Shock Rating: 10 g half-sine wave for 11 ms

• Vibration Rating: 1 mm peak-to-peak at 5 to 13.2 Hz, 0.7 g at 13.2 to 150 Hz

The Emerson SE4050E1C0 operates across a wide temperature range from -40 to 70°C. The IP20 protection rating suits standard industrial control cabinet installations. Airborne contaminants meet ISA Class G3 with conformal coating protection.

Power Distribution Architecture

The SE4050E1C0 uses a smart power distribution system for reliability. The internal 24V DC bus divides into primary and secondary power sections. Primary power distributes to odd numbered slots for normal operation. Redundant power distributes to even numbered slots for fault tolerance.

Each I/O card can connect to the internal 24V DC bus in two ways. First, using the included Power Buss Plugs for bussed power distribution. Second, using Power Terminal Plugs for individual card powering. This flexibility allows mixing of bussed and individually powered cards.

The backplane supports 15 Amps of total current across all slots. Each power bus carries up to 12 Amps distributed among connected cards. However, no single card should draw more than 3 Amps from the bus. The fused Power Buss Plugs provide 5 Amps of protection per connection.

Mechanical Installation and Mounting

The Emerson SE4050E1C0 mounts to standard T-type DIN rail with ease. The carrier uses latches that require no tools for quick installation. Simply snap the carrier onto the DIN rail by hand. The latches can be released using a blade screwdriver when needed.

Adjacent carriers slide together to engage the bus connector automatically. This design ensures proper alignment and electrical contact every time. The 1.1 meter extender cable allows flexible positioning of remote carriers. The carrier shield bar adds mechanical protection for sensitive I/O modules.

The S-series redesign focused on fast assembly for reduced installation time. Simplified power connections eliminate complex point-to-point wiring. All power connects through the carriers rather than individual cables. Therefore, system expansion becomes much faster and less error prone.

Installation Guide for the SE4050E1C0

Follow these steps to install the Emerson SE4050E1C0 correctly.

1. Mount the DIN rail securely in your control cabinet first.

2. Snap the carrier onto the DIN rail using the spring latches.

3. Slide adjacent carriers together until the bus connectors engage.

4. Insert the power buss plugs into the desired card slots.

5. Connect the 24V DC bulk power supply to the carrier terminals.

6. Use the primary bus for odd numbered slots as needed.

7. Use the secondary bus for even numbered slots if desired.

8. Attach the carrier shield bar across the top of the carrier.

9. Connect the extender cable to the next carrier if required.

10. Insert I/O modules into the 8 available slots after power checks.

The operating environment must stay within the -40 to 70°C range. Keep relative humidity below 95% with no condensation allowed. Avoid installing in areas with excessive airborne contaminants beyond Class G3. The conformal coating provides additional protection for harsh conditions.

Package Contents for Emerson SE4050E1C0

• 1 x Emerson SE4050E1C0 8-wide I/O interface carrier

• 8 x Power buss plugs (fused type, 5A rating)

• 1 x Carrier shield bar for module protection

• 1 x Carrier extender cable (1.1m length)

• 1 x Installation manual with wiring diagrams

Frequently Asked Questions (FAQ)

1. How many I/O modules can the SE4050E1C0 support?
The Emerson SE4050E1C0 supports up to 8 I/O modules in a single carrier. Each slot accepts any S-series I/O module from the Emerson family. The carrier capacity is 8 modules regardless of type or function.

2. What is the difference between primary and secondary power distribution?
Primary power distributes to odd numbered slots for normal operation. Secondary power distributes to even numbered slots as a redundant source. This arrangement allows critical loads to receive power from both buses.

3. Can I mix bussed and individually powered cards in the same carrier?
Yes, the Emerson SE4050E1C0 allows mixing both power connection methods. Use power buss plugs for cards that share the internal bus. Use power terminal plugs for cards that need isolated or separate power feeds.

4. What is the maximum current for a single I/O module on this carrier?
Each I/O module should draw no more than 3 Amps from the internal bus. The power buss plug is fused at 5 Amps for protection. Therefore, stay within 3 Amps per card for reliable operation.

5. Is the extender cable required for all installations of the SE4050E1C0?
No, the extender cable is only needed when connecting multiple carriers together. Single carrier installations do not require the extender cable. The cable is included for flexibility when building larger systems.
