Siemens 6ES7194-1KA01-0XA0 – Y Connector for Double Connection Applications

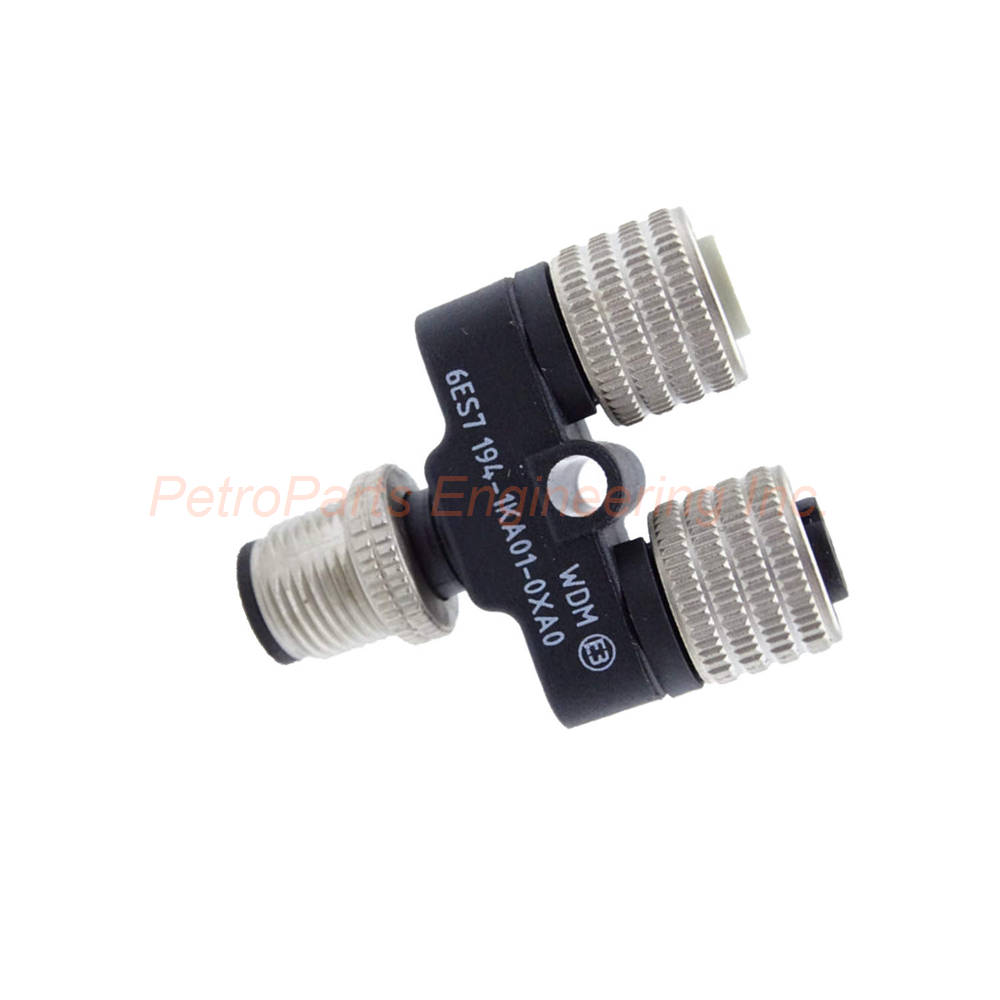

The Siemens 6ES7194-1KA01-0XA0 is a Y connector. Specifically, this connector is designed for double connection applications. It belongs to the Siemens I/O Modules product line. Furthermore, this device enables effective signal distribution in industrial systems. Consequently, it simplifies wiring and reduces connection points.

Ordering Configuration and Specifications

• Manufacturer: Siemens.

• Product Line: I/O Modules.

• Part Number: 6ES7194-1KA01-0XA0.

• UPC: 662643225204.

• Product Type: Y Connector.

• Number of Poles: 5 poles.

• Cable Type: Single cable type.

• Use Case: Double connection applications.

• Weight: 0.03 kg (0.06 lbs) or 38 grams.

• Therefore, the Siemens 6ES7194-1KA01-0XA0 is lightweight and compact.

Protection and Environmental Ratings

• Degree of Protection: IP67 rated.

• Dust Protection: Complete dust-tight enclosure.

• Water Protection: Immersion resistance up to 1 meter.

• Operating Humidity: 80% maximum, non-condensing.

• Storage Humidity: 80% maximum, non-condensing.

• Operating Altitude: 1000 meters above sea level maximum.

• Certification: CE approved.

• Compliance: Meets stringent safety standards.

• Consequently, the Siemens 6ES7194-1KA01-0XA0 performs reliably in harsh environments.

Temperature Specifications

• Maximum Ambient Temperature: 60 degrees Celsius.

• Minimum Ambient Temperature: 0 degrees Celsius.

• Operating Range: 0°C to +60°C.

• Storage Temperature: Follows same 0-60°C range.

• Application Suitability: Indoor industrial environments.

• Thus, this Y connector fits a variety of operating conditions.

Design and Construction Features

• Connector Type: Y-shaped configuration.

• Pole Configuration: Five-pole design.

• Purpose: Double connection capability.

• Cable Compatibility: Single cable type for straightforward installation.

• Durability: IP67 protection against dust and moisture.

• Weight: Ultra-lightweight at only 38 grams.

• Material: Robust industrial-grade housing.

• Moreover, the Siemens 6ES7194-1KA01-0XA0 enables effective signal splitting in tight spaces.

Installation Guide

First, ensure the system power is disconnected before installation. Then, identify the main cable entry point on the Siemens 6ES7194-1KA01-0XA0. After that, insert the single cable into the main port. Secure the connection by tightening the coupling nut. Next, connect two separate devices to the two Y branches. Each branch uses the five-pole configuration for signal distribution. Then, verify all connections are secure and properly seated. Subsequently, check that the ambient temperature stays within 0°C to +60°C range. Also, confirm that humidity does not exceed 80% non-condensing. Finally, power on the system and test signal continuity. As a result, the Siemens 6ES7194-1KA01-0XA0 will provide reliable double connectivity.

Packaging List

• One Siemens 6ES7194-1KA01-0XA0 Y connector

• One set of protective caps for unused ports

• One installation instruction sheet

• One CE compliance documentation card

Common FAQs

Q1: What is the primary function of the Siemens 6ES7194-1KA01-0XA0?
A: This Y connector enables double connection applications. Specifically, it splits one connection into two separate connections. Consequently, it reduces wiring complexity in control panels.

Q2: What is the IP rating of this Y connector?
A: The 6ES7194-1KA01-0XA0 has an IP67 protection rating. Therefore, it is dust-tight and resistant to temporary immersion. This makes it suitable for harsh industrial environments.

Q3: How many poles does the Siemens 6ES7194-1KA01-0XA0 have?
A: This connector features a five-pole configuration. Specifically, all five poles are available on both Y branches. Thus, it supports complete signal distribution without loss.

Q4: What temperature range can this Y connector withstand?
A: The operating temperature ranges from 0°C to 60°C. Similarly, storage follows the same 0°C to 60°C range. Additionally, humidity can reach 80% non-condensing.

Q5: Is the Siemens 6ES7194-1KA01-0XA0 certified for safety?
A: Yes, this product has CE certification. Therefore, it complies with stringent European safety standards. Always verify local requirements before installation.
