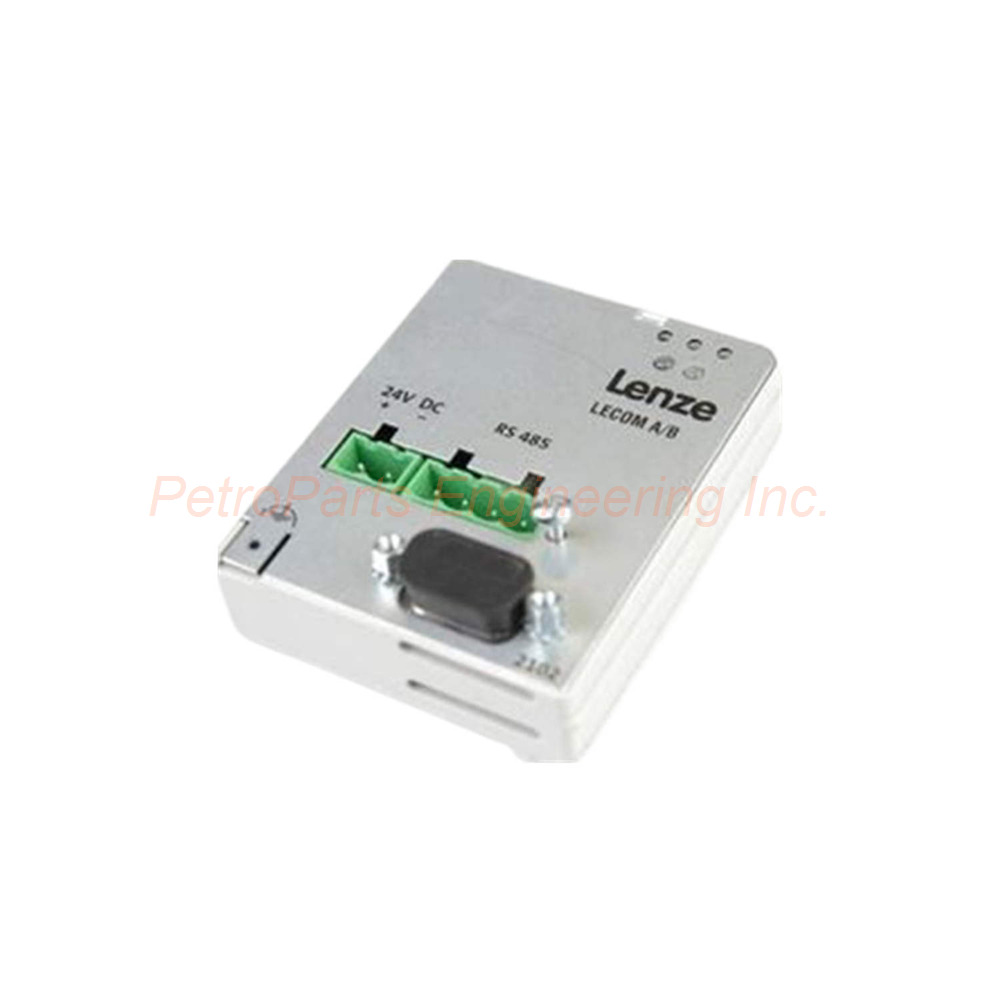

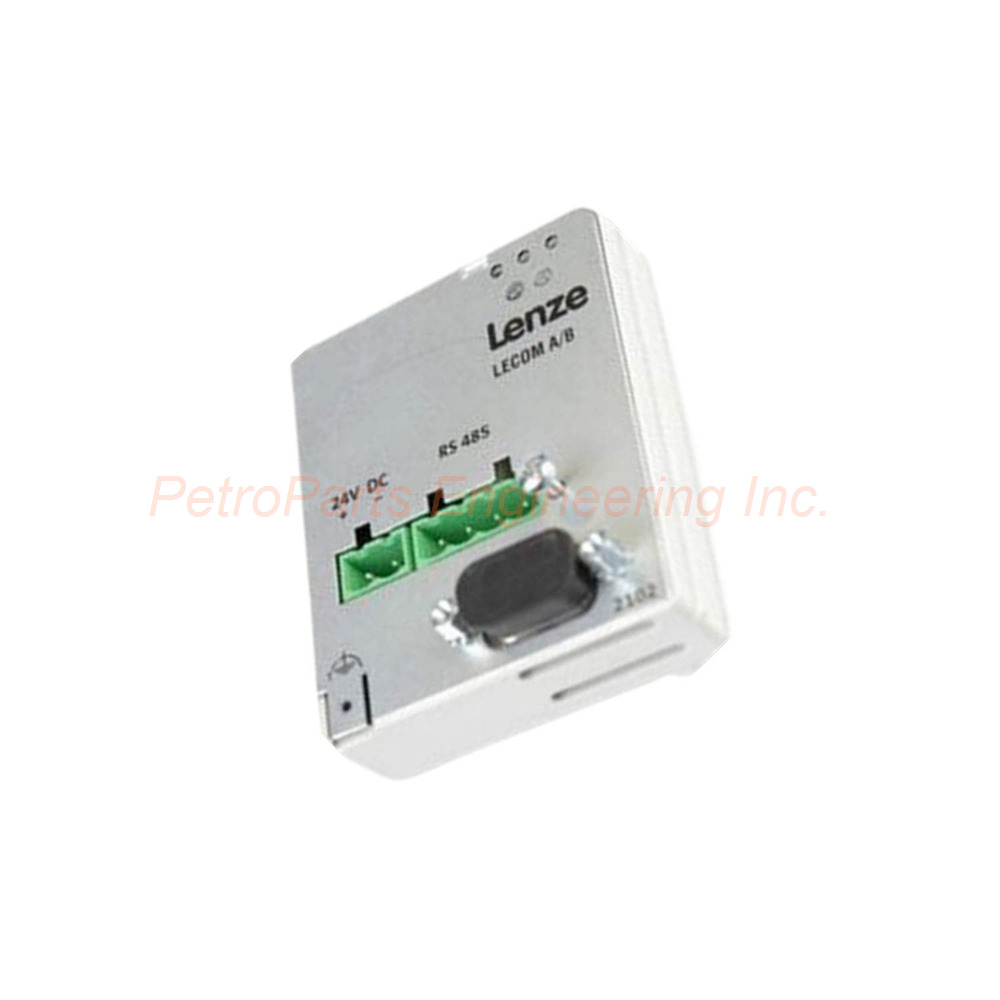

Lenze EMF2102IBCV001 – Series 8200 Communication Module

The Lenze EMF2102IBCV001 is a communication module. Specifically, this module belongs to Lenze's Series 8200 product line. It is designed for robust connectivity in industrial automation systems. Furthermore, it supports multiple baud rates for flexible data transmission. Consequently, this module integrates seamlessly with various control architectures.

Ordering Configuration and Specifications

• Manufacturer: Lenze.

• Product Type: Communication module.

• Product Line: Series 8200.

• Part Number: EMF2102IBCV001.

• Weight: 0.23 kg (0.50 lbs).

• Protection Rating: IP20 for indoor environments.

• Current Consumption: 80 milliamperes typical.

• Rated Supply Voltage: 24 Volts DC nominal.

• Therefore, the Lenze EMF2102IBCV001 is compact and energy-efficient.

Communication Protocols and Media

• Communication Protocol: LECOM-A/B Version 2.0.

• Communication Media 1: RS232 (LECOM-A).

• Communication Media 2: RS-485 (LECOM-B).

• Character Format: 7-bit ASCII encoding.

• Baud Rates Supported: 1,200, 2,400, 4,800, 9,600, and 19,200 bits per second.

• Flexibility: Multiple rates for different application needs.

• Thus, the EMF2102IBCV001 adapts to various system requirements.

Electrical and Connection Specifications

• Electrical Connection Type: Screw terminal.

• Compatible Screw Size: AWG 16 (1.5 mm²).

• Screw Tightening Torque: 0.5 to 0.6 Newton-meters.

• Rated Supply Voltage: 24 Volts DC.

• Current Consumption: 80 mA during operation.

• Protection Rating: IP20 (finger-safe, not waterproof).

• Consequently, wiring installation is straightforward and secure.

Compatible Cable Types

For RS232 communication, use LiYCY cable (low-frequency PVC shielded data cable). For RS485 communication, two cable options are available:

• LiYCY Cable: Supports cable lengths up to 300 meters.

• CYPiMF Cable: Pair In Metal Foil Shielded Cable supports up to 1,200 meters.

• Cable Purpose: Maintains signal integrity over long distances.

• RS232 Cable: LiYCY cable recommended.

• Therefore, installation flexibility is ensured for different distance requirements.

Temperature and Environmental Ratings

• Ambient Operating Temperature: 0°C to +55°C range.

• Storage Temperature: -25°C to +60°C range.

• Protection Rating: IP20 (suitable for control cabinets).

• Environment: Not suitable for wet or dusty locations without enclosure.

• Application: Indoor industrial automation environments.

• Moreover, the Lenze EMF2102IBCV001 operates reliably in typical control room conditions.

Installation Guide

First, ensure the 24 V DC power supply is disconnected. Then, mount the Lenze EMF2102IBCV001 inside a suitable control cabinet. The IP20 rating requires protection from moisture and dust. After that, connect the 24 V DC supply to the screw terminals. Use AWG 16 (1.5 mm²) wire size. Tighten screws to 0.5-0.6 Nm torque. Do not exceed the specified torque range. Next, connect the RS232 or RS485 communication cables. For distances up to 300 meters, use LiYCY shielded cable. For longer distances up to 1,200 meters, use CYPiMF cable instead. Then, set the desired baud rate (1,200 to 19,200 bps). Subsequently, configure the LECOM-A/B protocol Version 2.0. Verify the 7-bit ASCII character format matches your controller. Finally, power on the system and test communication. As a result, the Lenze EMF2102IBCV001 will provide reliable data exchange.

Packaging List

• One Lenze EMF2102IBCV001 communication module

• One set of screw terminals (installed)

• One quick start configuration guide

• One anti-static protective bag

• One product identification label

Common FAQs

Q1: What protocols does the Lenze EMF2102IBCV001 support?
A: This module supports LECOM-A/B Version 2.0 protocol. Specifically, it uses RS232 for LECOM-A and RS485 for LECOM-B. Therefore, it works with Lenze Series 8200 drives.

Q2: What baud rates are available on this communication module?
A: The EMF2102IBCV001 supports five baud rates. Specifically, these are 1,200, 2,400, 4,800, 9,600, and 19,200 bits per second. Consequently, you can match the rate to your system requirements.

Q3: What is the maximum cable length for RS485 communication?
A: For RS485, maximum cable length depends on cable type. LiYCY cable supports up to 300 meters. However, CYPiMF cable supports up to 1,200 meters. Therefore, choose the cable based on your distance needs.

Q4: What power supply does the Lenze EMF2102IBCV001 require?
A: This module requires 24 Volts DC rated supply voltage. Current consumption is 80 milliamperes typical. Always verify your power source matches these specifications.

Q5: What is the operating temperature range for this module?
A: The EMF2102IBCV001 operates from 0°C to +55°C. Storage temperature ranges from -25°C to +60°C. Additionally, the IP20 protection rating requires installation inside a control cabinet.
