Overview

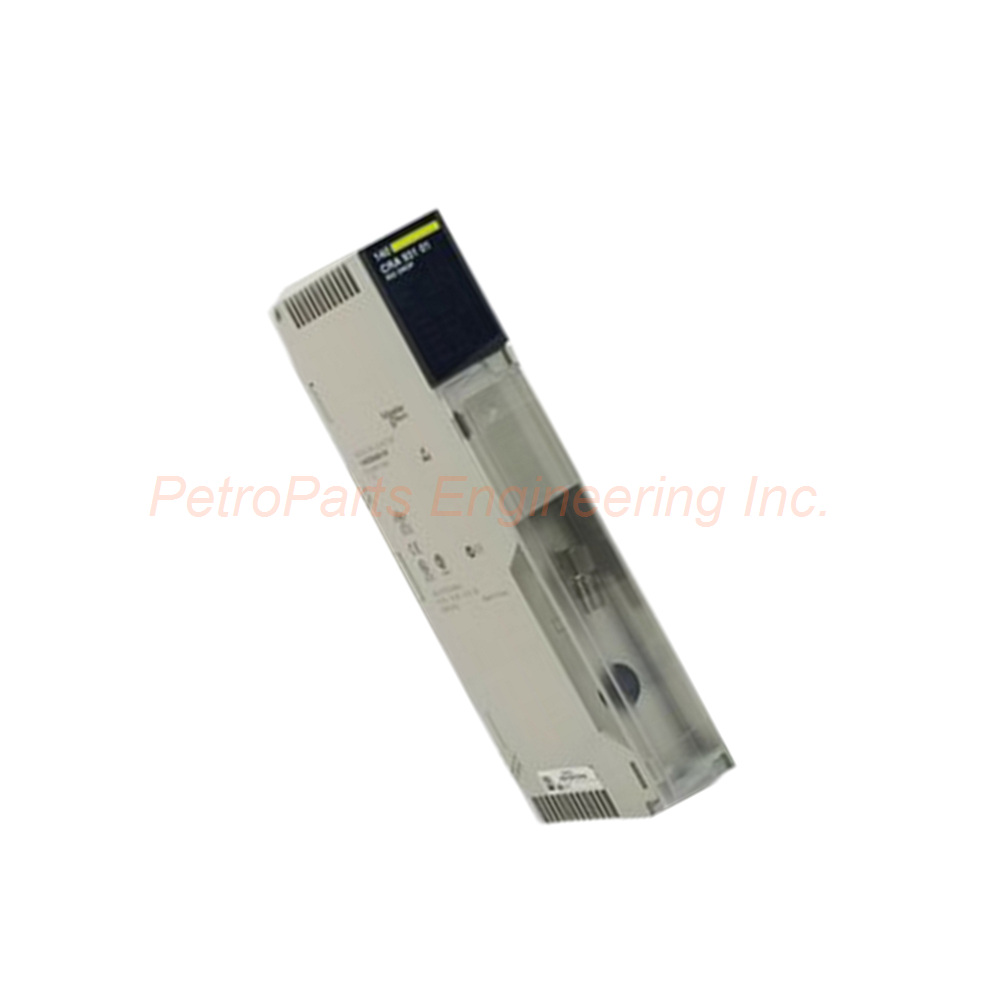

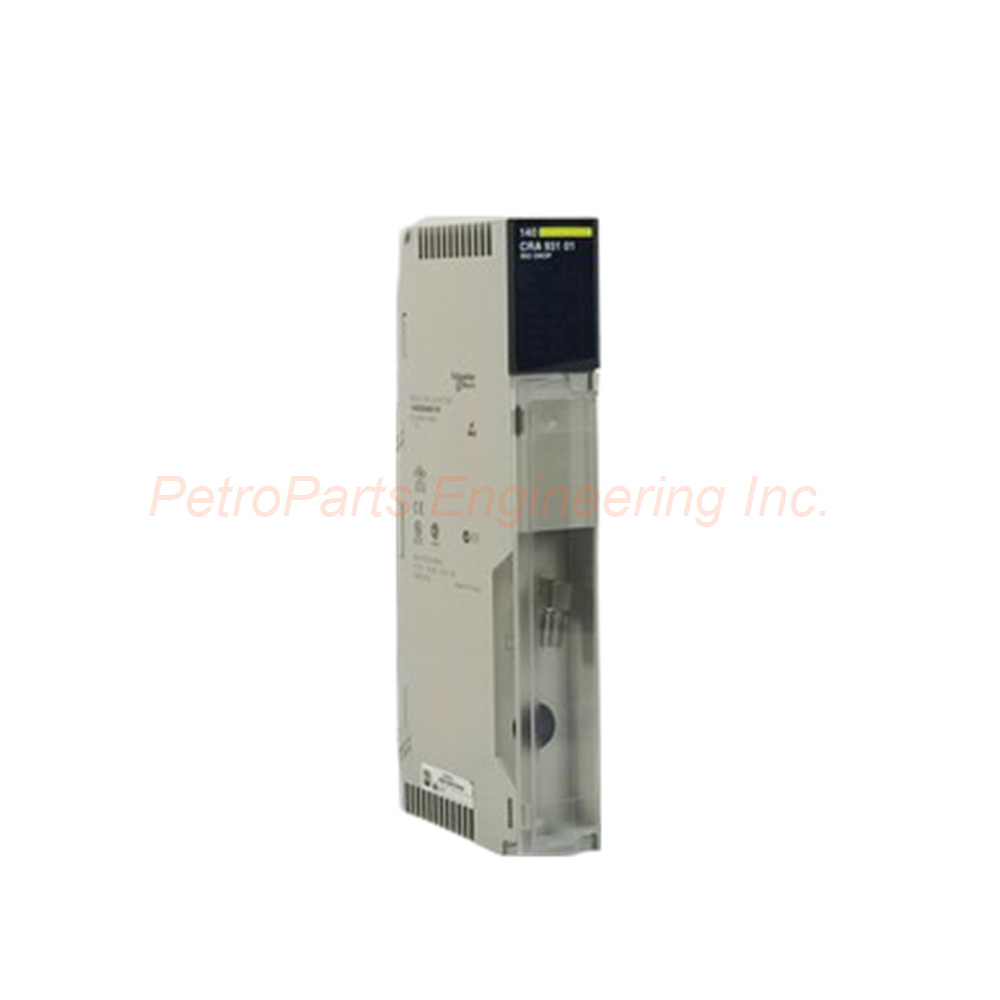

The Schneider Electric 140CRA93101 is a RIO drop adapter module. This unit belongs to the Modicon Quantum automation platform. It provides remote I/O connectivity for distributed control systems. The 140CRA93101 interfaces with the S908 remote I/O network. Industrial users trust this adapter for reliable remote I/O communication.

This adapter module is a single unit design. The device short name is CRA. It connects Modicon Quantum I/O drops to the main controller. The elbowed connector allows flexible cable routing in tight panels.

Technical Specifications

The 140CRA93101 is designed for Modicon Quantum remote I/O applications.

Main Specifications

• Device Short Name: CRA

• Product Type: RIO drop adapter module

• Range of Product: Modicon Quantum automation platform

Electrical Connection

• Connector Type: 1 female connector F, elbowed

• SAT Connector: 1 female F type

Range Compatibility

• Compatible With: Modicon Quantum

Physical Specifications

The 140CRA93101 has a compact design for panel mounting.

Package Dimensions

• Package 1 Height: 1.81 in (4.6 cm)

• Package 1 Width: 6.38 in (16.2 cm)

• Package 1 Length: 12.28 in (31.2 cm)

• Package Weight: 18.02 oz (511.0 g)

Ordering and Shipping Information

Identification

• Category: US1PC2118155

• Discount Schedule: PC21

• GTIN: 3595861133792

• Returnability: No

Packaging Units

• Unit Type of Package 1: PCE (Piece)

• Number of Units in Package: 1

Key Features

The 140CRA93101 provides remote I/O connectivity for Modicon Quantum systems. The S908 remote I/O network allows I/O modules to be placed far from the main controller. This reduces wiring costs for large distributed systems.

The adapter module uses a female F connector for the RIO network. The elbowed connector design saves space behind the panel. The SAT connector provides access for troubleshooting. The single module design simplifies installation.

The 140CRA93101 communicates with the Quantum CPU over the S908 RIO network. The adapter manages I/O scanning for its drop. The drop can include multiple I/O modules. The adapter handles all communication overhead.

The module is part of the Modicon Quantum automation platform. It is compatible with other Quantum RIO components. The compact size fits standard Quantum racks. The design is optimized for industrial environments.

Installation Guidelines

Install the 140CRA93101 in a Modicon Quantum rack. Insert the module into the designated slot. Secure the module with the retaining screws. Connect the S908 RIO cable to the female F connector.

Use the elbowed connector for tight panel spaces. The connector angle allows closer wall mounting. Connect the SAT connector for maintenance access. Verify network termination is correct for the drop.

Set the drop address according to your network design. Follow Schneider Electric guidelines for RIO network layout. Ensure proper grounding for the RIO cable shield. Test communication after installation.

Package Contents

• Schneider Electric 140CRA93101 RIO Drop Adapter Module (1 unit)

• Female F connector (elbowed, factory installed)

• SAT connector (female F type)

• Installation manual

Frequently Asked Questions (FAQ)

1. What is the Schneider Electric 140CRA93101 used for?
The 140CRA93101 is a RIO drop adapter for Modicon Quantum systems. It connects remote I/O drops to the main controller via the S908 RIO network.

2. What type of connector does the 140CRA93101 have?
The 140CRA93101 has a female F connector that is elbowed. This angled design allows installation in tight panel spaces. It also has a female F type SAT connector.

3. Is the 140CRA93101 compatible with Modicon Quantum?
Yes. The 140CRA93101 is specifically designed for the Modicon Quantum automation platform. It is part of the Quantum remote I/O system.

4. What does RIO stand for on the 140CRA93101?
RIO stands for Remote I/O on the 140CRA93101. This adapter allows I/O modules to be placed away from the main controller. Communication uses the S908 remote I/O network.

5. What is the device short name for the 140CRA93101?
The device short name for the 140CRA93101 is CRA. This stands for Remote I/O Adapter in the Modicon Quantum product line.
