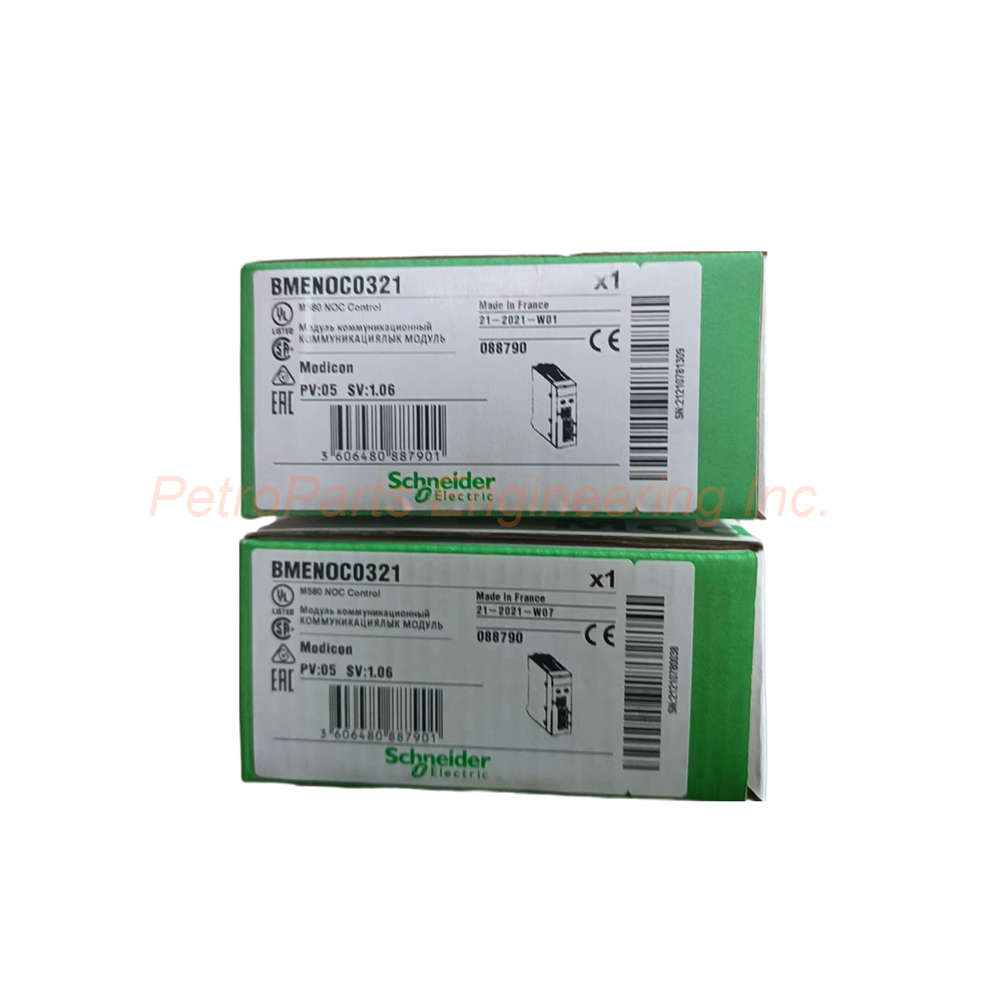

Schneider BMENOC0321C Modicon M580 Ethernet Module 3x RJ45
Introduction:
The Schneider BMENOC0321C is a communication module for the Modicon M580 platform. It features three Ethernet RJ45 ports at 10/100/1000 Mbps. The Schneider BMENOC0321C supports Modbus TCP and Ethernet/IP I/O scanning and messaging.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Schneider BMENOC0321C belongs to the Modicon M580 range of automation products. This communication module provides advanced Ethernet connectivity for your control system. The Schneider BMENOC0321C mounts in BMEXBP Ethernet plus X-bus racks. You get internal power supply via the rack for simplified installation. The module supports bandwidth management and FDR server functions. The Schneider BMENOC0321C has conformal coating for harsh environment protection.
Technical Specifications
The Schneider BMENOC0321C delivers reliable Ethernet communication for Modicon M580 systems. All parameters follow the official datasheet.
Communication Specifications
Integrated connection type: 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
Transmission support medium: Ethernet backplane
Communication services: Bandwidth management, FDR server, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, IP forwarding, Email, Web services, FactoryCast configurable, Web server, Advanced
Power & Current Consumption
Supply: Internal power supply via rack
Current consumption: 1800 mA at 3.3 V DC
The Schneider BMENOC0321C draws power directly from the backplane.
Memory & Compatibility
Memory usage: Application saving, activating the advanced web server
Product compatibility: BMEXBP Ethernet + X-bus rack
LED Indicators
The Schneider BMENOC0321C provides comprehensive status indication:
1 LED (green): Processor running (RUN)
1 LED (red): Processor or system fault (ERR)
1 LED (green/red): ETH MS (Ethernet port configuration status)
1 LED (green/red): ETH NS (Ethernet network status)
1 LED (green/red): ETH NS1 (Ethernet network status)
1 LED (green/red): ETH NS2 (Ethernet network status)
Environmental Specifications
IP degree of protection: IP20
Protective treatment: Conformal coating
Ambient air temperature for operation: 32°F to 140°F (0°C to 60°C)
Marking: CE
Certifications
Product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22
Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5 interface type 1 and type 2, EN/IEC 61850-3 location G, EN/IEC 60079-0
Directives: 2014/35/EU (low voltage), 2014/30/EU (electromagnetic compatibility), 2014/34/EU (ATEX)
Environmental Characteristics
Gas resistant class: Gx ISA S71.04, 3C4 IEC 60721-3-3
Dust resistant class: 3S4 IEC 60721-3-3
Sand resistant class: 3S4 IEC 60721-3-3
Salt resistant level: 2 IEC 68252
Mold growth resistant class: 3B2 IEC 60721-3-3
Fungal spore resistant class: 3B2 IEC 60721-3-3
Hazardous location: Class I division 2
Physical Specifications
Net weight: 0.4 lb (0.2 kg)
Country of origin: FR (France)
GTIN: 3606480887918
Returnability: No
Packaging Details
Unit type of package 1: PCE (1 unit per package)
Package 1 height: 2.17 in (5.500 cm)
Package 1 width: 4.33 in (11.000 cm)
Package 1 length: 4.72 in (12.000 cm)
Package 1 weight: 9.277 oz (263.000 g)
Unit type of package 2: S02 (15 units)
Package 2 height: 5.91 in (15.000 cm)
Package 2 width: 11.81 in (30.000 cm)
Package 2 length: 15.75 in (40.000 cm)
Package 2 weight: 9.414 lb (4.270 kg)
Installation Guide
Follow these steps to install the Schneider BMENOC0321C correctly.
Power down your Modicon M580 rack before insertion.
Align the BMENOC0321C with the correct slot in the BMEXBP rack.
Slide the module firmly into place until fully seated.
Connect Ethernet cables to the three RJ45 ports as needed.
Verify the green RUN LED illuminates after power up.
Configure communication services using the advanced web server.
Test Modbus TCP or Ethernet/IP I/O scanning on the Schneider BMENOC0321C.
Packing List
This package for the Schneider BMENOC0321C includes the following items.
Schneider BMENOC0321C communication module (one unit)
Product documentation and quick start guide
Anti-static protective bag
Frequently Asked Questions (FAQ)
1. How many Ethernet ports does the BMENOC0321C have?
The Schneider BMENOC0321C has three Ethernet RJ45 ports. Each port supports 10/100/1000 Mbps with double shielded twisted pair cabling.
2. What communication protocols does the BMENOC0321C support?
The Schneider BMENOC0321C supports Modbus TCP and Ethernet/IP for I/O scanning and messaging. It also supports RSTP, IP forwarding, email, and web services.
3. What is the current consumption of the Schneider BMENOC0321C?
The Schneider BMENOC0321C consumes 1800 mA at 3.3 V DC. It receives internal power supply via the rack backplane.
4. What hazardous location certifications does the BMENOC0321C have?
The Schneider BMENOC0321C has ATEX zone 2/22 and IECEx zone 2/22 certifications. It also has Class I Division 2 hazardous location approval.
5. What is the operating temperature range for the Schneider BMENOC0321C?
The Schneider BMENOC0321C operates from 0°C to 60°C (32°F to 140°F). The module has conformal coating for protection in harsh environments.
