Product Overview

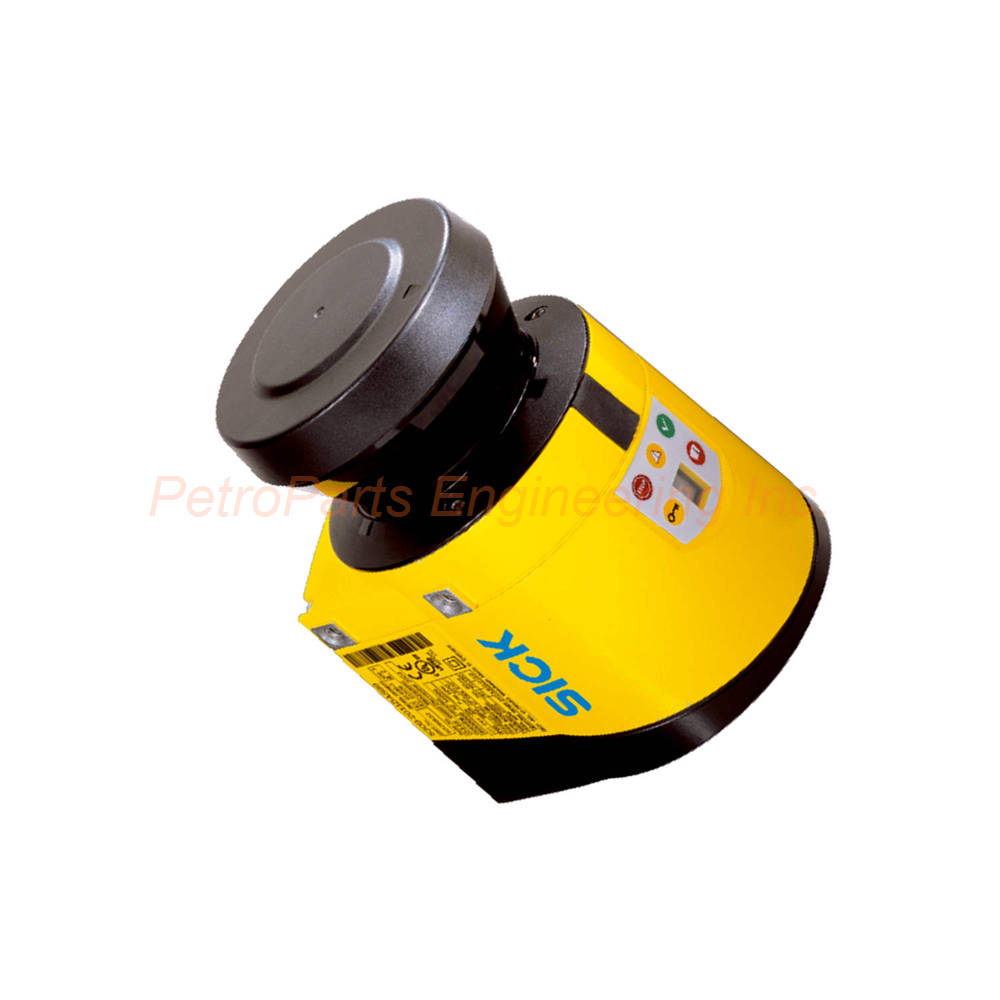

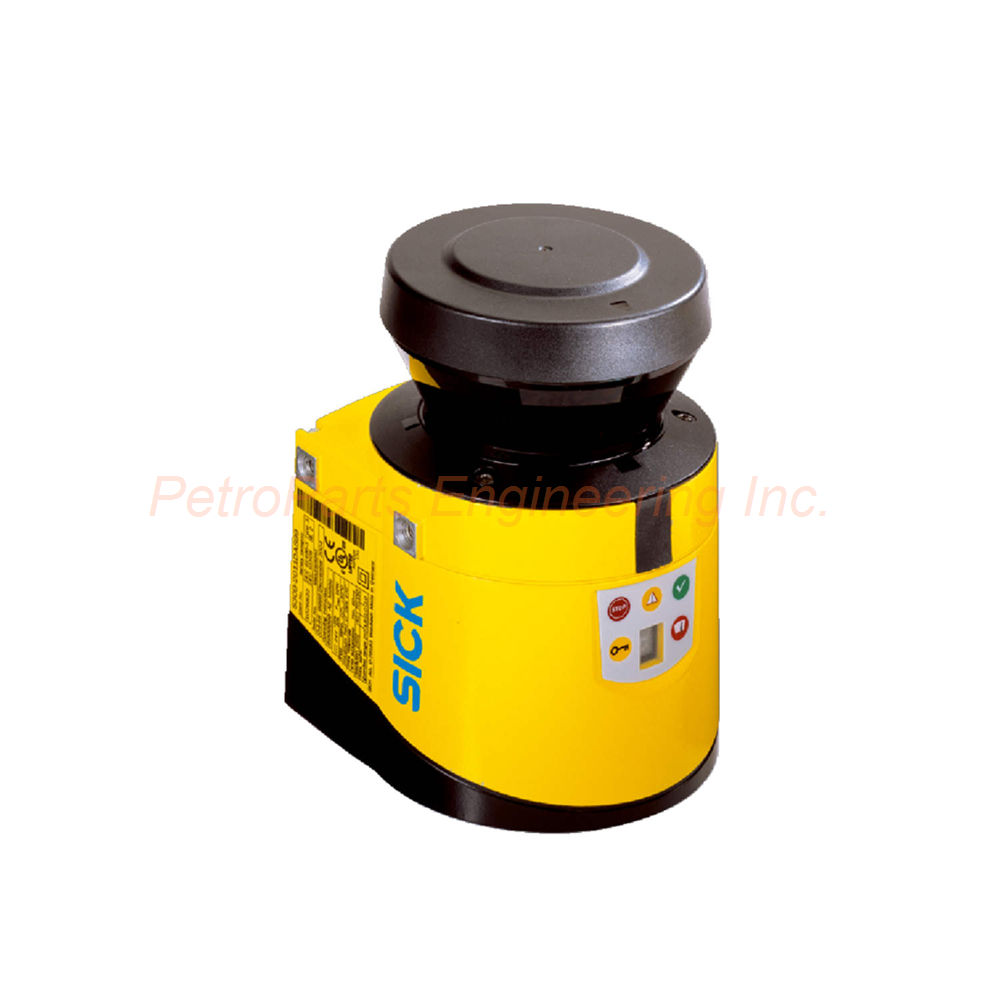

The SICK S30B-3011CA belongs to the S300 Advanced family of safety laser scanners. This device protects hazardous areas and danger zones in industrial environments. The SICK S30B-3011CA scans 270 degrees for wide area coverage. You get triple field sets with 12 configurable fields. The scanner has a distance measuring range up to 30 meters. The SICK S30B-3011CA uses a pulsed laser diode with laser class 1 for eye safe operation.

Technical Specifications

The SICK S30B-3011CA delivers reliable safety scanning for demanding applications. All parameters follow the official datasheet.

Safety Ratings & Certifications

• Type: Type 3 (IEC 61496)

• Safety integrity level: SIL 2 (IEC 61508)

• Category: Category 3 (EN ISO 13849)

• Performance level: PL d (EN ISO 13849)

• PFHD: 8.0 x 10⁻⁸ (mean probability of dangerous failure per hour)

• Mission time (TM): 20 years (EN ISO 13849)

• Safe state in event of fault: At least one OSSD is in the OFF state

Field & Range Specifications

• Protective field range: 3 meters

• Warning field range: 8 meters at 15 percent reflectivity

• Distance measuring range: 30 meters

• Scanning angle: 270 degrees

• Type of field set: Triple field sets

• Number of field sets: 4

• Number of fields: 12

• Number of monitoring cases: 4

• Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm

• Angular resolution: 0.5 degrees

• Response time: 80 ms

• Protective field supplement: 100 mm

• Number of multiple samplings: 2 to 16 (configurable)

• Delay of automatic reset: 2 to 60 seconds (configurable)

Electrical Specifications

• Supply voltage Vs: 24 V DC (16.8 V DC to 30 V DC)

• Power consumption: 0.33 A (1.7 A peak)

• Protection class: III (EN 50178, EN 60950)

• Output signal switching devices (OSSDs): 2 x 250 mA

• Application diagnostic outputs: 3 x 100 mA

• Universal I/Os: 5

• External device monitoring (EDM): 1 input

• Reset/restart: 1 input

• Static control inputs: 2

• Standby: 1 input

Interfaces & Communication

• Connection type: System plug with or without connecting cable

• Configuration method: PC with CDS (Configuration and Diagnostic Software)

• Configuration and diagnostics interface: RS-232 at 38.4 kBaud

• Data interface: RS-422 at ≤ 500 kBaud

• Safe SICK device communication: EFI at ≤ 500 kBaud

• Maximum cable length: 50 meters

• Conductor cross section: 0.22 mm²

Laser Specifications

• Type of light: Pulsed laser diode

• Wave length: 905 nm

• Detectable remission factor: 1.8 percent to > 1,000 percent (reflectors)

• Laser class: Class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)

Mechanical Specifications

• Product version: S300 Advanced

• Model: Sensor without system plug

• Application: Indoor

• Housing material: Aluminum die cast

• Housing color: RAL 1021 (yellow)

• Optics cover material: Polycarbonate with scratch-resistant coating outside

• Dimensions (W x H x D): 102 mm x 152 mm x 106 mm

• Weight: 1.2 kg

• Enclosure rating: IP65 (EN 60529)

Environmental Specifications

• Ambient operating temperature: -10°C to +50°C

• Storage temperature: -25°C to +50°C

• Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, Class 5M1

• Shock resistance: IEC 60068-2-27, Class 5M1

• Continuous shock: 50 m/s² at 11 ms; 100 m/s² at 16 ms

• Alternate Mfr part number: 1056428

• Numeric ID: 4079255

Installation Guide

Follow these steps to install the SICK S30B-3011CA correctly.

1. Mount the scanner on a stable surface at the correct height for your application.

2. Ensure the 270 degree scanning area is free from obstructions.

3. Connect the system plug with or without connecting cable to the M12 5-pin.

4. Apply 24 V DC power within the 16.8 to 30 V range to the SICK S30B-3011CA.

5. Configure protective and warning fields using CDS software on a PC.

6. Set the resolution between 30 mm and 150 mm for your detection needs.

7. Configure multiple sampling from 2 to 16 for reliable detection.

Packing List

This package for the SICK S30B-3011CA includes the following items.

• SICK S30B-3011CA safety laser scanner unit (one unit)

• System plug (without connecting cable)

• Product documentation and CDS software access

• Mounting hardware kit

Frequently Asked Questions (FAQ)

1. What is the protective field range of the SICK S30B-3011CA?
The SICK S30B-3011CA has a protective field range of 3 meters. The warning field range extends to 8 meters at 15 percent reflectivity.

2. What safety ratings does the S30B-3011CA have?
The SICK S30B-3011CA has Type 3 (IEC 61496), SIL 2 (IEC 61508), Category 3 (EN ISO 13849), and PL d (EN ISO 13849) ratings.

3. Can the SICK S30B-3011CA be used outdoors?
The SICK S30B-3011CA is designed for indoor applications only. The operating temperature range is -10°C to +50°C.

4. What is the scanning angle of the S30B-3011CA?
The SICK S30B-3011CA scans 270 degrees. This wide angle provides excellent coverage for hazard protection.

5. How many field sets does the SICK S30B-3011CA support?
The SICK S30B-3011CA supports 4 field sets with triple field set technology. This gives you 12 configurable fields and 4 monitoring cases.
