What the SICK AFM60E-S4AC004096 Solves in Harsh Motion Feedback

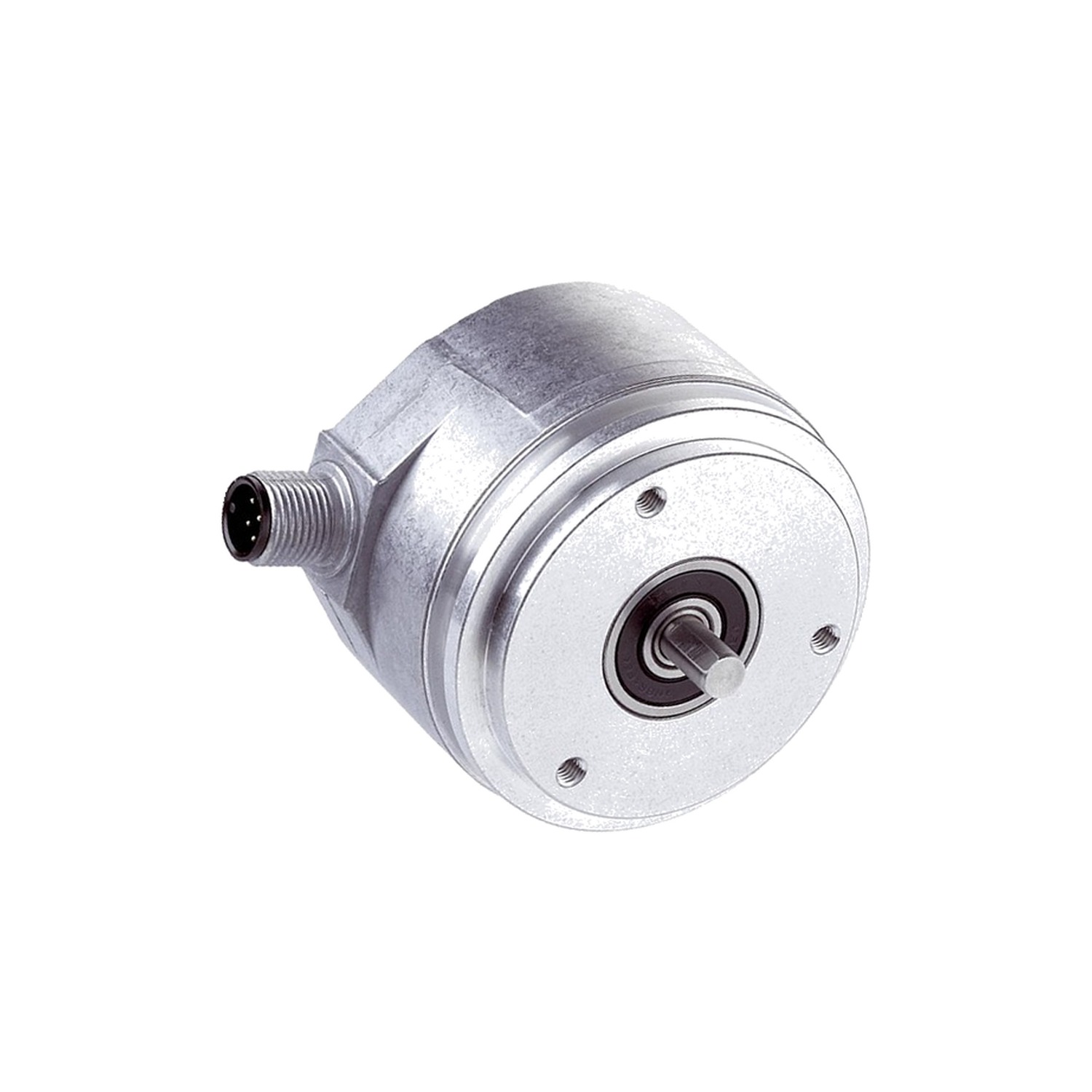

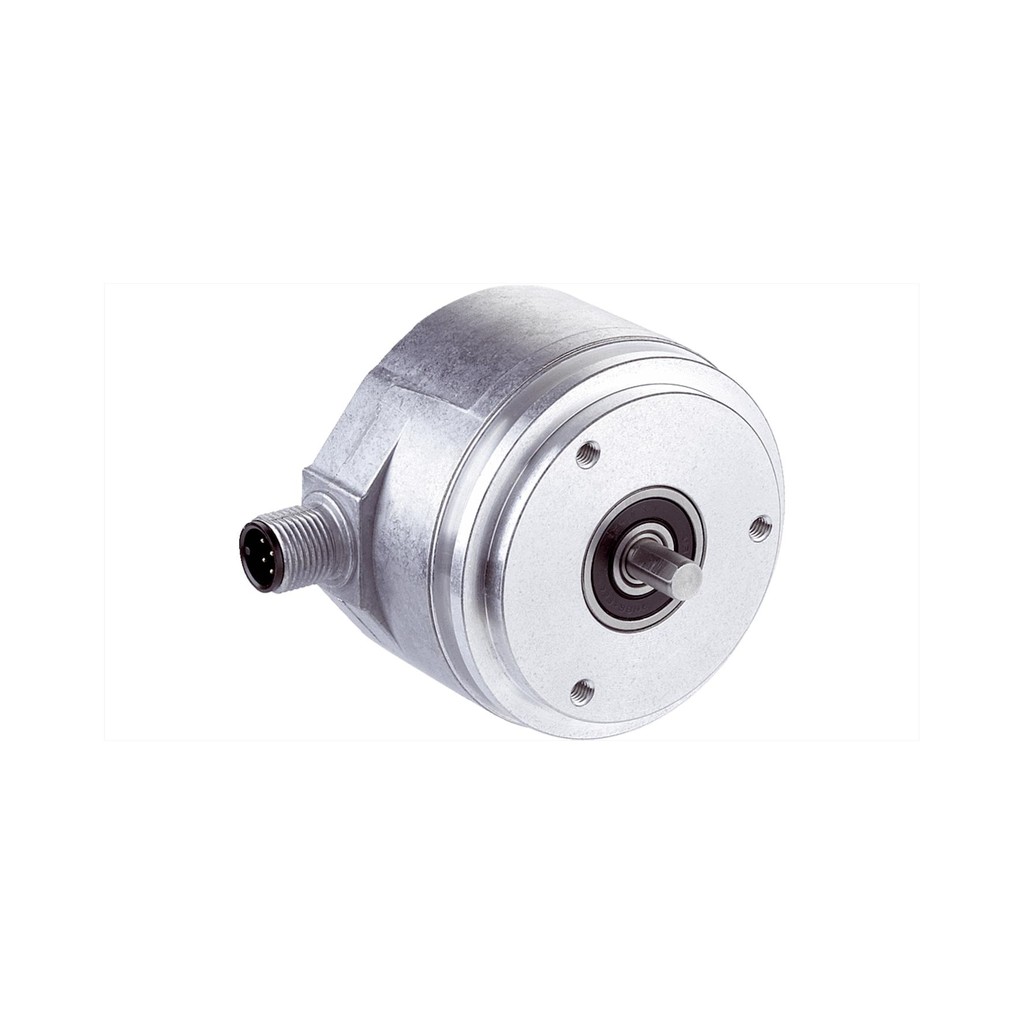

The SICK AFM60E-S4AC004096 is a multiturn absolute encoder from the AFS/AFM60 SSI series. It delivers 12 bit × 12 bit resolution (4,096 × 4,096) over an SSI interface, so position data remains available after power loss without a homing cycle. For oil and gas engineers, that means fewer restart procedures on mission-critical machinery.

Absolute feedback removes the reference run that incremental encoders require. In valve actuation, drawworks and pipe-handling equipment, this directly reduces downtime after power interruptions. This unit is built for demanding environments, with an aluminum die-cast housing and stainless steel shaft.

Key Features and Technical Specifications

• Resolution: 4,096 steps per revolution and 4,096 revolutions (12 bit × 12 bit).
• Interface: SSI communication with Gray code output.
• Accuracy: Error limit ±0.2° per DIN ISO 1319-1.
• Repeatability: 0.002° standard deviation per DIN ISO 55350-13.
• Supply voltage: 4.5 ... 32 V nominal DC with reverse polarity protection.
• Power consumption: ≤ 0.7 W maximum without load.
• Operating temperature: 0 °C ... +85 °C.
• Protection: IP65 shaft side and IP67 housing side per IEC 60529.

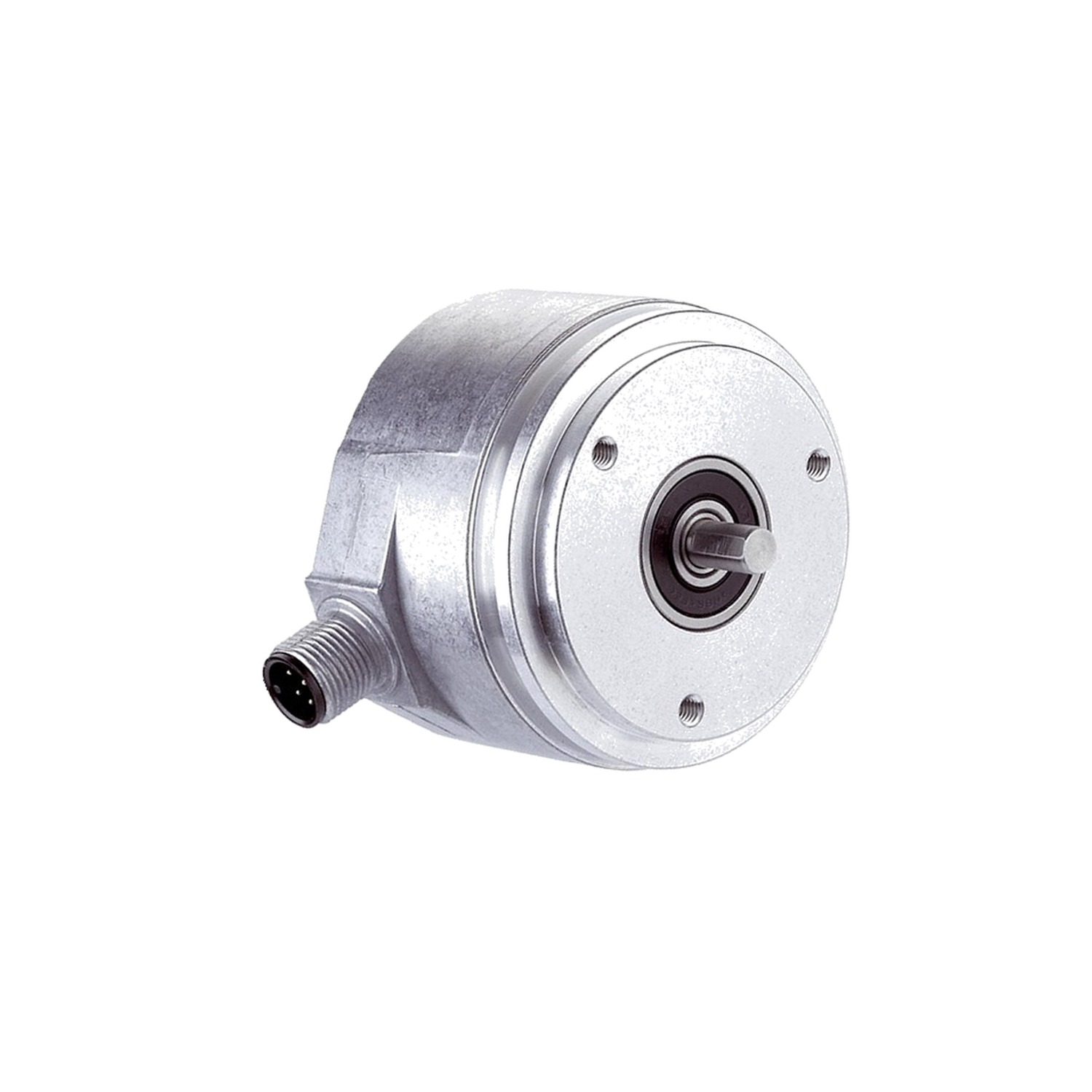

• Mechanical: Solid shaft Ø10 mm × 19 mm, face mount flange, M12 8-pin radial connector.
• Speed: ≤ 9,000 min⁻¹ with 3.3 K self-heating per 1,000 rpm.

The wide 4.5 ... 32 V nominal DC supply range lets the encoder share a control cabinet rail without a dedicated regulator. Meanwhile, the 0 °C ... +85 °C operating range covers most skid-mounted installations. The M12 connector supports fast field replacement, and the IP67 housing side resists washdown and dust ingress.

How the Encoder Handles Oil and Gas Pain Points

Vibration and shock are common on drilling and wellhead equipment. This unit is rated for 50 g shock (6 ms) and 20 g vibration from 10 Hz to 2,000 Hz. These ratings help maintain signal integrity where pumps and motors induce continuous movement.

Temperature swings also challenge feedback devices. The 0 °C ... +85 °C operating range and aluminum die-cast housing support stable performance in outdoor and semi-enclosed installations. In addition, the stainless steel shaft resists corrosion in humid atmospheres up to 90 % relative humidity, provided condensation is not permitted.

Bearing wear is another maintenance concern. The bearing lifetime of 3.0 × 10⁹ revolutions supports long service intervals on continuously rotating shafts. Combined with a start-up torque below 0.5 Ncm at +20 °C, the encoder places minimal load on small drive motors.

Installation and Integration Guidance

Mount the encoder using the face mount flange with its 36 mm centering hub. Keep radial shaft loading at or below 80 N and axial loading at or below 40 N. The permissible speed of 9,000 min⁻¹ applies with the stated self-heating allowance, so verify thermal headroom in enclosed spaces.

For SSI wiring, use the M12 8-pin radial connector and observe the clock frequency limit of ≤ 1 MHz. The SET input is H-active (L = 0–3 V, H = 4.0–Us V), and the CW/CCW input is L-active (L = 0–1.5 V, H = 2.0–Us V). Code sequence is parameter-adjustable for CW or CCW counting.

Integration note: wiring into an SSI network may require an external gateway or connection module. Confirm cables and gateways with PetroPartsOnline before commissioning.

Reliability and Maintenance Practices

Inspect the shaft seal and connector periodically for contamination. Because the housing side is IP67, verify that the mating connector is fully seated after service. Avoid condensation inside the encoder by respecting the 90 % relative humidity limit and the storage temperature range of –40 °C ... +100 °C without package.

Monitor bearing condition through vibration analysis where accessible. The 3.0 × 10⁹ revolution bearing lifetime provides a reference for planned replacement intervals. For mission-critical installations, keep a spare encoder on hand to reduce response time.

Frequently Asked Questions

What supply voltage does This unit require?

The SICK unit accepts 4.5 ... 32 V nominal DC and includes reverse polarity protection. Power consumption is ≤ 0.7 W maximum without load.

What is the operating temperature range of this encoder?

The encoder operates from 0 °C to +85 °C. Storage temperature ranges from –40 °C to +100 °C without package, and relative humidity must not exceed 90 % with no condensation.

How does the SSI interface simplify integration?

SSI provides a synchronous serial link with a clock frequency of ≤ 1 MHz. The encoder outputs Gray code, and the initialization time is 50 ms maximum after power-up.

Can This unit be used in high-vibration applications?

Yes. The encoder is rated for 50 g shock (6 ms) and 20 g vibration from 10 Hz to 2,000 Hz, making it suitable for rugged oil and gas machinery.

What maintenance does the encoder require?

Periodic inspection of the connector and shaft seal is recommended. The bearing lifetime is 3.0 × 10⁹ revolutions, and the IP67 housing side protects against dust and water ingress when the mating connector is mounted.

Contact PetroPartsOnline for parts suited to your application's requirements.
