Product Overview of Schneider Electric BMXRMS004GPF

The Schneider Electric BMXRMS004GPF is a G memory card. Engineers specifically designed it for user file storage. Therefore, it works perfectly with Modicon ePAC CPUs. This accessory belongs to the Modicon M580 product series. In addition, it is compatible with the BMEP58... processor family. As a result, the BMXRMS004GPF provides reliable expanded storage for M580 control systems.

Memory Capacity Breakdown

First, let us examine the memory configuration. The BMXRMS004GPF offers a total capacity of 4 GB. Specifically, this breaks down into two distinct areas. First, there is 64 MB of application memory for program storage. Second, there is 3.93 GB of data storage for user files. Therefore, this memory card suits both application backup and data logging needs.

Thus, the BMXRMS004GPF provides ample space for recipes, trend logs, and firmware updates. Consequently, users can store large amounts of historical data directly on the memory card.

Write Endurance and Data Retention

Moving on, let us discuss reliability features. The BMXRMS004GPF offers a write endurance of 100,000 cycles. Therefore, it withstands frequent write operations over many years of service. In terms of data retention, this card guarantees 10 years of data preservation without power. Thus, critical programs and configuration files remain safe even during extended system shutdowns.

As a result, the BMXRMS004GPF is a trustworthy choice for long-term industrial applications.

Compatible Processors

Now, let us discuss compatibility. The BMXRMS004GPF is specifically designed for the Modicon M580 series. In addition, it works with BMEP58... series processors. Therefore, verify that your CPU belongs to this family before purchasing. These processors include the BMEP581020, BMEP582040, BMEP583040, and other BMEP58 models. Thus, the BMXRMS004GPF serves as a universal memory card for the entire BMEP58 line.

Environmental Specifications

Regarding environmental limits, the BMXRMS004GPF operates across a wide temperature range. Specifically, it works from -40°C to 85°C. Therefore, this memory card functions in extreme cold and high heat conditions. Thus, it suits installations in unheated warehouses, outdoor cabinets, or desert environments.

Because of this wide temperature tolerance, the BMXRMS004GPF is more rugged than standard commercial memory cards. Consequently, it is ideal for demanding industrial settings.

Physical Specifications

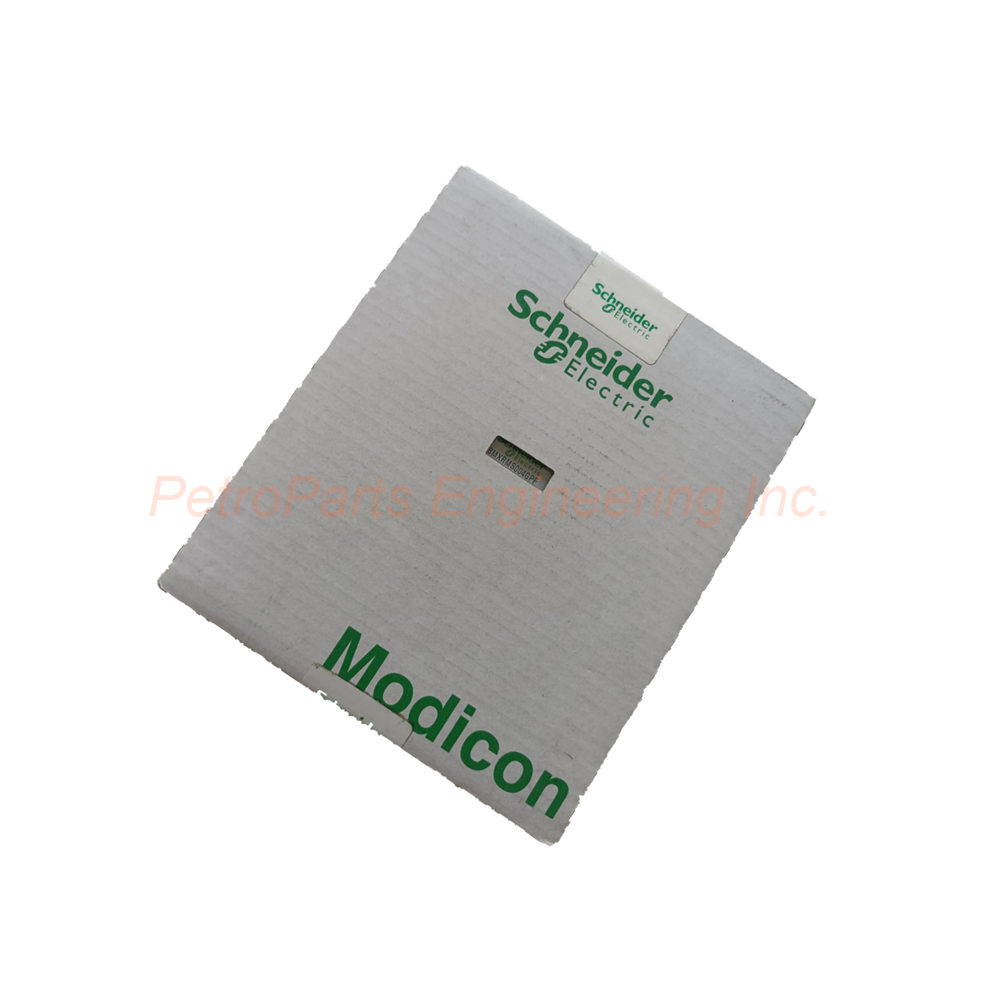

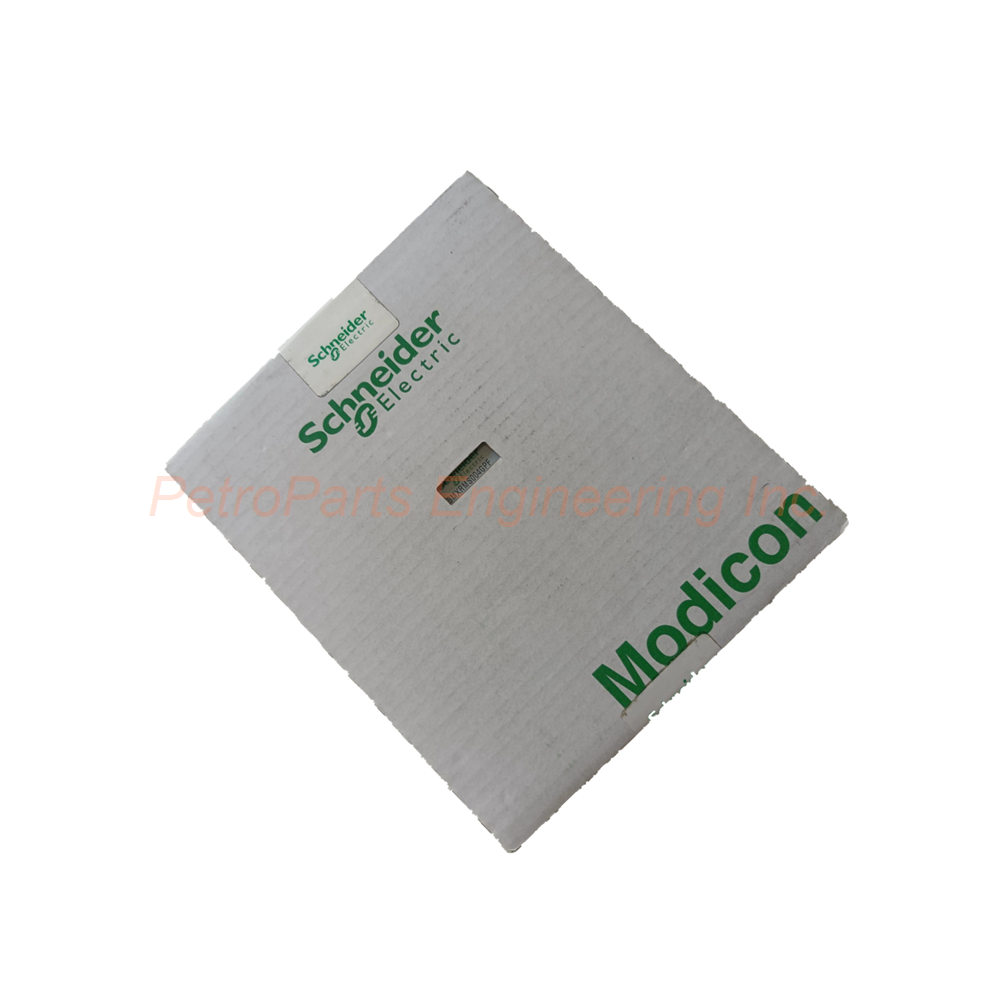

Now, let us discuss physical characteristics. The BMXRMS004GPF is extremely lightweight. It weighs only 0.002 kg (2 grams). Therefore, it adds virtually no weight to the processor module. The packaging dimensions are 0.500 cm height, 12.000 cm width, and 14.000 cm length. Thus, it ships in a small, protective package.

In terms of packaging, single unit packages (PCE) are available. For bulk orders, packaging type S02 contains 100 units per package.

Installation and Usage Guide

Follow these steps to install the BMXRMS004GPF safely. First, turn off all power to the M580 processor. Next, locate the memory card slot on the BMEP58 CPU. Then, insert the BMXRMS004GPF into the slot until it clicks. After that, apply power to the processor. Finally, access the card through the programming software for file operations.

Important considerations: Do not remove the card while the processor is writing data. Also, handle the card by its edges to avoid static damage. For best results, format the card using the processor's configuration tool before first use. Remember that the BMXRMS004GPF has a write endurance of 100,000 cycles. Therefore, avoid unnecessary write operations to maximize card life.

Package Contents

• One Schneider Electric BMXRMS004GPF G Memory Card

• No adapter or reader included

• No software included

• No USB cable included

• No printed manual (digital download available)

Frequently Asked Questions (FAQ)

1. Which processors work with the BMXRMS004GPF?
The BMXRMS004GPF works with Modicon M580 BMEP58 series processors. Therefore, check that your CPU is a BMEP58 model before purchasing.

2. Can I use the BMXRMS004GPF with BMEP58 processors only?
Yes, this card is specifically designed for the BMEP58 family. Therefore, the BMXRMS004GPF does not work with other Modicon series like Quantum or M340.

3. How long does data stay on the BMXRMS004GPF without power?
The BMXRMS004GPF retains data for 10 years without power. Thus, your programs and files remain safe during long storage periods.

4. How many write cycles can the BMXRMS004GPF handle?
This memory card supports 100,000 write cycles. Therefore, it offers excellent durability for industrial applications with frequent data logging.

5. What is the operating temperature range for the BMXRMS004GPF?
The BMXRMS004GPF operates from -40°C to 85°C. Thus, it works in extreme environments where standard cards would fail.

6. Does the BMXRMS004GPF come pre-formatted?
The card is ready for use with M580 processors. However, format it through the programming software for optimal performance. Therefore, always follow the installation guide.
