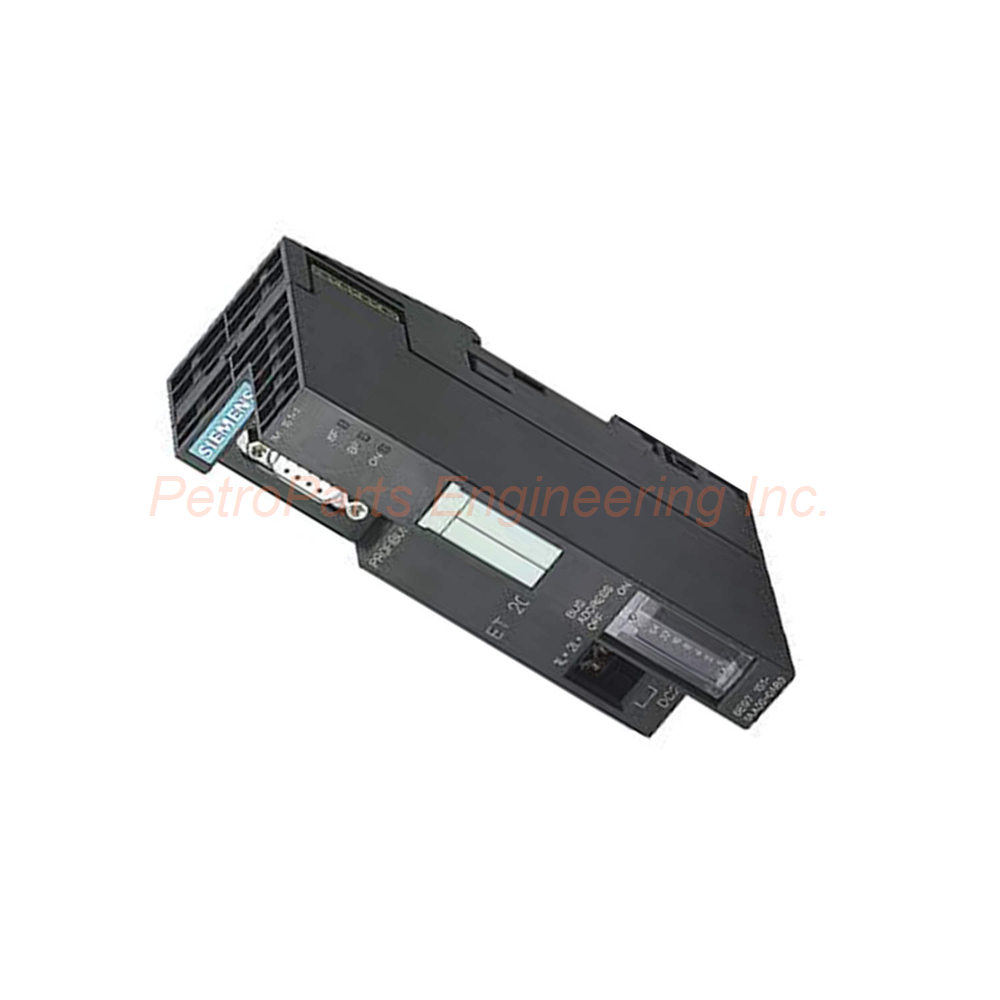

Siemens 6ES7151-1AA05-0AB0 | PROFIBUS DP Interface Module
Introduction:
Siemens 6ES7151-1AA05-0AB0 Interface Module for PROFIBUS DP. Supports 63 I/O modules with 244 bytes data volume. 1200 meter cable length.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Siemens 6ES7151-1AA05-0AB0 is a crucial interface module for I/O applications. It belongs to the ET 200S product line from Siemens. This module enables seamless integration in distributed I/O systems. The Siemens 6ES7151-1AA05-0AB0 uses PROFIBUS DP protocol for robust communication. It streamlines data exchange in configurations with multiple modules. Users trust this interface module for reliable industrial automation.
Technical Specifications
The 6ES7151-1AA05-0AB0 delivers efficient communication and control capabilities. Below are the complete technical details.
General Specifications
Manufacturer: Siemens for industrial automation reliability.
Product Line: I/O Modules series.
Part Number: 6ES7151-1AA05-0AB0 for precise identification.
Product Type: Interface Module for distributed I/O systems.
UPC: 662643400878 for universal product identification.
Weight: 0.31 lbs (0.14 kg) for lightweight installation.
Communication and Data Specifications
Communication Mode: PROFIBUS DP for fieldbus connectivity.
Data Volume: 244 bytes for systematic data transmission.
Number of Supported I/O Modules: Up to 63 additional modules.
Integration Role: Acts as interface between PROFIBUS DP and I/O modules.
Data Exchange: Streamlines communication in multi-module configurations.
Cable Length and Installation Distance
Maximum Cable Length: 1200 meters for large system installations.
Distance Capability: Reliable for applications where distance matters.
Cable Type: Standard PROFIBUS DP cabling recommended.
Environmental Specifications
Operating Temperature Range: 0 to 40 degrees Celsius.
Operating Humidity: Up to 80% RH (non-condensing).
Storage Humidity: Up to 80% RH (non-condensing).
Maximum Operating Altitude: 1000 meters above sea level.
Environmental Suitability: Standard industrial conditions.
Physical Specifications
Weight (Kilograms): Approximately 0.15 kg for easy handling.
Installation: Facilitates easy handling and mounting.
Construction: Designed for standard DIN-rail mounting.
Application Capabilities
System Configuration: Supports comprehensive application setups.
Module Connectivity: Enables connection of many I/O modules.
Data Transmission: Handles systematic data effectively.
Communication Efficiency: PROFIBUS DP ensures robust data exchange.
Installation Guide
Follow these steps to install the Siemens 6ES7151-1AA05-0AB0 correctly.
Power Down System: Turn off all power to the I/O rack assembly.
Mount Interface Module: Clip the unit onto the DIN-rail in the first slot.
Connect PROFIBUS DP: Attach the PROFIBUS cable to the DP port.
Set DP Address: Configure the station address using the DIP switches.
Add I/O Modules: Install up to 63 I/O modules to the right of the interface.
Wire Power Supply: Connect 24 V DC power to the module terminals.
Terminate Bus: Ensure proper termination at both ends of the PROFIBUS cable.
Verify Cable Length: Keep total cable run under 1200 meters.
Apply Power: Turn on the system power to the I/O rack.
Configure in Software: Use STEP 7 to configure the PROFIBUS network.
Set Data Volume: Configure the 244 bytes data exchange parameters.
Test Communication: Verify data exchange with all connected I/O modules.
Installation Notes
Install the interface module in the first slot of the ET 200S station.
Do not exceed 1200 meters of PROFIBUS DP cable length.
The operating temperature range is 0 to 40 degrees Celsius.
Maximum altitude is 1000 meters above sea level.
Humidity should stay below 80% RH non-condensing.
Packaging List
This unit ships as a new and original product.
Siemens 6ES7151-1AA05-0AB0 Interface Module (ET 200S)
PROFIBUS DP bus connector (optional, check order)
Product data sheet with DIP switch settings
Anti-static factory packaging bag
Frequently Asked Questions (FAQ)
1. How many I/O modules can connect to the 6ES7151-1AA05-0AB0?
The Siemens 6ES7151-1AA05-0AB0 supports up to 63 additional I/O modules. This allows comprehensive system configurations.
2. What is the maximum cable length for PROFIBUS DP with this module?
The 6ES7151-1AA05-0AB0 supports a maximum cable length of 1200 meters. This makes it suitable for larger distributed systems.
3. What is the data volume capacity of this interface module?
The Siemens 6ES7151-1AA05-0AB0 handles a data volume of 244 bytes. This enables systematic data transmission effectively.
4. What is the operating temperature range for this module?
The 6ES7151-1AA05-0AB0 operates reliably between 0 to 40 degrees Celsius. Storage conditions support similar temperature ranges.
5. Does this module work with STEP 7 configuration software?
Yes, the Siemens 6ES7151-1AA05-0AB0 configures using Siemens STEP 7 software. Set the PROFIBUS DP address and data parameters in the hardware configuration.
