1747-M13 A-B | Program Data Table Storage for SLC 5/03 5/04 5/05
Introduction:
Allen-Bradley 1747-M13 SLC 500 Memory Module. 64KB flash memory for program and data table storage. Compatible with SLC 5/03, 5/04, 5/05.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview

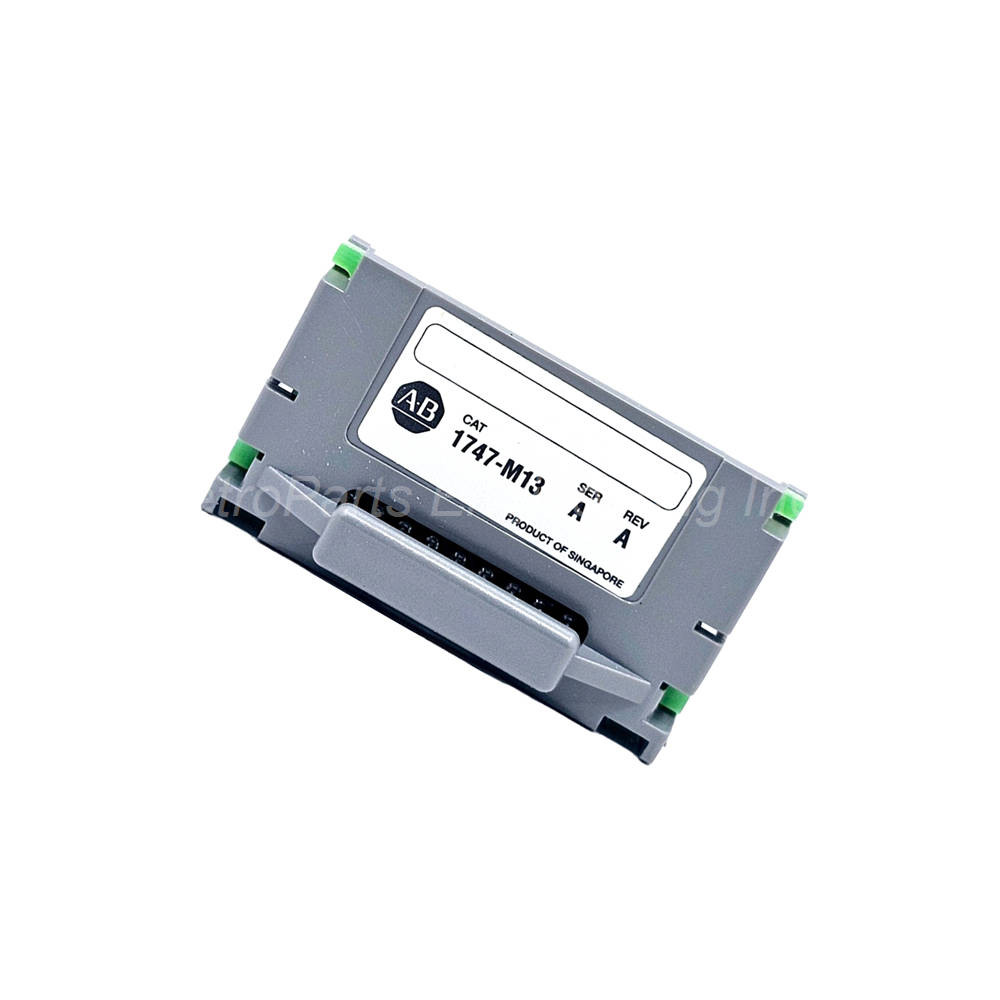

The Allen-Bradley 1747-M13 is a memory module for the SLC 500 system. This device provides 64 kilobytes of flash memory for program and data table storage. The Allen-Bradley 1747-M13 is compatible with SLC 5/03, SLC 5/04, and SLC 5/05 processors. Users trust this module for non-volatile backup memory in critical applications.
Technical Specifications
The 1747-M13 delivers reliable non-volatile memory backup. Below are the complete technical details.
General Specifications
Manufacturer: Rockwell Automation for industrial control reliability.
Brand: Allen-Bradley for SLC 500 compatibility.
Part Number: 1747-M13 for precise identification.
Series: SLC 500 programmable controller family.
Module Type: Memory Module.
UPC: 10662468232910 for universal product identification.
UNSPSC: 43201402 for classification.
Installation: Processor PC board mounting.
Memory Specifications
Memory Type: Flash memory.
Memory Size: 64 kilobytes.
User Memory: 64,000 Words.
Backup Memory: Flash non-volatile storage.
Function: Program/Data Table Storage.
Compatibility
Compatible Hardware Style: Fixed or modular hardware.
Compatible Processors: SLC 5/03, SLC 5/04, SLC 5/05.
Compatible Adapter: 1747-M15 Series B (required).
Adapter Warning: Series A 1747-M15 may damage the module.
Compatible Chassis: 3 I/O chassis.
Chassis Module Slots: 30 slots.
Communication: Ethernet, RS-232.
Performance Specifications
Program Scan Time: 0.9 milliseconds.
I/O Scan Time: 0.225 milliseconds.
Configuration: Hardware PROM programmer.
Installation Requirements
Jumper Setting: Connect A18 to the center pin.
Power State: Controller must be switched OFF during installation.
Keyed Connectors: Prevent improper installation.
ESD Protection: Avoid electrostatic charge exposure.
Functionality Details
Non-Volatile Memory: Provides backup when battery is drained.
Processor RAM: Normally backed by Lithium battery for 2+ years.
Battery Failure Protection: Memory module prevents program loss.
Automatic Load: User program loads automatically on power cycle.
Program Burn: Simple connection and burn to EEPROM module.
Installation Guide
Follow these steps to install the Allen-Bradley 1747-M13 correctly.
Power Down the Controller: Switch OFF the SLC 500 processor completely.
Verify Adapter Type: Ensure you have a 1747-M15 Series B adapter.
Do NOT use Series A: Series A adapters may damage the memory module.
Set the Jumper: Connect jumper from A18 to the center pin.
Ground Yourself: Use ESD protection before handling the module.
Remove Processor: Take out the SLC processor from the chassis.
Locate Memory Slot: Find the memory module slot on the processor board.
Orient the Module: Align the keyed connectors properly.
Insert the 1747-M13: Push gently until fully seated in the slot.
Reinstall Processor: Place the processor back into the chassis.
Apply Power: Turn on the controller power.
Burn Program: Initiate program burn to the EEPROM module.
Verify Load: Cycle power and confirm automatic program load.
Check Status: Verify memory module is functioning correctly.
Installation Notes
Electrostatic charge may damage, alter, or destroy the memory.
The module provides non-volatile memory even when the battery drains.
User program loads automatically on every power cycle.
The 1747-M13 requires a 1747-M15 Series B memory adapter.
Improper jumper settings may cause module malfunction.
Packaging List
This unit ships as a new and original product.
Allen-Bradley 1747-M13 Memory Module (64KB Flash)
Installation instructions
Anti-static factory packaging bag
Frequently Asked Questions (FAQ)
1. Which SLC 500 processors work with the 1747-M13?
The Allen-Bradley 1747-M13 is compatible with SLC 5/03, SLC 5/04, and SLC 5/05 processors. It does not work with SLC 5/01 or SLC 5/02.
2. What memory adapter is required for the 1747-M13?
The 1747-M13 requires a 1747-M15 Series B memory adapter. Using a Series A adapter may damage the memory module or the PROM.
3. What happens when the processor battery drains with this module installed?
With the Allen-Bradley 1747-M13 installed, the user program remains safe even when the battery drains. The program loads automatically from flash memory on power cycle.
4. How much memory does the 1747-M13 provide?
The 1747-M13 provides 64 kilobytes (64,000 words) of flash memory for program and data table storage.
5. What is the jumper setting for the 1747-M13?
The jumper on the Allen-Bradley 1747-M13 must connect A18 to the center pin. This ensures proper module operation.
